OEX ACX1829 Fuse Box Standard Blade 6 Way 20A 1 Pce
Click to open expanded view
OEX logo

OEX ACX1829 Fuse Box Standard Blade 6 Way 20A 1 Pce

SKU: ACX1829
Price
$23
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

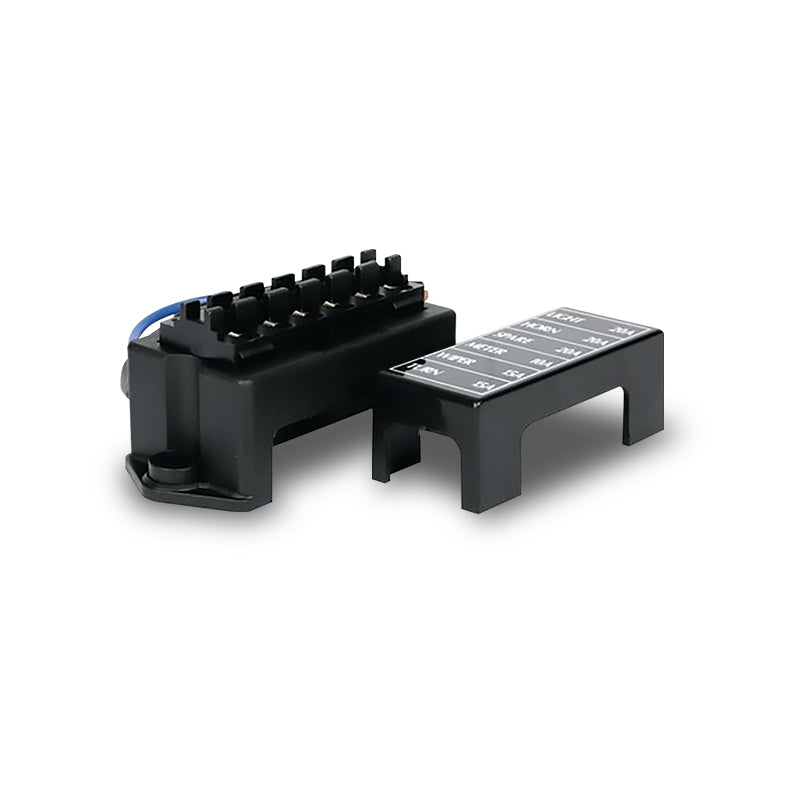

OEX ACX1829 6-Way Pre-Wired Standard Blade Fuse Box 20A Per Circuit with Clip-On Cover and U-Shaped Base

The OEX ACX1829 is a 6-way standard blade automotive fuse box that is pre-wired and ready to install. Designed for organising and protecting up to six independent 12V circuits, it features a clip-on cover with fuse identification markings, a U-shaped base that provides clearance for wiring routing underneath, and a 20A maximum current rating per circuit. Supplied as a single unit. Covered by a one year warranty.

Product overview

A dedicated fuse box allows multiple aftermarket accessory circuits to be protected and organised from a single mounting point, replacing individual inline fuse holders with a cleaner, more professional installation. The ACX1829 provides six independent fused circuit positions each accepting a standard blade ATC/ATO fuse for distributing power to auxiliary lighting, compressors, fridges, dual battery systems, caravan accessories and other 12V loads up to 20A per circuit.

The pre-wired design saves installation time with no additional terminal work required. The clip-on cover protects the fuses from moisture and debris, and the fuse identification markings on the cover allow each circuit to be labelled for fast future reference during servicing. The U-shaped base design provides clearance for wiring to run underneath the box, simplifying routing and reducing strain on cables at the connection points.

Features and benefits

Pre-wired: Ready to connect without additional terminal work, saving installation time.

6-way: Supports up to six independent fused circuits from a single mounting point.

Clip-on cover with fuse identification: Protects fuses from moisture and debris, with identification markings allowing circuits to be labelled for fast future reference.

U-shaped base for wire clearance: Provides clearance for wiring to route underneath the box, simplifying cable management and reducing strain on cable entry points.

20A maximum current per circuit: Suits a wide range of standard 12V automotive accessories drawing up to 20A per circuit.

Standard blade ATC/ATO fuse format: Compatible with widely available standard blade fuses.

One year warranty: Covered by a one year OEX warranty.

Technical specs

Specification Detail
SKU ACX1829
Brand OEX
Type Fuse Box
Fuse Type Standard Blade (ATC/ATO)
Number of Ways 6
Maximum Current 20A per circuit
Wiring Pre-wired
Cover Clip-on with fuse identification
Base U-shaped for wire clearance
Pack Quantity 1
Weight 0.137kg
Warranty One year
Sold As Single unit

Frequently asked questions

Is this fuse box pre-wired? Yes. The ACX1829 is pre-wired and ready to install without additional terminal work.

What fuse type does this box accept? Standard blade ATC/ATO fuses the most widely available automotive fuse format. Select the appropriate amp rating for each circuit up to the 20A maximum per position.

How many circuits does this fuse box support? Six independent fused circuits, one per way.

What is the maximum current rating per circuit? 20A maximum per circuit. Ensure each fuse installed in the box is rated appropriately for the circuit it protects and does not exceed 20A.

Can this fuse box be used in a caravan or marine application? Yes. The ACX1829 suits 12V automotive, caravan and marine applications. The clip-on cover provides protection against moisture and debris, making it suited to installations in these environments.
