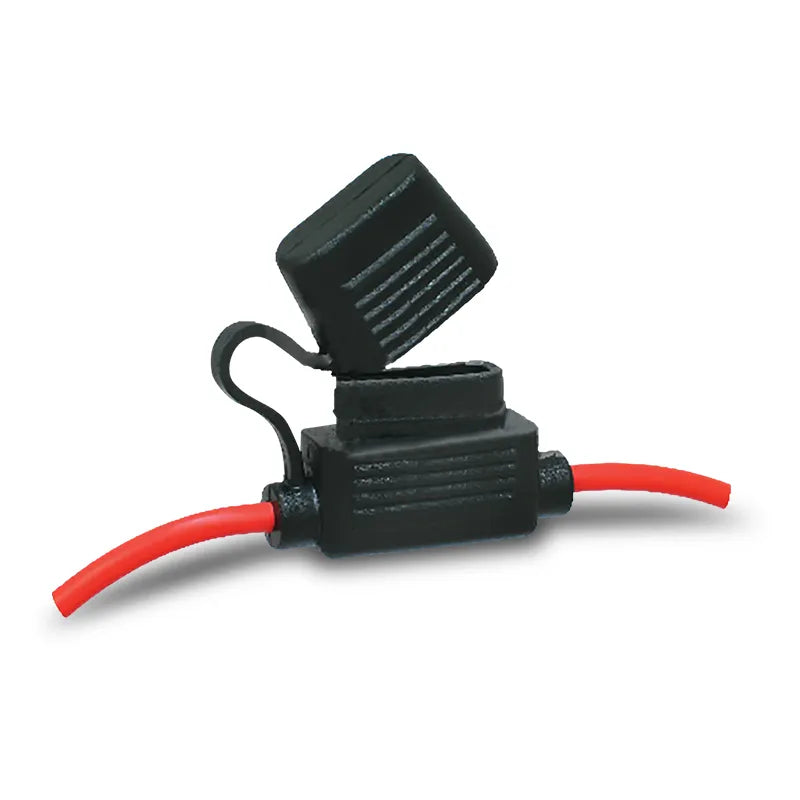

OEX ACX1711 In Line Fuse Holder Standard Blade 1 Way 35A 10 PCE
Click to open expanded view
OEX logo

OEX ACX1711 In Line Fuse Holder Standard Blade 1 Way 35A 10 PCE

SKU: ACX1711
Price
$62
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

OEX ACX1711 Weatherproof Inline Standard Blade Fuse Holder 35A 12AWG Pre-Wired Leads Pack of 10

The OEX ACX1711 is a single-way standard blade inline fuse holder in black, rated at 35A, supplied in a pack of 10. It accepts a standard ATS/regular blade fuse and is fitted with a weatherproof cover to protect the fuse and connections from moisture, dust and vibration. Each holder comes pre-wired with 12AWG leads 150mm on each side, ready for inline installation into a power circuit. Also available as a single unit as ACX1711BL. Covered by a one year warranty.

Product overview

An inline fuse holder allows a standard blade fuse to be installed directly into a power cable run, providing circuit protection at the correct location without requiring a fuse box. The ACX1711 is rated to 35A maximum, covering a wide range of aftermarket accessory circuits including driving lights, LED light bars, caravan and trailer accessory feeds and marine and 4WD auxiliary wiring. The weatherproof cover protects the fuse and connection from moisture, dust and vibration, making it suited to outdoor, underbonnet and exposed wiring positions.

Each holder is pre-wired with 12AWG leads at 150mm on each side of the fuse housing, providing sufficient length for most inline installation applications. The fuse is not included select the appropriate standard blade fuse rating for the circuit being protected, up to the 35A maximum rating of the holder. OEX produces standard blade fuses in a range of ratings to suit. The pack of 10 suits workshops and installers running multiple accessory wiring jobs.

Features and benefits

35A maximum current rating: Suited to a wide range of aftermarket accessory circuits up to 35A including driving lights, LED light bars and auxiliary wiring feeds.

Accepts standard blade ATS fuses: The most common automotive fuse format, compatible with the full OEX standard blade fuse range.

Weatherproof cover: Protects the fuse and connections from moisture, dust and vibration, suited to outdoor, underbonnet and exposed wiring positions.

12AWG pre-wired leads, 150mm each side: Ready for direct inline installation without additional wiring preparation.

Black: Standard colour for automotive wiring installations.

Pack of 10: Trade-friendly quantity for workshops and installers running multiple accessory wiring jobs.

Also available as single unit: The ACX1711BL is the same inline fuse holder in a single blister pack.

One year warranty: Covered by a one year OEX warranty.

Technical specs

Specification Detail
SKU ACX1711
Brand OEX
Type Inline Fuse Holder
Fuse Type Standard Blade (ATS)
Ways 1
Maximum Current 35A
Colour Black
Lead Wire Gauge 12AWG
Lead Length 150mm each side
Weatherproof Yes (with cover)
Pack Quantity 10
Weight 0.282kg
Warranty One year
Sold As Pack of 10

Frequently asked questions

What fuse does this holder accept? This holder accepts a standard blade fuse (ATS/regular blade), the most common automotive fuse format measuring 19x19mm. Select the appropriate fuse rating for your circuit the holder is rated to a maximum of 35A.

Is this holder weatherproof? Yes. The holder includes a cover that protects the fuse and connections from moisture and dust, making it suitable for outdoor, underbonnet and exposed wiring installations.

What is the wire gauge and lead length? Each holder is pre-wired with 12AWG leads, with 150mm on each side of the fuse housing, providing sufficient length for most inline installation applications.

Do I need to supply my own fuse? Yes. The fuse is not included select the appropriate standard blade fuse rating for the circuit being protected, up to the 35A maximum. OEX produces standard blade fuses in a range of ratings.

Is this product available as a single unit? Yes. The ACX1711BL is the same inline fuse holder available in a single blister pack.
