OEX ACX1340 Cable Gland Nylon 12mm 10 Pce
Click to open expanded view
OEX logo

OEX ACX1340 Cable Gland Nylon 12mm 10 Pce

SKU: ACX1340
Price
$26
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

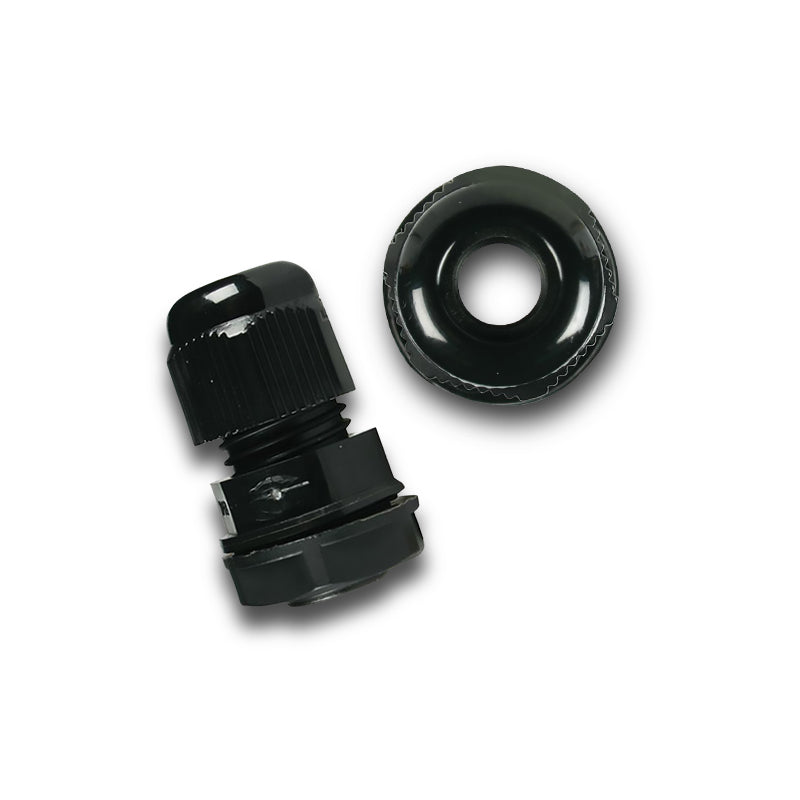

OEX ACX1340 IP68 Rated Nylon 66 Cable Gland 12mm Mounting Hole for 3 to 6.5mm Cable Pack of 10

The OEX ACX1340 is a nylon 66 cable gland supplied in a pack of 10, providing a waterproof and secure cable entry point through panels, enclosures and junction boxes. Rated IP68 for full submersion protection and UL approved. Suits conduit and cable diameters of 3 to 6.5mm with a 12mm mounting hole, 6.9mm internal diameter and 7.9mm thread length. Suited to automotive, marine, caravan and outdoor electrical installations. Covered by a one year warranty.

Product overview

Where a cable passes through a panel or enclosure wall, an unsealed hole allows moisture, dust, vibration and debris to enter or damage the cable insulation over time. A cable gland solves both problems simultaneously it seals the opening against the environment and clamps around the cable to prevent movement and chafing at the panel edge. The ACX1340 is rated IP68, the highest standard ingress protection rating, confirming it is fully sealed against dust and continuous water submersion under pressure, suited to marine, outdoor and automotive enclosure applications.

The gland suits cables and conduit with an outer diameter of 3 to 6.5mm, covering a wide range of light to medium gauge automotive cables. The 12mm mounting hole is a common panel drilling size for small cable glands. The 7.9mm thread length limits suitability to panels within that thickness confirm panel thickness before installation. The nylon 66 construction is UL approved for chemical resistance and dimensional stability. The pack of 10 suits workshops and panel builders running multiple cable entries.

Features and benefits

IP68 rated: Fully sealed against dust and continuous water submersion under pressure, the highest standard ingress protection rating and suited to marine, submerged and fully exposed outdoor applications.

UL approved nylon 66: High-strength, chemically resistant nylon 66 material meeting UL approval standards for cable gland applications.

Suits 3 to 6.5mm cable and conduit: Accommodates a range of light to medium gauge cables and conduit outer diameters within this range for a correct seal.

12mm mounting hole: Fits a standard 12mm panel hole, compatible with common panel drilling sizes for small cable glands.

6.9mm internal diameter: The cable passage bore through the gland body.

7.9mm thread length: Secure panel engagement confirm panel thickness is within this measurement before installation.

Pack of 10: Trade-friendly quantity for workshops and panel builders running multiple cable entries.

One year warranty: Covered by a one year OEX warranty.

Technical specs

Specification Detail
SKU ACX1340
Brand OEX
Type Cable Gland
Material Nylon 66 (UL Approved)
Outside Diameter 12mm
Inside Diameter 6.9mm
Thread M1.5
Thread Length 7.9mm
Mounting Hole 12mm
Conduit and Cable Size 3 to 6.5mm
Total Length 39mm
IP Rating IP68
Pack Quantity 10
Weight 0.04kg
Warranty One year
Sold As Pack of 10

Frequently asked questions

What is a cable gland used for? A cable gland is a fitting that provides a secure, sealed entry point for a cable or conduit passing through a panel or enclosure wall. It clamps around the cable to prevent movement and chafing, while the sealing mechanism prevents moisture, dust and contaminants from entering through the cable opening.

What does IP68 mean? IP68 is an ingress protection rating indicating the fitting is fully sealed against dust (6) and protected against continuous immersion in water under pressure (8). It is the highest standard IP rating, suited to marine, submerged and fully exposed outdoor applications.

What cable or conduit sizes does this gland suit? This gland suits cables and conduit with an outer diameter of 3 to 6.5mm. Confirm the cable or conduit outer diameter falls within this range before purchasing to ensure a correct seal.

What size hole does this gland require and does panel thickness matter? The gland requires a 12mm mounting hole. The thread length is 7.9mm, so the panel must be thin enough for the thread to engage fully and the locknut to tighten against the back face. Confirm panel thickness is within this measurement before installation.

Is this gland available in other sizes? OEX produces cable glands in a range of sizes. Contact us for available options to suit larger or smaller cable and conduit diameters.
