OEX ACX1310 P Clip 12.7mm PVC Coated Steel 25 Pce

SKU: ACX1310
Price
$56
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

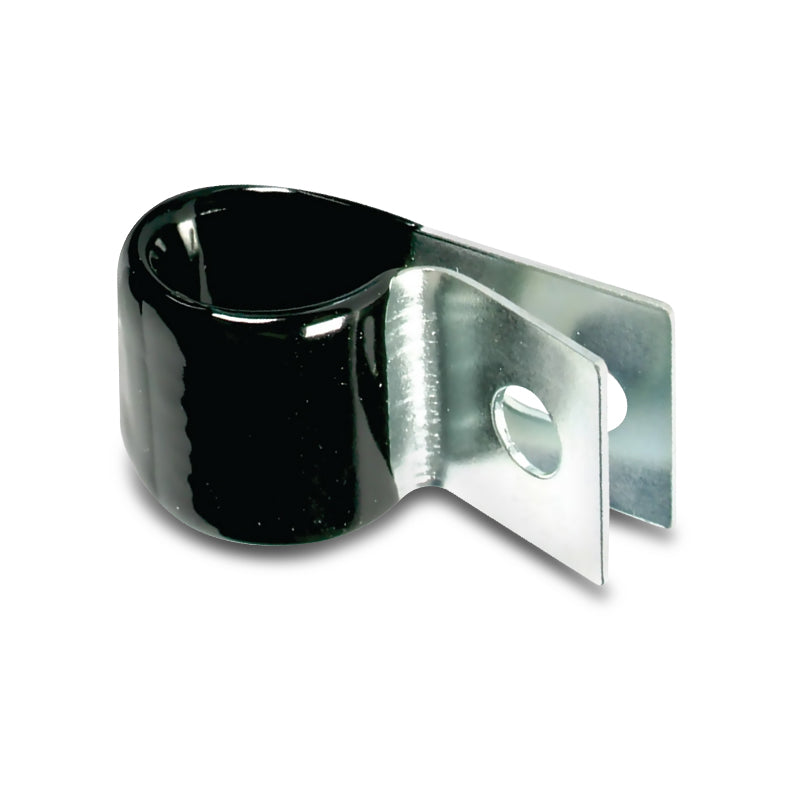

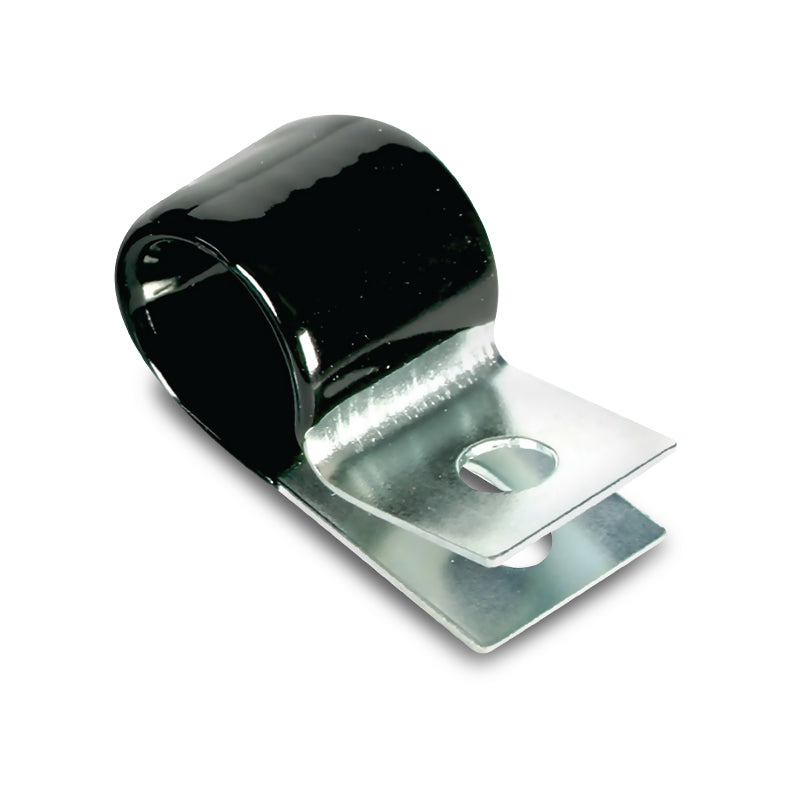

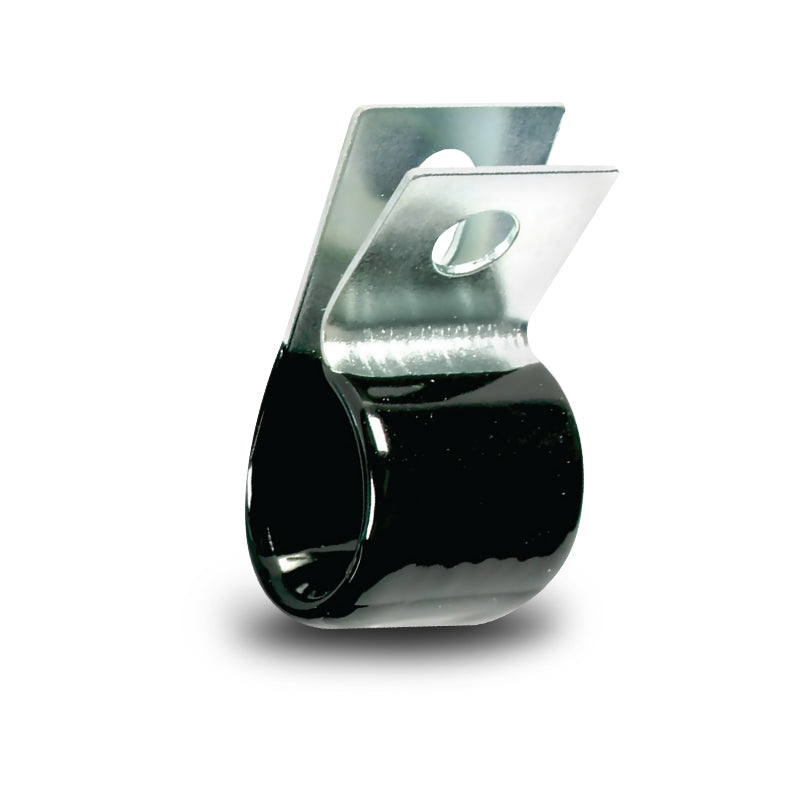

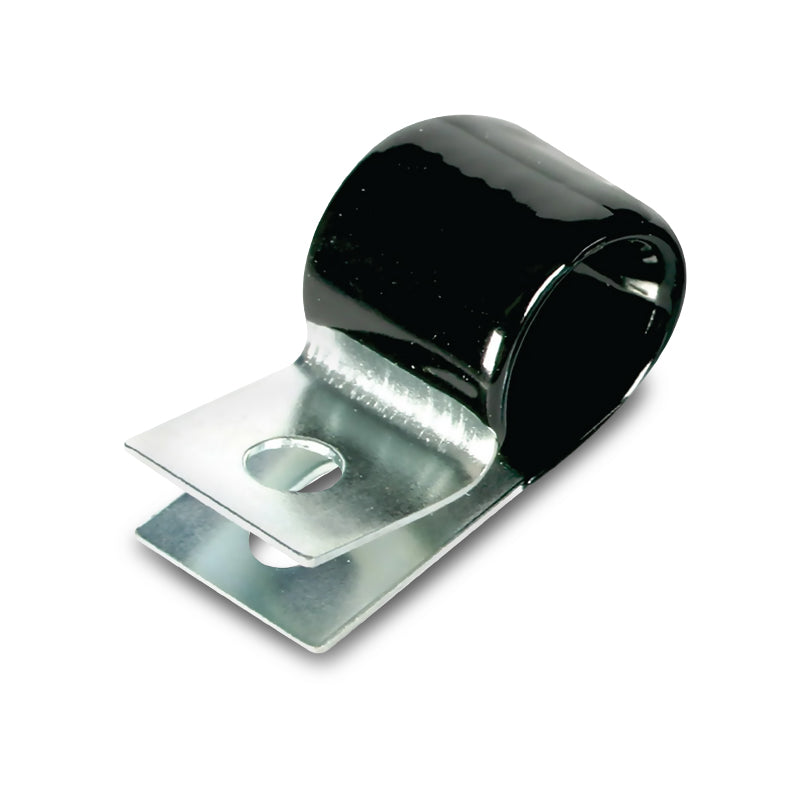

OEX ACX1310 PVC Coated Zinc Plated Steel P Clips 12.7mm Inside Diameter 6mm Mounting Hole Pack of 25

The OEX ACX1310 is a 12.7mm P clip constructed from PVC coated zinc plated steel, supplied in a pack of 25. P clips are used to secure cables, conduit, hoses and wiring harnesses to body panels, chassis rails and mounting surfaces, providing a neat and rattle-free installation. The 6mm mounting hole is compatible with M6 bolts, screws or pop rivets. Covered by a one year warranty.

Product overview

P clips are one of the most commonly used cable and hose management fasteners in automotive wiring. The loop holds the cable, conduit or hose securely in position while the flat tab is fastened to the mounting surface with a bolt, screw or rivet. The ACX1310 uses a zinc plated steel core for rigidity and corrosion resistance, with a PVC outer coating that protects both the clip from rust and the cable or hose insulation from being chafed or damaged by direct metal contact.

At 12.7mm inside diameter with a 6mm mounting hole, the ACX1310 suits cables, convoluted tubing, fuel hoses, brake lines, air lines and hydraulic hoses up to 12.7mm in diameter. The black PVC coating blends with standard automotive wiring presentation. The pack of 25 suits workshops and installers running multiple cable and hose management jobs where a single clip quantity is needed in trade volume.

Features and benefits

12.7mm inside diameter: Suits cables, conduit and hoses up to 12.7mm in diameter, covering a wide range of automotive wiring and hose management applications.

PVC coated zinc plated steel: The zinc plated steel core provides rigidity and corrosion resistance. The PVC coating prevents the clip from directly contacting and chafing cable or hose insulation, reducing wear and damage risk over time.

6mm mounting hole: Compatible with M6 bolts, screws or 6mm pop rivets, the standard mounting fastener used in automotive body panel and chassis rail installation.

Black: Standard colour for automotive cable management, blending with wiring harnesses and body panels.

Pack of 25: Trade-friendly quantity for workshops and fleet installers managing multiple cable and hose runs.

One year warranty: Covered by a one year OEX warranty.

Technical specs

Specification Detail
SKU ACX1310
Brand OEX
Clip Type P Clip
Inside Diameter 12.7mm
Mounting Hole 6mm
Material PVC Coated Zinc Plated Steel
Colour Black
Pack Quantity 25
Weight 0.203kg
Warranty One year
Sold As Pack of 25

Frequently asked questions

What is a P clip used for? A P clip is a cable and hose mounting clip shaped like the letter P. The loop holds the cable, conduit or hose while the flat tab with a mounting hole is fastened to a surface with a bolt, screw or rivet. They are commonly used in automotive wiring to route and secure cables along body panels, chassis rails and firewalls, providing a clean, rattle-free installation.

What size cable or hose does this clip suit? The 12.7mm inside diameter suits cables, conduit and hoses up to 12.7mm in diameter. For larger or smaller diameters, OEX produces P clips in a range of sizes. Contact us for available size options.

What size bolt or fastener does this clip use? The mounting hole is 6mm in diameter, compatible with M6 bolts, screws or 6mm pop rivets the standard fastener size for automotive body panel and chassis rail mounting points.

Does the PVC coating protect cables from damage? Yes. The PVC coating on the clip loop prevents the steel from directly contacting and chafing the cable or hose insulation, reducing the risk of wear and abrasion damage over time.

Is this clip corrosion resistant? The zinc plated steel core provides a degree of corrosion resistance, and the PVC coating adds further protection against moisture. For highly corrosive environments such as marine applications with sustained saltwater exposure, stainless steel P clips may be a more appropriate choice.
