OEX ACX1102/100 Fire Retardant Split Convoluted Tubing 7mm ID 100m

SKU: ACX1102100
Price
$104
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier.

Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

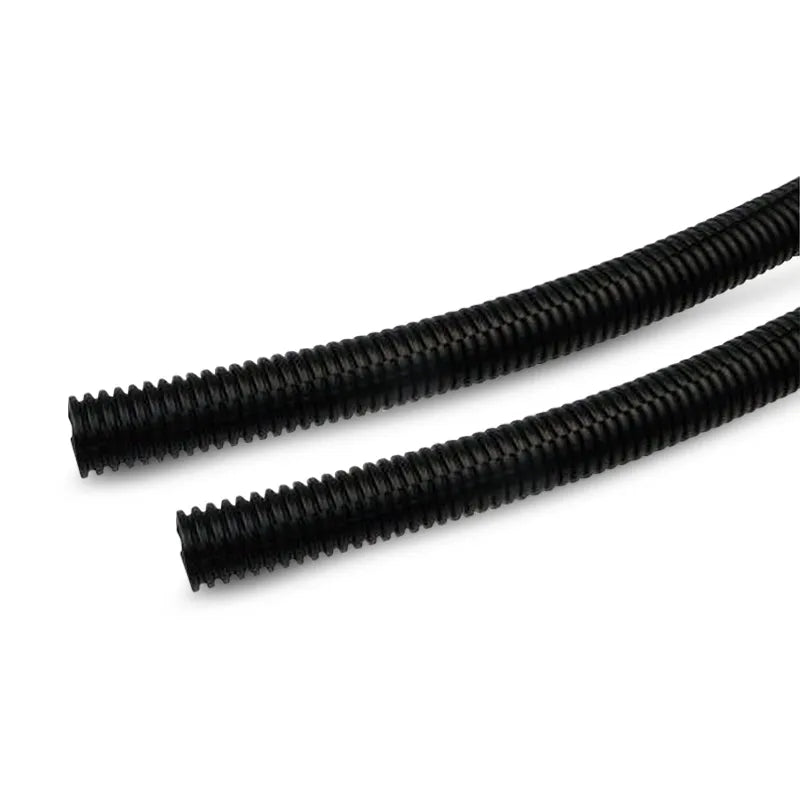

Two lengths of black OEX split convoluted tubing

OEX ACX1102/100 Fire Retardant Split Convoluted Tubing 7mm ID 100m

Price
$104

Product features

The OEX ACX1102/100 is a 100m roll of black split convoluted tubing with a 7mm inside diameter and 10.4mm outside diameter. It is made from fire retardant polypropylene and rated to 90 degrees C continuous.

The lengthwise split lets cables press in from the side, so it can go onto an installed harness without unplugging anything.

Problems it solves

  • Threading sleeve over a loom with plugs already fitted. The split opening lets wires snap in from the side.
  • Chafing where wires cross metal edges. The ribbed tube protects against abrasion and still bends around corners.
  • Heat under the bonnet. It handles 90 degrees C continuous and melts at 120 degrees C.

ACX1102/100 specifications

  • Inside diameter: 7mm
  • Outside diameter: 10.4mm
  • Maximum bundle: 7mm
  • Length: 100m
  • Material: fire retardant polypropylene
  • Colour: black
  • Temperature: 90 degrees C continuous, 120 degrees C melting
  • Weight: 1.32kg

Fitment and compatibility

Automotive, marine and caravan wiring, including under bonnet runs, for single cables and small bundles up to 7mm.

What is in the box

  • One 100m roll of 7mm split convoluted tubing

Install notes

Cut between the ribs with scissors, side cutters or a sharp blade for a clean end.

In spots with sustained extreme heat, compare the ambient temperature with the 90 degree rating first.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

ACX1102/100 FAQs

What size bundle fits the ACX1102/100?

Cables or bundles up to 7mm across.

Will the OEX 7mm tubing self extinguish?

Yes. The fire retardant polypropylene stops burning once the flame is removed.

Which other roll lengths does OEX make in 7mm?

30m as the ACX1101, 200m as the ACX1102 and 400m as the ACX1100/400.
