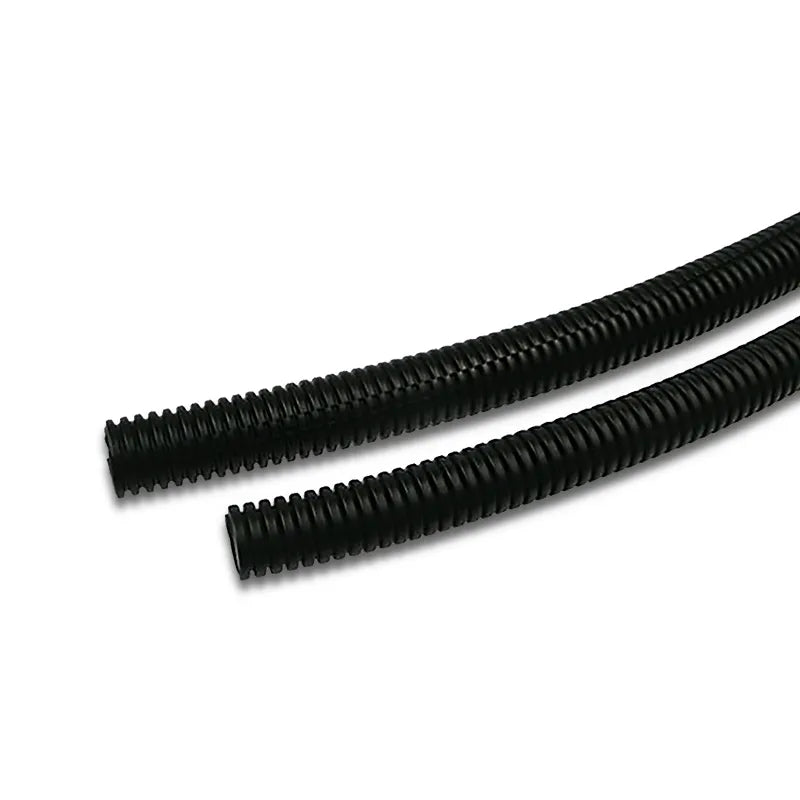

OEX ACX1099/100 Split Convoluted Tubing 5mm x 100m

OEX ACX1099/100 Split Convoluted Tubing 5mm Internal Diameter 100m Roll for Automotive Cable Protection

The OEX ACX1099/100 is a split convoluted tubing sleeve in 5mm internal diameter, supplied in a 100m length. The split design allows cables to be inserted from the side without threading them through from one end, making it ideal for retrofitting protection to existing wiring harnesses or routing cables through tight spaces. Rated to 90°C continuous with a melting temperature of 120°C. Suited to automotive, marine and caravan wiring environments including underbonnet applications.

Product overview

Standard convoluted tubing requires cables to be threaded through from one end, which means either disconnecting connectors or routing new cables through before installation. The split design of the ACX1099/100 eliminates this requirement cables snap into the tubing from the side along the lengthwise split, allowing the sleeving to be added to existing wiring runs at any point without disconnection. This makes it practical for retrofitting protection to installed harnesses, adding organisation to existing cable bundles and protecting cables in tight routing paths where threading is not possible.

With a 5mm internal diameter and a maximum cable bundle diameter of 8mm, the ACX1099/100 suits individual cables and small bundles of lighter gauge wiring. The convoluted ribbed construction provides flexibility for routing around bends while maintaining abrasion and chafing protection. The 100m roll suits trade workshops running multiple wiring protection jobs across automotive, 4WD, caravan, trailer and marine installations.

Features and benefits

Split design for retrofit installation: Cables snap in from the side without threading, allowing the tubing to be added to existing wiring runs without disconnecting connectors or rerouting cables.

5mm internal diameter: Suits individual cables and small wire bundles up to 8mm maximum diameter.

Convoluted construction: Flexible and bendable while maintaining cable protection against abrasion and chafing, suited to routing through bends and tight spaces.

90°C continuous temperature rating: Suited to automotive and underbonnet environments where sustained heat is present.

120°C melting temperature: Provides a safety margin above the continuous rating for short-duration heat exposure.

100m roll: Trade-length supply for workshops running multiple wiring protection and cable management jobs from a single roll.

One year warranty: Covered by a one year OEX warranty.

Technical specs

Frequently asked questions

What is split convoluted tubing? Split convoluted tubing is a flexible ribbed sleeving with a lengthwise split along one side. Cables can be pressed into the split opening rather than threaded through from the end, making it easy to add protection to existing wiring without disconnecting anything. The convoluted ribbed construction gives it flexibility and abrasion resistance.

What size cables fit inside 5mm convoluted tubing? The 5mm internal diameter suits individual cables and small bundles. The maximum cable bundle diameter this tubing can accommodate is 8mm. For larger bundles, OEX produces convoluted tubing in larger internal diameter sizes.

Is this tubing suitable for underbonnet use? Yes. The 90°C continuous temperature rating and 120°C melting temperature make it suitable for most automotive underbonnet environments. For areas with sustained extreme heat exposure, verify the ambient temperature against the tubing rating before use.

How do I cut split convoluted tubing to length? Split convoluted tubing can be cut with scissors, side cutters or a sharp blade. Cut between the ribs rather than through them for a cleaner end.

Is this tubing available in other sizes? OEX produces split convoluted tubing in a range of internal diameters. Contact us for available sizes to suit your cable management requirements.
