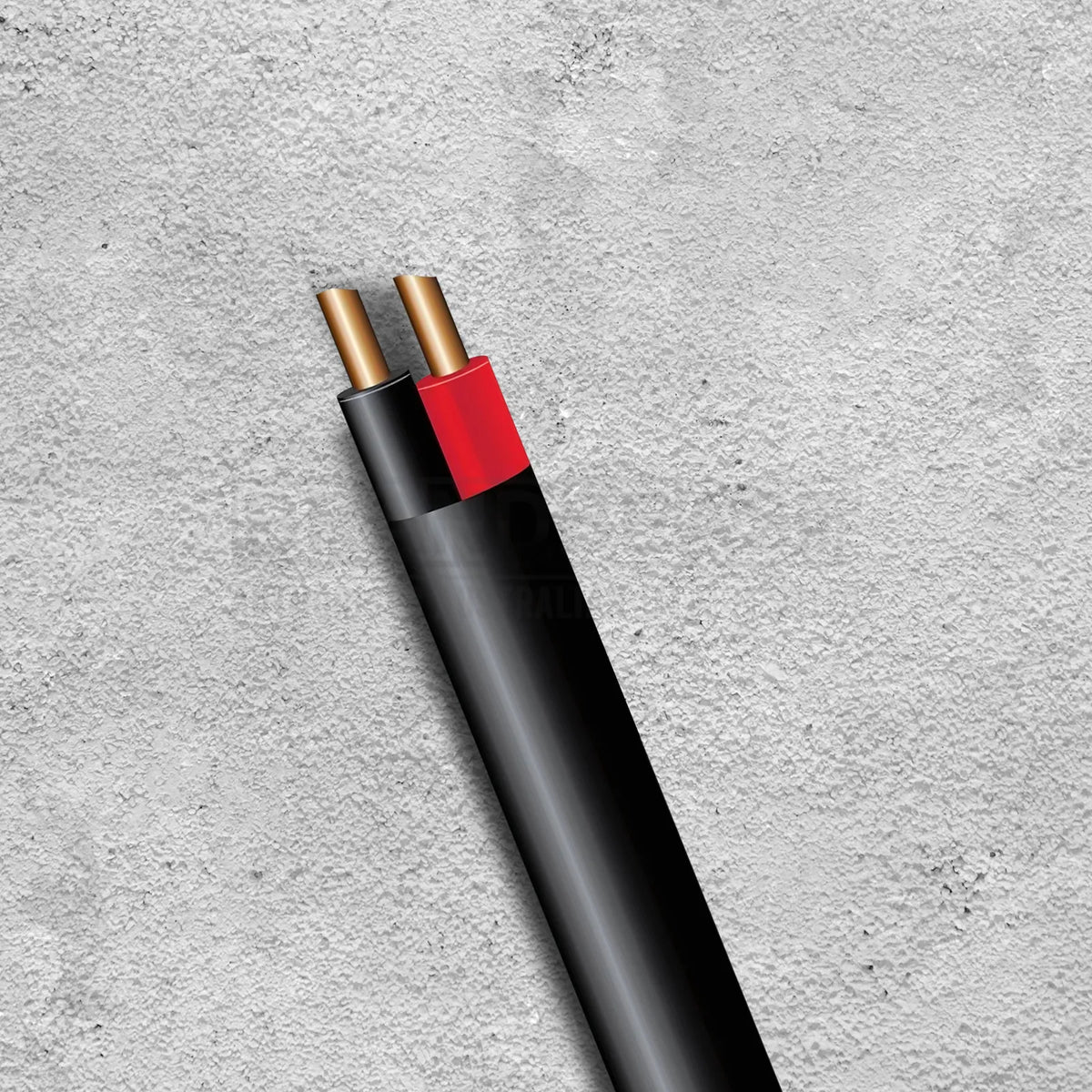

OEX ACX0928/50 6 B&S Twin Core Battery Cable Red/Black With Black Sheath - 50m Roll

OEX ACX0928/50 Australian Made 6 B&S Twin Core Battery Cable Red and Black with Black Outer Sheath 50m Roll OFHC Copper 13.36mm² V90

The OEX ACX0928/50 is a 6 B&S twin core battery cable with a black outer sheath, supplied on a 50m roll. Red and black conductors each with a 13.36mm² OFHC copper cross-section across 192 strands are enclosed in a common black outer sheath, combining the higher current capacity of 6 B&S battery cable with the convenience of a single protected two-wire run. Rated to V90 (90°C) with UV stabilised PVC insulation and sheath. Compliant with AS/NZS 3808:2000 and RoHS. Covered by a one year warranty.

Product overview

The ACX0928/50 is the 50m roll version of the OEX 6 B&S twin core battery cable, suited to trade workshops and installations requiring more length than the standard 30m roll without committing to a full 100m. The conductor specification, insulation rating and sheath construction are identical to the ACX0928. Red and black conductors at 13.36mm² per conductor with 192-strand OFHC copper construction route both positive and negative high-current feeds together in a single neat protected run, well suited to dual battery system main feeds, high-capacity winch installations and any application where positive and negative heavy-current feeds need to travel the same path with mechanical and UV protection.

The UV stabilised V90 PVC insulation and sheath handle continuous operating temperatures up to 90°C for battery and engine bay installations. The 50m roll suits trade workshops working across multiple installations or single installations with longer cable run requirements. Always verify the required cable size with a licensed auto electrician for your specific application, current load and run length.

Features and benefits

6 B&S twin core sheathed construction: Red and black conductors in a black outer sheath for clean, protected high-current two-wire runs, combining the current capacity of 6 B&S battery cable with the installation convenience of a single cable.

Red and black conductors: Conventional polarity colouring for straightforward positive and negative identification without additional marking or tape.

13.36mm² per conductor: Larger cross-section than 8 B&S (7.91mm²), providing lower resistance and higher current-carrying capacity for longer runs and more demanding high-current applications.

192-strand construction per conductor: Excellent flexibility for routing through tight engine bay and battery compartment spaces despite the larger conductor gauge.

OFHC copper conductors: Oxygen free high conductivity copper minimises resistance for efficient current transfer across high-current battery and supply circuit applications.

Australian owned and made: Premium quality copper cable produced locally to Australian automotive wiring standards.

UV stabilised PVC insulation and sheath: Resists degradation in sun-exposed and engine bay environments, extending the service life of the cable in exposed installation positions.

V90 temperature rating (90°C): Insulation and sheath rated for continuous operation at up to 90°C, suited to battery and engine bay installation environments.

AS/NZS 3808:2000 compliant: Meets the Australian and New Zealand standard for insulated conductors and cables for internal wiring of equipment.

RoHS compliant: Meets hazardous substance restrictions.

50m roll: Mid-length format for trade and multi-vehicle installations requiring more than the 30m roll without committing to a full trade-length roll.

Technical specs

Frequently asked questions

What is the difference between the ACX0928 and the ACX0928/50? Both are the same 6 B&S twin core sheathed battery cable with identical conductor and insulation specifications. The ACX0928 is supplied on a 30m roll and the ACX0928/50 is supplied on a 50m roll. Select based on the quantity required for your installation workload.

What is 6 B&S gauge and how does it compare to 8 B&S? 6 B&S (Brown and Sharpe) is equivalent to approximately 6 AWG and corresponds to a conductor cross-section of around 13.36mm² per conductor. It is larger than 8 B&S (7.91mm²), delivering lower resistance and higher current-carrying capacity. Select 6 B&S for longer runs or applications with higher current demand than the 8 B&S twin core can comfortably handle.

What is the advantage of twin core battery cable over two separate single core cables? A twin core sheathed cable keeps positive and negative conductors together in a single protected run, resulting in a neater installation with less cable management. The shared outer sheath also provides additional mechanical and UV protection compared to two individual cables routed separately.

What does AS/NZS 3808:2000 compliance mean? AS/NZS 3808:2000 is the Australian and New Zealand standard covering insulated conductors and cables for internal wiring of equipment. Compliance confirms the cable meets defined requirements for conductor construction, insulation properties and performance.

Is this cable available in other sizes or lengths? OEX produces twin core battery cable in a range of B&S sizes and roll lengths. Contact us for available size and length options to suit your application.
