OEX ACX0914 0 B&S Single Core Battery Cable, Red - 30m Roll

OEX ACX0914 Australian Made 0 B&S Single Core Battery Cable Red 30m Roll OFHC Copper 49.2mm² V90

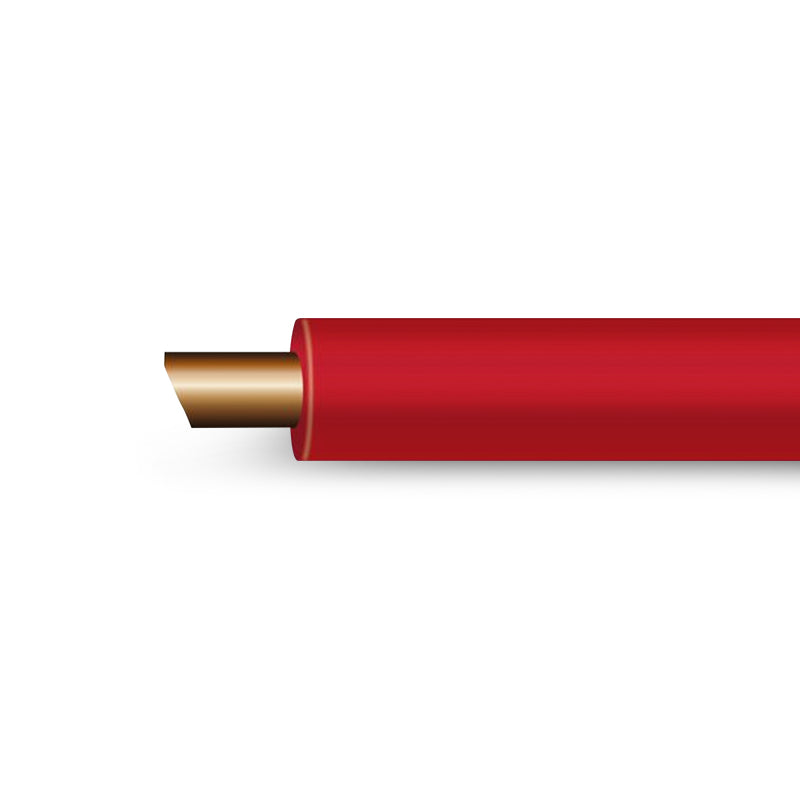

The OEX ACX0914 is a 0 B&S single core battery cable in red, supplied on a 30m roll. With a 49.2mm² OFHC copper conductor across 696 strands, this is the largest cable in the OEX B&S battery cable range and is engineered for the most extreme high-current positive supply installations including commercial vehicle battery systems, heavy equipment starter motor feeds and high-capacity power distribution where no smaller gauge will suffice. The red insulation colour suits positive supply runs in conventional automotive wiring colour coding. The PVC insulation is UV stabilised and rated to V90 (90°C). Compliant with AS/NZS 3808:2000 and RoHS. Covered by a one year warranty. Weighs 15.78kg.

Product overview

The ACX0914 is the red variant of the OEX 0 B&S single core battery cable, sharing the same conductor specification and insulation rating as the black ACX0912. Red is the conventional positive wiring colour in automotive and marine electrical installations, making the ACX0914 the natural choice for battery positive supply cables on heavy commercial vehicles, high-capacity starter motor and alternator positive leads, and industrial and marine main positive power distribution where maximum conductor cross-section is required.

At 49.2mm² with a 696-strand OFHC copper conductor, the ACX0914 delivers the lowest resistance and highest current-carrying capacity of any cable in the OEX B&S range, sitting above the 2 B&S (32.17mm²) and 4 B&S (20.29mm²) cables. The 696-strand construction delivers remarkable flexibility for a cable of this enormous cross-section, making it manageable to route and terminate in heavy commercial installation environments. The UV stabilised V90 PVC insulation handles continuous operating temperatures up to 90°C. The 30m roll suits trade workshops running multiple heavy commercial installations. Always consult a qualified auto electrician or electrical engineer when specifying cable for extreme current applications.

Features and benefits

0 B&S gauge — the largest in the OEX battery cable range: Maximum current-carrying capacity and minimum resistance for the most extreme high-current positive supply applications in commercial and industrial wiring where no smaller gauge is sufficient.

Red colour coding for positive supply runs: Red is the conventional positive wiring colour in automotive and marine electrical installations, assisting with circuit identification in extreme high-current commercial battery supply circuits.

49.2mm² conductor cross-section: Significantly larger than 2 B&S (32.17mm²), providing the lowest resistance and highest current-carrying capacity of any cable in the OEX B&S range.

696-strand construction: Remarkable flexibility for a cable of this cross-section, making the ACX0914 manageable to route and terminate in heavy commercial installation environments despite the very large gauge.

OFHC copper conductor: Oxygen free high conductivity copper minimises resistance for efficient current transfer across the most extreme current commercial and industrial battery and positive supply circuit applications.

Australian owned and made: Premium quality copper cable produced locally to Australian automotive wiring standards.

UV stabilised PVC insulation: Resists degradation in sun-exposed and engine bay environments.

V90 temperature rating (90°C): PVC insulation rated for continuous operation at up to 90°C, suited to battery and engine bay installation environments in commercial and heavy vehicle applications.

AS/NZS 3808:2000 compliant: Meets the Australian and New Zealand standard for insulated conductors and cables for internal wiring of equipment.

RoHS compliant: Meets hazardous substance restrictions.

30m roll: Trade-length supply for workshops running multiple heavy commercial installations from a single roll.

Technical specs

Frequently asked questions

What is 0 B&S gauge? 0 B&S (Brown and Sharpe), also referred to as 1/0 AWG, corresponds to a conductor cross-section of around 49.2mm². It is the largest size in the OEX B&S battery cable range and is used in the most demanding heavy commercial and industrial high-current applications. Always consult a qualified auto electrician or electrical engineer when specifying cable for extreme current applications.

How does 0 B&S compare to 2 B&S and 4 B&S? 0 B&S has the largest conductor cross-section in the OEX B&S range at 49.2mm², compared to 2 B&S (32.17mm²) and 4 B&S (20.29mm²). It delivers the lowest resistance and highest current-carrying capacity of any cable in the range, suited to the most extreme commercial and industrial applications where the 2 B&S cable would be insufficient.

How does the ACX0914 differ from the ACX0912? Both are 0 B&S single core battery cables with identical conductor and insulation specifications. The ACX0912 is black and supplied on a 10m roll suited to single heavy commercial installations. The ACX0914 is red and supplied on a 30m roll suited to trade workshops running multiple positive supply installations. Select based on polarity requirements and the quantity needed.

What does V90 mean? V90 is the Australian cable insulation classification indicating the PVC insulation is rated for continuous operation at up to 90°C. It is the standard specification for automotive-grade PVC insulated cable in Australia and confirms suitability for battery and engine bay installation positions.

Is this cable available in other sizes or colours? OEX produces battery cable in a range of B&S sizes and colours. Contact us for available size and colour options to suit your specific application.
