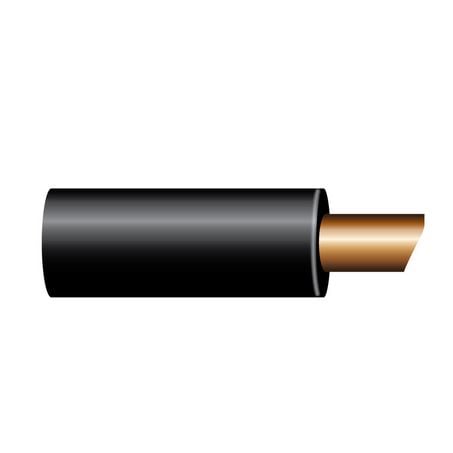

OEX ACX0902 6 B&S Single Core Battery Cable, Black 30m Roll

OEX ACX0902 Australian Made 6 B&S Single Core Battery Cable Black 30m Roll OFHC Copper 13.36mm² V90

The OEX ACX0902 is a 6 B&S single core battery cable in black, supplied on a 30m roll. With a 13.36mm² OFHC copper conductor across 192 strands, this cable steps up from the 8 B&S range and is designed for demanding high-current applications including heavy battery interconnects, starter motor wiring and main supply runs where low resistance and high current capacity are required. The PVC insulation is UV stabilised and rated to V90 (90°C). Compliant with AS/NZS 3808:2000 and RoHS. Covered by a one year warranty.

Product overview

At 13.36mm² with a 192-strand OFHC copper conductor, the ACX0902 provides significantly lower resistance and higher current-carrying capacity than the 8 B&S range at 7.91mm². This makes it suited to longer battery cable runs, circuits with higher current demand, and applications where minimising voltage drop across the cable is critical. Common applications include battery interconnect and main supply cables, starter motor and alternator wiring, dual battery system main feeds, winch and recovery equipment power cables and heavy-duty accessory wiring requiring a large conductor cross-section.

The 192-strand construction provides exceptional flexibility for routing through tight engine bay and battery compartment spaces despite the larger gauge. The UV stabilised V90 PVC insulation handles continuous operating temperatures up to 90°C for battery and engine bay installations. The voltage rating of up to 120V is slightly wider than the standard automotive cable range. The 30m roll suits workshop jobs and single-vehicle installations without the bulk of a full-length trade roll. Always verify the required cable size with a licensed auto electrician for your specific application, current load and run length.

Features and benefits

6 B&S gauge battery cable: Larger battery cable sizing suited to demanding high-current 12V and 24V applications where the 8 B&S range would be undersized.

13.36mm² conductor cross-section: Significantly larger than the 8 B&S (7.91mm²), providing reduced resistance and higher current-carrying capacity for longer runs and more demanding circuits.

192-strand construction: Exceptional flexibility for routing through tight engine bay and battery compartment spaces despite the larger cable gauge, with more strands than the 8 B&S range for improved handling.

OFHC copper conductor: Oxygen free high conductivity copper minimises resistance for efficient current transfer across demanding battery and supply circuit applications.

Australian owned and made: Premium quality copper cable produced locally to Australian automotive wiring standards.

UV stabilised PVC insulation: Resists degradation in sun-exposed and engine bay environments.

V90 temperature rating (90°C): PVC insulation rated for continuous operation at up to 90°C, suited to battery and engine bay installation environments.

Up to 120V voltage rating: Slightly wider voltage rating than the standard automotive cable range.

AS/NZS 3808:2000 compliant: Meets the Australian and New Zealand standard for insulated conductors and cables for internal wiring of equipment.

RoHS compliant: Meets hazardous substance restrictions.

30m roll: Workshop-friendly length for single-vehicle and multi-circuit jobs without the bulk of a full-length trade roll.

Technical specs

Frequently asked questions

What is B&S gauge and how does it differ from AWG or metric sizing? B&S (Brown and Sharpe) is a wire gauge system commonly used in Australian battery and heavy-duty automotive cable. 6 B&S is equivalent to approximately 6 AWG and corresponds to a conductor cross-section of around 13.36mm². It is a standard sizing reference used by Australian auto electricians and suppliers for battery and starter cables.

How does 6 B&S compare to 8 B&S? 6 B&S has a significantly larger conductor cross-section (13.36mm² vs 7.91mm²) and more strands (192 vs 112), giving it lower resistance and higher current-carrying capacity. Select 6 B&S for longer runs or circuits with higher current demand than 8 B&S can comfortably handle. Always verify the correct cable size with a licensed auto electrician for your specific application.

Is a 30m roll sufficient for a single-vehicle installation? The 30m roll suits most single-vehicle heavy-duty battery cable installations including dual battery runs, winch feeds and starter motor wiring. For fleet operations or multiple installations from a single roll, the ACX0902L 100m roll version is available. Contact us for details.

What does V90 mean? V90 is the Australian cable insulation classification indicating the PVC insulation is rated for continuous operation at up to 90°C. It is the standard specification for automotive-grade PVC insulated cable in Australia and confirms suitability for battery and engine bay installation positions.

Is this cable available in other sizes or colours? OEX produces battery cable in a range of B&S sizes and colours. Contact us for available size and colour options to suit your specific application.
