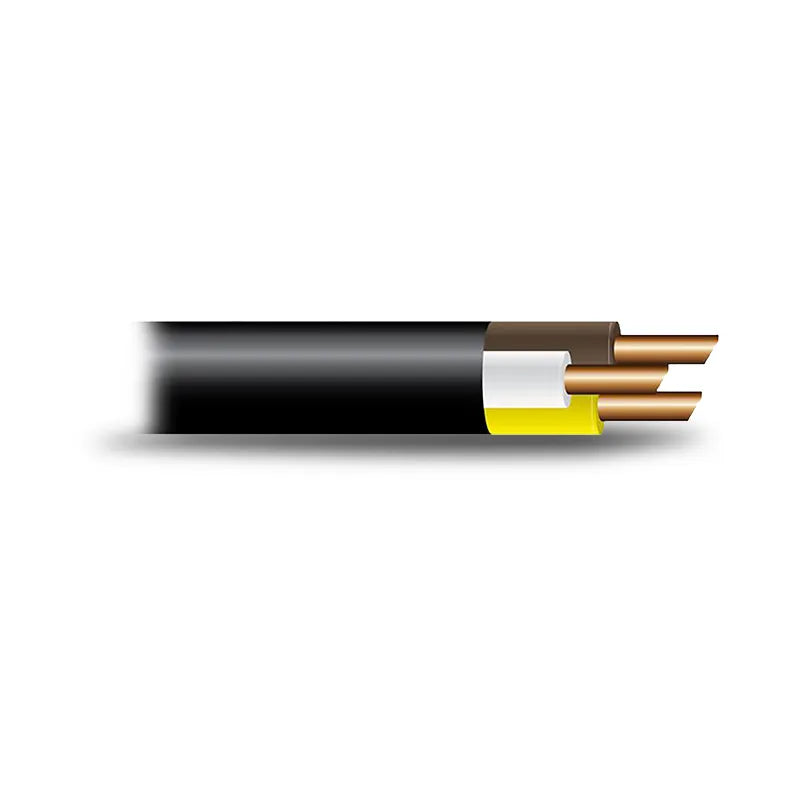

OEX ACX0812L 3mm 3 Core Automotive Cable Brown/White/Yellow Black Sheath 100m Roll

OEX ACX0812L Australian Made 3mm 3 Core Sheathed Automotive Cable Brown White and Yellow with Black Outer Sheath 100m Roll OFHC Copper 10A V90

The OEX ACX0812L is a 3mm three core sheathed automotive cable supplied on a 100m roll. Brown, white and yellow conductors are individually insulated and enclosed in a common black outer sheath, allowing three separate circuits to travel in a single protected cable run. Each conductor has a 1.13mm² OFHC copper cross-section rated at 10A at 30°C with 16-strand construction. The PVC insulation and sheath are UV stabilised and rated to V90 (90°C). Compliant with AS/NZS 3808:2000 and RoHS. Covered by a one year warranty.

Product overview

The ACX0812L is the 100m roll version of the ACX0812 3mm three core sheathed cable, suited to workshops and trade installers who regularly wire trailer lighting harnesses, multi-function lighting control circuits and other three-circuit runs, and prefer the full 100m trade-length supply over the 30m workshop roll. The conductor specification, insulation rating and sheath construction are identical across both roll lengths. The brown, white and yellow conductor colours provide clear differentiation between all three circuits at connection points without additional marking or labelling.

At 1.13mm² (17AWG) per conductor with a 10A continuous rating, the ACX0812L handles lighting, accessory and signal circuit loads across three independent circuits. Common trailer wiring applications include indicator, tail light and brake circuits routed together in a single neat cable run. The 16-strand construction provides flexibility for routing through tight spaces, and the UV stabilised V90 PVC insulation and sheath handle continuous operating temperatures up to 90°C. The 100m roll suits workshops and trade installers covering multiple jobs from a single roll.

Features and benefits

Three core sheathed construction: Brown, white and yellow conductors enclosed in a single black outer sheath, routing three separately insulated circuits together in one protected cable run with a clean, professional finish.

Three individually coloured conductors: Brown, white and yellow conductor colours for clear circuit differentiation across all three cores without additional marking, taping or sleeving.

OFHC copper conductors: Oxygen free high conductivity copper minimises resistance across the cable run, maintaining reliable electrical performance in automotive and marine applications.

Australian owned and made: Premium quality copper cable produced locally to Australian automotive wiring standards.

10A rated at 30°C per conductor: Suited to trailer lighting, accessory wiring and general multi-circuit applications drawing up to 10A per conductor. Current carrying capacity reduces at higher ambient temperatures.

UV stabilised PVC insulation and sheath: Resists degradation in sun-exposed and outdoor environments, extending the service life of the cable in exposed installation positions.

V90 temperature rating (90°C): Insulation and sheath rated for continuous operation at up to 90°C, the standard automotive-grade insulation specification in Australia.

16-strand construction: The 16-strand conductor provides flexibility and resistance to fatigue during installation and in service, suited to routing through tight spaces and around bends.

AS/NZS 3808:2000 compliant: Meets the Australian and New Zealand standard for insulated conductors and cables for internal wiring of equipment.

RoHS compliant: Meets hazardous substance restrictions.

100m roll: Trade-length supply for workshops and fleet installers covering multiple jobs from a single roll.

Technical specs

Frequently asked questions

What is the difference between the ACX0812 and the ACX0812L? Both are the same 3mm three core sheathed cable with identical conductor and insulation specifications. The ACX0812 is supplied on a 30m roll and the ACX0812L is supplied on a 100m roll. Select based on the quantity required for your installation workload.

What is a three core sheathed cable used for? A three core sheathed cable carries three independent circuits in a single protected cable run. In automotive and trailer applications it is commonly used for wiring that requires three separate signal or power circuits such as left indicator, right indicator and tail lights, neatly bundled and protected in one sheath.

How do I identify each conductor? Each conductor is a different colour brown, white and yellow allowing each circuit to be identified at connection points without additional marking or labelling.

What is the amp rating per conductor? Each conductor is rated at 10A continuous at 30°C. Ampacity decreases as ambient temperature rises, so applications in high-heat environments such as underbonnet installations should be assessed against the expected operating temperature before use.

Is this cable available in other sizes or configurations? OEX produces multi-core sheathed cable in a range of sizes and core counts. Contact us for available size and configuration options to suit your wiring application.
