OEX ACX0730L 4 mm Single Core Auto Cable Orange 100 m Roll

SKU: ACX0730L
Price
$145
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier.
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
OEX ACX0730L 4mm Single Core Automotive Cable Orange 100m Roll

OEX ACX0730L 4 mm Single Core Auto Cable Orange 100 m Roll

$145

Product features

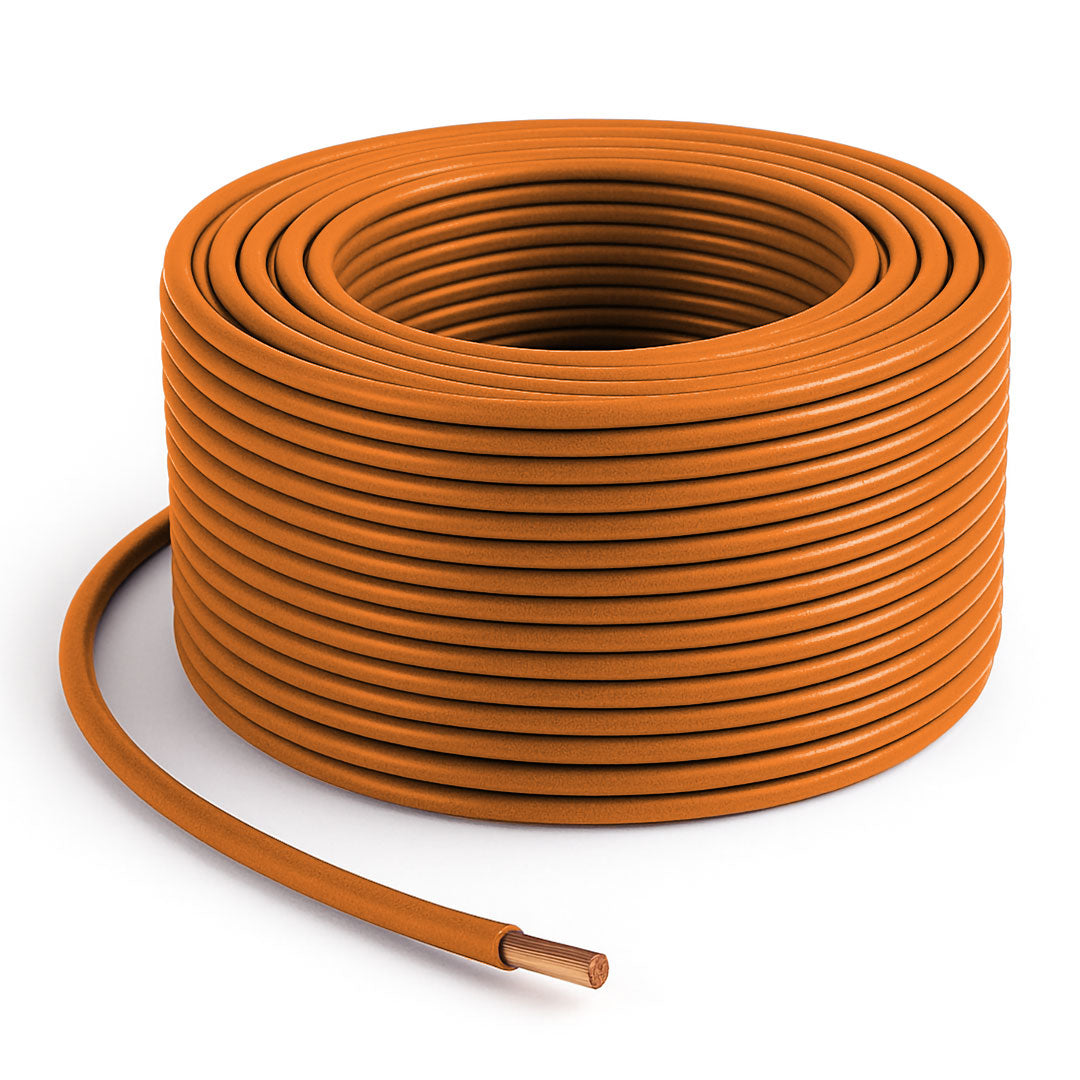

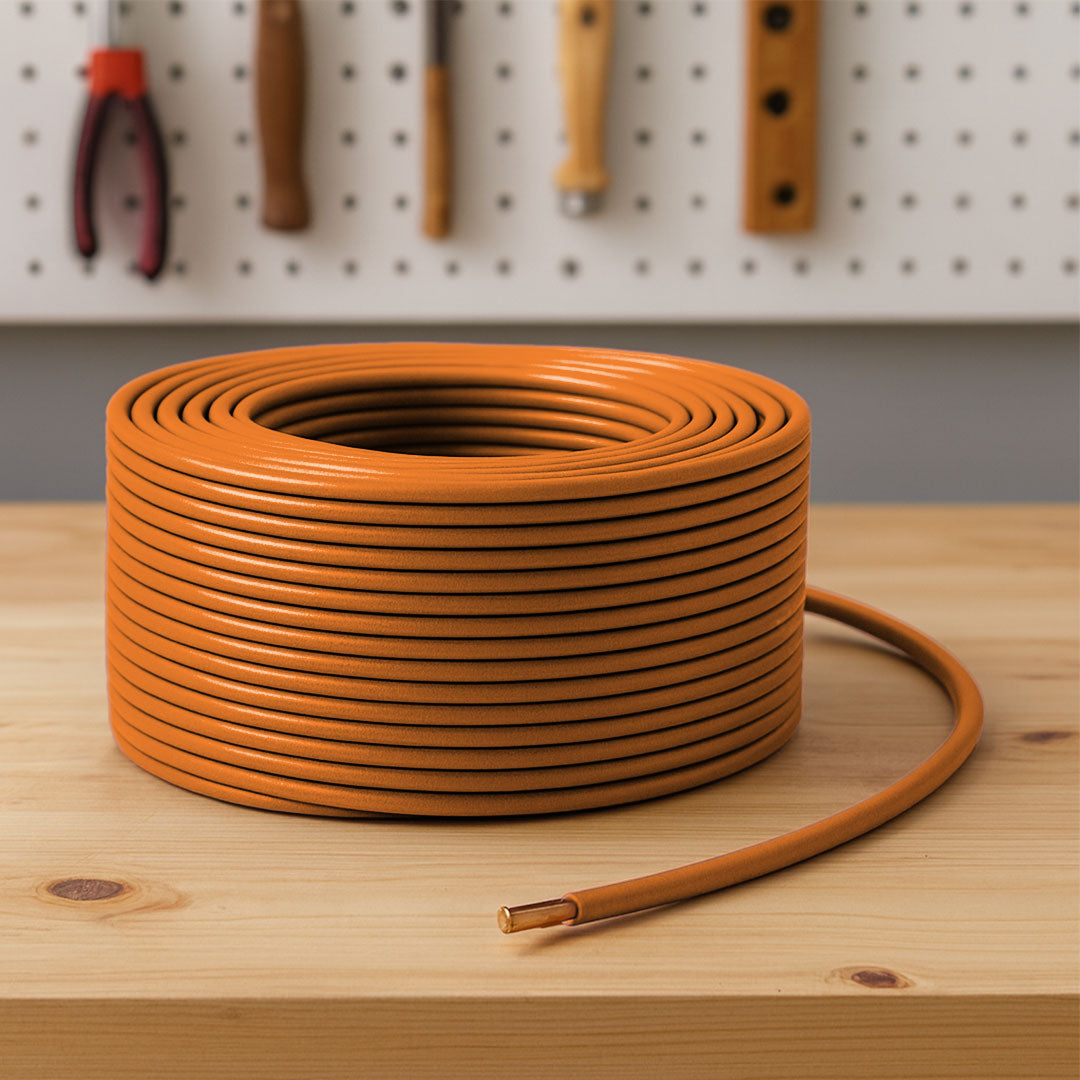

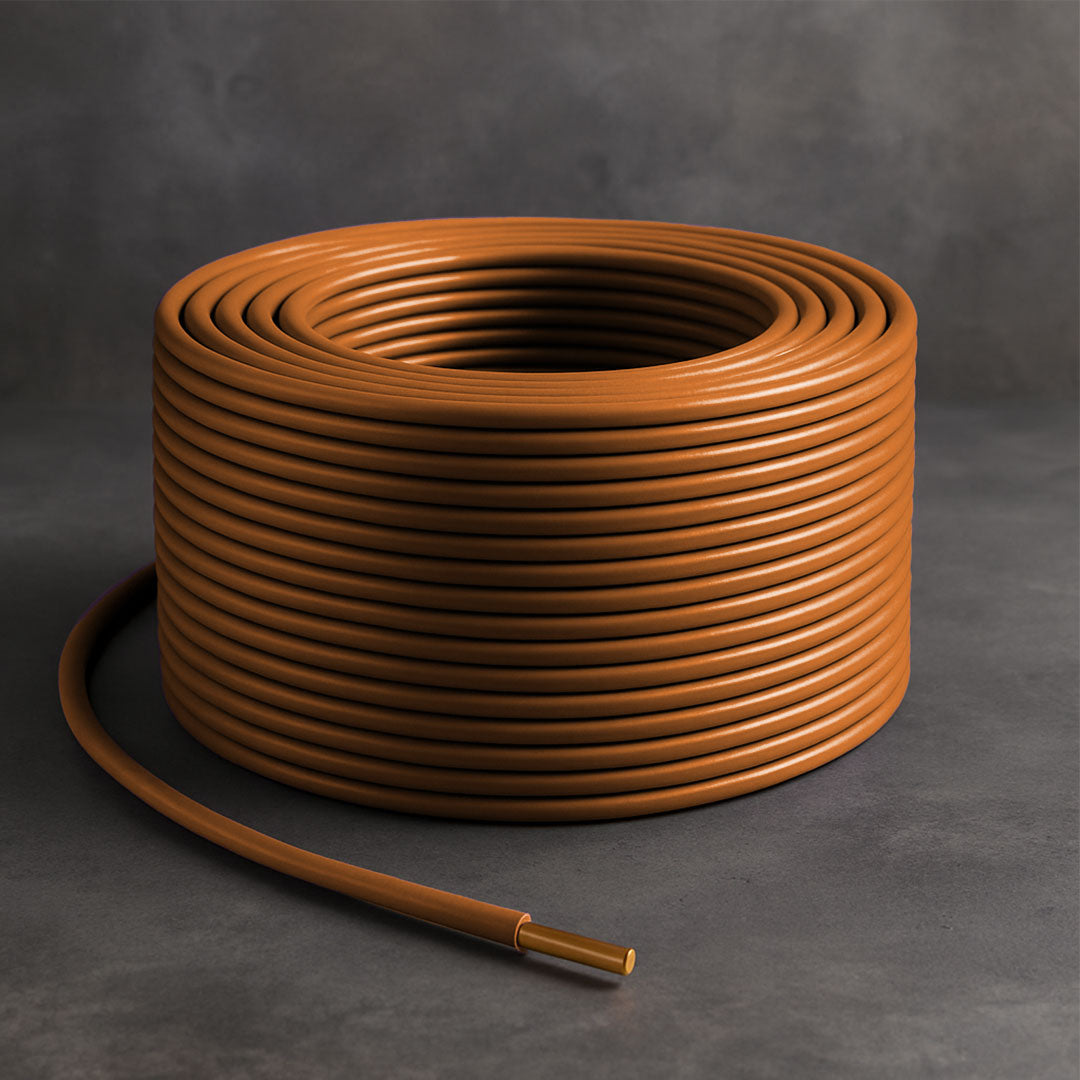

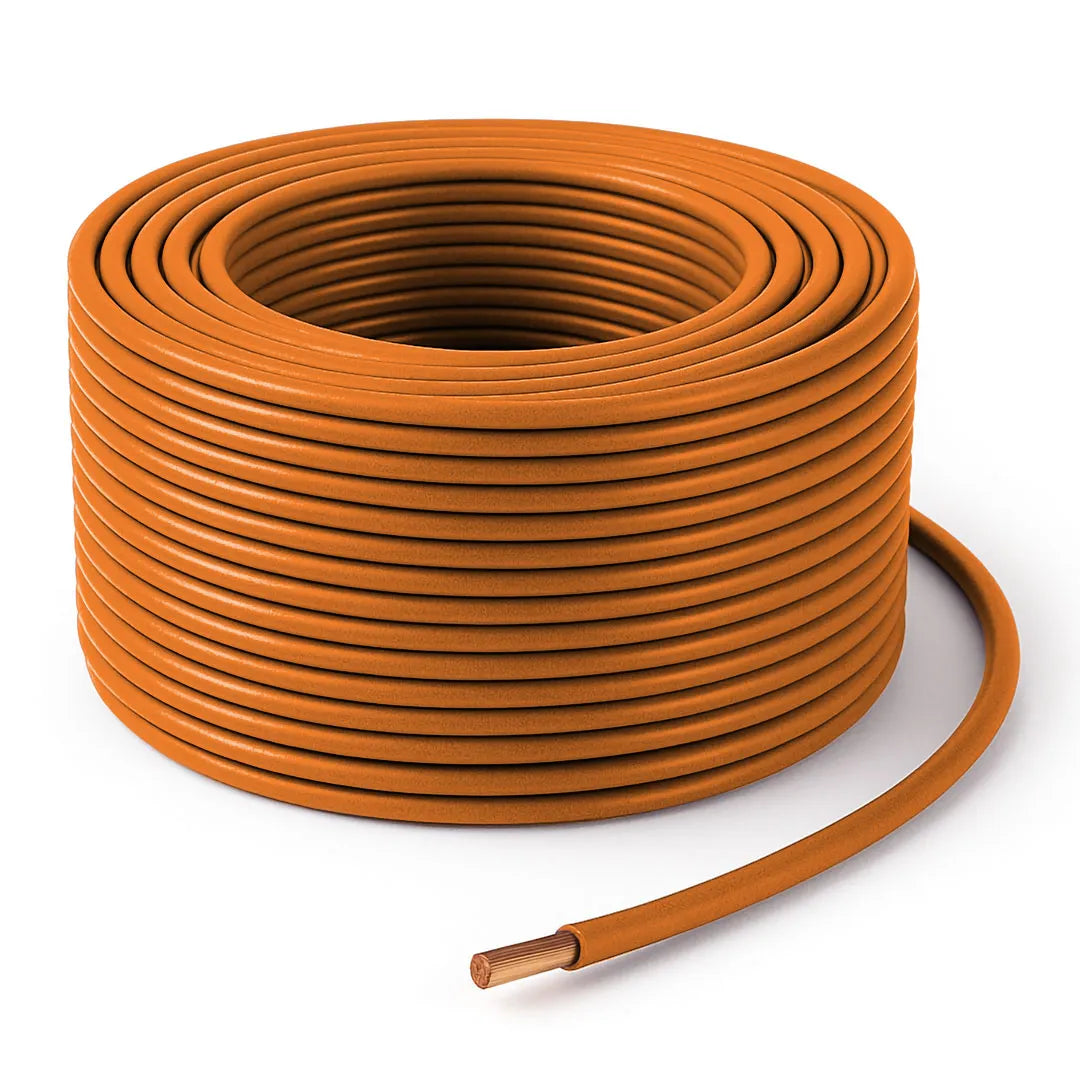

Australian made 4 mm single core automotive cable in orange, on a 100 m roll.

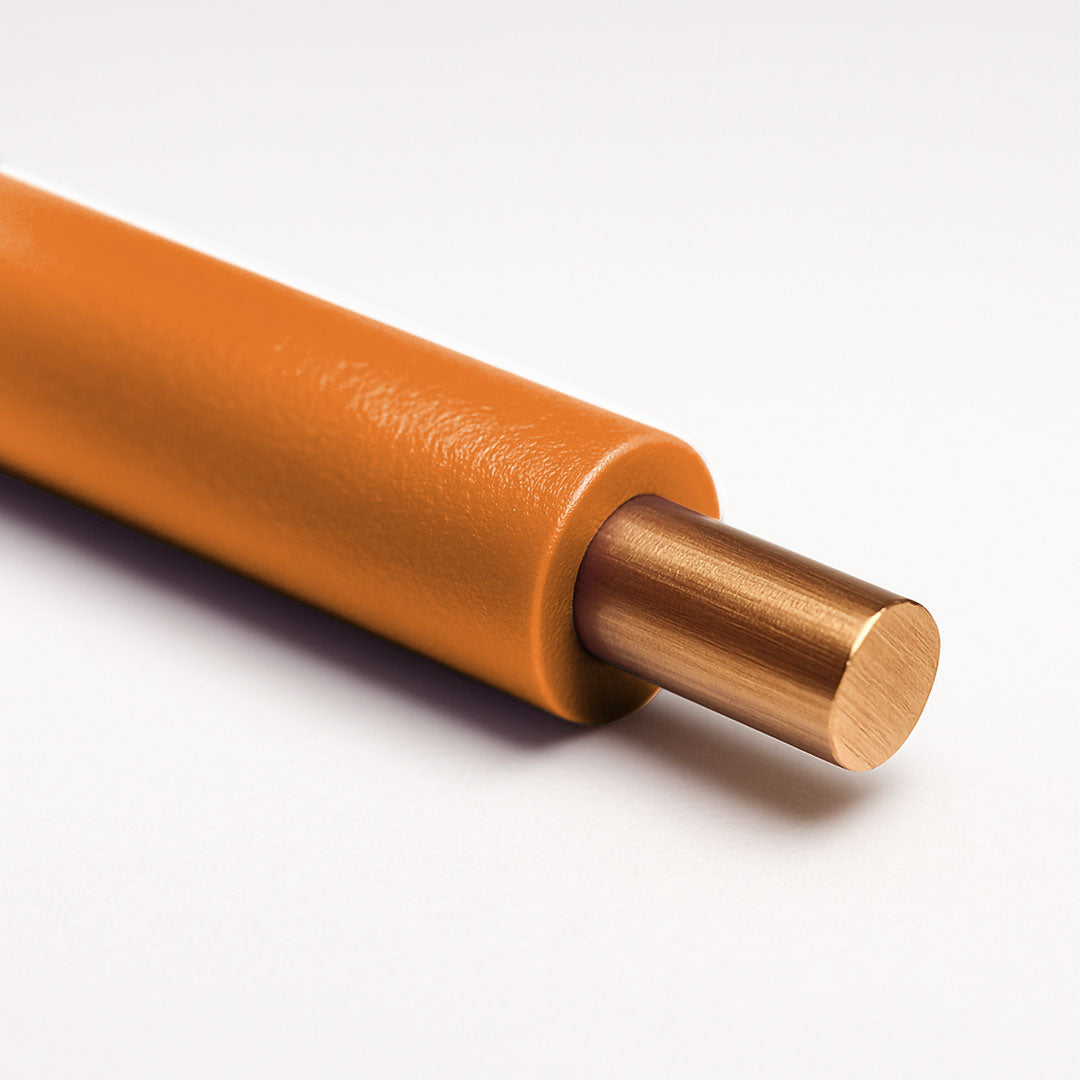

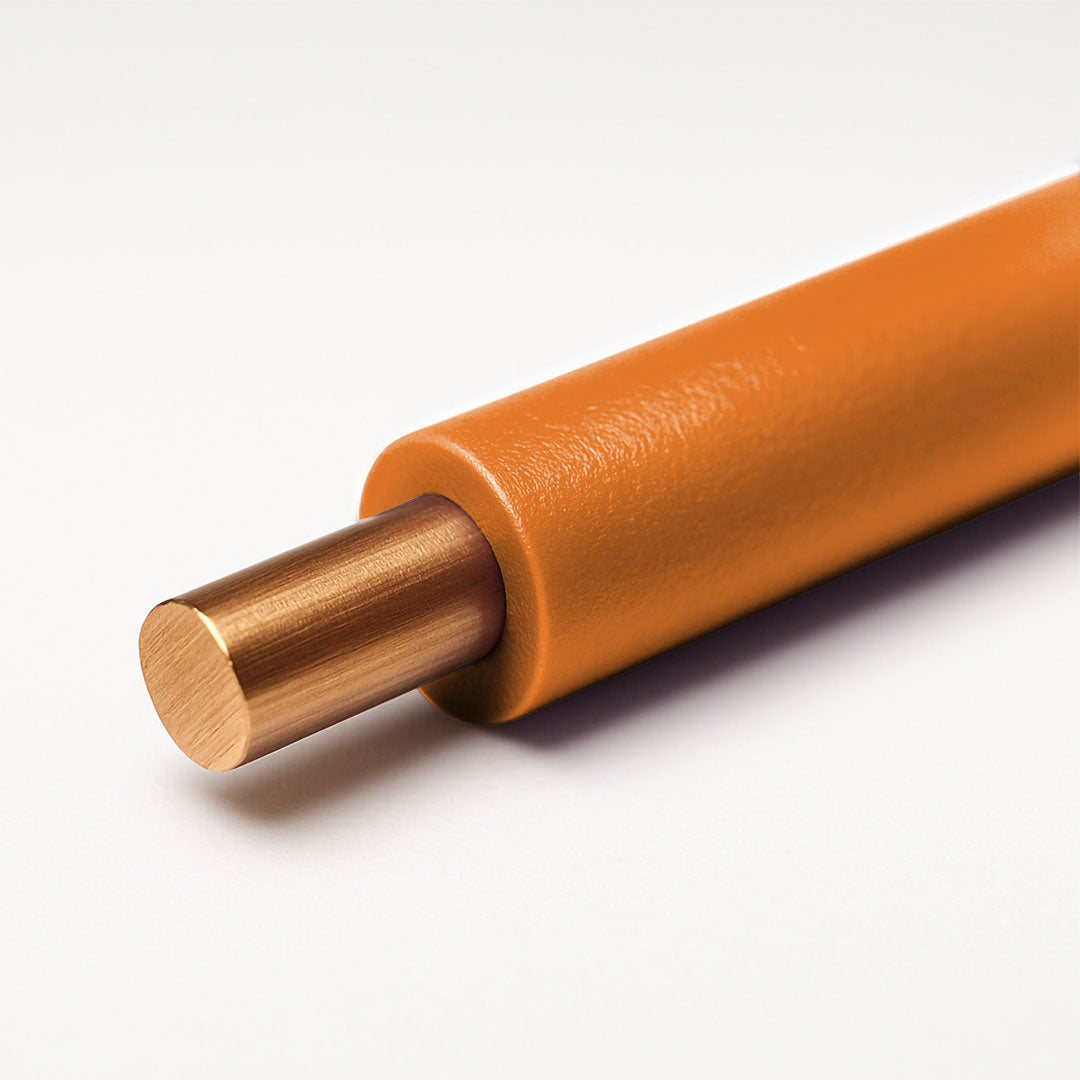

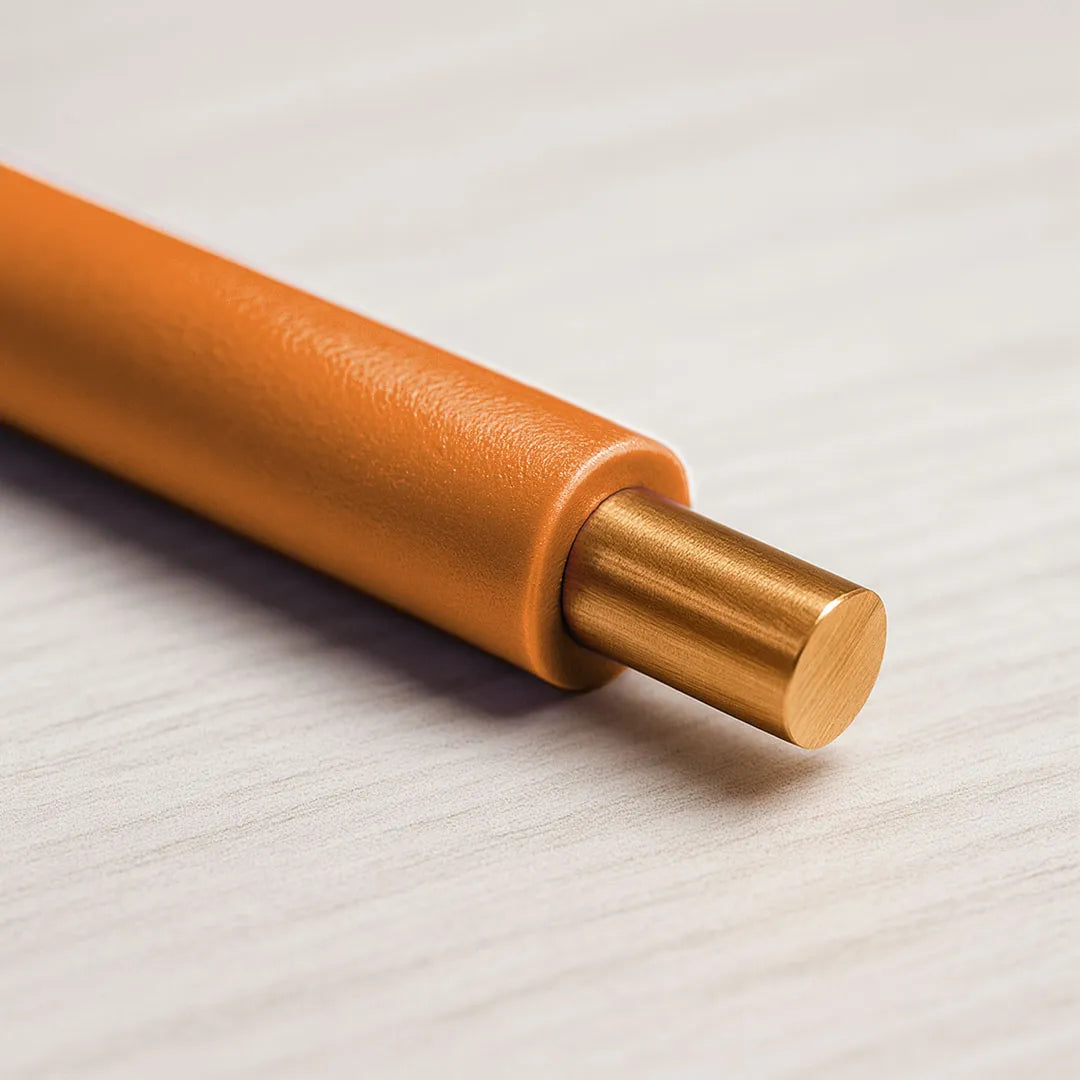

It has a 1.84 mm² oxygen free copper conductor in fine strands, with UV stabilised V90 PVC insulation that copes with engine bay heat and sun on the outside of a vehicle.

OEX rates it at 15 A continuous at 30 degrees, which suits driving lights, horns, fans and medium load accessories.

Specifications

  • Industry size: 4 mm
  • Cross section: 1.84 mm²
  • Gauge: 15 AWG
  • Strands: 26 x 0.32 mm
  • Conductor: OFHC copper
  • Current rating: 15 A at 30 degrees
  • Voltage rating: up to 110 V
  • Insulation: PVC, V90, UV stabilised
  • Colour: Orange
  • Length: 100 m roll
  • Weight: 2.1 kg
  • Standards: AS/NZS 3808:2000, RoHS
  • Made in: Australia

FAQ

What is the OEX ACX0730L?

OEX Australian made 4 mm single core automotive cable, orange, 100 m roll. 1.84 mm² OFHC copper, 15 A rated, V90 UV stable PVC.

How do I choose between 3, 4, 5 and 6 mm cable?

Go by the current draw and the run length. OEX rates 3 mm at 10 A, 4 mm at 15 A, 5 mm at 20 A and 6 mm at 30 A at 30 degrees. Long runs need a size up to keep voltage drop down.

Can you help me pick the right size?

Yes. Send us the job, the current draw and the length of the run and we will point you to the right cable.
