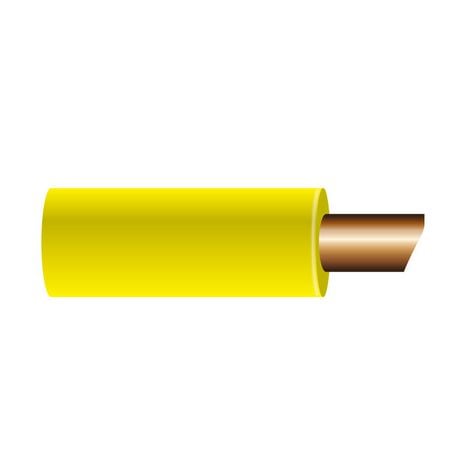

OEX ACX0706L 3mm Single Core Automotive Cable, Yellow - 100m Roll (NZ Ref.150)

OEX 3mm Single Core Automotive Cable, Yellow - 100m Roll (NZ Ref.150): Allows Leading Automotive Specialists to Service More Vehicles with High Quality!

OEX ACX0706L Features:

• OEX Single Core Automotive Cable
• Colour: Yellow
• Cable diameter: 3mm
• Cable Length: 100 metres
• Amp rating: 10A at 30°C
• 99.99% Oxygen Free High Conductivity Copper
• UV Stabilised and ROHS approved
• Temp rating: V90 (90°C)
• All Australian premium quality copper
• 100% Australian owned and made

OEX ACX0706L Specifications:

• Conductor Strand Diameter .32mm
• Number of Conductor Strands 16
• Trace Colour No Trace
• Conductor Cross Section 1.13mm2
• Industry Known Size 3mm
• Note Oxygen Free Copper
• Length 100m
• Cable Size 3mm
• Cable Type Standard
• Gauge 17
• NZ Code 150
• Environmental UV Stabilized
• Cable Colour Yellow
• Temp Rating V90 (90C)
• Voltage Rating Up to 110V
• Conductor Material Copper
• Compliance AS/NZ 3808:2000 & RoHS
• Insulation Type PVC
• Weight 1.4kg
