OEX ACX0702L 3mm Single Core Automotive Cable, Red - 100m Roll

OEX ACX0702L Australian Made 3mm Single Core Automotive Cable Red 100m Roll OFHC Copper 10A V90

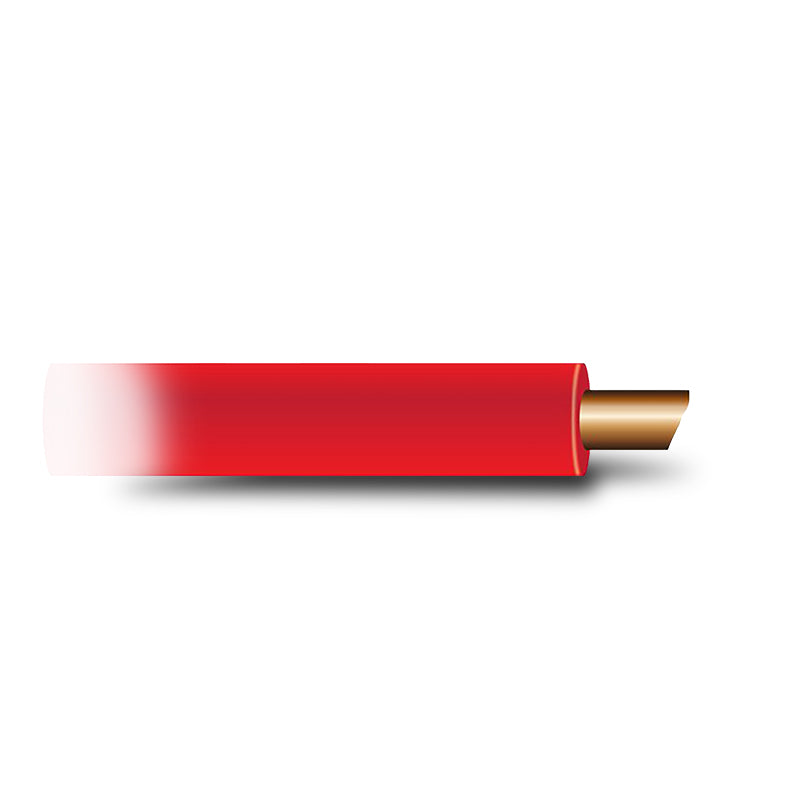

The OEX ACX0702L is a 3mm single core automotive cable in red, supplied on a 100m roll. Manufactured in Australia from 99.99% oxygen free high conductivity (OFHC) copper, it features a 1.13mm² conductor cross-section and a 10A continuous rating at 30°C, suited to higher-current accessory circuits, lighting runs and general automotive wiring. The red PVC insulation is UV stabilised and rated to V90 (90°C). Compliant with AS/NZS 3808:2000 and RoHS.

Product overview

The ACX0702L is the 100m roll version of the ACX0702 red 3mm single core cable, suited to workshops and trade installers who regularly use red 3mm cable across positive accessory feeds, lighting circuits and relay runs, and prefer the full 100m trade-length supply over the 30m workshop roll. The conductor specification and insulation rating are identical across both roll lengths. Red is the conventional positive wiring colour in automotive and marine electrical installations, assisting with circuit identification and reducing wiring errors in multi-wire installations.

At 1.13mm² (17AWG) with a 10A continuous rating, the ACX0702L handles circuits where the 2mm 5A-rated cable would be undersized. The 16-strand conductor construction provides flexibility for routing through tight spaces and around bends. The UV stabilised V90 PVC insulation handles continuous operating temperatures up to 90°C for underbonnet and outdoor-exposed installations.

Features and benefits

99.99% OFHC copper conductor: Oxygen free high conductivity copper minimises resistance and signal loss across the cable run, maintaining reliable electrical performance in automotive and marine applications.

Australian owned and made: Premium quality copper cable produced locally to Australian automotive wiring standards.

Red colour coding: Red is the conventional positive wiring colour in automotive and marine electrical installations, assisting with circuit identification and reducing wiring errors in multi-wire runs.

10A rated at 30°C: Higher current capacity than the 2mm range, suited to lighting circuits, relay feeds, switch wiring and higher-draw accessory circuits in 12V and 24V systems.

UV stabilised PVC insulation: Resists degradation in sun-exposed and underbonnet environments.

V90 temperature rating: PVC insulation rated for continuous operation at up to 90°C, the standard automotive-grade insulation specification in Australia.

16-strand construction: The 16-strand conductor provides flexibility and resistance to fatigue during installation and in service.

AS/NZS 3808:2000 compliant: Meets the Australian and New Zealand standard for insulated conductors and cables for internal wiring of equipment.

RoHS compliant: Meets hazardous substance restrictions.

CAN bus compatible: Meets the signal integrity requirements for use in modern vehicle communication network environments.

100m roll: Trade-length supply for workshops and fleet installers covering multiple jobs from a single roll.

Technical specs

Frequently asked questions

What is the difference between the ACX0702 and the ACX0702L? Both are the same 3mm red OFHC copper single core cable with identical conductor and insulation specifications. The ACX0702 is supplied on a 30m roll and the ACX0702L is supplied on a 100m roll. Select based on the quantity required for your installation workload.

What is the difference between the 3mm and 2mm OEX automotive cable? The 3mm cable has a larger conductor cross-section (1.13mm² vs 0.5mm²), a higher amp rating (10A vs 5A at 30°C) and a higher voltage rating (110V vs 100V). It is suited to circuits drawing more current than the 2mm range can safely handle, including lighting circuits, relay feeds and higher-draw accessories.

What is the amp rating for this cable? This cable is rated at 10A continuous at 30°C. Ampacity decreases as ambient temperature rises, so applications in high-heat environments such as underbonnet installations should be assessed against the expected operating temperature before use.

What does V90 mean? V90 is the Australian cable insulation classification indicating the PVC insulation is rated for continuous operation at up to 90°C. It is the standard specification for automotive-grade PVC insulated cable in Australia and confirms suitability for underbonnet and outdoor-exposed installation positions.

Is this cable available in other colours or lengths? OEX produces single core automotive cable in a range of colours and roll lengths across both the 2mm and 3mm ranges. Contact us for available colour and length options to suit your specific wiring application.
