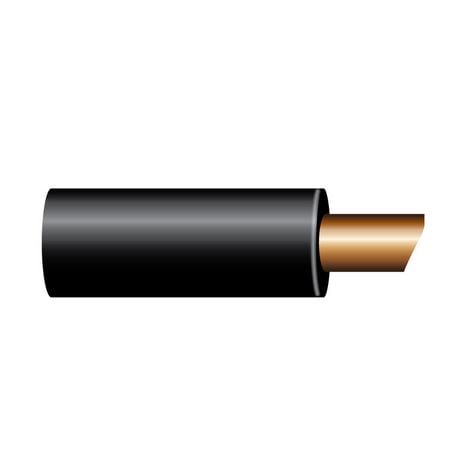

Cut end of black single core cable showing copper strands
Cut end of black single core cable showing copper strands
Click to open expanded view
OEX logo

OEX ACX0700L 3mm Single Core Automotive Cable, Black, 100m Roll

SKU: ACX0700L
Price
$116
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier.
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Cut end of black single core cable showing copper strands

OEX ACX0700L 3mm Single Core Automotive Cable, Black, 100m Roll

$116

Product features

Running accessories on cable that is too thin for the load leads to voltage drop, warm joints and faults that come back months later.

The ACX0700L is a 100m roll of black 3mm single core automotive cable with a 1.13mm² conductor made of 16 strands. It is rated at 10A at 30°C, uses V90 insulation that is UV stabilised, and OEX uses fine strands in greater numbers so the cable bends easily through a loom.

ACX0700L details

  • 3mm single core, 1.13mm² conductor
  • 10A at 30°C
  • V90 UV stabilised insulation
  • Fine stranding for flexibility

Specifications

Cable type Single core automotive
Industry size 3mm
Conductor cross section 1.13mm²
Gauge 17AWG
Strands 16 x 0.32mm
Conductor Oxygen free copper
Current rating 10A at 30°C
Voltage rating Up to 110V
Insulation temperature V90 (90°C)
UV stabilised Yes
Colour Black
Length 100m roll

Fitment and compatibility

A 3mm cable suits light loads up to 10A, such as relays, signal leads and small lamps. For longer runs or bigger loads, step up a size.

What is in the box

One 100m roll of cable. Ask our counter staff if you need it cut to length.

Install notes

Fuse every new circuit close to the supply. Our Albion Park Rail auto electricians on (02) 4257 2636 can size cable for your load and run length.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

Frequently asked questions

What current is the OEX ACX0700L rated for?

10A at 30°C.

How long is the roll?

100m.

Is it UV stabilised?

Yes, it has V90 UV stabilised insulation.

Is 3mm cable right for my job?

It suits loads up to about 10A over short runs. Tell us the load and distance and we will pick a size.
