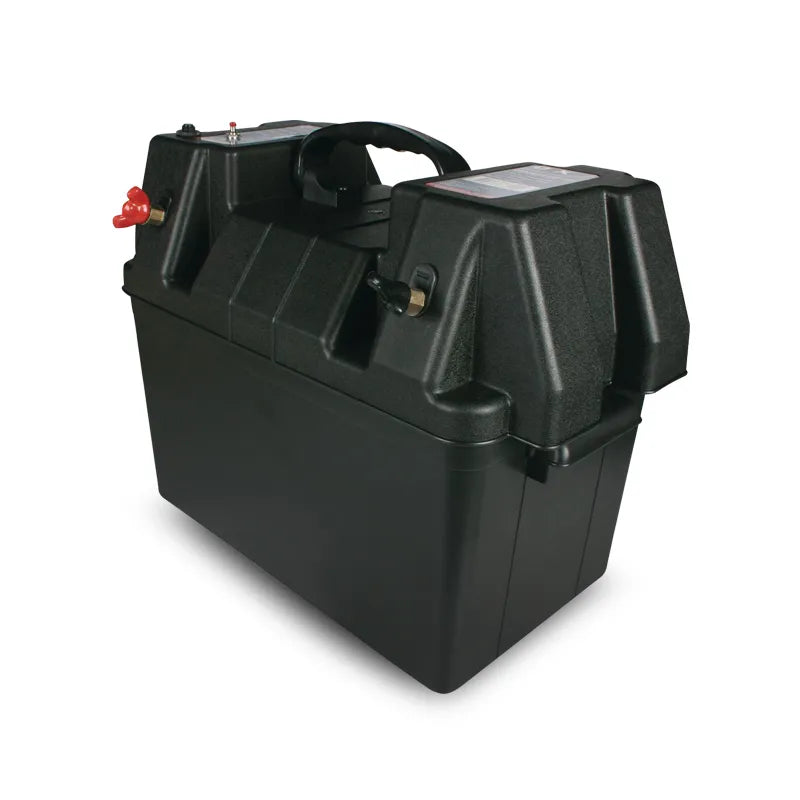

OEX ACX0678HT High Top Plastic Powered Battery Box With Power Outlets

OEX ACX0678HT Raised Height Battery Box with 25A Circuit Breaker 12V DC Socket and Battery Indicator

The OEX ACX0678HT is a raised-height moulded plastic battery box with integrated power outlets, designed for secondary and auxiliary battery installations where taller deep cycle batteries need to be accommodated. With 25mm additional height over a standard profile box, it suits most deep cycle batteries up to 120Ah. Built-in features include a 25A circuit breaker with reset button, a 12V DC output socket, external stud terminals and a battery condition test indicator. External dimensions are 340 x 200 x 225mm and internal dimensions are 310 x 180 x 200mm. Covered by a one year warranty.

Product overview

The ACX0678HT builds on the standard ACX0678 with two key upgrades a raised-height profile to accommodate taller deep cycle batteries, and a 25A circuit breaker with manual reset button replacing the standard circuit protection. The raised profile adds 25mm of height for a total external height of 225mm, covering the majority of deep cycle batteries up to 120Ah used in dual-battery, caravan and 4WD setups that would exceed the capacity of a standard-height box. The 25A circuit breaker with reset button provides integrated overcurrent protection on the output circuit, removing the need for a separate inline fuse.

Beyond battery housing, the ACX0678HT provides a self-contained power access point at the battery. The 12V DC output socket allows accessories to be powered directly from the battery box, the external stud terminals allow loads and chargers to be connected without opening the box, and the battery condition test indicator provides an at-a-glance visual check of battery state without additional instrumentation. The moulded plastic construction is robust and suited to vehicle battery compartments, engine bays and outdoor storage environments.

Features and benefits

Raised height design, 25mm over standard: The additional 25mm height accommodates the taller form factor of most deep cycle batteries up to 120Ah that would not fit in a standard-height battery box.

25A circuit breaker with reset button: Integrated overcurrent protection with manual reset on the output circuit, removing the need for a separate inline fuse and allowing the circuit to be reset without replacing a fuse after a trip.

12V DC output socket: Built-in 12V accessory output for powering devices directly from the battery box without additional wiring.

Battery condition test indicator: Visual at-a-glance battery charge state indicator built into the box, removing the need for a separate multimeter for basic battery monitoring.

External stud terminals: Accessible external terminals allow loads and chargers to be connected and disconnected without opening the box, simplifying routine battery management.

Suits batteries up to 120Ah: Internal dimensions of 310 x 180 x 200mm accommodate most deep cycle secondary batteries up to 120Ah. Verify your battery's dimensions before purchasing.

Moulded plastic construction: Rigid and durable for automotive, caravan and outdoor environments.

One year warranty: Covered by a one year OEX warranty.

Technical specs

Frequently asked questions

What makes the ACX0678HT different from the standard ACX0678? The ACX0678HT adds 25mm of height over the standard ACX0678, allowing it to accommodate taller deep cycle batteries up to 120Ah. It also upgrades the circuit protection to a 25A circuit breaker with a manual reset button, replacing the need for a separate inline fuse on the output circuit.

What battery sizes will fit in this box? The internal dimensions are 310 x 180 x 200mm (L x W x H), suitable for most deep cycle batteries up to 120Ah. Always verify your specific battery's physical dimensions before purchasing to confirm a correct fit.

What does the battery condition test indicator show? The battery condition test indicator provides a visual indication of the battery's charge state. Specific voltage thresholds and indicator stages are not detailed in the current product data. Contact us if precise monitoring levels are required for your application.

Can I connect a battery charger directly to the external stud terminals? Yes. The external stud terminals are designed to allow connection of both loads and chargers without opening the box. Ensure any charger or load is appropriately rated for your application and that cable sizing is suited to the current draw of the connected equipment.

Are tie-down straps or mounting hardware included? Tie-down straps and mounting hardware are not confirmed as included in the current product data for the ACX0678HT. Contact us to confirm kit contents before purchasing, and source appropriate securing hardware separately if required.
