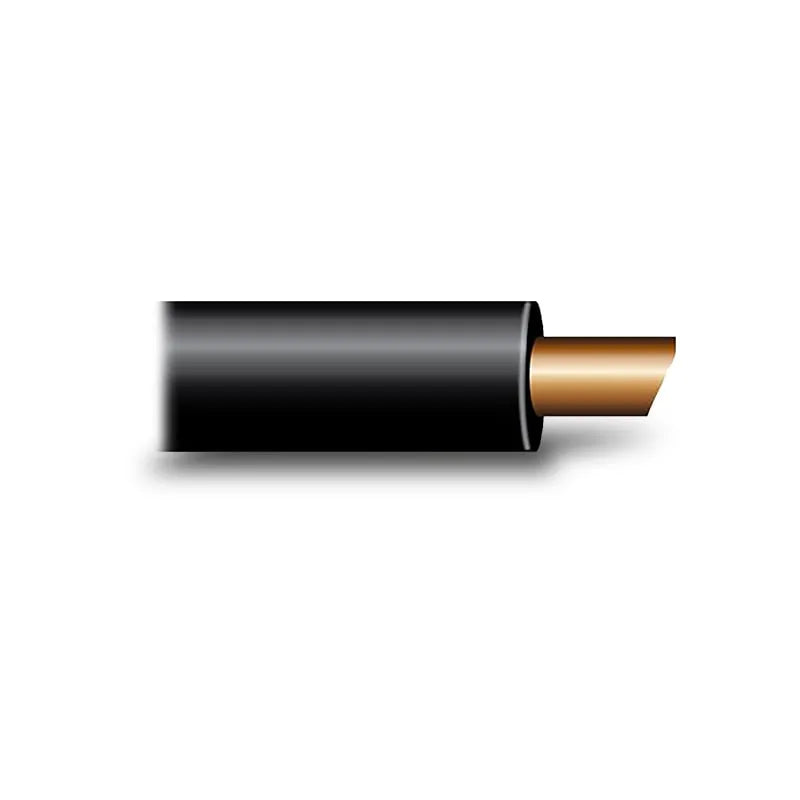

OEX 2 mm Single Core Automotive Cable Black 100 m Roll

Australian made 2 mm single core automotive cable in black, on a 100 m roll.

It uses 99.99 percent oxygen free copper in 18 fine strands with UV stabilised V90 PVC insulation, so it handles heat in an engine bay and sun on the outside of a caravan.

It is rated at 5 A continuous at 30 degrees, so keep it to light loads such as switch feeds, relay triggers and signal wires.

Specifications

• Industry size: 2 mm
• Cross section: 0.5 mm²
• Gauge: 20 AWG
• Strands: 18 x 0.18 mm
• Conductor: 99.99 percent OFHC copper
• Current rating: 5 A at 30 degrees
• Voltage rating: up to 100 V
• Insulation: PVC, V90, UV stabilised
• Colour: Black
• Length: 100 m roll
• Made in: Australia

FAQ

What is the OEX ACX0556/100?

OEX Australian made 2 mm single core automotive cable, black, 100 m roll. 0.5 mm² OFHC copper, 5 A rated, V90 UV stable PVC.

What can I use this cable for?

General 12 V and 24 V wiring in cars, 4WDs, caravans and boats, such as switch feeds, signal wires and low current accessories up to its 5 A rating.

What does 2 mm mean?

2 mm is the trade size. The copper cross section is 0.5 mm², about 20 AWG. Check the current rating, not just the trade size, before you choose cable.
