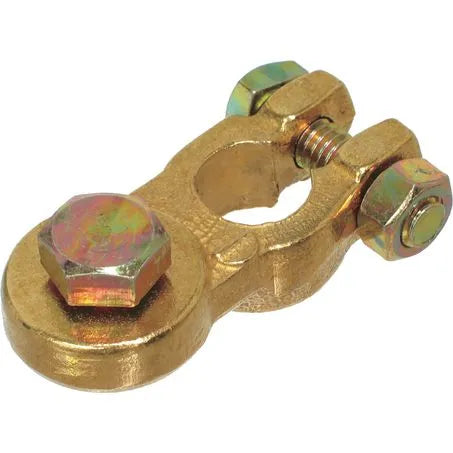

OEX ACX0028 Battery Terminal Bolt on Heavy Duty Positive 5Pce

OEX ACX0028 Heavy Duty Bolt On Positive Battery Terminal 10mm Stud Standard Post Pack of 5

The OEX ACX0028 is a solid brass heavy duty bolt on positive battery terminal with a 10mm stud and lug bolt on termination, suited to standard European style battery posts. Like the ACX0027 negative companion, it allows the battery cable to be disconnected without removing the terminal from the post. The cable ring lug unbolts from the stud while the terminal body remains clamped to the battery post. Supplied in a pack of 5 with a one year warranty.

Product overview

The ACX0028 is the positive counterpart to the ACX0027, sharing the same heavy duty bolt on construction, 10mm stud and quick disconnect design. The cable end is fitted with a 10mm ring terminal which bolts to the stud on the terminal body. To disconnect the battery, the ring terminal lug is unbolted from the stud while the terminal body stays clamped to the post. There is no need to remove the full terminal from the battery post for routine disconnection, which is practical for seasonal storage, caravans disconnected between trips and maintenance work.

Solid brass construction provides corrosion resistance and reliable conductivity at high current connections in automotive, marine and 4WD environments. Pairing the ACX0028 with the ACX0027 provides a complete matched positive and negative terminal set in the heavy duty bolt on style. The pack of 5 suits workshop, trade and fleet use.

Features and benefits

Quick disconnect without removing terminal from post: The lug bolt on design allows the cable ring terminal to be unbolted from the 10mm stud while the terminal body stays clamped to the battery post, simplifying routine disconnection for maintenance, storage and anti theft purposes.

Heavy duty bolt on construction: Lug bolt on termination suited to high current main lead applications where a secure, removable cable connection is required at the battery post.

Solid brass construction: Brass provides excellent corrosion resistance and electrical conductivity at high current connections in demanding environments.

10mm stud: Accepts standard 10mm ring terminal lugs for a secure bolt on connection.

Positive polarity: Designated for positive standard battery post installations only. Pairs directly with the ACX0027 negative terminal for a complete matched set.

Suits standard European style battery posts: Compatible with the larger standard battery post diameter used on the majority of Australian automotive, marine and caravan batteries.

Pack of 5: Five terminals per pack suits workshop, trade and fleet use.

One year warranty: Covered by a one year OEX warranty.

Technical specs

Frequently asked questions

How does the ACX0028 differ from the ACX0027? The ACX0028 and ACX0027 are identical in design, sharing the same heavy duty bolt on construction, 10mm stud, lug bolt on termination, standard post sizing and quick disconnect feature. The ACX0028 is the positive terminal and the ACX0027 is the negative. Purchase both for a complete matched positive and negative terminal pair.

How does the quick disconnect work on the ACX0028? The cable end is fitted with a 10mm ring terminal which bolts onto the stud on the terminal body. To disconnect the battery, the bolt holding the ring terminal to the stud is removed. The terminal body remains clamped to the battery post and does not need to be disturbed. See the ACX0027 listing for a full explanation of the lug bolt on disconnect design.

What cable size does the ACX0028 accept? Cable size is not confirmed in the current product data for the ACX0028. The ACX0027 negative companion specifies 0 to 00 B&S (50.3 to 65.8mm²). Contact us to confirm the compatible cable size for the ACX0028 before purchasing.

What cable preparation is needed before using the ACX0028? The cable end must be fitted with a 10mm ring terminal by crimping or soldering with appropriate tooling. The ring terminal is then bolted to the 10mm stud on the ACX0028. Confirm that the ring terminal barrel suits your cable diameter before installation.

What applications suit a heavy duty bolt on terminal with quick disconnect? Heavy duty bolt on terminals in this style suit high current applications where routine battery disconnection is needed, including winch batteries, caravans disconnected between trips, workshop vehicles and commercial equipment. Confirm cable and current requirements with a qualified installer before purchasing.
