OEX ACX0025 Battery Terminal Marine Stud Type 10mm Positive 5Pce

SKU: ACX0025
Price
$65
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

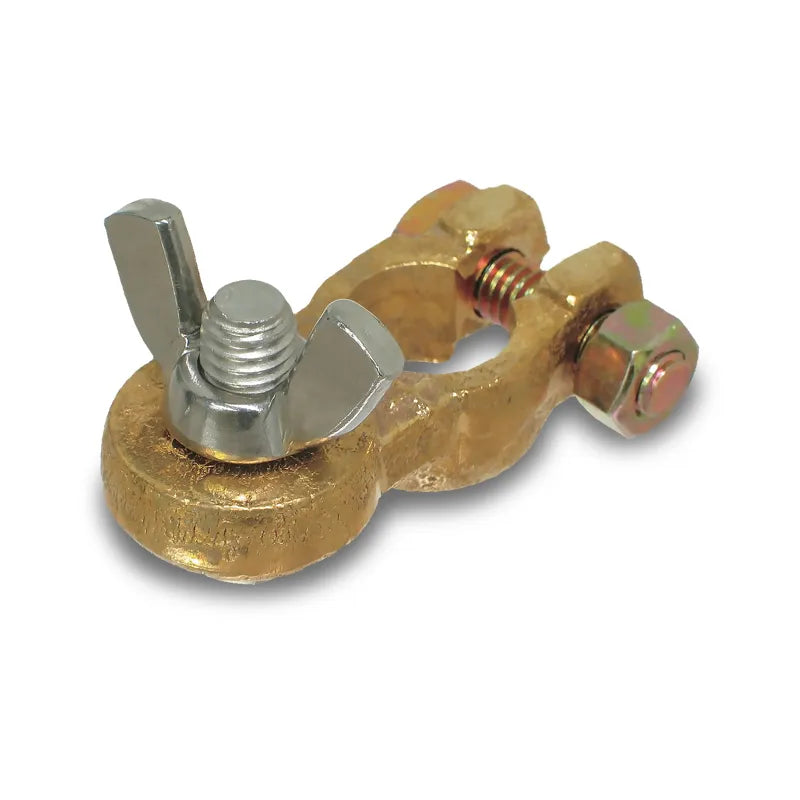

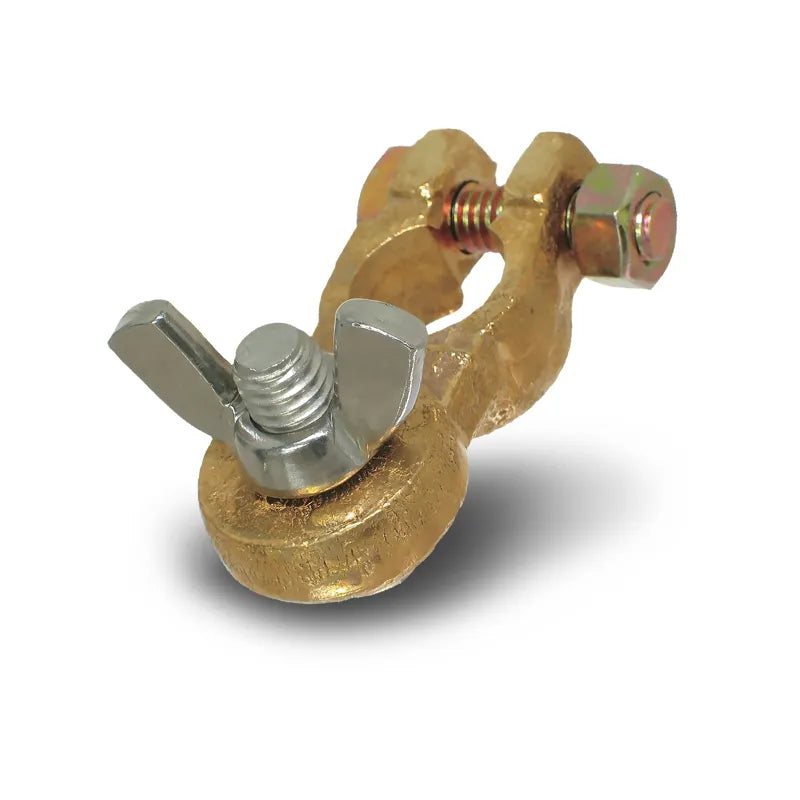

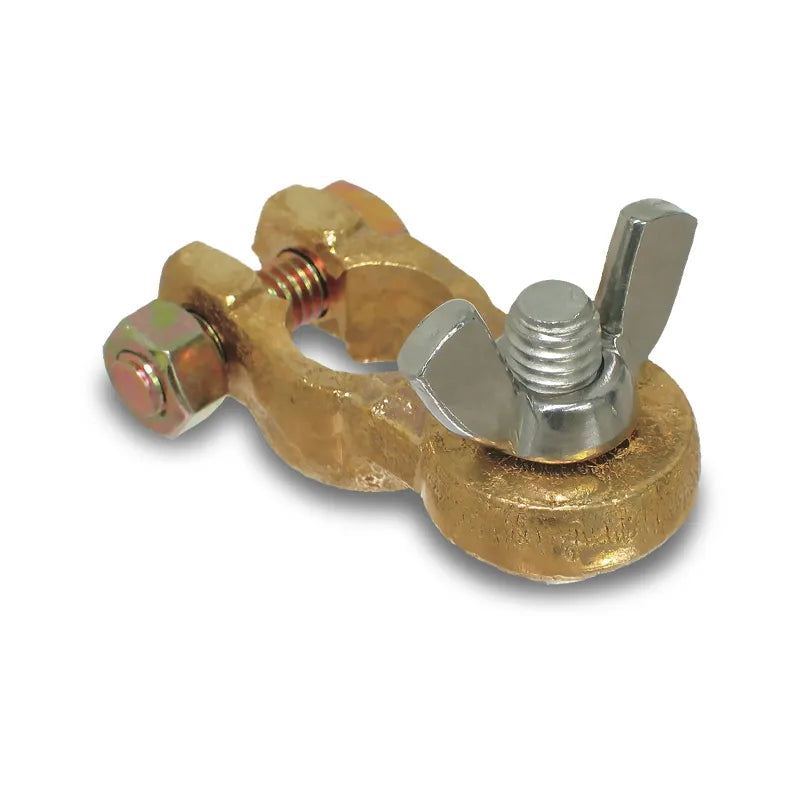

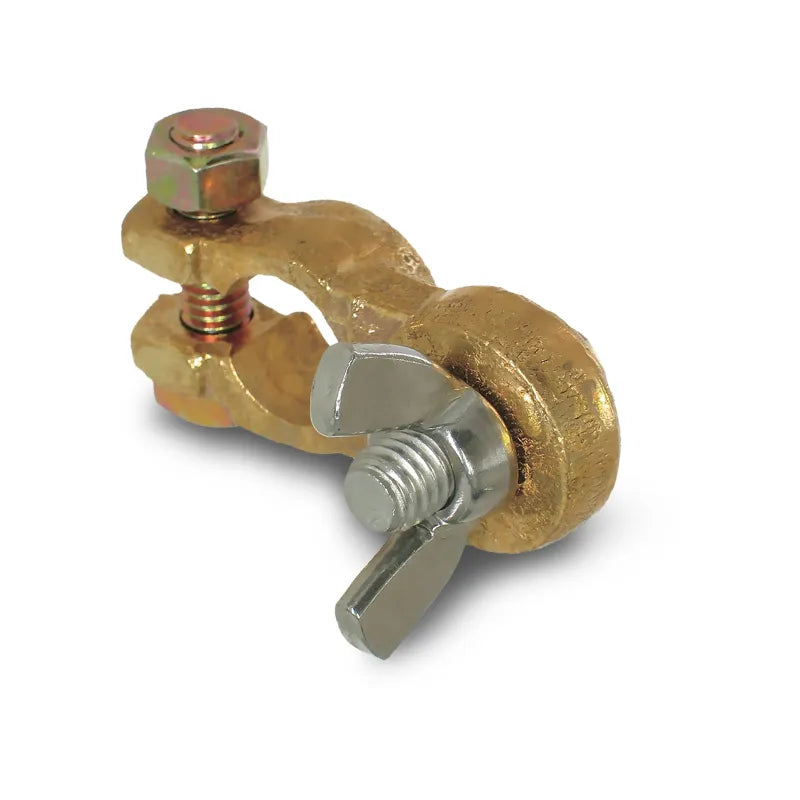

OEX ACX0025 Solid Brass Marine Stud Type 10mm Positive Battery Terminal One Piece Pack of 5

The OEX ACX0025 is a solid brass one-piece marine stud type positive battery terminal with a 10mm stud and wing nut, suited to standard battery posts. Supplied in a pack of 5 with a one-year warranty.

Product overview

The ACX0025 is a positive-only marine stud terminal with a 10mm diameter stud, designed for automotive, marine and caravan battery installations where a robust threaded stud connection is required. The one-piece brass construction eliminates the jointed construction found in some terminals, providing a more rigid and electrically consistent connection point. The 10mm stud accepts ring terminals, lugs and accessories up to a 10mm hole size, and the wing nut allows connections to be tightened or released by hand.

The solid brass body provides corrosion resistance and reliable conductivity in marine, 4WD and outdoor environments. The pack of 5 suits workshop, trade and fleet use. Confirm cable size compatibility with F.A.E. before purchasing if you have specific cable requirements. The negative counterpart to this terminal is the ACX0006N.

Features and benefits

One-piece brass construction: Single-piece construction provides greater rigidity and a more consistent electrical connection than jointed or multi-part terminals.

10mm marine stud with wing nut: The 10mm threaded stud accepts ring terminals and lugs up to 10mm hole size, with a wing nut for tool-free tightening and release.

Solid brass body: Brass provides excellent corrosion resistance and conductivity, suited to marine, automotive and 4WD environments.

Positive polarity: Designed for positive standard battery post installations only. Contact us for compatible negative terminal options.

Suits standard battery posts: Compatible with standard battery post sizes used across the majority of automotive, marine and caravan batteries.

Pack of 5: Five terminals per pack suits workshop, trade and fleet use.

One year warranty: Covered by a one-year OEX warranty.

Technical specs

Specification Detail
SKU ACX0025
Brand OEX
Terminal Style Marine Stud Type
Termination Type Stud with wing nut
Stud Diameter 10mm
Construction One piece
Polarity Positive
Terminal Size Standard battery post
Material Solid brass
Pack Quantity 5
Weight 0.651kg (pack)
Warranty One year
Sold As Pack of 5

Frequently asked questions

Is the ACX0025 suitable for negative battery connections? No. The ACX0025 is a positive-only terminal. Contact us for compatible negative battery terminal options in the OEX range.

What is the stud diameter on the ACX0025? The ACX0025 uses a 10mm diameter stud. Ring terminals and cable lugs connected to this terminal must have a hole size of 10mm or larger to fit correctly.

What cable sizes does the ACX0025 accept? Cable size compatibility is not confirmed in the current product data. Contact us with your cable size requirements and we can confirm suitability before you purchase.

What does one-piece construction mean for this terminal? One-piece construction means the terminal body and stud are manufactured as a single integrated unit rather than being assembled from separate components. This provides greater structural rigidity and eliminates potential weak points at joints, resulting in a more reliable electrical connection over the life of the terminal.

How does the ACX0025 differ from the ACX0006P? Both are solid brass positive marine stud terminals with wing nuts for standard battery posts. The ACX0025 specifies a 10mm stud diameter and one-piece construction, and is supplied in a pack of 5. The ACX0006P does not specify a stud diameter in the current product data and is supplied in a pack of 10. Contact us if you need help selecting the correct terminal for your application.
