Product features

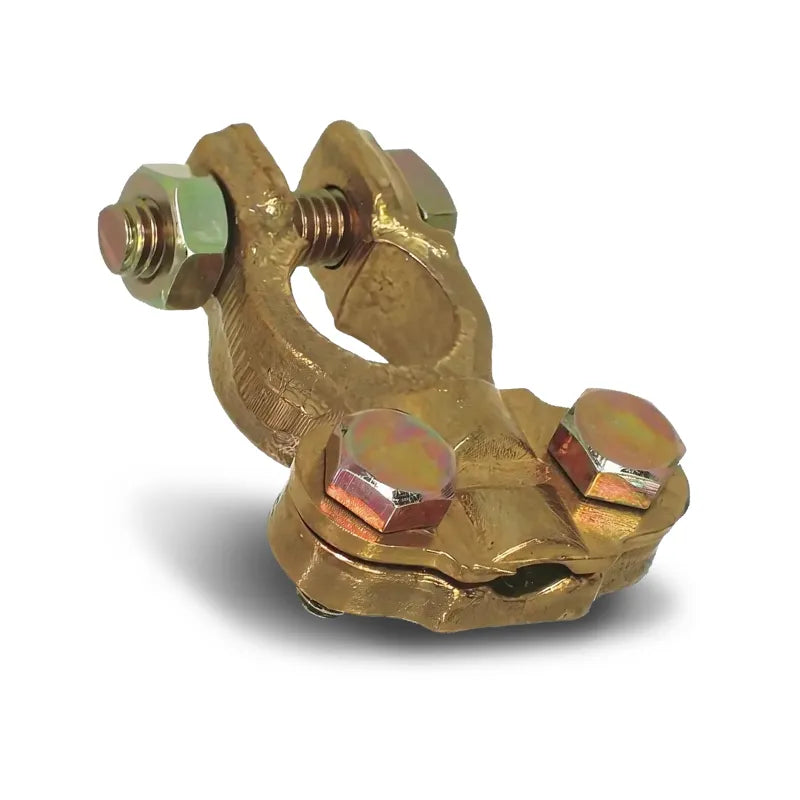

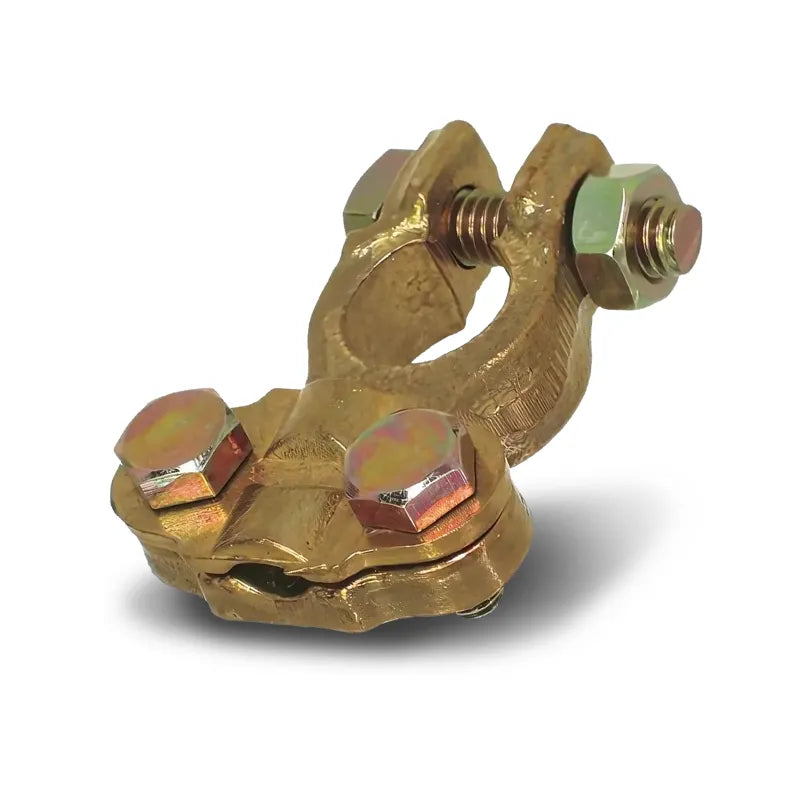

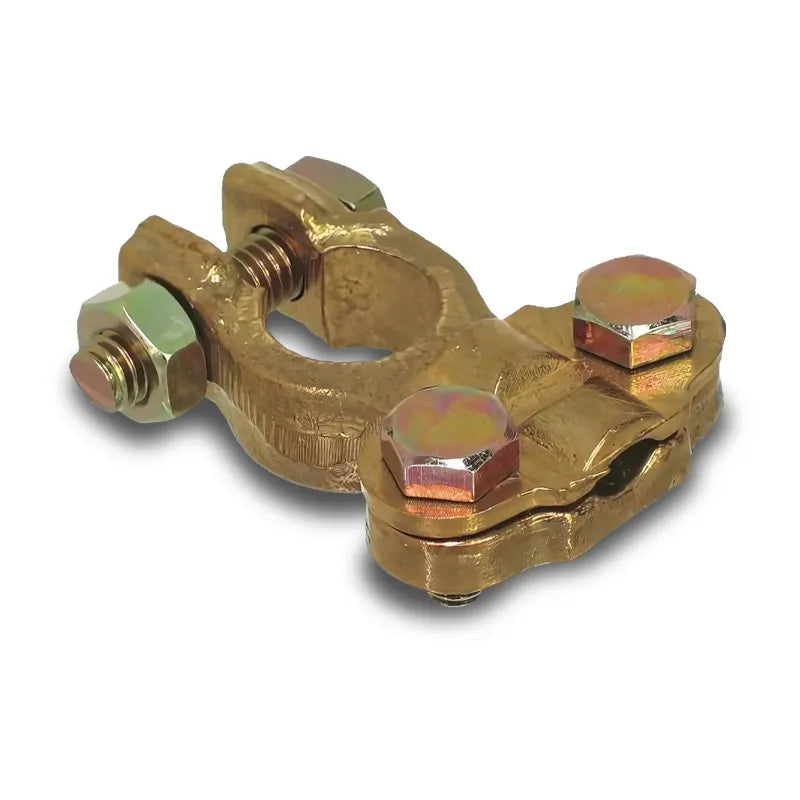

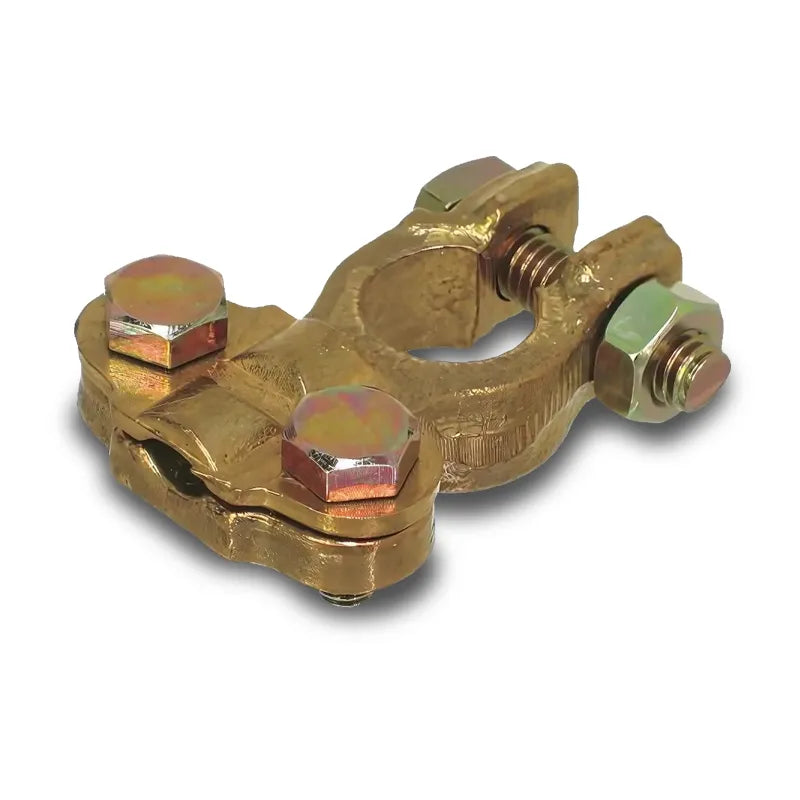

OEX ACX0024 Solid Brass End Entry Battery Terminal Positive or Negative 0–00 B&S Pack of 5

The OEX ACX0024 is a solid brass end entry solderless saddle bolt battery terminal suited to both positive and negative standard battery posts. Compatible with 0 to 00 B&S cable (50.3 to 65.8mm²), it is supplied in a pack of 5 with a one-year warranty.

Product overview

The ACX0024 fills the same role as the ACX0002 but for heavier cable sizes. Where the ACX0002 covers 6 to 1 B&S cable, the ACX0024 is designed for the larger 0 to 00 B&S range (50.3 to 65.8mm²), suited to high-current main leads on vehicles with substantial electrical demand. The end entry solderless saddle bolt design allows heavy-gauge cable to be inserted from the end of the terminal and clamped securely without soldering or crimping, making installation straightforward with basic hand tools.

Solid brass construction provides superior corrosion resistance and conductivity in demanding automotive, marine and 4WD environments. Suits both positive and negative standard battery posts, and the pack of 5 suits workshop and trade use where multiple terminals are required.

Features and benefits

End entry solderless saddle bolt: Heavy-gauge cable inserts from the end of the terminal and is clamped with a saddle bolt, requiring no solder or crimp tools for installation.

0–00 B&S cable compatibility (50.3–65.8mm²): Designed for the heaviest common main lead cable sizes, covering both 0 B&S (50.3mm²) and 00 B&S (65.8mm²).

Suits positive and negative standard posts: Compatible with both positive and negative standard battery posts, reducing the number of part numbers required for a complete installation.

Solid brass construction: Brass provides excellent corrosion resistance and electrical conductivity, suited to demanding automotive, marine and 4WD environments.

Pack of 5: Five terminals per pack suits workshop and trade use across multiple installations.

One year warranty: Covered by a one-year OEX warranty.

Technical specs

Specification Detail
SKU ACX0024
Brand OEX
Terminal Style End Entry
Termination Type Saddle bolt (solderless)
Polarity Positive or Negative
Terminal Size Standard battery post
Compatible Cable 0–00 B&S (50.3–65.8mm²)
Material Solid brass
Pack Quantity 5
Weight 0.544kg (pack)
Warranty One year
Sold As Pack of 5

Frequently asked questions

How does the ACX0024 differ from the ACX0002? Both are solid brass end entry solderless saddle bolt terminals for standard battery posts. The ACX0002 suits 6–1 B&S cable (15.0–40.6mm²) and is supplied in a pack of 10. The ACX0024 suits the heavier 0–00 B&S cable range (50.3–65.8mm²) and is supplied in a pack of 5. Select based on your cable size.

Does the ACX0024 suit both positive and negative battery posts? Yes. The ACX0024 is compatible with both positive and negative standard battery posts, allowing a single terminal to be used for both connections.

What cable sizes does the ACX0024 accept? The ACX0024 accepts 0 B&S to 00 B&S cable, equivalent to 50.3mm² to 65.8mm². This covers the heaviest common main lead cable sizes used in high-current automotive, marine and 4WD applications.

How does the ACX0024 differ from the ACX0021? The ACX0021 is a side entry full barrel negative-only terminal with crimp or solder termination, also for 0–00 B&S cable. The ACX0024 is an end entry solderless saddle bolt terminal that suits both positive and negative posts. Select based on your preferred termination method, cable routing direction and polarity requirements.

Is the ACX0024 available in a larger pack size? The ACX0024 is supplied as a pack of 5. Contact us if you need a different quantity or terminal configuration.
