Product features

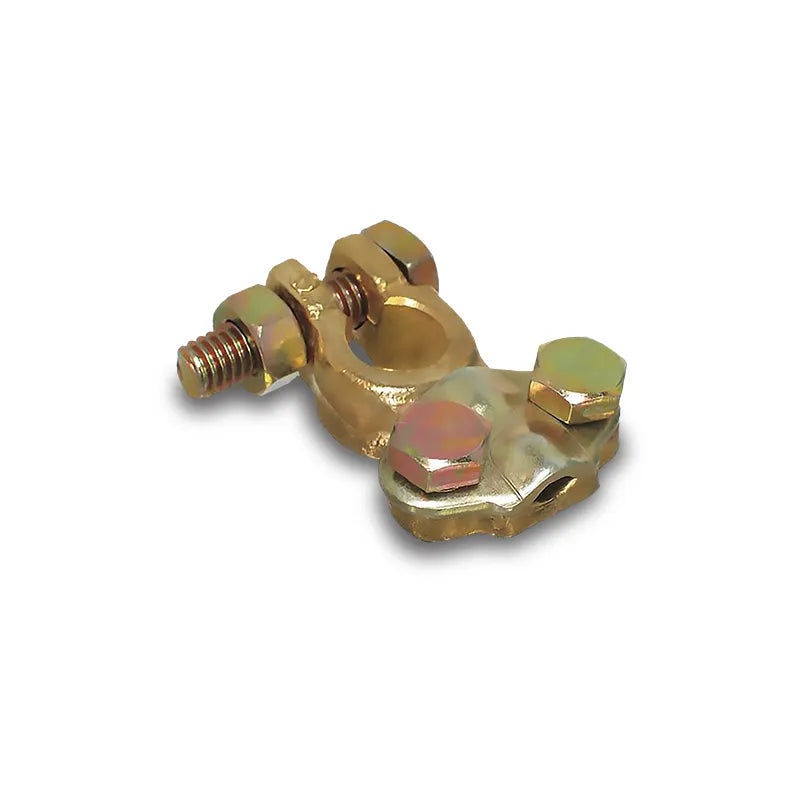

OEX ACX0017 Solid Brass End Entry Battery Terminal Small Post Japanese Style Positive and Negative Pack of 10

The OEX ACX0017 is a solid brass end entry solderless battery terminal for small post Japanese style batteries, compatible with both positive and negative posts. Each pack contains 5 positive and 5 negative terminals, suited to 6 to 3 B&S cable (15.0 to 26.4mm²). Supplied as a pack of 10 with a one-year warranty.

Product overview

The ACX0017 is designed specifically for Japanese-style small battery posts, which are physically smaller than the standard European-style posts used on most Australian domestic and commercial vehicles. Fitting a standard-post terminal to a small-post Japanese battery results in a loose, unreliable connection, making the correct terminal size critical. The ACX0017 resolves this with a purpose-built small-post end entry terminal in solid brass.

The end entry solderless saddle bolt design allows cable to be inserted from the end of the terminal and clamped securely without soldering or crimping tools. The cable range of 6 to 3 B&S (15.0 to 26.4mm²) suits the lighter main lead cable sizes common in smaller Japanese-market vehicles. With 5 positive and 5 negative terminals per pack, a single pack covers one complete battery installation.

Features and benefits

Small post Japanese style: Designed specifically for Japanese-style small battery posts, providing a correct mechanical fit on batteries that standard-post terminals cannot grip securely.

Solid brass construction: Brass provides excellent corrosion resistance and electrical conductivity, suited to automotive, marine and 4WD environments.

End entry solderless saddle bolt: Cable is inserted from the end of the terminal and clamped with a saddle bolt, requiring no solder or crimp tools for installation.

5 positive and 5 negative per pack: The split pack provides one complete set for a single battery installation, eliminating the need to purchase positive and negative terminals separately.

Compatible with 6–3 B&S cable (15.0–26.4mm²): Suits the lighter main lead cable sizes typical of smaller Japanese-market vehicles.

Suits standard and positive and negative posts: A single pack covers both connections on the battery.

One year warranty: Covered by a one-year OEX warranty.

Technical specs

Specification Detail
SKU ACX0017
Brand OEX
Terminal Style End Entry
Termination Type Saddle bolt (solderless)
Polarity Positive and Negative (5 of each)
Terminal Size Small post — Japanese style
Compatible Cable 6–3 B&S (15.0–26.4mm²)
Material Solid brass
Pack Quantity 10 (5 positive, 5 negative)
Weight 0.769kg (pack)
Warranty One year
Sold As Pack of 10

Frequently asked questions

What is a small post Japanese style battery terminal? Japanese-style batteries use a smaller diameter battery post than the standard European-style posts common on most Australian domestic vehicles. The ACX0017 is sized specifically for these smaller posts. Using a standard-post terminal on a small-post battery results in a loose fit and unreliable connection.

How many positive and negative terminals are in the pack? Each pack contains 5 positive and 5 negative terminals, providing a complete set for one battery installation without needing to purchase polarities separately.

What cable sizes does the ACX0017 accept? The ACX0017 suits cable from 6 B&S to 3 B&S, equivalent to 15.0mm² to 26.4mm². This covers the lighter main lead cable sizes typical of smaller Japanese-market vehicles.

What does solderless end entry mean? Solderless end entry means the cable conductor is inserted into the end of the terminal and clamped securely with a saddle bolt, without requiring solder or a crimping tool. This makes installation straightforward with basic hand tools.

How does the ACX0017 differ from the ACX0002? The ACX0002 is an end entry saddle terminal for standard-size battery posts, suited to 6–1 B&S cable. The ACX0017 is designed for small post Japanese-style batteries and suits the narrower 6–3 B&S cable range. Select the correct terminal based on your battery's post size.
