OEX 2 mm Single Core Automotive Cable Violet 50 m Roll

SKU: ACX0566
Price
$29
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
OEX ACX0566 2mm Automotive Cable Single Core Violet 50m Roll

OEX 2 mm Single Core Automotive Cable Violet 50 m Roll

$29

Product features

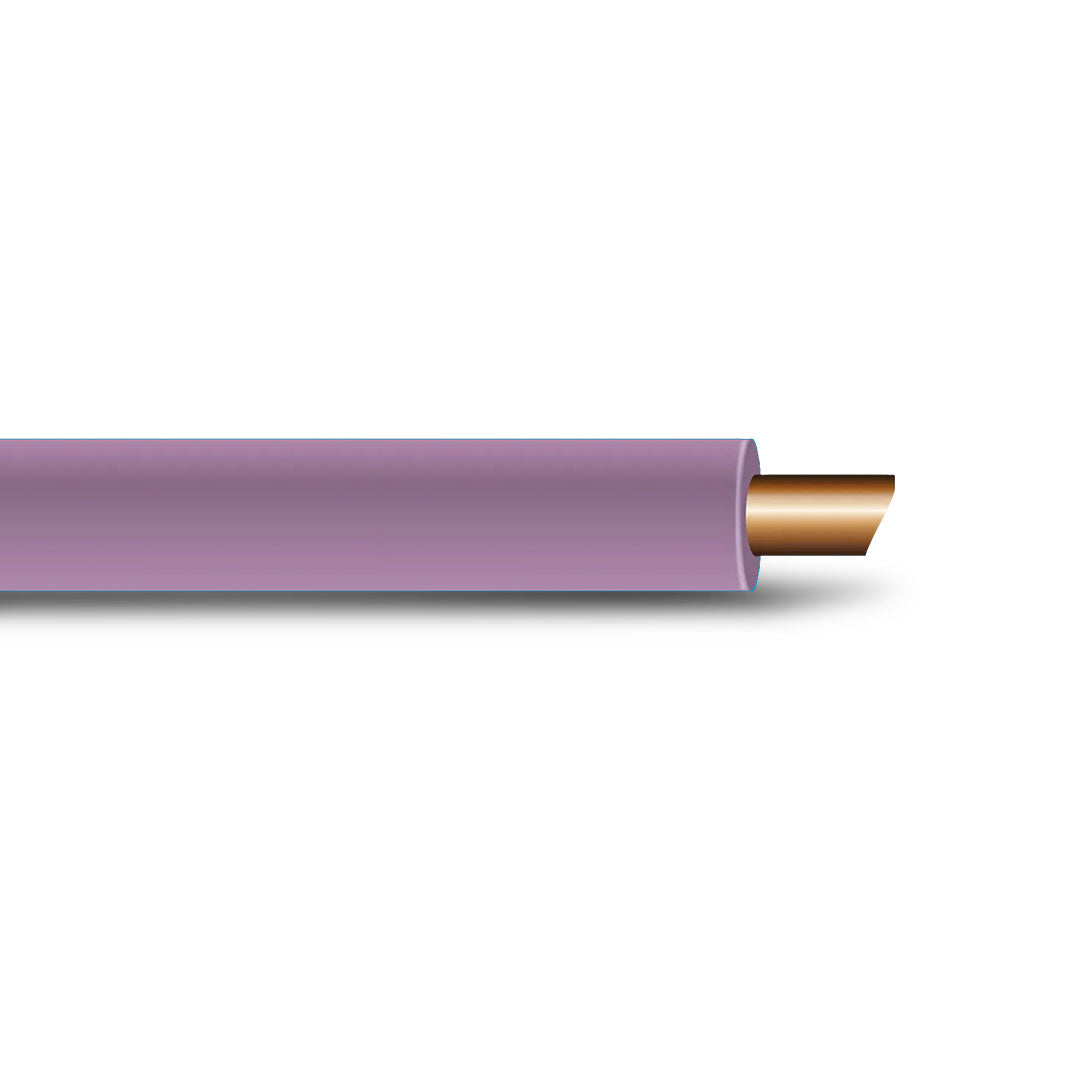

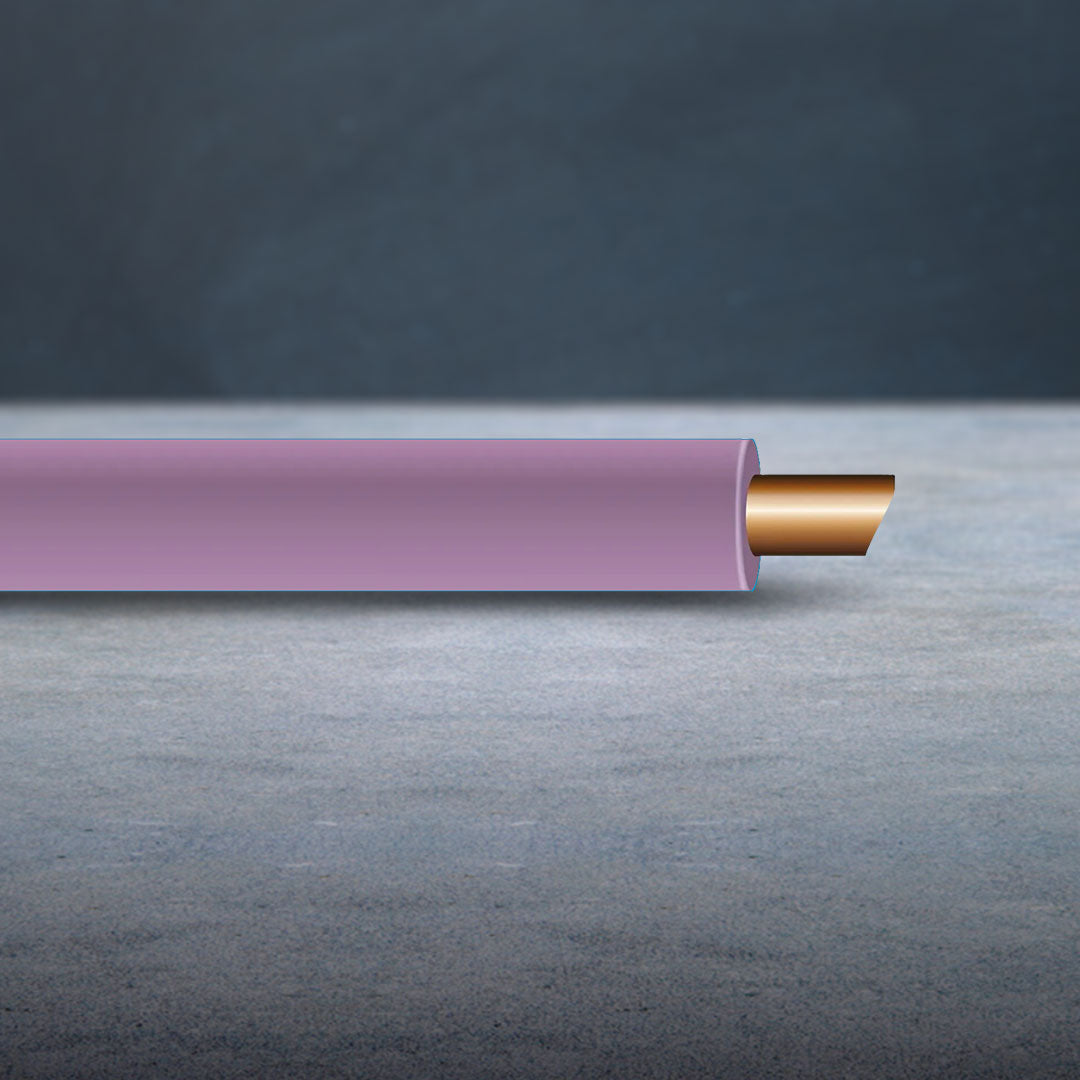

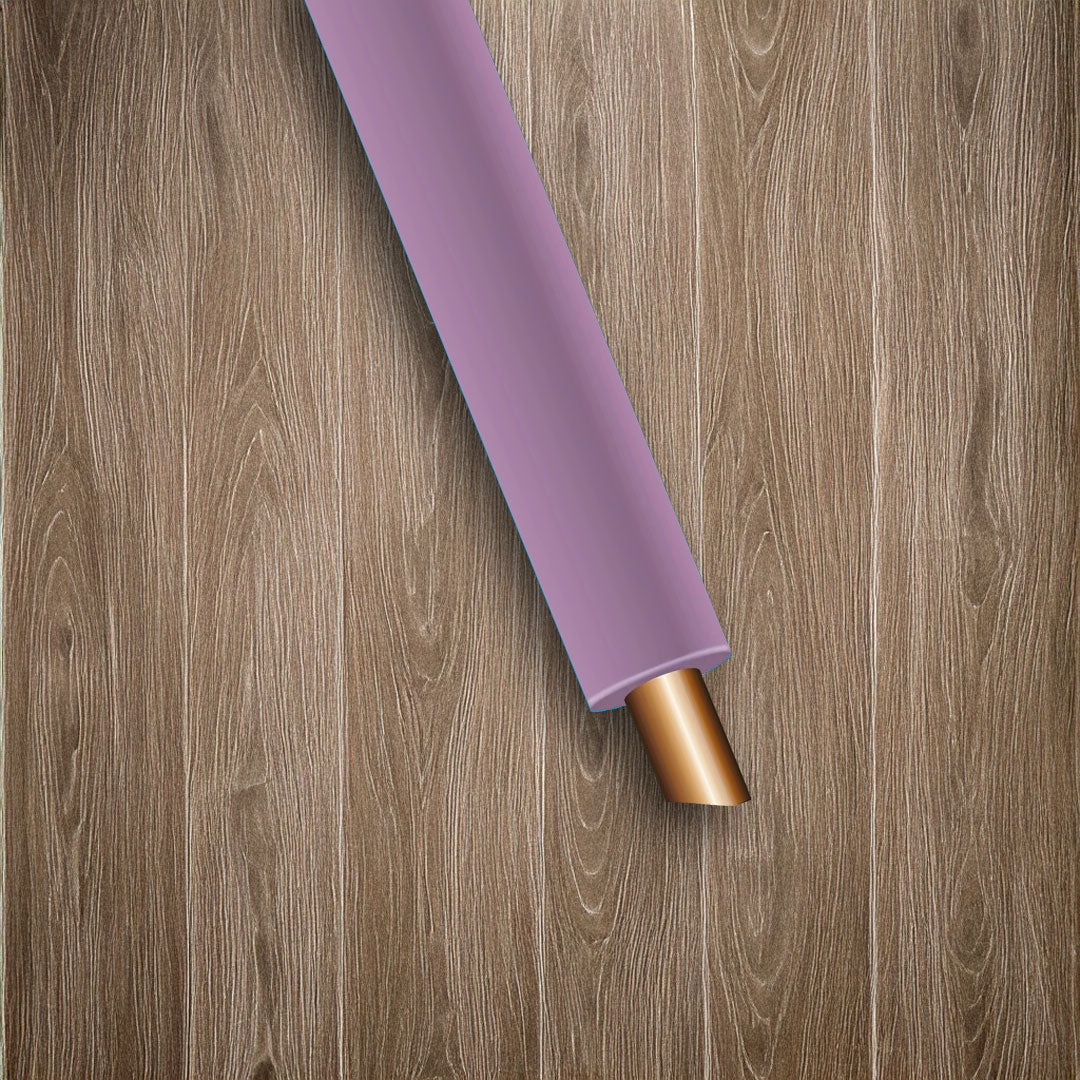

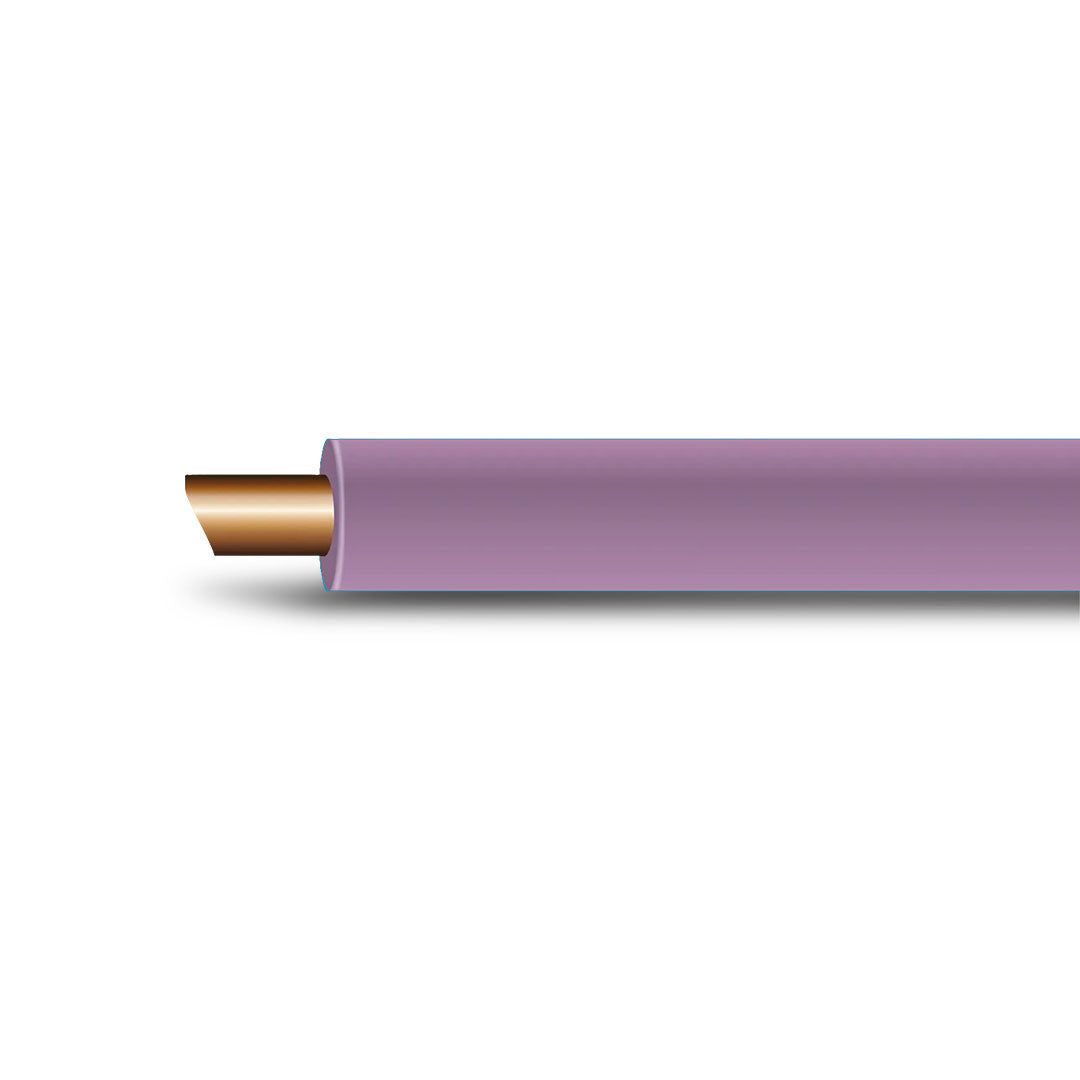

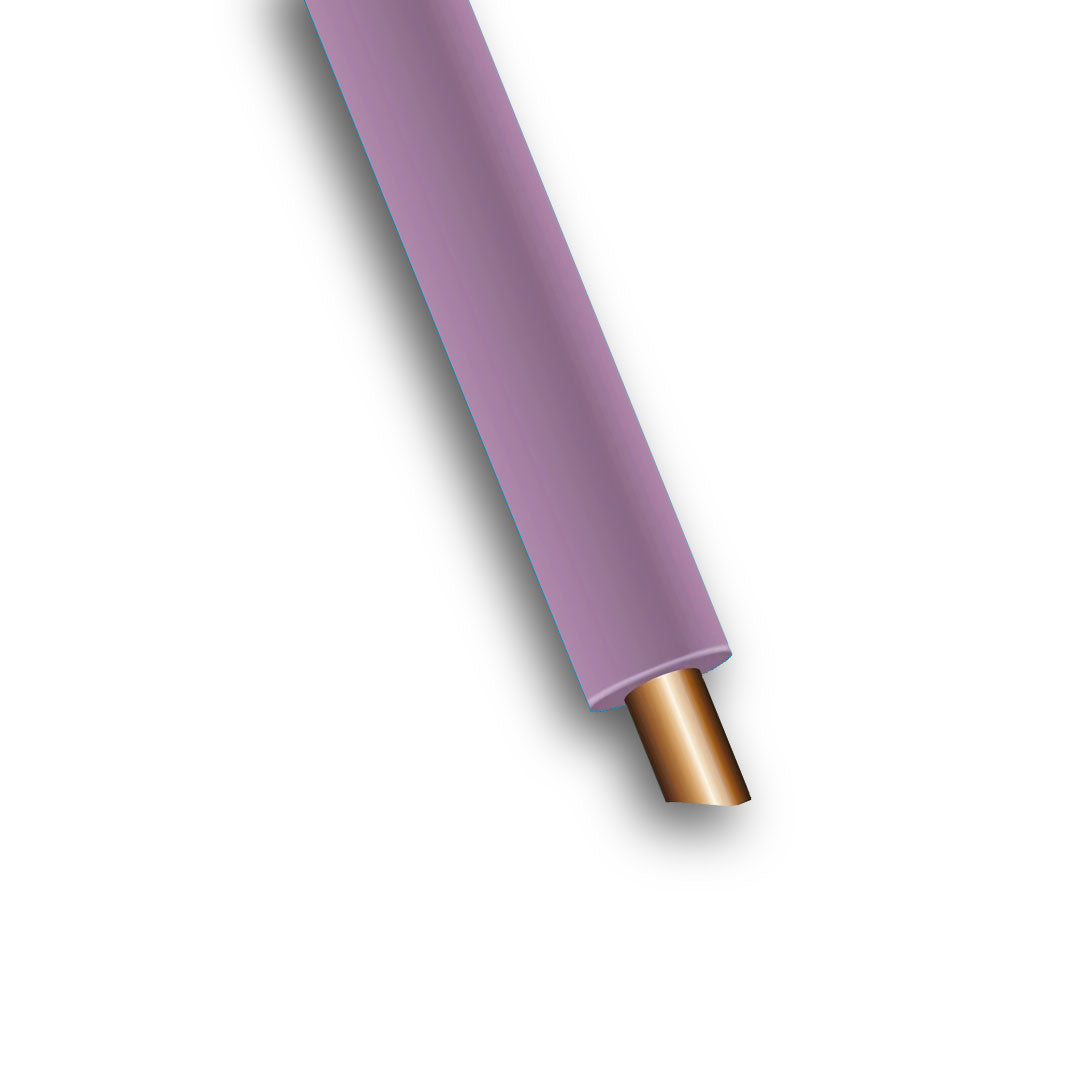

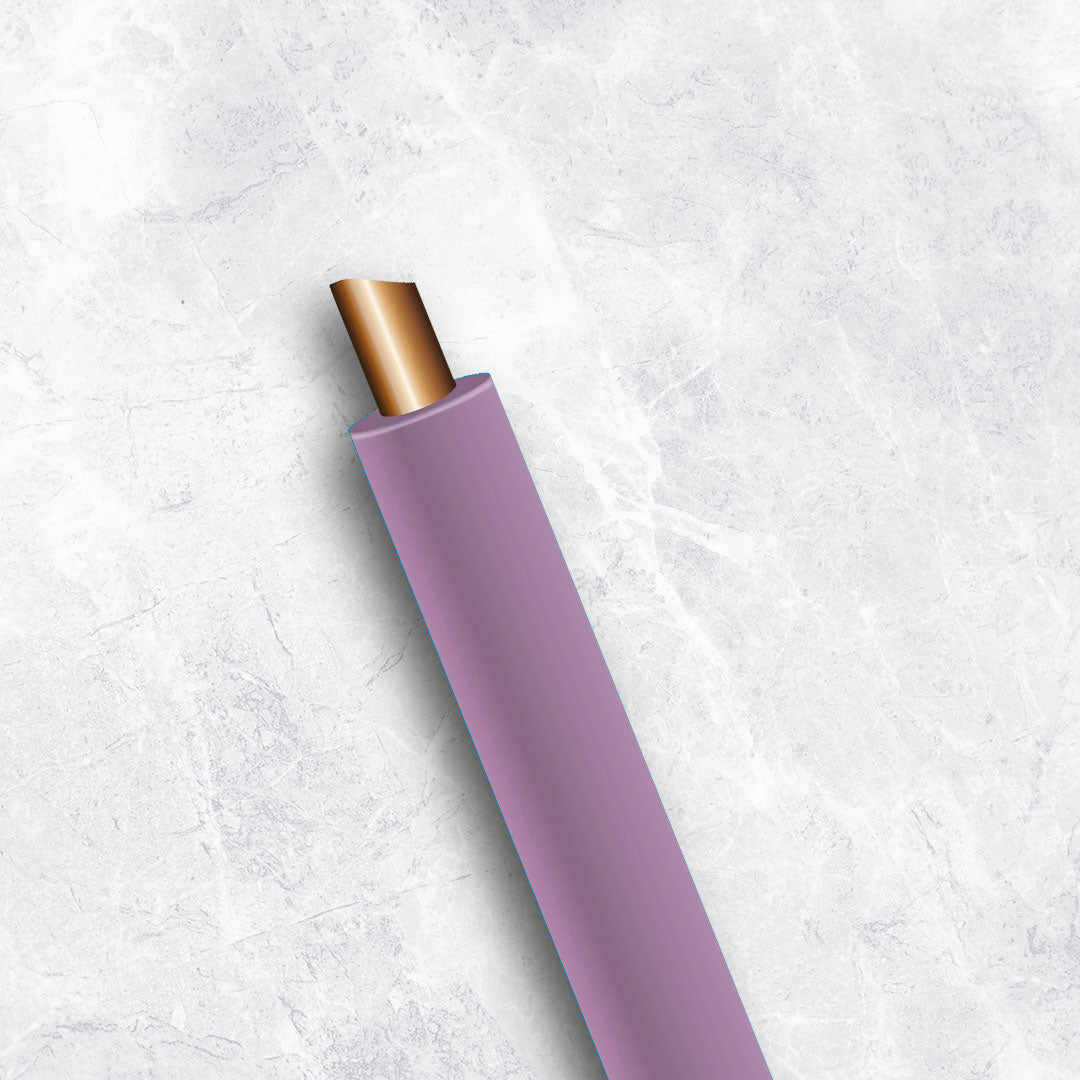

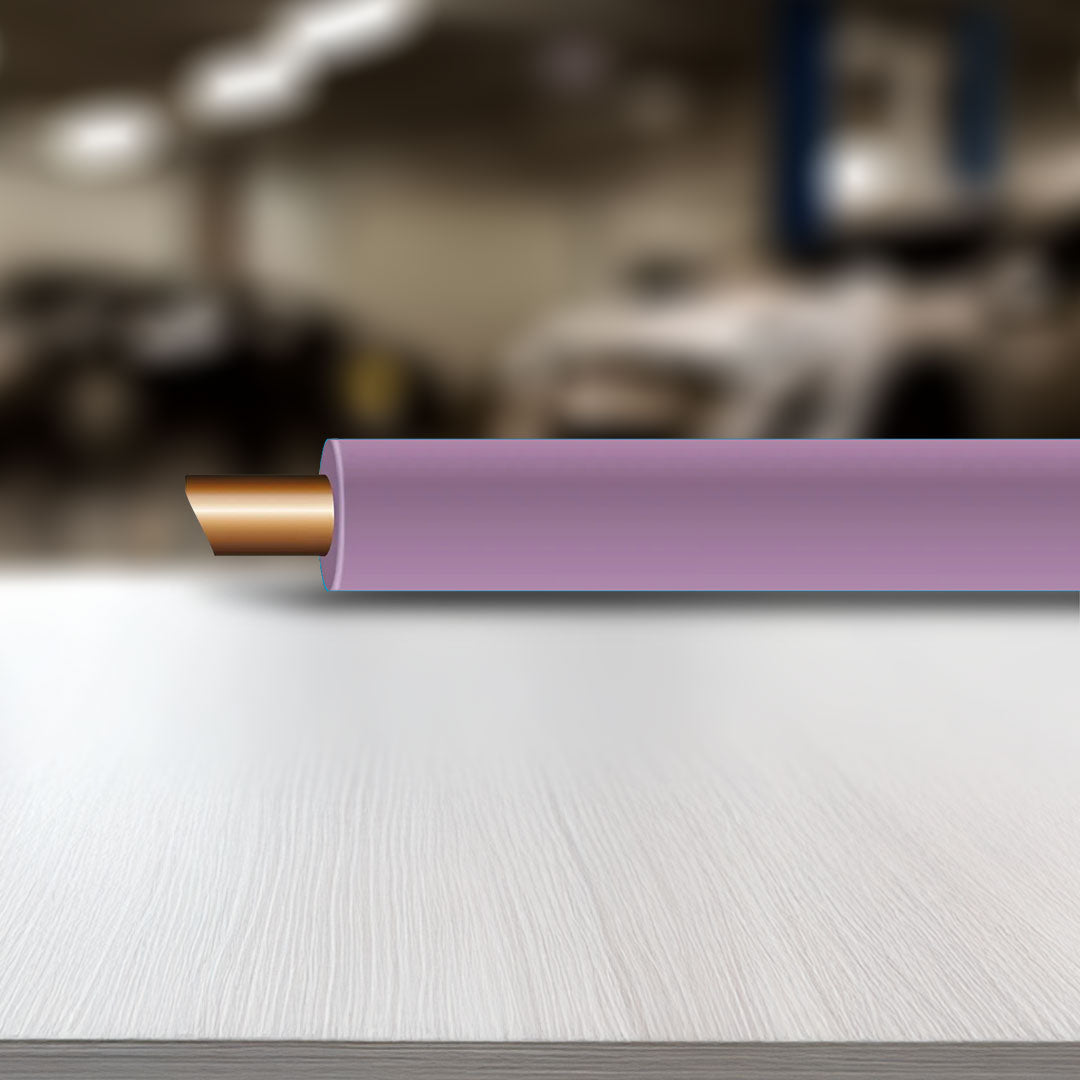

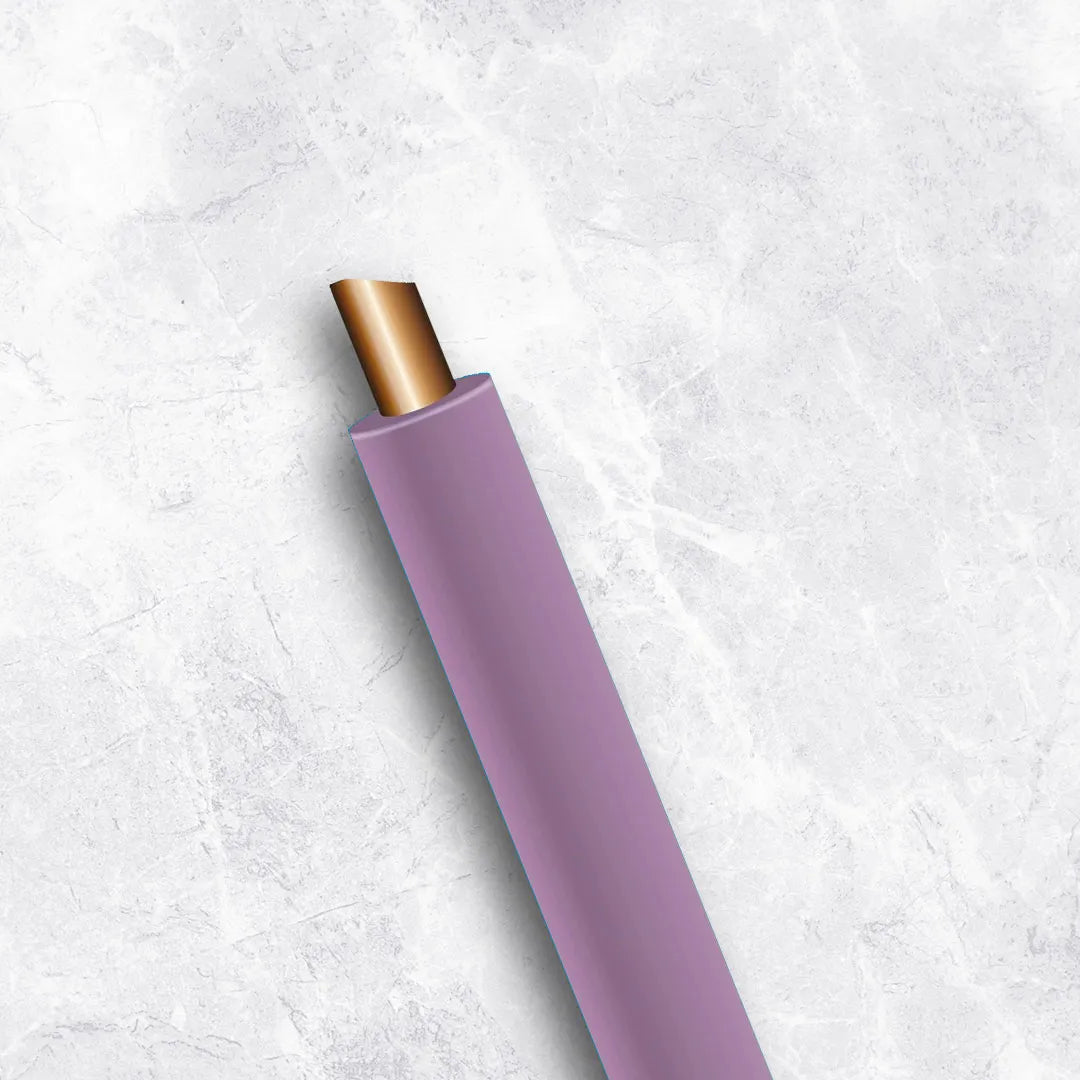

Australian made 2 mm single core automotive cable in violet, on a 50 m roll.

It uses 99.99 percent oxygen free copper in 18 fine strands with UV stabilised V90 PVC insulation, so it handles heat in an engine bay and sun on the outside of a caravan.

It is rated at 5 A continuous at 30 degrees, so keep it to light loads such as switch feeds, relay triggers and signal wires.

Specifications

  • Industry size: 2 mm
  • Cross section: 0.5 mm²
  • Gauge: 20 AWG
  • Strands: 18 x 0.18 mm
  • Conductor: 99.99 percent OFHC copper
  • Current rating: 5 A at 30 degrees
  • Voltage rating: up to 100 V
  • Insulation: PVC, V90, UV stabilised
  • Colour: Violet
  • Length: 50 m roll
  • Made in: Australia

FAQ

What is the OEX ACX0566?

OEX Australian made 2 mm single core automotive cable, violet, 50 m roll. 0.5 mm² OFHC copper, 5 A rated, V90 UV stable PVC.

What can I use this cable for?

General 12 V and 24 V wiring in cars, 4WDs, caravans and boats, such as switch feeds, signal wires and low current accessories up to its 5 A rating.

What does 2 mm mean?

2 mm is the trade size. The copper cross section is 0.5 mm², about 20 AWG. Check the current rating, not just the trade size, before you choose cable.
