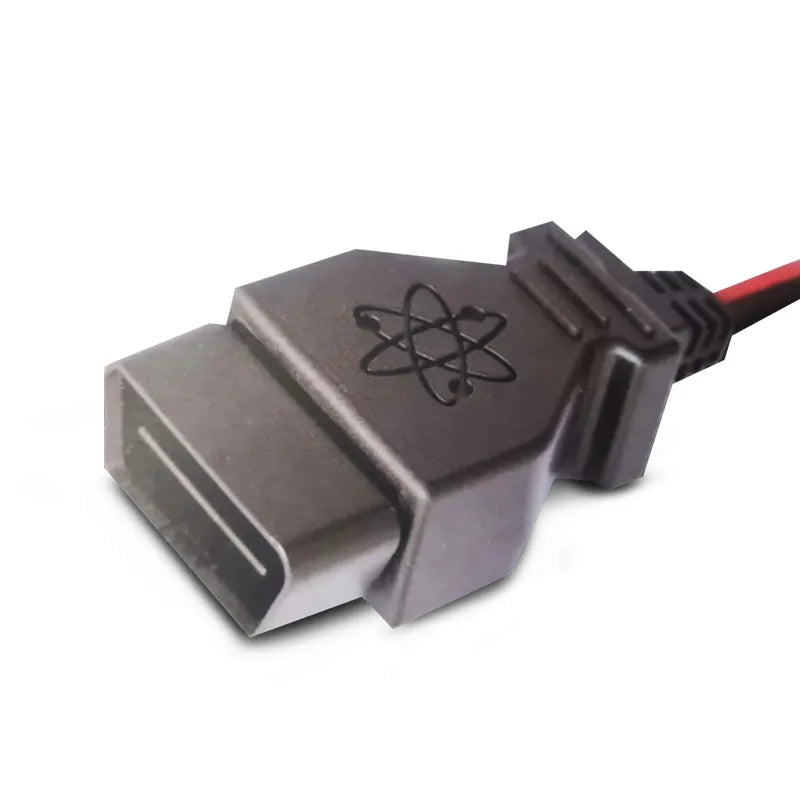

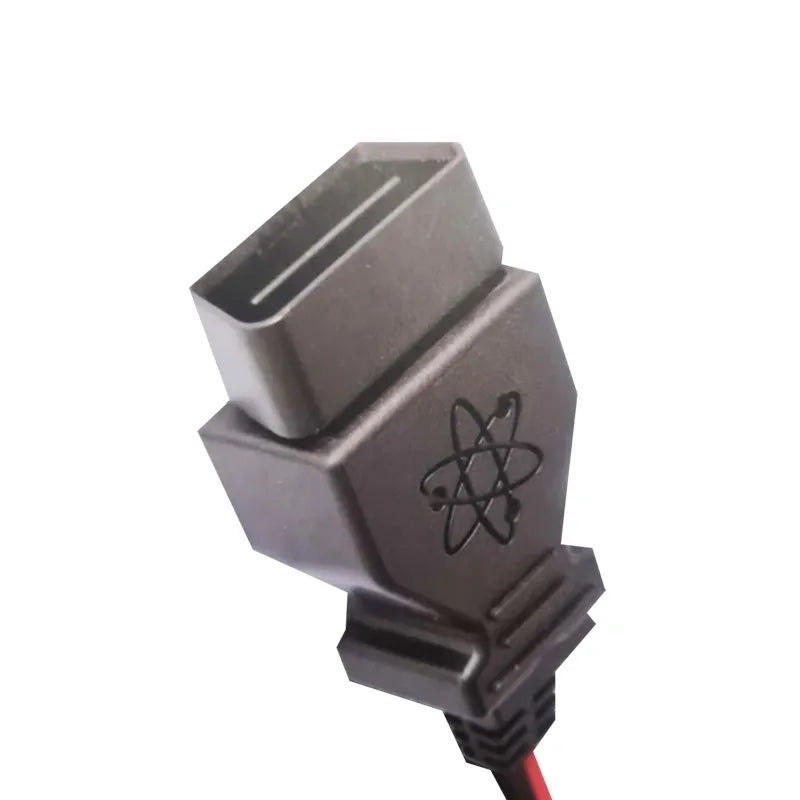

NOCO GC012 X-Connect OBDII Connector

Make the Most of Your Charger!

Designed tough to survive harsh conditions and deliver reliable power, just like the chargers they will accompany, Noco's range of X-Connect accessories further expand charging possibilities of Noco battery chargers.

Noco GC012 X-Connect OBDII Connector allows direct connection to a vehicle's OBDII port found in vehicles 1996 and newer. The OBDII Connector is usually found under the dashboard and provides an easy way to charge and maintain a battery without any direct interaction with the battery. Another feature of the GC012 is the 13.6V Supply Mode found on select battery charger models to maintain vehicle power during battery replacements.

Rugged, Water-Resistant Plug-n-Play Connections Deliver Maximum Performance
X-Connect creates a solid weatherproof connection that provides maximum current flow and makes interconnecting different applications fast and easy. The possibilities are endless.

Connect To Your Car Without Opening The Hood
All cars 1996 and newer are required to have an OBDII port. From this port you can charge your car battery directly without even having to open your hood. If you have an older car and want to charge from the inside, check out the Noco X-Connect 12-Volt Port Connector.

Safety first - An Added Layer of Protection
Accidents happen and sometimes electrical systems can overload or short-circuit if not used correctly, for example pushing too much power or jamming the cord in your door or hood. Although those situations are rare, X-Connect cable is equipped with a built-in fuse setup to stop any potential harm to you or damage to your equipment.

Features:

• Charge and maintain your battery directly through your OBDII port.
• Maintain battery power during replacement on vehicles 1996 and newer.
• Built-in fuse protection for increased safety.
• More ways to charge with plug-n-play accessory changes.
• Rugged, watertight connector for extreme environments.
• WARNING: This product is fused at 10 Amps. Always check with the vehicle manufacturer to verify the maximum current supported through the OBDII port. Do not use if the vehicle’s OBDII fuse is below 10A and/or shares a fuse with the ECU or other sensitive equipment.

Specifications:

• Input X-Connect Female
• Output OBDII Adapter
• Fuse 10 Amp Regular Blade ATC
• Wire Size 16AWG
• Length 24 Inches

Compatible With:

• GENIUS1
• GENIUS2
• GENIUS5
• GENIUS10
• G4 (All Versions)
• BLSOLAR2
• BLSOLAR5
• XGS4AUTO
• XGS9AUTO
• G750 (All Versions)
• G1100 (All Versions)
• G3500 (All Versions)
• G7200 (All Versions)
