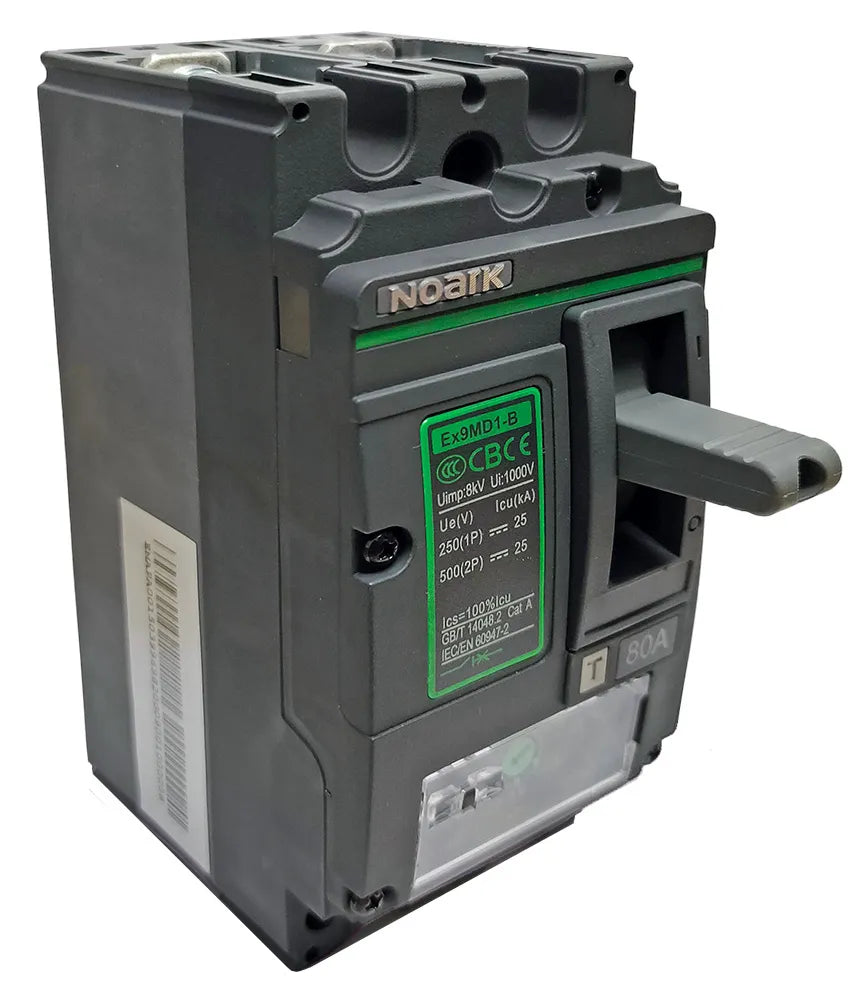

Noark NRK-N28707 MCCB 80A 500VDC 2 Pole
Click to open expanded view
SKU: NRKN28707

Noark NRK-N28707 MCCB 80A 500VDC 2 Pole

Price
$162.73
Buy now, pay later
  • image
  • image
  • image
In stock and ready for shipping
Linkimage
Product features

80A 500VDC Moulded Case Circuit Breaker MCCB (2 Pole) Non-Polarised - EX9MD1B TM DC80 2P

Features:

  • Frame size 1 - 90 x 140 x 109mm
  • High-breaking capacity and a new patented arc extinguishing design
  • New patented technology reduces the manual operating force
  • High-quality compact modular with energy-saving and environmentally friendly design
  • Installation flexibility: Bus Bar Connection, Lug Line/Load Side Connection, Plug-In and Rear Connection
  • Fixed and adjustable trip-setting units
  • Certified to EN 60947

Specifications:

  • Rated Voltage 500V DC
  • Rated Insulation Voltage 1000V
  • Frame Size 1 to 125A
  • Breaking Capacity 25kA
  • Release Technology Thermo-magnetic
  • IP Protection IP40 (all sides) | IP20 (Terminal)
  • Poles 2
