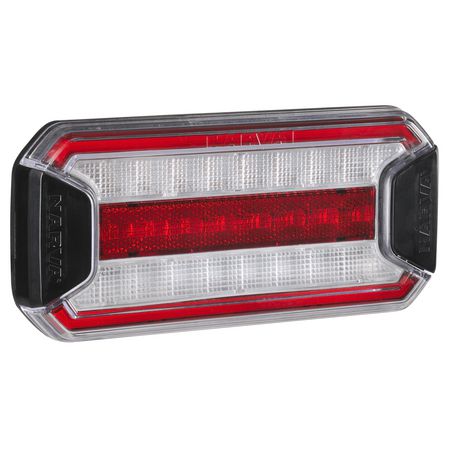

Narva 97000-1 Model 70 Rear Stop/Tail/Indicator Lamp With In-Built Retro Reflector, With 0.5M Of Cable

Narva 97000-1 Model 70 Rear Stop/Tail/Indicator Lamp With In-Built Retro Reflector, With 0.5M Of Cable

Upgrade your trailer, ute, canopy, or truck lighting with the Narva 97000-1 Model 70 LED Rear Combination Lamp — featuring stop, tail, and direction indicator functions combined with an in-built ADR/ECE-approved retro reflector, signature neon-style light pipe tail glow, fully sealed IP68 and IP69K weatherproof construction, hardened acrylic lens with UV and chemical resistance, 9–33V multi-voltage compatibility for 12V and 24V systems, front-mount installation in the industry-standard 222 x 96mm footprint, and 0.5m hard-wired cable, all backed by Narva's 7-year warranty.

Product Overview

The Narva 97000-1 is part of the 70 Series rear combination lamp range — a first-to-market LED lighting solution designed to fit the most popular rear lighting footprint across Australia and New Zealand. Measuring 222 x 96mm, the Model 70 is a direct replacement for the most common trailer and truck rear lamp footprint, making it an ideal upgrade for existing installations on trailers, caravans, canopies, utes, and commercial vehicles without requiring bracket or panel modifications. What sets the 70 Series apart is its innovative stop-through-reflector design, combining the stop light and ADR/ECE-approved retro reflector function in the centre of the lamp body. This arrangement maximises the illuminated area of each function — stop, tail, and indicator — providing more visible surface area per function than conventional same-size lamps, resulting in clearer signalling and improved road safety. The signature light pipe design delivers a distinctive neon-like tail glow that gives any vehicle a premium presence on the road, particularly suited to modern utes and canopy builds. Fully sealed to IP68 and IP69K standards, the Model 70 withstands submersion and high-pressure water jets — critical for off-road, agricultural, marine, and commercial vehicle applications. The 9–33V multi-voltage input range covers both 12V passenger and light commercial vehicles and 24V heavy vehicles from a single product, simplifying procurement and stocking for fleet and workshop applications. Narva backs the entire 70 Series with a 7-year warranty covering manufacturing defects and water or dust ingress, with the lamp engineered and tested in Narva's Australian facilities.

Features & Benefits

First-to-Market Stop-Through-Reflector Design: The stop light and ADR/ECE-approved retro reflector are combined in the centre of the lamp, maximising the illuminated area of each function and providing more space for stop, tail, and indicator than other comparable-sized lamps — resulting in clearer, safer signalling on Australian roads.

Signature Neon-Style Light Pipe Tail Glow: The distinctive light pipe design delivers an almost neon tail illumination that creates a premium, contemporary look — particularly well suited to ute tray builds, canopy upgrades, and custom trailer builds where appearance matters alongside compliance.

IP68 + IP69K Dual Weatherproof Rating: Fully sealed to both IP68 (submersion) and IP69K (high-pressure, high-temperature water jets) standards, the Model 70 is built to withstand river crossings, high-pressure wash-downs, heavy rain, and harsh off-road conditions without water ingress or corrosion.

Hardened Acrylic Lens for UV and Chemical Resistance: The hardened acrylic lens resists UV degradation, agricultural chemicals, fuel, and road grime, maintaining optical clarity and structural integrity over years of outdoor exposure in Australian conditions — far superior to standard polycarbonate lens alternatives.

9–33V Multi-Voltage Compatibility: Operates across 9 to 33 volts, making the 97000-1 fully compatible with 12V passenger vehicles, light trailers, caravans, utes, and canopies as well as 24V trucks, heavy trailers, buses, and commercial vehicles from a single product.

ADR Approved — Australian Road Rules Compliant: Approved to ADR 6/00 (cat2a), 47/00, and 49/00, the Model 70 meets Australian Design Rules for stop, tail, direction indicator, and retro reflector functions — ensuring full legal compliance for road use across Australia and New Zealand.

Front-Mount 222 x 96mm Industry-Standard Footprint: Designed to mount from the front into the most common rear lamp footprint used across Australian trailers, truck bodies, canopies, and caravans — enabling direct replacement of existing lamps without rear access or additional panel modification.

0.5m Hard-Wired Cable for Easy Installation: Pre-fitted 0.5m hard-wired cable simplifies connection to trailer loom or vehicle wiring harness, reducing installation time and eliminating the need for separate connector purchases in standard applications.

7-Year Warranty: Narva backs the entire 70 Series with a 7-year warranty covering manufacturing defects and water or dust ingress — one of the longest warranties available in Australian truck and trailer LED lighting, reflecting the brand's confidence in the product's long-term durability.

Technical Specs

Compatible With / Goes Well With

The Narva 97000-1 is suited to trailers, box trailers, boat trailers, caravans, camper trailers, ute trays, canopies, truck bodies, buses, and any commercial or recreational vehicle using the industry-standard 222 x 96mm rear lamp footprint. Compatible with all 12V and 24V electrical systems. Pairs with the Narva 97010-1 (Stop/Tail/Indicator/Reverse version) for full rear lighting upgrades, and complements Narva 70 Series side marker lamps and front indicator lamps for a complete 70 Series lighting solution. Suitable for agricultural machinery, mining support vehicles, horse floats, and custom trailer builds requiring ADR-compliant LED rear combination lighting.

Frequently Asked Questions

What functions does the Narva 97000-1 Model 70 combine in one lamp?

The 97000-1 combines four functions in a single lamp body: stop light, tail light, direction indicator, and in-built ADR/ECE-approved retro reflector. The stop and reflector functions are positioned together in the centre of the lamp, maximising the illuminated area of each function for clearer signalling and improved road presence.

What vehicles and applications is the Narva Model 70 97000-1 suitable for?

The 97000-1 is designed to fit the industry-standard 222 x 96mm rear lamp footprint, making it suitable for trailers, caravans, ute trays, canopies, truck bodies, buses, horse floats, boat trailers, and agricultural equipment. The 9–33V input range covers both 12V light vehicles and 24V heavy vehicles, making it highly versatile across a wide range of applications.

Is the Narva 97000-1 ADR approved for road use in Australia?

Yes. The 97000-1 is approved to ADR 6/00 (cat2a), 47/00, and 49/00, covering the stop, tail, direction indicator, and retro reflector functions — ensuring full compliance with Australian Design Rules for road use across Australia and New Zealand.

What does IP68 + IP69K mean for the Model 70 lamp?

IP68 means the lamp is rated for continuous submersion in water, while IP69K means it withstands high-pressure, high-temperature water jets — such as those used in agricultural wash-downs, truck cleaning facilities, or heavy-rain off-road conditions. Together, these ratings make the Model 70 one of the most weatherproof rear combination lamps available in its class.

Does the 97000-1 come with a reverse light function?

No — the 97000-1 provides stop, tail, indicator, and retro reflector functions only. If a reverse light function is also required, the Narva 97010-1 Model 70 (Stop/Tail/Indicator/Reverse version) is the correct product and is available as an alternative from the same 70 Series range.
