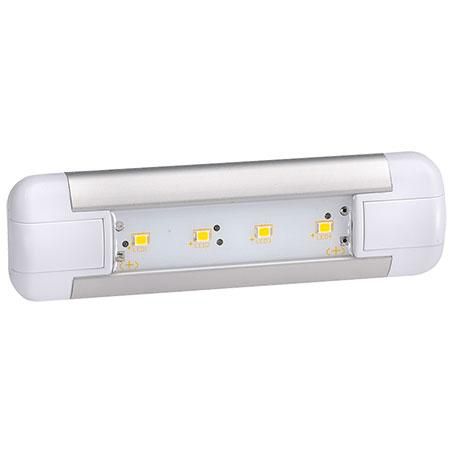

Narva 87540-12 LED Strip Light High Output Rigid 12V 114mm

Narva 87540-12 LED Strip Light High Output Rigid 12V 114mm

Compact high-output rigid LED strip light delivering efficient illumination in a 114 x 30 x 12mm IP66 sealed body, drawing just 0.09A at 12V, backed by Narva's 5-year warranty for utility, inspection, interior, and auxiliary lighting applications.

Product Overview

The Narva 87540-12 is a compact rigid LED strip light designed for utility, inspection, interior, and auxiliary lighting applications where a low-profile, high-output LED strip is required in a confined or space-restricted mounting environment. At just 114 x 30 x 12mm, the 87540-12 is one of the smallest rigid LED strip formats in the Narva range, making it well suited to underbonnet illumination, tool box and storage compartment lighting, step lighting, engine bay inspection, caravan and camper trailer interior lighting, marine courtesy lighting, and any application where a compact but effective light source is needed in a tight space. The rigid PCB construction provides a stable, non-flexible mounting platform that maintains a consistent optical alignment and can be directly mounted to flat surfaces without the sag or alignment issues associated with flexible LED strips in vibration environments. IP66 ingress protection confirms the 87540-12 is fully dust-tight and resistant to powerful water jets, making it suitable for external utility applications including underbonnet, chassis, and step lighting that are exposed to rain, road spray, and water ingress. At just 0.09A current draw at 12V and 0.05A at 24V, the 87540-12 is an extremely low-draw light source suited to always-on or long-duration interior and utility lighting applications without placing a significant load on the vehicle's electrical system or battery. Weighing just 76 grams, the lightweight construction simplifies installation in overhead, vertical, and inverted mounting positions. Narva's 5-year warranty provides long-term confidence for automotive, marine, and caravan applications.

Features & Benefits

High-Output Rigid LED Strip: Rigid PCB construction delivers high-output LED illumination in a stable, non-flexible format that maintains consistent optical alignment and mounting position in vibration environments, without the sag or alignment issues of flexible strip alternatives.

IP66 Ingress Protection: Fully dust-tight and protected against powerful water jets from any direction, confirming suitability for external utility applications including underbonnet, step, chassis, and exterior courtesy lighting exposed to rain, road spray, and washdown.

Ultra-Low Current Draw: Drawing just 0.09A at 12V and 0.05A at 24V, the 87540-12 places minimal electrical load on the vehicle circuit, making it ideal for always-on or long-duration lighting applications without draining the battery or overloading auxiliary circuits.

Compact 114 x 30 x 12mm Profile: The slim, compact body suits space-restricted mounting environments including underbonnet cavities, toolbox interiors, storage compartments, step recesses, and caravan or camper trailer interior panels where larger light units cannot be accommodated.

Lightweight 76g Construction: The 76g body simplifies installation in overhead, vertical, and inverted mounting positions, reducing the load on mounting adhesive, fasteners, and brackets in applications where weight minimisation is important.

Rigid PCB Format: Unlike flexible LED strips, the rigid PCB format provides a structurally stable mounting platform that can be secured directly to flat surfaces with consistent LED orientation, suitable for vibration-exposed underbonnet and chassis mounting positions.

Narva 5-Year Warranty: Backed by Narva's 5-year warranty, providing long-term confidence for automotive, marine, caravan, and commercial vehicle utility lighting applications.

Technical Specs

Compatible With / Goes Well With

The Narva 87540-12 is suited to any 12V vehicle, vessel, or caravan requiring compact high-output rigid LED strip lighting in a space-restricted environment. Primary applications include underbonnet and engine bay inspection lighting, toolbox and storage compartment illumination, caravan and camper trailer interior strip lighting, marine cabin and courtesy lighting, step and entry lighting on 4WD and commercial vehicles, chassis and underbody accent lighting, and utility compartment lighting on emergency and service vehicles.

Pairs well with additional Narva 87540-12 units for extended strip lighting runs, Narva LED strip light controllers and switches for multi-zone lighting setups, adhesive mounting tape and surface-mount brackets for clean installation, in-line fuse holders and wiring accessories for auxiliary circuit protection, and Narva interior and utility lighting products for a complete matched Narva lighting solution.

Frequently Asked Questions

What is the difference between a rigid LED strip and a flexible LED strip?

A rigid LED strip uses a solid PCB (printed circuit board) substrate that does not bend, providing a stable, structurally fixed mounting platform. A flexible LED strip uses a thin flexible PCB that can be bent around curves and contours. Rigid strips are preferred for flat-surface mounting applications where consistent LED orientation, vibration resistance, and structural stability are priorities, such as underbonnet, toolbox, and step lighting. Flexible strips are preferred where the light needs to conform to curved surfaces or complex shapes.

What does IP66 mean for this LED strip?

IP66 is the ingress protection rating confirming the 87540-12 is fully dust-tight (first digit 6) and protected against powerful water jets from any direction (second digit 6). This makes the strip suitable for external applications including underbonnet, step, chassis, and exterior utility lighting that are exposed to rain, high-pressure road spray, and washdown. Note that IP66 does not certify submersion resistance — for applications requiring water immersion protection, an IP67 or IP68 rated product would be required.

Can the 87540-12 be used on 24V vehicle systems?

The current draw specification of 0.05A at 24V confirms the 87540-12 is compatible with 24V electrical systems. However, this is the 12V variant of the strip — confirm with your Narva supplier whether a dedicated 24V rated variant is available and more appropriate for permanent 24V installation, or whether the 12V strip operates within its rated parameters on a 24V system for your specific application.

How many units can be connected to a single auxiliary circuit?

At 0.09A per strip at 12V, the 87540-12 places an extremely low electrical load per unit. A standard 10A auxiliary circuit can theoretically support over 100 units before reaching circuit capacity, making the current draw of individual strips effectively negligible for most multi-strip lighting installations. Always account for all loads on the circuit and size fusing and wiring appropriately for the total connected load.

What mounting methods are recommended for the 87540-12?

The rigid PCB format is suitable for direct surface mounting using double-sided adhesive tape for light-duty interior and caravan applications, or small screws and brackets for external, underbonnet, and vibration-exposed installations where adhesive mounting alone may be insufficient over time. For external and underbonnet applications, a mechanical fastener or mounting bracket is recommended to ensure the strip remains securely positioned under vibration, heat cycling, and exposure to water and contaminants.
