Product features

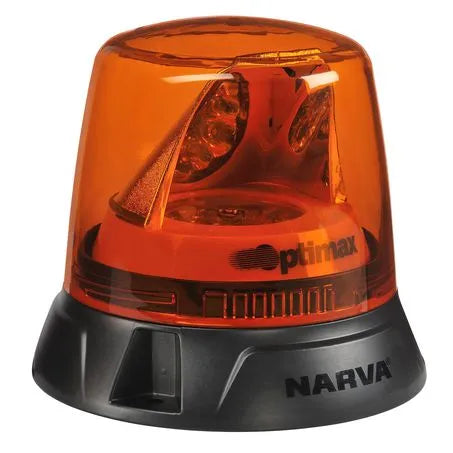

Narva 85660A 12/24V Amber LED Optimax Beacon with Flange Base

The Narva 85660A is an amber LED Optimax rotating beacon rated for 12V and 24V systems, fitted with six 5W LEDs and mounted on a diecast aluminium flange base for permanent installation. Rated IP67 and compliant with SAE J845 Class 1, it delivers a light output twice the brightness of SAE compliance minimums. A five-year warranty is included.

Product overview

The 85660A uses a vibration-resistant stepper motor to drive the rotating beacon head, tested to IEC 60068-2-64 for vibration and ISO 16750-3 for mechanical shock. Six 5W LEDs produce a highly visible amber output suited to emergency, construction, and safety applications across a broad voltage range of 10 to 33V. The polycarbonate lens is designed to resist impact, and the diecast aluminium base provides a solid, corrosion-resistant foundation for permanent flange mounting.

SAE J845 Class 1 compliance confirms the beacon meets the highest output category under that standard. IP67 environmental rating confirms protection against dust ingress and temporary water immersion.

Features and benefits

Six 5W LED array: Produces a highly visible amber light output rated at twice the brightness of SAE J845 Class 1 compliance minimums, improving visibility in demanding conditions.

Vibration-resistant stepper motor: The rotating mechanism uses a stepper motor tested to IEC 60068-2-64 and ISO 16750-3, providing reliable operation in high-vibration environments such as construction and mining equipment.

IP67 environmental rating: Fully protected against dust ingress and temporary water immersion, suited to outdoor and all-weather installation.

SAE J845 Class 1 compliant: Meets the highest output class under SAE J845, confirming suitability for emergency and safety warning applications requiring maximum visibility.

Diecast aluminium base: The flange base is constructed from diecast aluminium for strength, rigidity, and corrosion resistance in permanent mount applications.

Polycarbonate lens: The nearly unbreakable polycarbonate lens withstands impact and environmental exposure without compromising light output.

Broad voltage compatibility: Operates across a 10 to 33V input range, covering both 12V and 24V vehicle electrical systems without modification.

Low current draw: LED technology keeps current consumption low compared to traditional halogen rotating beacons, reducing load on the vehicle electrical system.

Five-year warranty: Backed by a five-year warranty, reflecting the durability and reliability of the Optimax beacon platform.

Technical specs

Specification Detail
SKU 85660A
Brand Narva
Voltage Rating 10 to 33V (12V and 24V compatible)
LEDs 6 x 5W
Light Output Colour Amber
Beacon Style Rotator
Beacon Mounting Permanent, flange base
Base Material Diecast aluminium
Lens Material Polycarbonate
Environmental Rating IP67
Compliance SAE J845 Class 1
Vibration Testing IEC 60068-2-64
Mechanical Shock Testing ISO 16750-3
Warranty Five years
Unit of Measure Each

Frequently asked questions

Is the 85660A suitable for both 12V and 24V vehicles?
Yes. The 85660A operates across a 10 to 33V input range, making it compatible with both 12V and 24V vehicle electrical systems without any modification.

What does SAE J845 Class 1 compliance mean for this beacon?
SAE J845 Class 1 is the highest output classification under that standard. The 85660A exceeds Class 1 minimums, producing a light output twice the brightness required for compliance.

Is the 85660A designed for permanent or temporary mounting?
The 85660A features a flange base designed for permanent mounting. Contact us if you need guidance on a temporary or magnetic mount variant.

How does the 85660A perform in high-vibration environments?
The stepper motor driving the beacon has been tested to IEC 60068-2-64 for vibration and ISO 16750-3 for mechanical shock, confirming reliable operation on construction, mining, and heavy transport equipment.

What warranty is included with the 85660A?
The Narva 85660A is covered by a five-year warranty. Contact us for further information on warranty terms and conditions.
