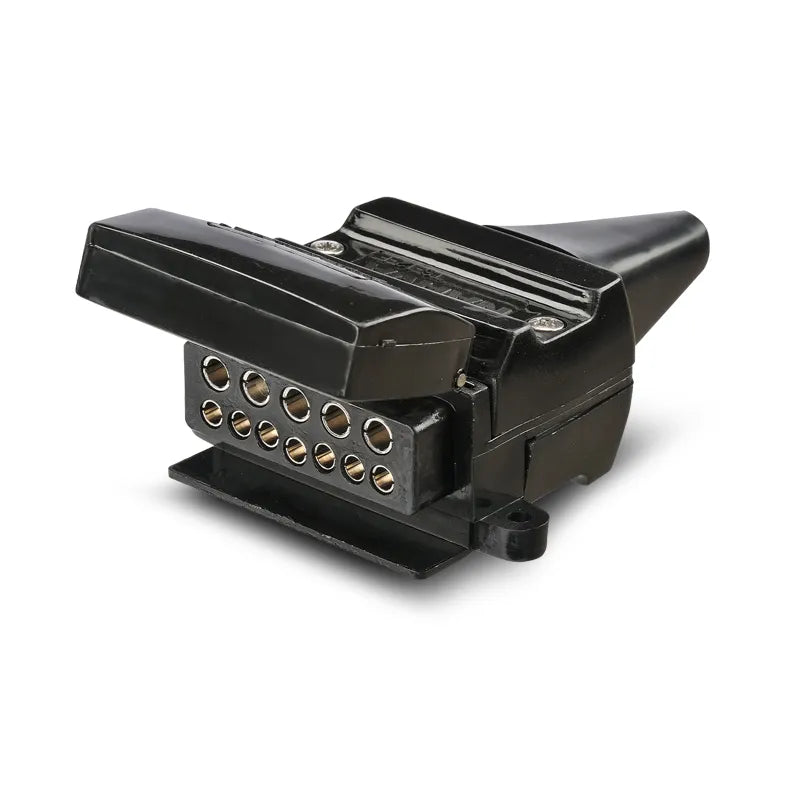

Black 12 pin flat socket angled to show the pin face, hinged cover raised behind
Black 12 pin flat socket angled to show the pin face, hinged cover raised behind
Click to open expanded view
NARVA logo

Narva 82073BL Trailer Socket 12 Pin Flat with Reed Switch Normally Closed Circuit

SKU: 82073BL
Price
$68.92
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier.
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Black 12 pin flat socket angled to show the pin face, hinged cover raised behind

Narva 82073BL Trailer Socket 12 Pin Flat with Reed Switch Normally Closed Circuit

$68.92

Product features

The Narva 82073BL is a vehicle side 12 pin flat trailer socket with a built in reed switch for normally closed circuits, so your reversing sensors switch off when a trailer is connected.

Reverse sensors see the drawbar as an obstacle and beep the whole time you back a trailer. The reed switch in this socket cuts the sensor circuit when the lid is opened for the plug, which ends the constant alarm.

Fitment

Accepts 7 and 12 pin flat trailer plugs. Narva lists it for Holden, Hyundai and aftermarket parking aids that use a normally closed sensor circuit. Check which type your vehicle uses before buying, as normally open systems need a different socket.

In the box

  • 82073BL 12 pin flat socket with reed switch, retail pack

Install notes

The reed switch is wired into the reverse sensor circuit as well as the usual trailer lighting circuits. ADR 42/04 compliant.

Specifications

Pins 12, flat
Accepts 7 and 12 pin flat plugs
Reed switch Normally closed circuit
Rating, 7 poles 15A at 12V
Rating, 5 poles 35A at 12V
Compliance ADR 42/04
Barcode 9314464820731

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

Frequently asked questions

Will a 7 pin flat plug fit?

Yes. It accepts both 7 and 12 pin flat plugs.

How do I know if my sensors are normally closed?

Narva names Holden, Hyundai and aftermarket parking aids. For anything else, check with us or your vehicle wiring diagram first.

How is the reed switch wired in?

Into the reverse sensor circuit, alongside the usual trailer lighting circuits on the socket.
