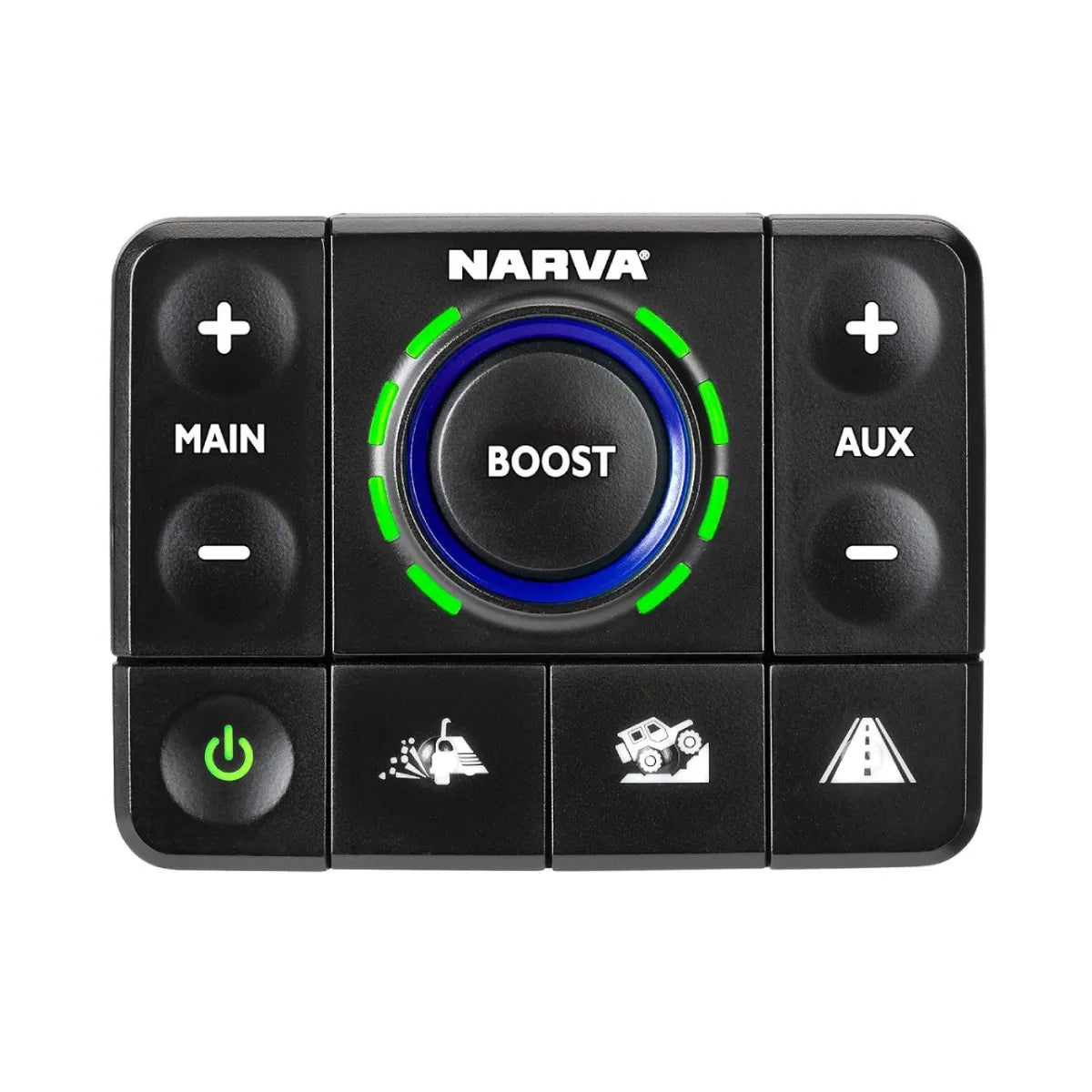

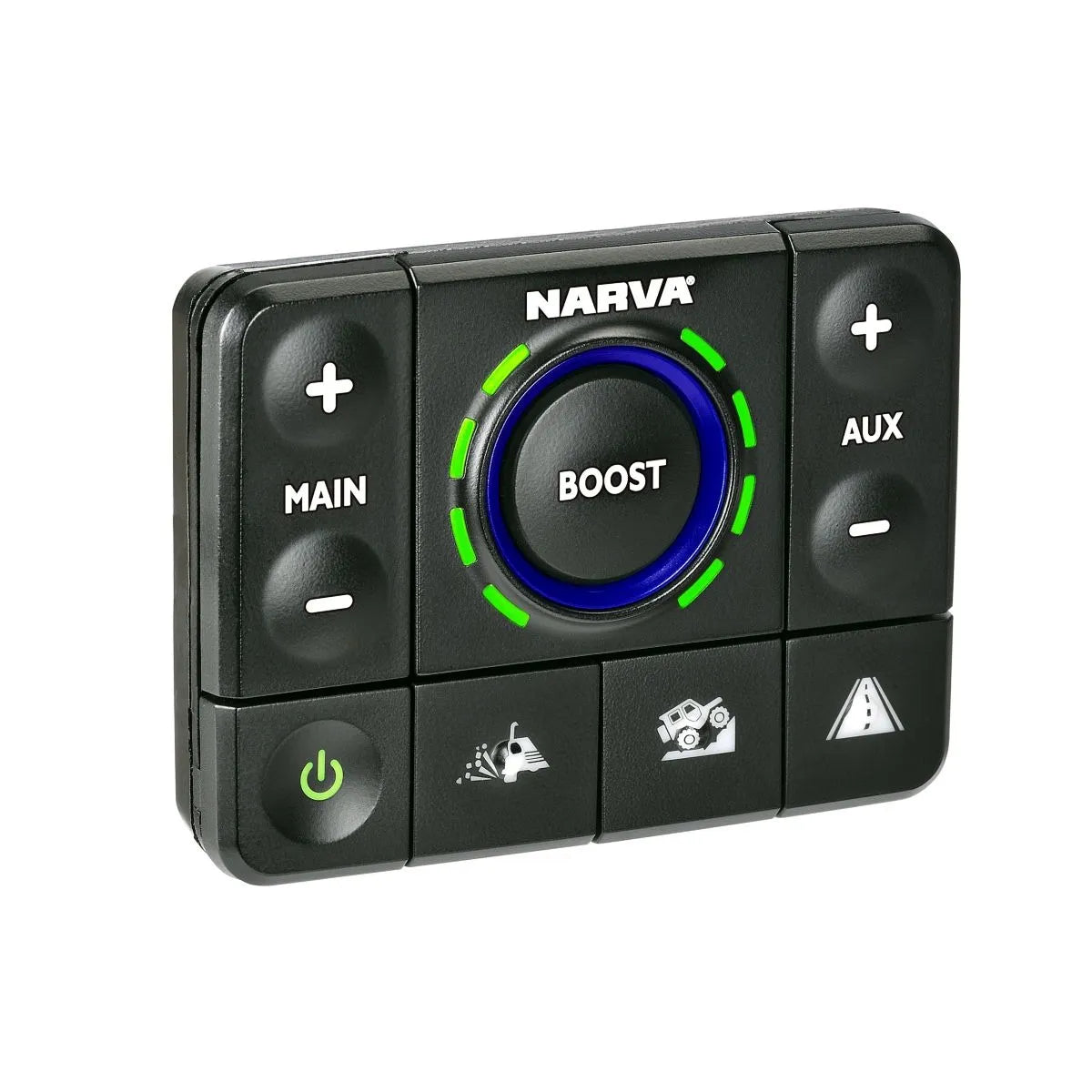

Narva 74408 Ultima Connect+ Controller

The Narva 74408 Ultima Connect+ controller is a single control point for compatible Narva Ultima Connect+ lights. It sets brightness on the 24 inch main and 8 inch auxiliary lights and stores three driving modes you can customise.

Boost mode adds 15% more power for 30 seconds, and the unit runs on 12V or 24V.

Problems it solves

• Road sign glare on the highway. Highway mode favours distance with less spread.
• Too much reach and too little spread on a 4WD track. 4WD Track mode cuts distance and widens the beam.
• Needing everything at once on dirt roads. Dirt Road mode runs all lights at full output.

74408 specifications

• Modes: Highway, 4WD Track and Dirt Road, each customisable
• Controls: 24 inch main and 8 inch aux brightness, boost, on and off
• Boost: 15% more power for 30 seconds
• Supply: 12V or 24V
• Weight: 0.50kg

Fitment and compatibility

Vehicles running Narva Ultima Connect+ enabled lights.

What is in the box

• Ultima Connect+ controller
• Self tapping screws
• Double sided mounting tape

Install notes

Mount it with self tapping screws or double sided tape.

The cable can exit at several angles to suit the dash.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

74408 FAQs

How long does the 74408 boost last?

30 seconds, at 15% more power.

Which lights can the Narva 74408 control?

Ultima Connect+ compatible products, including 24 inch main and 8 inch aux lights.

What supply voltage does the Narva 74408 run on?

It operates on 12V or 24V systems.
