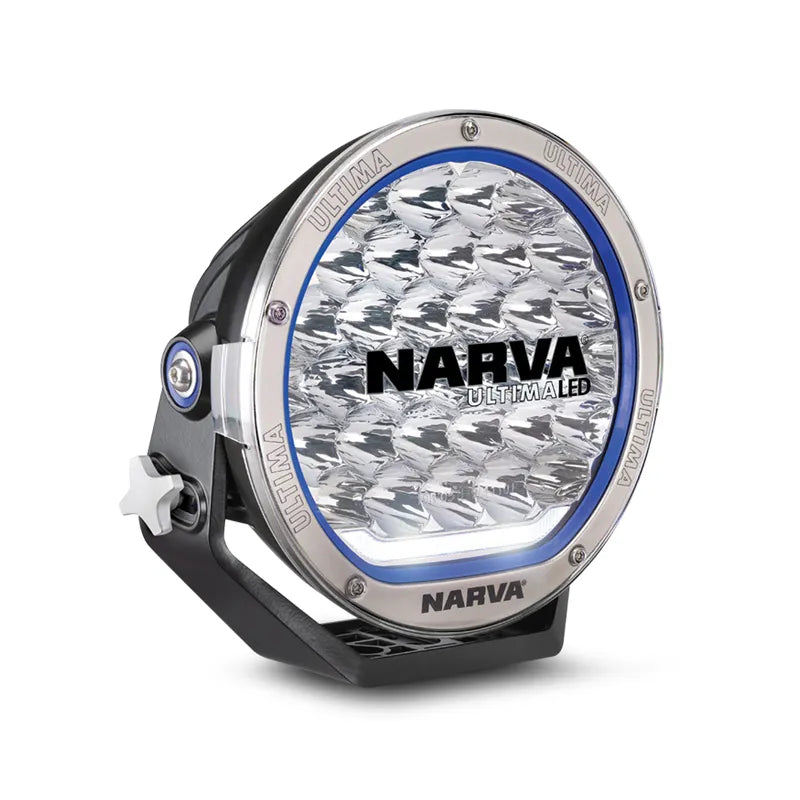

Narva 71740 9-33V Ultima 215 LED Driving Light
Click to open expanded view
NARVA logo

Discontinued

Narva 71740 9-33V Ultima 215 LED Driving Light

SKU: 71740

No Longer Available. Please contact us for recommendations or alternatives. (02) 4257-2636

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Narva's New L.E.D Driving Light Features 'Advanced Optic Drive Technology'

9–33 Volt High Powered LED Driving light — 12,000 Lumens. A break through in LED driving light design and performance. Made at 180mm OD to fit the widest range of Bull Bar applications possible whilst maintaining power and beam penetration for both 4WD but also transportation markets where distance and light volume are vital requirements for safe driving.
Features:
  • Engineered for Performance
    • Class leading hybrid beam pattern combines volume for off-road 4WD use and long range performance for transport. Super powerful 5 watt XP-G2 Cree® L.E.Ds produce 120 watts of pure white light (5700°K). Extraordinary volumes of broad penetrating light of 12,000 raw lumens (6,795 effective lumens). Highly polished super-efficient aluminium metallized reflector utilising precisely scalloped parabolas for ultimate control and performance.
  • Engineered for Versatility
    • Unique tool-free vertical adjustment affords quick on-the-fly beam correction via ergonomic aluminium adjuster knob Multi-slot 3-bolt mounting options ensures suitability for all bull bar and nudge bar makes and models Superior mounting bracketry suspension system utilises polymer rubber to suspend the lamp making it impervious to shock and vibration
  • Engineered for Durability
    • Constructed from light weight super strong Pressure Die Cast Aluminium uncompromised strength and rugged durability Built-in ‘Active Thermal Management System’ (ATMS) enables the Ultima 180 to run harder for longer Fully sealed against water and dust ingress (IP66 & IP67) utilising a genuine Nitto breather vent and integrated DT connector Virtually unbreakable hard coated polycarbonate lens and lens protector.

Specifications:

  • Input Voltage Range: 9-33 v
  • Current Draw: 13.8 a At 12 v
  • Power: 165 W
  • Leds: 33 X 5 W Cree® Xp-G2 Leds
  • Lumens: 16,500 Raw / 10,175 Effective
  • Lp: Rating Ip66 & Ip67
  • Operating Temperature: -10°c to 65°c
  • Colour Temperature: 5700°k
  • Size: 215 Mm
  • Weight: 3.2 Kg
  • Ece: Ece R10
  • Other: Active Thermal Management System (atms)
  • Other: 1 Lux at 900 M

What's in the Box:

  • 1x Hybrid Beam LED Driving Light
  • 1x Hard Coated Polycarbonate Lens Protector
  • 1x Stainless Steel Mounting Hardware Kit
  • 4x Interchangeable Trim Pieces (Blue Black Red & Yellow)
  • 1x Cable with Pre-Wired DT Connector
  • 1x Fitting Instruction Booklet
