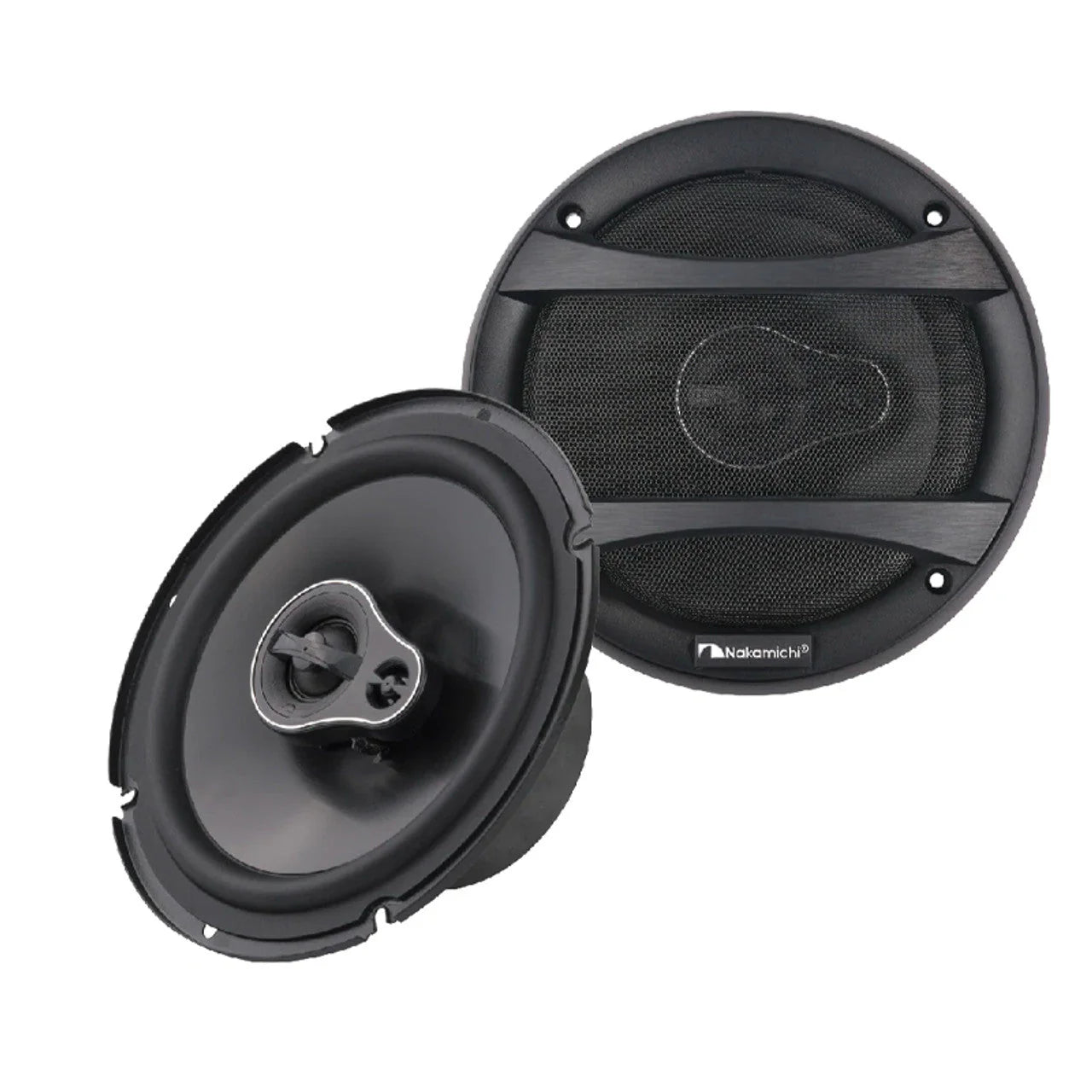

Nakamichi NSE1658 6.5" 3-Way Coaxial Speakers - Premium Performance

Experience premium 3-way audio with exceptional bass extension—professional-grade 6.5" speakers with 50Hz low-frequency performance.

Product Overview

The Nakamichi NSE1658 is a premium 6.5-inch (16.5cm) 3-way coaxial speaker system engineered for audiophile-grade performance in automotive applications. Delivering 360W peak power and 55W continuous N-Power with an exceptional 50-21kHz frequency response, these speakers reproduce significantly deeper bass, clearer midrange detail, and smoother high frequencies than standard 2-way designs. The advanced 3-way configuration features a dedicated woofer for bass, separate midrange driver for vocal clarity, and precision silk dome tweeter for extended treble—providing professional-grade sound staging and tonal accuracy. With 89dB sensitivity, 4-ohm impedance, 25.5mm ASV voice coil, and substantial 284g magnet assembly housed in a 60mm mounting depth enclosure, the NSE1658 delivers powerful, detailed audio reproduction with excellent power handling. The injection-molded polypropylene cone and durable rubber surround ensure consistent performance in extreme Australian conditions from outback heat to coastal humidity. Complete with premium grilles, mounting hardware, gaskets, and template, these 1.6kg speakers represent professional audio quality for serious enthusiasts demanding maximum performance from the 6.5-inch format in utes, SUVs, sedans, and 4WDs.

Key Specifications

• Premium 6.5-inch (16.5cm) 3-way coaxial speaker system
• 360W peak power handling
• 55W continuous N-Power (RMS equivalent)
• Exceptional frequency response: 50Hz - 21kHz
• 89dB ± 3dB sensitivity
• 4Ω impedance
• Standard mounting depth: 60mm (2.4 inches)
• 25.5mm ASV (Aluminium Silicon Voice Coil)
• 284g (10oz) magnet assembly
• Professional construction: 1.6kg per speaker
• 3-way design (woofer + midrange + silk dome tweeter)
• Injection-molded polypropylene cone
• Durable rubber surround
• Complete kit: grilles, hardware, gaskets, template included

Features & Benefits

Professional 3-Way Design: Dedicated woofer handles bass frequencies, separate midrange driver reproduces vocal and instrument fundamentals, independent silk dome tweeter delivers high frequencies—this three-driver configuration provides superior sound staging, tonal accuracy, and detail separation compared to 2-way speakers where single cone handles both bass and midrange with compromised clarity.

Exceptional Bass Extension: Remarkable 50Hz low-frequency response captures deep bass fundamentals that standard 6.5-inch speakers miss (typically 90-110Hz)—reproduces electronic music sub-bass, kick drum weight, bass guitar low notes, and cinema soundtrack rumble with authority approaching dedicated subwoofer performance, reducing need for subwoofer in quality systems.

Silk Dome Tweeter Excellence: Engineered lightweight silk dome tweeter delivers smooth, natural high-frequency reproduction without the harshness or fatigue of metal dome designs—ensures extended listening comfort during long Australian highway drives, regional touring, or daily commutes with clear, detailed treble that doesn't cause listening fatigue.

High-Power Handling: 360W peak with 55W continuous power accommodates factory headunits (20-30W), aftermarket headunits (30-50W), and external amplifiers (75-100W per channel)—provides complete flexibility from basic upgrades through premium amplified builds without speaker replacement, protecting your investment as systems evolve.

Injection-Molded Polypropylene Cone: Advanced composite cone material combines light weight for quick transient response with structural rigidity for controlled excursion—delivers tight, accurate bass reproduction and clear midrange detail without cone flex distortion or breakup at higher volumes, maintaining audio quality under demanding conditions.

Durable Rubber Surround: High-quality rubber surround provides flexibility for proper cone excursion while withstanding extreme temperature variations, UV exposure, and humidity—critical for Australian conditions from 45°C outback heat to coastal salt air, ensuring long-term reliability in vehicles stored outdoors or used for remote touring.

Substantial Magnet Assembly: 284g magnet mass provides strong motor force and thermal capacity for consistent performance—maintains output during extended high-volume listening without power compression or distortion, essential for marathon music sessions during long-distance touring or weekend camping with continuous audio entertainment.

Complete Professional Package: Includes premium grilles for speaker protection and visual appeal, mounting hardware for secure installation, foam gaskets for improved acoustic sealing, and mounting template for precise cutout marking—everything needed for professional-quality installation without purchasing additional accessories.

Technical Specs

• Type: 3-way coaxial speaker system
• Size: 6.5 inches (165mm nominal diameter)
• Configuration: Woofer + separate midrange + silk dome tweeter
• Peak Power Handling: 360W
• Continuous N-Power: 55W (RMS)
• Frequency Response: 50Hz - 21kHz
• Sensitivity: 89dB ± 3dB (1W/1m)
• Impedance: 4Ω
• Mounting Depth Required: Greater than 60mm (2.4 inches)
• Mounting Diameter: 165mm (6.5 inches, verify exact cutout)
• Voice Coil: ASV (Aluminium Silicon) 25.5mm diameter
• Voice Coil Former: High-temperature resistant material
• Magnet Type: Ferrite
• Magnet Mass: 10oz (284g)
• Woofer Cone: Injection-molded polypropylene composite
• Cone Surround: Durable rubber
• Tweeter: Silk dome (lightweight, efficient)
• Midrange: Integrated 3-way design
• Basket Material: Stamped steel or polymer (verify from product)
• Connections: Push terminals or spade connectors
• Net Weight: Approximately 1.6kg per speaker
• Quantity: Sold as pair

Package Includes:

• Speakers x 2
• Grille net + frame x 2 sets
• Mounting screws (Φ4 x 25mm) x 8
• Foam gaskets x 8
• User manual x 1
• Mounting template x 1

Frequently Asked Questions

What's the advantage of 3-way speakers over standard 2-way designs?

3-way speakers use dedicated drivers for bass (woofer), midrange (vocals/instruments), and treble (tweeter). This specialization provides clearer vocal reproduction, better instrument separation, more accurate tonal balance, and improved sound staging compared to 2-way designs where one cone handles both bass and midrange with compromised clarity. Ideal for serious music listening and audiophile-quality sound.

How does 50Hz bass response compare to typical 6.5-inch speakers?

Exceptional. Most 6.5-inch speakers start around 90-110Hz. The NSE1658's 50Hz extension reaches significantly deeper, reproducing bass fundamentals typically requiring subwoofers—kick drums, bass guitar low notes, electronic music sub-bass. In quality systems, this reduces subwoofer necessity or complements subwoofers with seamless integration, delivering fuller, more complete sound.

Will these fit in my vehicle with 60mm mounting depth?

Measure clearance from mounting surface to window mechanism, door lock, or structural components. Most full-size vehicles (utes, SUVs, sedans, wagons) accommodate 60mm depth easily. Compact cars or modern vehicles with complex door mechanisms may have restrictions. If limited to under 50mm depth, consider the NSE1648 shallow-mount alternative at 46mm.

Do these speakers require external amplification or work with factory power?

Both. The 55W continuous rating works with factory headunits (20-30W) and aftermarket headunits (30-50W), delivering good performance. However, these premium speakers truly shine with external amplification (75-100W per channel)—unlocking full dynamic range, superior bass control, and maximum clarity. Recommended for serious audio builds.

Are the grilles and mounting hardware really included?

Yes, complete professional package includes: premium speaker grilles with frames (protection and aesthetics), mounting screws, foam gaskets (acoustic sealing), and mounting template (precise installation). No additional purchases needed beyond speaker wire—significant value compared to competitors requiring separate grille purchases.

Compatible With / Goes Well With

Ideal Vehicle Applications:

• Full-size utes with adequate door depth (Hilux, Ranger, Amarok)
• SUVs and 4WDs (Prado, Patrol, Everest, Pajero)
• Sedans and wagons with standard door panel depth
• Premium audio builds requiring maximum 6.5" performance
• Vehicles where 60mm+ mounting depth is available

Recommended Audio Systems:

• External 4-channel amplifiers (75-100W per channel)
• Premium aftermarket headunits (40-55W per channel)
• Digital sound processors for advanced tuning
• Component speaker systems (use NSE1658 in rear fill)
• Active subwoofers complementing 50Hz bass extension

Essential Installation Accessories:

• 6.5-inch speaker adapter plates (vehicle-specific)
• 14-gauge speaker wire (quality OFC copper)
• Wire connectors or solder/heatshrink tubing
• Sound deadening material (Dynamat, STP) for doors
• Weatherproofing silicone (door installations)
• Panel removal tools
• Multimeter for polarity verification

System Enhancement Products:

• 4-channel amplifier (recommended 75-100W per channel)
• Component speakers for front stage (superior imaging)
• Active subwoofer for bass below 50Hz
• Comprehensive sound deadening treatment
• Digital sound processor for crossover control
• Bass restoration processor (if source has compressed audio)

Audio Sources:

• High-resolution audio files (FLAC, Apple Lossless)
• Premium streaming services (Tidal HiFi, Qobuz)
• CD-quality or better source material
• Aftermarket headunits with quality DACs
• Smartphones with high-quality audio outputs

Caution: Verify 60mm+ mounting depth clearance before ordering. Premium 3-way speakers require adequate space for proper driver operation. Test window and door lock operation after installation to ensure no mechanical interference. Professional installation strongly recommended for optimal acoustic positioning, secure mounting, and weather sealing in door applications.

Weight

1.6kg per speaker.
