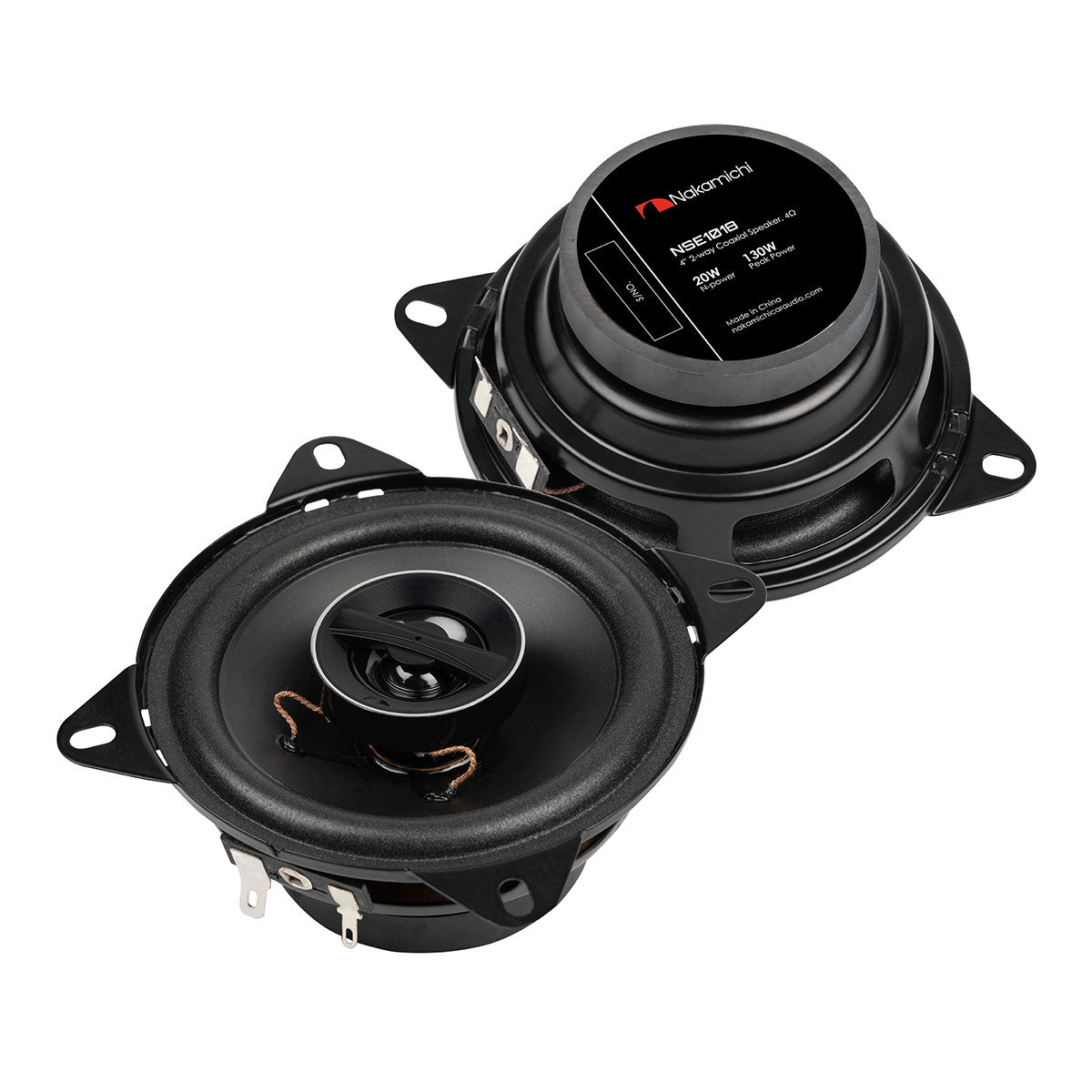

Nakamichi NSE1018 4" 2-Way Coaxial Speakers - 130W Shallow Mount

Transform tight installation spaces with powerful, full-range sound—4" coaxial speakers with ultra-shallow 43mm mounting depth.

Product Overview

The Nakamichi NSE1018 is a premium 4-inch 2-way coaxial speaker system engineered for space-constrained installations without compromising audio quality. Delivering 130W peak power and 20W continuous N-Power with an impressive 110Hz-19.5kHz frequency response, these compact speakers reproduce surprisingly full-range sound from bass fundamentals through crisp high frequencies. The ultra-shallow 43mm mounting depth allows installation in dashboard locations, compact door panels, rear parcel shelves, and factory locations where standard speakers won't fit. Featuring 88dB sensitivity, 4-ohm impedance, precision 20.4mm ASV voice coil, and 113g magnet assembly, the NSE1018 delivers clear, detailed audio reproduction with efficient power usage. At just 0.6kg per speaker, installation is straightforward in virtually any compact location—perfect for upgrading factory speakers in city cars, hatchbacks, older vehicles, and classic cars where mounting depth is severely limited but quality audio enhancement is desired for Australian daily commuting and weekend drives.

Key Specifications

• 4-inch (102mm) 2-way coaxial speaker system
• 130W peak power handling
• 20W continuous N-Power (RMS equivalent)
• Wide frequency response: 110Hz - 19.5kHz
• 88dB ± 3dB sensitivity
• 4Ω impedance
• Ultra-shallow mounting depth: 43mm (1.7 inches)
• 20.4mm ASV (Aluminium Silicon Voice Coil)
• 113g (4oz) magnet assembly
• Lightweight construction: 0.6kg per speaker
• 2-way design (woofer + tweeter)
• Universal fitment for 4-inch mounting locations

Features & Benefits

Ultra-Shallow 43mm Mounting Depth: Industry-leading shallow profile fits dashboard installations, compact door panels with window mechanisms close to mounting surface, rear parcel shelves with limited clearance, and factory locations in older vehicles—eliminates fitment issues that plague deeper speakers requiring 50-70mm clearance behind mounting surfaces.

Full-Range Frequency Response: Exceptional 110Hz-19.5kHz range delivers surprisingly complete audio from compact 4-inch drivers—reproduces vocal clarity, instrument detail, and treble sparkle typically requiring larger speakers, ensuring podcasts, music, navigation instructions, and hands-free calls sound clear and natural during daily commuting.

High-Efficiency Design: 88dB sensitivity means these speakers produce significant volume from modest amplifier power—works exceptionally well with factory headunits (typically 15-22W per channel) without requiring aftermarket amplifier upgrades, making them ideal budget-friendly factory system improvements for older vehicles or entry-level audio enhancements.

2-Way Coaxial Configuration: Integrated tweeter mounted on main woofer cone provides proper high-frequency dispersion and wider soundstage compared to full-range single-cone speakers—delivers more detailed, three-dimensional sound with better stereo imaging for improved listening experience during highway cruising or city traffic navigation.

Precision Voice Coil Engineering: 20.4mm ASV (Aluminium Silicon) voice coil construction provides efficient heat dissipation and controlled excursion, maintaining clear reproduction even at higher volumes—prevents distortion and maintains audio quality during extended listening sessions on long regional drives or daily work commutes.

Lightweight Installation: At just 0.6kg per speaker, installation is simple without stressing mounting points—dashboard installations won't cause panel vibration or rattles, door panel installations won't overload thin factory mounting plates, and DIY installation is manageable without professional equipment or expertise.

Universal 4-Inch Fitment: Standard 102mm mounting diameter fits factory 4-inch locations in countless vehicles from 1980s classics through modern city cars—replaces worn factory speakers in older vehicles, upgrades basic factory audio in budget models, or provides replacement options for damaged speakers in classic car restorations.

Balanced Power Handling: 130W peak with 20W continuous power suits both factory headunits (typically 15-22W) and moderate aftermarket headunits (25-35W per channel)—provides upgrade path allowing speaker installation now with headunit upgrade later without replacing speakers again, protecting your initial investment.

Technical Specs

• Type: 2-way coaxial speaker system
• Size: 4 inches (102mm nominal diameter)
• Configuration: Woofer with integrated coaxial tweeter
• Peak Power Handling: 130W
• Continuous N-Power: 20W (RMS)
• Frequency Response: 110Hz - 19.5kHz
• Sensitivity: 88dB ± 3dB (1W/1m)
• Impedance: 4Ω
• Mounting Depth Required: Greater than 43mm (1.7 inches)
• Mounting Diameter: 102mm (4 inches, verify exact cutout)
• Voice Coil: ASV (Aluminium Silicon) 20.4mm diameter
• Voice Coil Former: High-temperature resistant material
• Magnet Type: Ferrite
• Magnet Mass: 4oz (113g)
• Tweeter: Integrated coaxial design
• Cone Material: Not specified (verify from product)
• Surround Material: Not specified (verify from product)
• Basket Material: Stamped steel or polymer (verify from product)
• Connections: Push terminals or spade connectors (verify)
• Net Weight: Approximately 0.6kg per speaker
• Quantity: Sold as pair (verify packaging)

Frequently Asked Questions

Will these fit in my dashboard with limited space behind?

The NSE1018 requires only 43mm clearance behind the mounting surface—among the shallowest 4" speakers available. Measure the depth from your dashboard mounting location to any obstructions (heater ducts, structural supports, wiring). If you have 45mm+ clearance, these speakers will fit where standard 50-70mm depth speakers won't.

Can these replace my factory 4-inch speakers without amplifier upgrades?

Yes, the NSE1018 is specifically designed to work efficiently with factory headunit power (typically 15-22W per channel). The 88dB sensitivity and 20W continuous power rating mean they'll perform well on factory power while offering significant improvement over worn factory speakers in clarity, frequency range, and overall sound quality.

What vehicles typically use 4-inch speakers?

Common locations include: dashboard speaker positions in many Japanese vehicles (Toyota, Mazda, Nissan, Honda), rear parcel shelf speakers in sedans and coupes, kick panel speakers in older vehicles, and some door-mounted locations in compact cars and classics. Verify your vehicle's speaker size before ordering.

How do these compare to larger 5.25" or 6.5" speakers?

The 4-inch size produces less bass output and lower maximum volume than larger speakers, but offers ultra-shallow mounting for tight spaces. If your vehicle can accommodate 5.25" or 6.5" speakers with adequate mounting depth (typically 50-70mm), those larger sizes will deliver better bass response and overall performance.

Do I need speaker spacers or adapters to install these?

Most 4-inch locations accept these speakers directly. However, some vehicles may require speaker adapter plates (available separately) to convert factory mounting to standard 4-inch mounting. Check your vehicle's speaker mounting type—if factory speakers use proprietary mounting, you'll need vehicle-specific adapters.

Compatible With / Goes Well With

Common Installation Locations:

• Dashboard speaker positions (Toyota, Mazda, Nissan, Honda models)
• Rear parcel shelf installations (sedans, coupes)
• Kick panel locations (older vehicles, classic cars)
• Door-mounted 4-inch factory locations (compact vehicles)
• Custom installations requiring shallow mounting depth

Vehicle Types Typically Using 4-Inch Speakers:

• Compact hatchbacks and city cars
• Japanese sedans and coupes (1980s-2000s)
• Older Australian vehicles with 4-inch factory locations
• Classic cars with limited dashboard space
• Budget vehicles with basic factory audio systems

Essential Installation Accessories:

• Speaker adapter plates (vehicle-specific, if required)
• Speaker wire (16-gauge recommended)
• Wire connectors or solder
• Speaker grilles (if not included or damaged)
• Sound deadening material for door panels
• Panel removal tools for safe disassembly

Compatible Headunits:

• Factory OEM headunits (15-22W per channel)
• Entry-level aftermarket headunits (22-30W per channel)
• Mid-level aftermarket headunits (30-40W per channel)
• Classic car radio replacements
• Bluetooth-capable modern replacements

System Enhancement:

• Component speaker systems for front stage upgrade (leave 4" in rear)
• Small amplifier (4-channel, 40-60W) for improved power
• Sound deadening for improved bass response
• Tweeters (separate) for enhanced high-frequency detail
• Subwoofer to compensate for limited bass from 4-inch drivers

Caution: Verify your vehicle's speaker size before ordering. Measure mounting diameter and depth clearance. These speakers work best in true 4-inch locations—attempting to install in larger 5.25" or 6.5" locations will require adapters and may result in suboptimal performance. Check that 20W continuous power matches or exceeds your headunit's output for proper matching.

Weight

0.6kg per speaker.
