Nakamichi NAXNISSANPULSAR20122016 10" Wireless CarPlay Nissan Pulsar 2012-2016

Transform Your Nissan Pulsar with Premium Large-Screen Technology

Product Overview

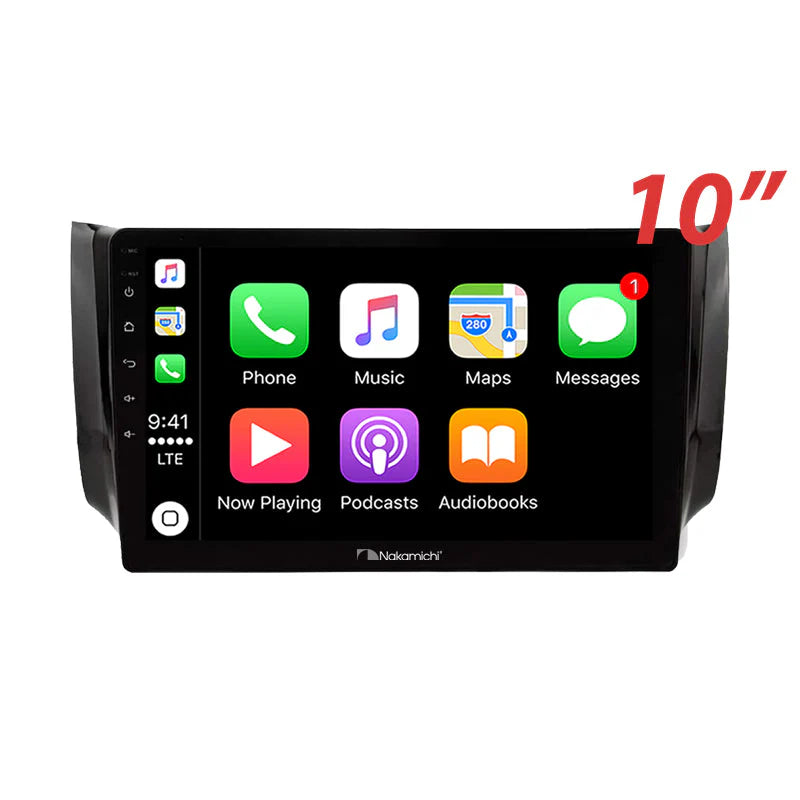

The Nakamichi NAXNISSANPULSAR20122016 brings wireless Apple CarPlay and Android Auto to 2012-2016 Nissan Pulsar models through a premium 10-inch touchscreen system. This Android-based head unit transforms your compact sedan's entertainment capabilities with built-in GPS navigation, Bluetooth 5.0 connectivity, and steering wheel control compatibility. Designed for straightforward installation with included vehicle-specific fascia and harnesses, this unit provides modern smartphone connectivity ideal for city commuting, metropolitan navigation, and daily driving—note that the steering wheel Bluetooth button requires management through the head unit's superior Bluetooth 5.0 system.

The system operates on NK 13.0 Android OS with 4GB RAM and 64GB storage, delivering responsive performance for multitasking between navigation, music streaming, and hands-free communication. The expansive 10-inch 1280×720 IPS display provides exceptional visibility with 500 nit brightness for clear viewing during Perth's intense sunlight, while wireless connectivity eliminates cable clutter for iPhone users and selected Android devices. The larger screen transforms navigation clarity in your compact Pulsar, making city driving and freeway merging significantly safer.

Key Specifications

• Factory-engineered fit for Nissan Pulsar 2012-2016 (C12 series) with included fascia panel
• 10-inch IPS touchscreen with 1280×720 resolution and 500 nit brightness
• Wireless Apple CarPlay and Android Auto (wired connection for specific Android brands)
• NK 13.0 Android operating system with 4GB RAM and 64GB internal storage
• Built-in GPS with preloaded map data, updatable via Google Play Store
• Bluetooth 5.0 with Enhanced Data Rate for hands-free calling and audio streaming
• AM/FM radio with 18 FM and 12 AM preset stations
• 4×50W maximum power output with 4V pre-out for external amplification
• Compatible with factory steering wheel controls (excluding Bluetooth button)
• Reverse camera input and auxiliary video input for dash cameras
• Dual USB interfaces: 4-pin for smartphone connection, 6-pin for media playback
• CAN-bus interface for vehicle integration

Features & Benefits

Large 10-inch screen enhances urban navigation safety. The expansive touchscreen displays street names, lane guidance, and turn arrows with exceptional clarity—critical for navigating Perth's complex freeway interchanges, finding street parking in crowded CBD areas, or confidently merging in heavy traffic where glancing at a small screen creates dangerous distraction.

Wireless smartphone mirroring eliminates morning rush hassles. Wireless CarPlay connects your iPhone automatically when you start the car, while Android Auto pairs compatible devices without cables—perfect for quick morning commutes where you need navigation and podcasts ready instantly, or afternoon school runs where passengers need entertainment without trailing cables through the cabin.

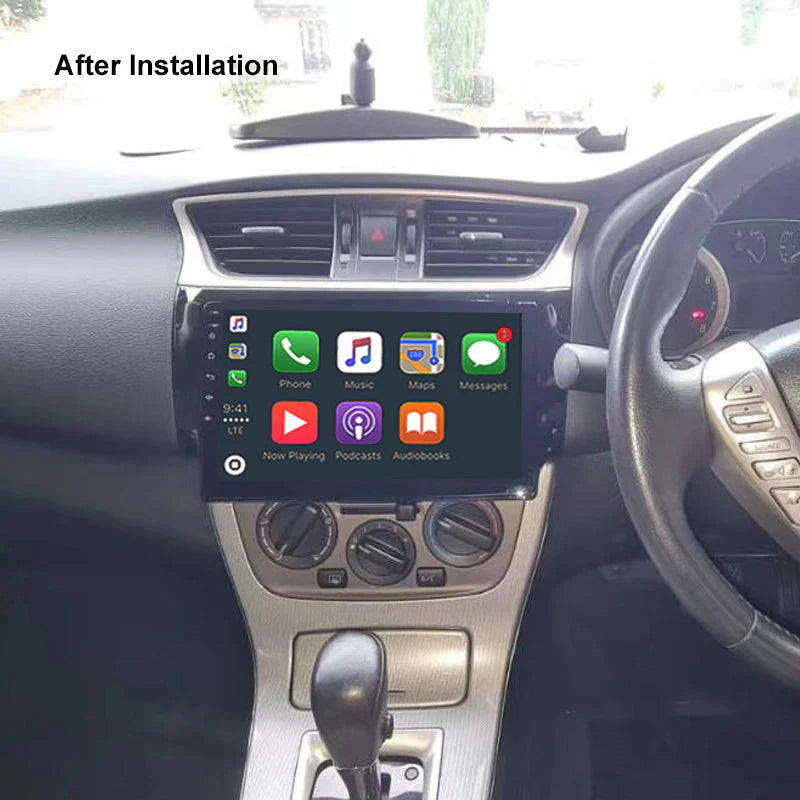

Pulsar-specific installation maintains refined interior aesthetics. The included fascia panel and harness are engineered specifically for 2012-2016 Pulsar dashboards, maintaining the clean, modern interior design while adding premium connectivity. Most steering wheel controls remain operational for volume and track management, with Bluetooth pairing handled through the head unit's superior Bluetooth 5.0 system.

Built-in GPS ensures navigation through metropolitan coverage gaps. Preloaded GPS map data maintains continuous navigation through tunnels, underground car parks, and areas with temporary mobile disruptions common in Perth's CBD and Fremantle. Update maps via Google Play Store, or install real-time traffic apps for optimal route planning during peak hour commuting.

Bluetooth 5.0 delivers crystal-clear hands-free calling in traffic. Enhanced Data Rate technology maintains stable connections and superior audio quality even with road noise at freeway speeds—making phone conversations practical and legal during commutes, client calls, or coordinating family logistics while navigating through metropolitan traffic safely.

High-brightness IPS display stays readable in intense sunlight. The 500 nit screen maintains clear visibility during harsh Australian summer conditions when dashboard reflections can wash out smaller, dimmer displays. Sharp 1280×720 resolution ensures text messages, contact lists, and navigation prompts remain legible without squinting or multiple glances away from traffic.

Expandable audio system supports quality upgrades. The 4V pre-output voltage drives external amplifiers for improved sound quality in highway driving conditions, while dedicated subwoofer output enables bass expansion for music enthusiasts. Four-channel speaker outputs support complete audio system upgrades with amplifier control signal for automatic power management.

Dual-camera capability enhances urban parking confidence. Connect a reverse camera for tight parking bay manoeuvres and a front-facing dash camera for incident recording in congested city traffic. Both video inputs display on the 10-inch screen, providing comprehensive awareness for parallel parking and documentation during daily metropolitan driving.

Transform commuting with unlimited streaming entertainment. Replace basic factory audio with unlimited music via Apple Music or Spotify, podcasts for traffic jams, or audiobooks for longer drives. USB media playback provides offline options, while the Android system enables installation of additional entertainment apps for passengers.

Technical Specs

• Screen: 10" IPS touchscreen, 1280×720 resolution, 500 nit brightness
• Operating System: NK 13.0 Android
• Memory: 4GB RAM, 64GB ROM
• Wireless Connectivity: Wireless Apple CarPlay, Wireless/Wired Android Auto
• Bluetooth: Version 5.0 with Enhanced Data Rate, 2.4GHz frequency, 5m range
• GPS: Built-in GPS receiver with external antenna
• Radio: FM 87.5-108.0 MHz (18 presets), AM 522-1620 kHz (12 presets)
• Audio Output: 4×50W maximum power, 4V/10KΩ pre-output
• Speaker Impedance: 4-8Ω compatible
• Pre-Output Impedance: ≤600Ω
• Audio Outputs: Front L/R, Rear L/R, Subwoofer, Amplifier Control
• Video Inputs: Reverse camera input, AUX video input (F_CAMERA)
• USB Interfaces: 4-pin USB (smartphone connection), 6-pin USB (media playback)
• Additional Inputs: Radio antenna, GPS antenna, external microphone, brake detection, CAN-bus interface (RX/TX)
• Power: 14.4V operating voltage (10.5-16V range), USB 5V±0.25V/1A output
• Video Formats: H264, MP4, AVI, MKV, FLV
• Audio Formats: MP3, APE, AAC, FLAC
• Compatibility: Nissan Pulsar 2012-2016 (C12 series) with partial steering wheel control retention

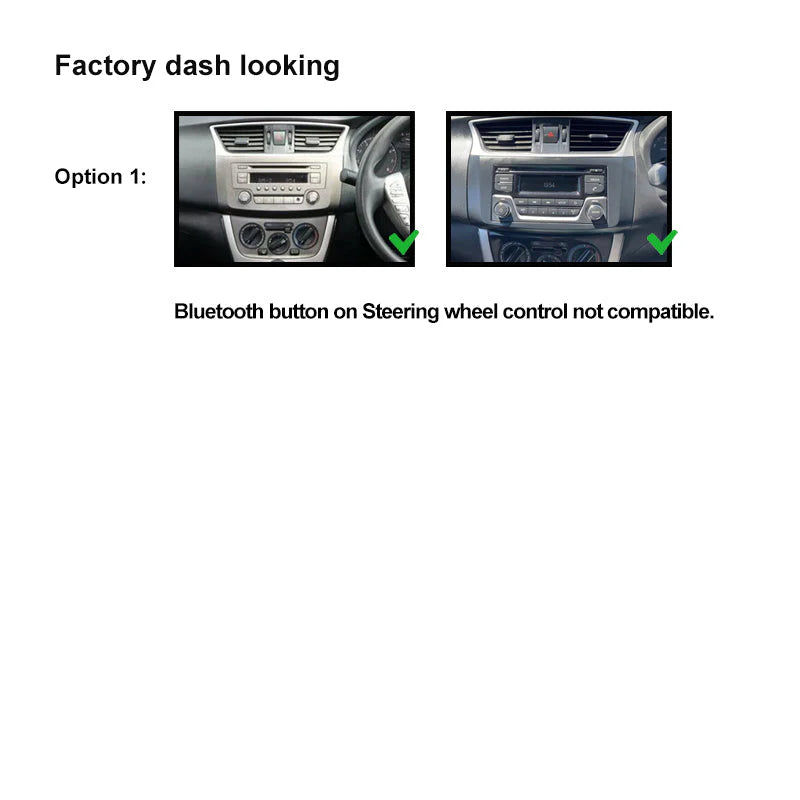

• Limitations: Steering wheel Bluetooth button non-functional

Frequently Asked Questions

Does this fit all Nissan Pulsar models from 2012 to 2016?
Yes, this unit is engineered specifically for C12 series Pulsar dashboards (2012-2016). The included fascia and harness ensure direct fitment without modifications. Message us with your dash photo and car year when ordering to confirm harness compatibility for your specific model year.

Will all my steering wheel controls work?
Most steering wheel controls remain operational including volume adjustment and track skipping. However, the factory Bluetooth button on the steering wheel will not function. Bluetooth connections are managed directly through the new head unit's Bluetooth 5.0 system, which offers superior connectivity and range compared to factory Bluetooth.

Is the 10-inch screen too large for the Pulsar dashboard?
No, the unit is specifically designed for Pulsar dashboards with proper fascia integration. The 10-inch screen fits seamlessly while providing significantly better navigation visibility than smaller screens—particularly beneficial for safe driving in heavy traffic where quick glances at detailed maps are essential.

Is Android Auto wireless or do I need a cable?
Android Auto connectivity depends on your phone brand. Most modern Android devices support wireless connection, but some specific brands require wired USB connection. iPhone users enjoy fully wireless CarPlay operation for all compatible iPhone models without any cable requirement.

What's included for installation and do I need additional parts?
The package includes head unit with fascia, main harness, RCA cable, camera cable, rear speaker cable, microphone, GPS antenna, user manual, and two USB cables. Different model years may require specific accessories—contact us with your dash photo for confirmation before purchase.

Compatible With / Goes Well With

• Nissan Pulsar 2012-2016 (C12 series, all trim levels including ST, ST-L, SSS, Ti)
• Factory Nissan Pulsar steering wheel controls (excluding Bluetooth button)
• Aftermarket reverse cameras with RCA video output
• External amplifiers requiring 4V pre-out signal
• Powered subwoofers with RCA input
• Front-facing dash cameras with auxiliary video input for metropolitan driving
• Standard 4-8Ω aftermarket speakers for audio upgrades
• GPS external antennas for enhanced reception in underground car parks
• Real-time traffic navigation apps for peak hour commuting
