Morel MPD 5.550 5 Channel Amplifier

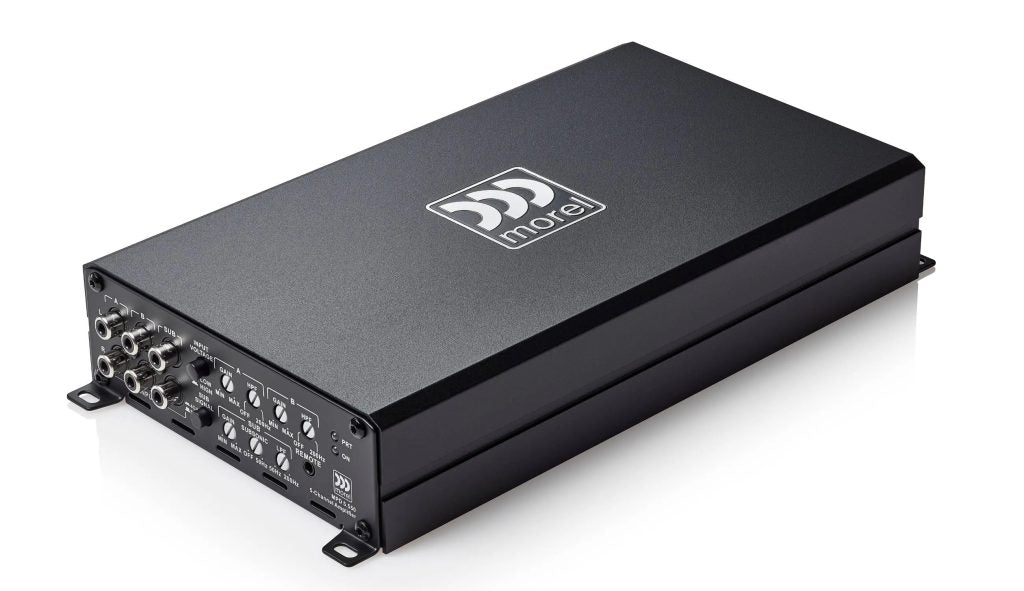

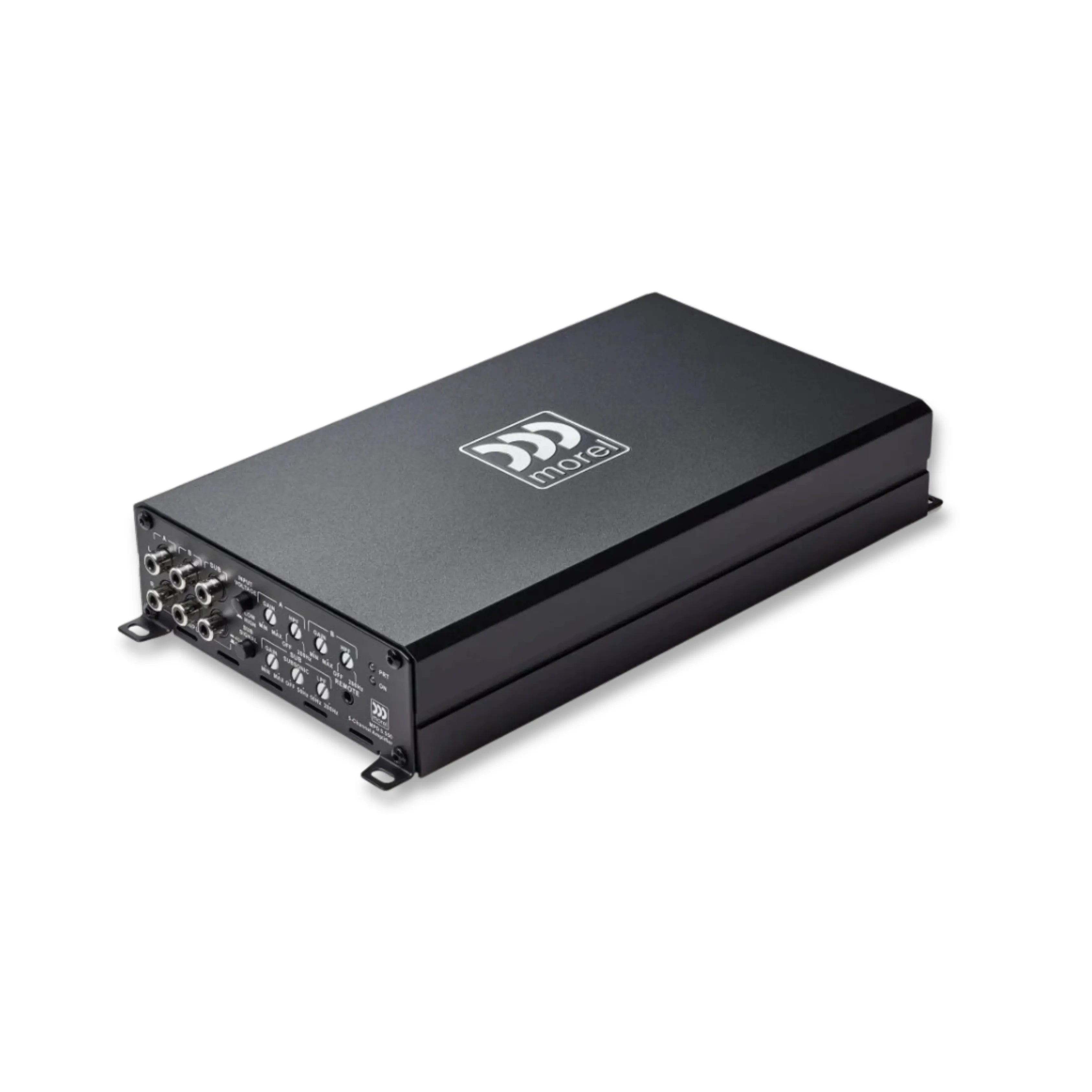

Morel MPD 5.550 5 Channel Amplifier - Complete System Power in Compact Class D Design

Professional-grade 5 channel Class D amplifier delivering complete full-range and subwoofer power in compact chassis design enabling comprehensive front, rear, and subwoofer system integration with 75W x 4 plus 250W x 1 at 4 ohms or 110W x 4 plus 400W x 1 at 2 ohms power delivery. The Morel MPD 5.550 amplifier represents true all-in-one amplification solution combining clean full-range power across four channels with dedicated high-power subwoofer channel in space-saving design. This versatile amplification platform features advanced crossover control with variable high-pass and low-pass filters, subsonic protection, adjustable sub level control (0-20dB), and comprehensive protection circuitry ensuring reliable performance across premium car audio installations. Operating with exceptional efficiency through Class D topology while maintaining low distortion (THD+N >0.3%), superior signal-to-noise ratio (95dB), and precise frequency response (20Hz-30kHz), this compact amplifier delivers audiophile-grade performance with flexible installation options supporting both low-level preamp inputs (0.35-3.5V) and high-level speaker inputs (0.7-7.7V) enabling seamless integration across factory and aftermarket head unit systems for complete vehicle audio system solutions demanding performance, efficiency, and space-saving design.

Product Overview

The Morel MPD 5.550 5-channel amplifier is a true all-in-one solution, delivering clean full-range power alongside a dedicated subwoofer channel in a compact chassis. With 75W x 4 plus 250W x 1 at 4 ohms, or up to 110W x 4 and 400W x 1 at 2 ohms, it provides the flexibility to drive a complete front, rear, and sub system with authority.

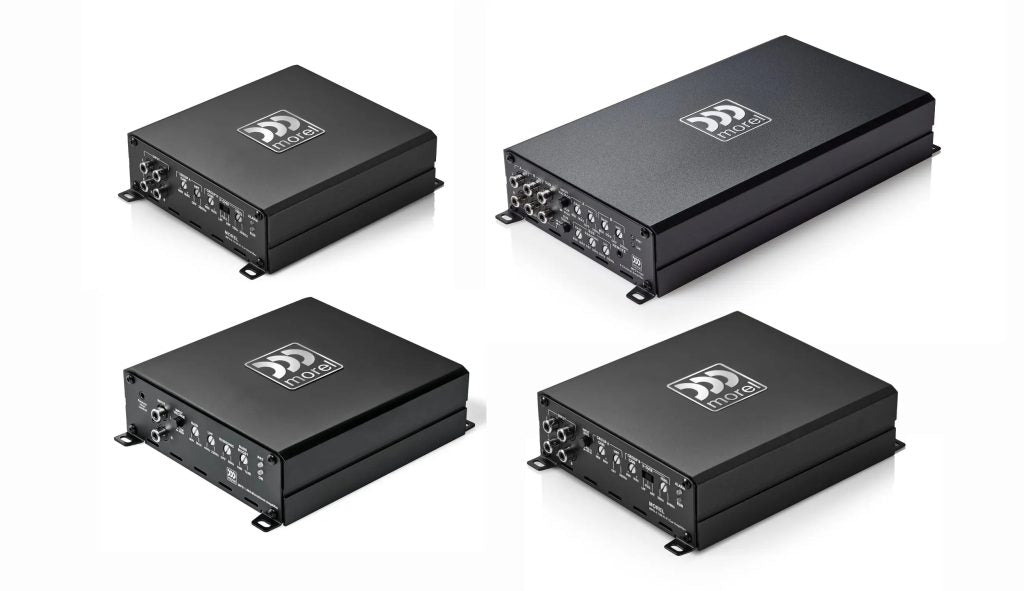

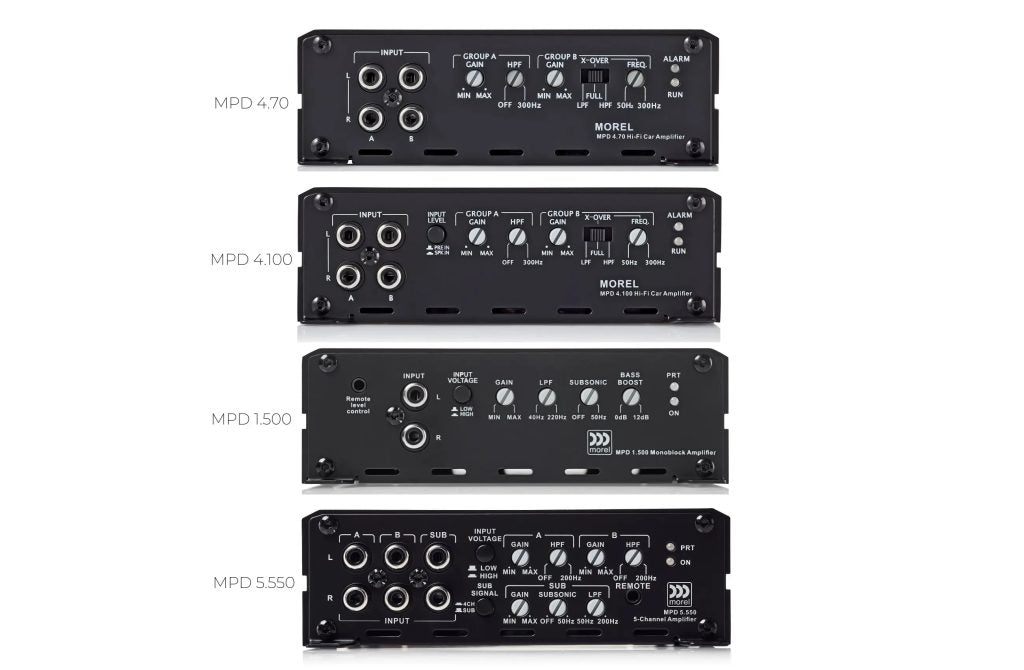

MPD Series Philosophy:

MPD amplifiers offer an audio experience that's truly extraordinary through unmatched power in compact, affordable design. The MPD series amplifiers are designed to deliver best-in-class performance at an affordable price combining impressive power output with dynamic high fidelity performance, all within a compact design that ensures an unobtrusive fit anywhere in the vehicle. Whether you're a seasoned audiophile or a newcomer to the world of high-quality audio, these amplifiers offer an audio experience that's truly extraordinary.

Complete System Solution:

Featuring low distortion, precise crossover control, and advanced protection circuitry, the MPD 5.550 is ideal for premium car audio systems that demand performance, efficiency, and space-saving design. The five-channel configuration enables simultaneous powering of front speakers, rear speakers, and subwoofer from single amplifier chassis eliminating multiple amplifier installations and complex wiring configurations.

Features & Benefits

Complete 5-Channel System Power

Professional five-channel amplification architecture delivers 75W x 4 channels plus 250W x 1 subwoofer channel at 4 ohms, or 110W x 4 channels plus 400W x 1 subwoofer channel at 2 ohms enabling complete vehicle audio system powering from single amplifier chassis. The flexible power delivery supports front component speakers, rear full-range speakers, and dedicated subwoofer with authority ensuring comprehensive system integration without requiring multiple amplifier installations or complex wiring configurations.

Advanced Crossover Control and Tuning

Comprehensive crossover system features variable high-pass filters (OFF-200Hz) for Groups A and B protecting full-range speakers from damaging low frequencies, variable low-pass filter (50Hz-200Hz) for subwoofer channel ensuring optimal bass integration, and subsonic filter (OFF-50Hz) protecting subwoofer drivers from damaging subsonic frequencies. Adjustable sub level control (0-20dB) enables precise subwoofer output matching with full-range speakers ensuring balanced system response across entire frequency spectrum.

Exceptional Class D Efficiency and Performance

Advanced Class D amplification topology delivers exceptional power efficiency minimizing heat generation and power consumption while maintaining audiophile-grade performance specifications. Superior signal-to-noise ratio (95dB) ensures quiet background operation, low total harmonic distortion (THD+N >0.3%) maintains signal purity, wide frequency response (20Hz-30kHz) captures complete musical spectrum, and excellent channel separation (>50dB) ensures precise stereo imaging and soundstage accuracy across premium audio installations.

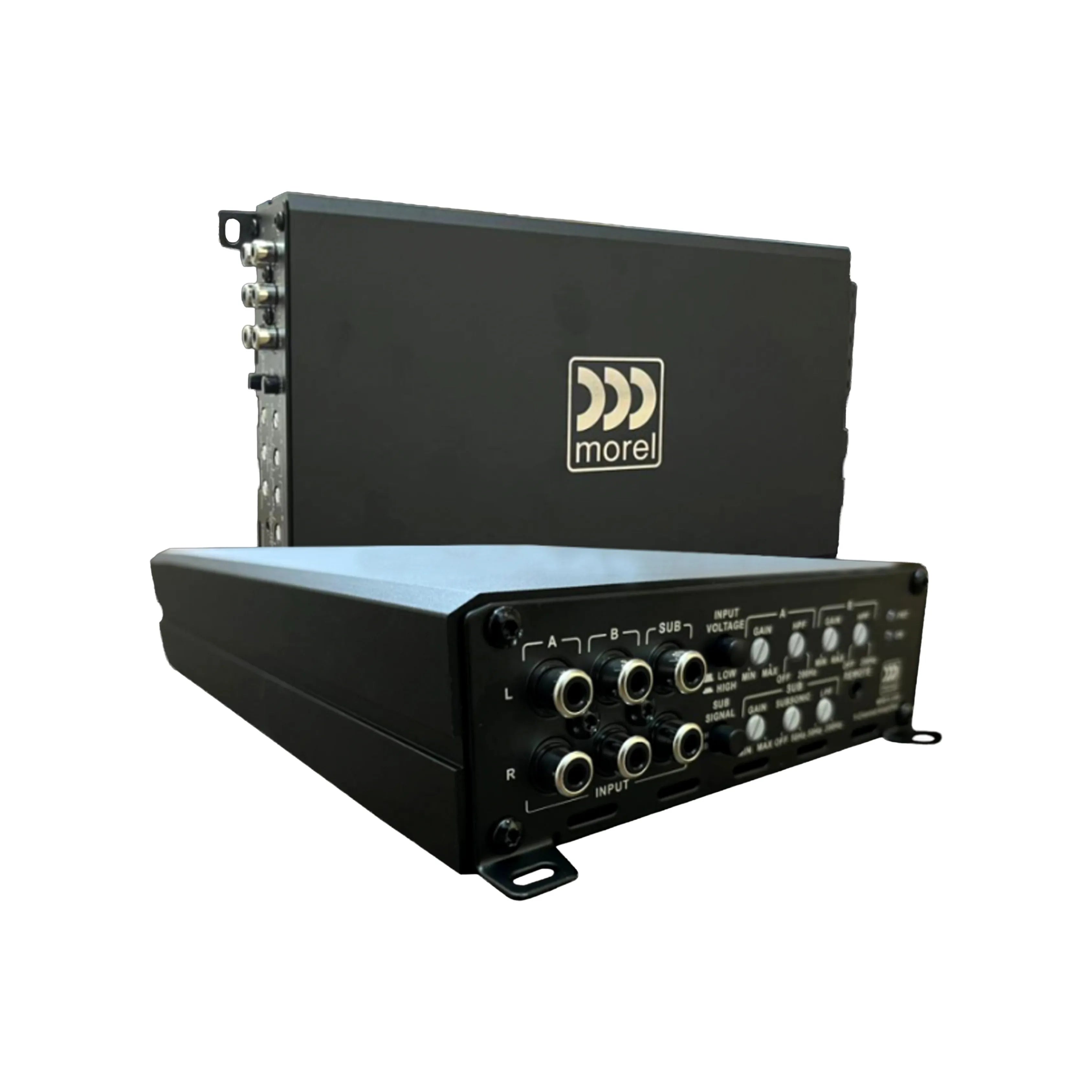

Flexible Input Configuration

Dual input voltage compatibility supports both low-level preamp inputs (0.35-3.5V) from aftermarket head units with RCA outputs and high-level speaker inputs (0.7-7.7V) from factory head units or amplified systems through optional high-level input adapter enabling seamless integration across diverse vehicle audio configurations. This input flexibility eliminates compatibility concerns during installation ensuring reliable operation across factory and aftermarket head unit systems without signal degradation.

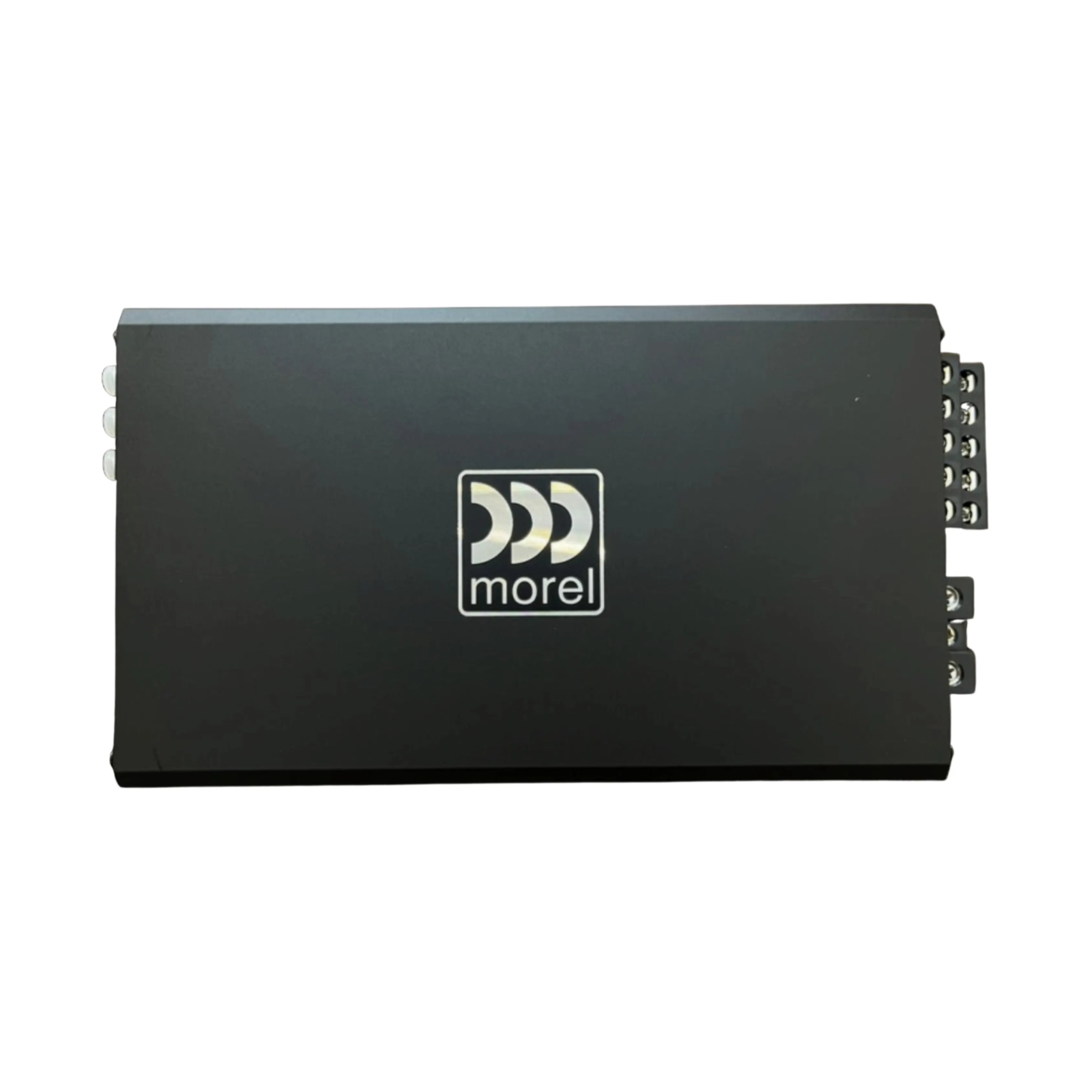

Compact Design with Advanced Protection

Space-saving chassis dimensions (48mm H x 148mm W x 294mm L) enable flexible mounting locations throughout vehicle interior including under-seat installations, behind-panel mounting, and trunk installations without consuming valuable cargo space. Comprehensive protection circuitry includes thermal protection preventing overheating damage, short-circuit protection safeguarding against wiring faults, and DC offset protection ensuring long-term reliability across demanding automotive environments with extreme temperature variations.

Premium Construction and Connectivity

Professional-grade construction features robust heat sink design ensuring efficient thermal management, secure terminal connections supporting heavy-gauge power and speaker wiring, and durable powder-coated finish resisting corrosion and physical damage throughout vehicle lifetime. Gold-plated RCA inputs ensure corrosion-resistant signal connectivity while high-current power terminals accommodate 4-gauge power wiring supporting maximum current delivery during peak power demands across high-performance audio installations.

Technical Specifications

Compatible With

Speaker System Compatibility:

• Front Component Speaker Systems (4-8Ω impedance)
• Rear Full-Range Speaker Systems (4-8Ω impedance)
• Single or Dual Voice Coil Subwoofers (2-4Ω impedance)
• Complete 4-speaker plus subwoofer vehicle audio systems
• Premium component speaker upgrades requiring dedicated amplification

Head Unit Compatibility:

• Aftermarket Head Units with RCA Preamp Outputs (low-level input)
• Factory Head Units with Speaker-Level Outputs (requires optional high-level adapter)
• Alpine, Kenwood, Pioneer, Sony, JVC head units
• Factory Premium Audio Systems (with high-level adapter)
• Any head unit with 0.35-3.5V preamp output or speaker-level output capability

Vehicle Applications:

• Passenger Cars and Sedans
• SUVs and Crossovers
• Trucks and Utes
• Light Commercial Vehicles
• Premium Audio Upgrades
• Competition Audio Builds (SQL category)
• Complete System Installations requiring space-efficient amplification

Recommended System Configurations:

• Front: 6.5" component speakers (75-110W RMS)
• Rear: 6x9" coaxial speakers (75-110W RMS)
• Subwoofer: Single 10" or 12" subwoofer (250-400W RMS)
• Alternative: Dual 8" subwoofers in sealed enclosure

Frequently Asked Questions

Q: Can the Morel MPD 5.550 power a complete vehicle audio system with front speakers, rear speakers, and subwoofer?

Yes, the Morel MPD 5.550 is specifically designed as an all-in-one amplification solution delivering 75W x 4 channels for front and rear speakers plus 250W x 1 dedicated subwoofer channel at 4 ohms (or 110W x 4 plus 400W x 1 at 2 ohms). This five-channel configuration enables complete system powering from single amplifier chassis eliminating multiple amplifier installations. The flexible power delivery supports component speakers, coaxial speakers, and subwoofers with authority providing comprehensive system integration for premium audio installations.

Q: Does this amplifier work with factory head units or only aftermarket head units with RCA outputs?

The Morel MPD 5.550 supports both aftermarket head units with low-level RCA preamp outputs (0.35-3.5V) and factory head units with speaker-level outputs (0.7-7.7V) through optional high-level input adapter (sold separately). This dual input compatibility ensures seamless integration across factory and aftermarket head unit systems without signal degradation enabling reliable operation across diverse vehicle audio configurations including factory premium audio systems requiring amplification upgrades.

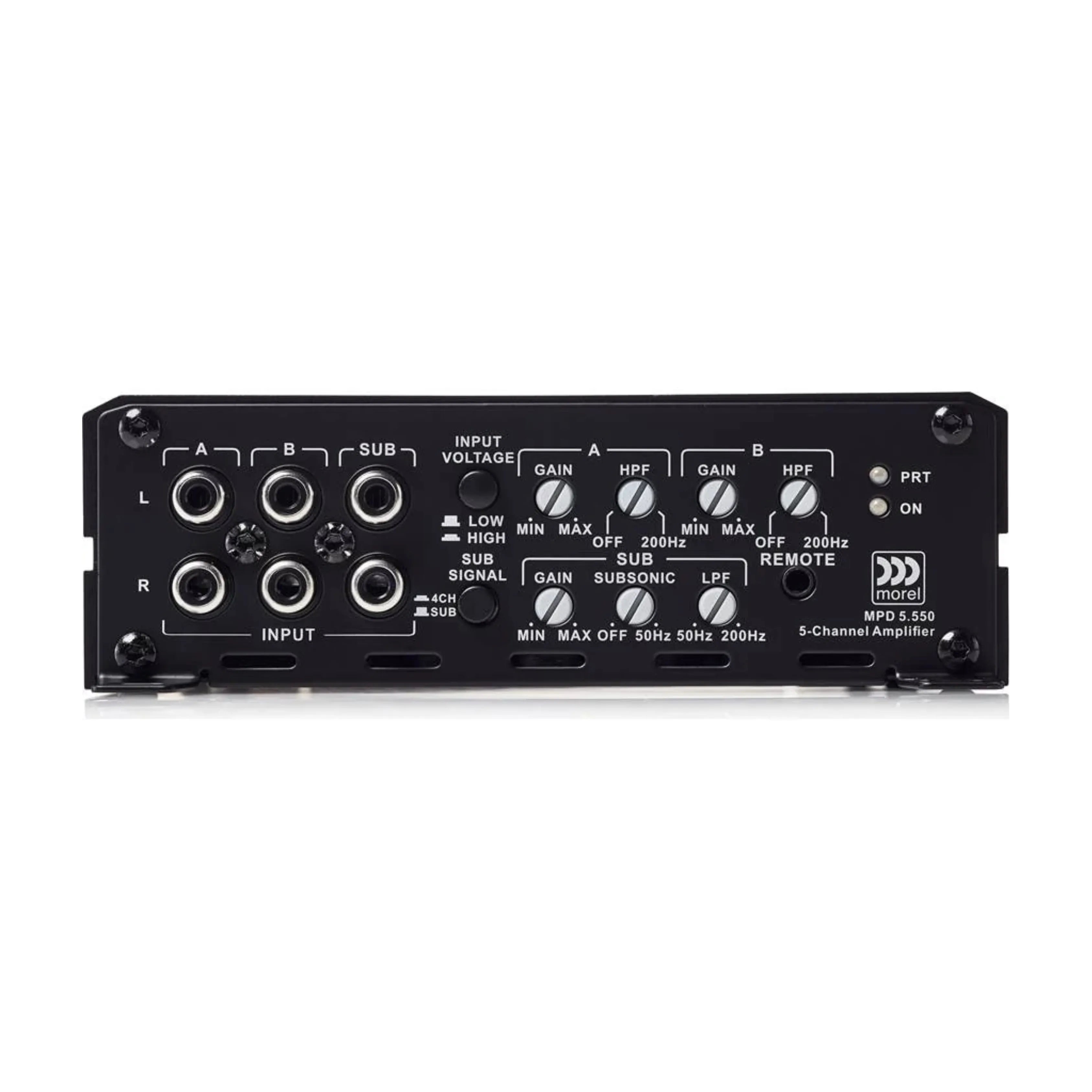

Q: What crossover controls are available for system tuning and speaker protection?

The Morel MPD 5.550 features comprehensive crossover controls including variable high-pass filters (OFF-200Hz, 12dB/octave) for Groups A and B protecting full-range speakers from damaging low frequencies, variable low-pass filter (50Hz-200Hz, 12dB/octave) for subwoofer channel ensuring optimal bass integration, subsonic filter (OFF-50Hz) protecting subwoofer from damaging subsonic frequencies, and adjustable sub level control (0-20dB) enabling precise subwoofer output matching with full-range speakers for balanced system response.

Q: Can I bridge channels on the Morel MPD 5.550 for additional power output?

Yes, the Morel MPD 5.550 supports bridged operation delivering 2 x 220W at 4 ohms when bridging pairs of the four full-range channels. Bridged mode enables higher power delivery to demanding speakers or provides flexibility for biamplification configurations. The dedicated subwoofer channel operates independently and cannot be bridged. Bridging reduces available channel count but increases power output per bridged pair making it ideal for premium component speaker systems requiring higher power handling.

Q: What size power and ground wiring should I use for the Morel MPD 5.550 installation?

The Morel MPD 5.550 requires 80A fuse rating installed within 400mm of the battery connection. We recommend minimum 4-gauge (25mm²) power and ground wiring to support maximum current delivery during peak power demands. Proper gauge wiring ensures voltage stability preventing power loss and amplifier protection circuit activation during high-output operation. Distribution blocks may be used for multiple amplifier installations but main power wire from battery must accommodate total system current requirements across all amplifiers.
