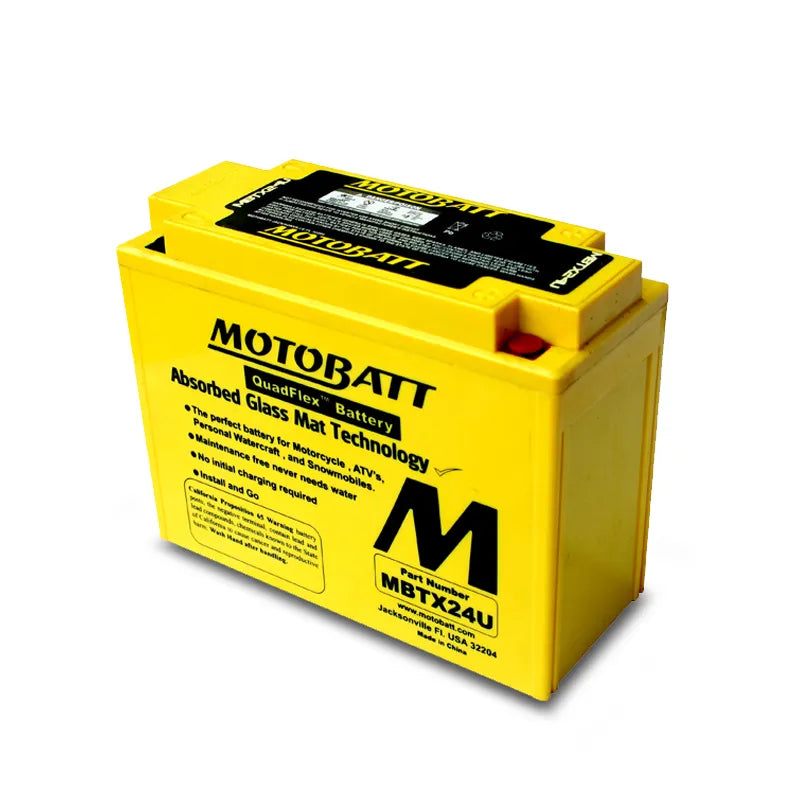

Motobatt MBTX24U 12V 25Ah 300CCA AGM Motorcycle Battery With Quadflex Technology

The Motobatt MBTX24U is a 12V 25Ah AGM battery delivering 300 cold cranking amps for big tourers, cruisers, quads and snowmobiles. It is supplied factory activated, so there is no acid to add.

Its case measures 205 x 87 x 162mm, 176mm to the top of the terminals, and weighs 7.30kg.

Problems it solves

• Slow cranking on a big V twin or tourer. 300CCA from thicker pure lead calcium grids.
• Needing extra terminals for heated gear or lights. The four terminal Quadflex design makes accessories easy to add.
• A bike left standing between rides. Self discharge is extremely low.

MBTX24U specifications

• Voltage: 12V
• Capacity: 25Ah at 10 hour rate
• Cold cranking amps: 300
• Type: AGM, factory activated
• Terminals: 4
• Size: 205mm L x 87mm W x 162mm H, 176mm to terminal top
• Weight: 7.30kg
• Spacer: 14mm bottom spacer

Fitment and compatibility

Many tourers, cruisers, ATVs and snowmobiles, for example Honda GL1500 Gold Wing 1988 to 2000, Kawasaki VN1500 Vulcan 1987 to 1998, Yamaha XV1100 Virago 1986 to 1999, Can Am Spyder 2008 to 2012 and Harley Davidson FL and FLH touring 1980 to 1996.

What is in the box

• MBTX24U battery
• Terminal hardware with caps and a 4mm Allen key
• 14mm bottom spacer

Install notes

Fit the bottom spacer if your tray is deeper than the case.

Top up the charge with a suitable AGM charger if it has been stored.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

MBTX24U FAQs

Does the MBTX24U suit a Gold Wing?

Yes, including the GL1100, GL1200 and GL1500 models.

What is the 14mm spacer for on the Motobatt MBTX24U?

It sits under the battery so it suits a deeper tray.

Is the MBTX24U a heavy battery to lift?

It weighs 7.30kg, so lift it in with both hands.
