Experience exceptional midrange performance with Morel's ultra-shallow design philosophy that delivers rich, dynamic sound in the most compact format available.

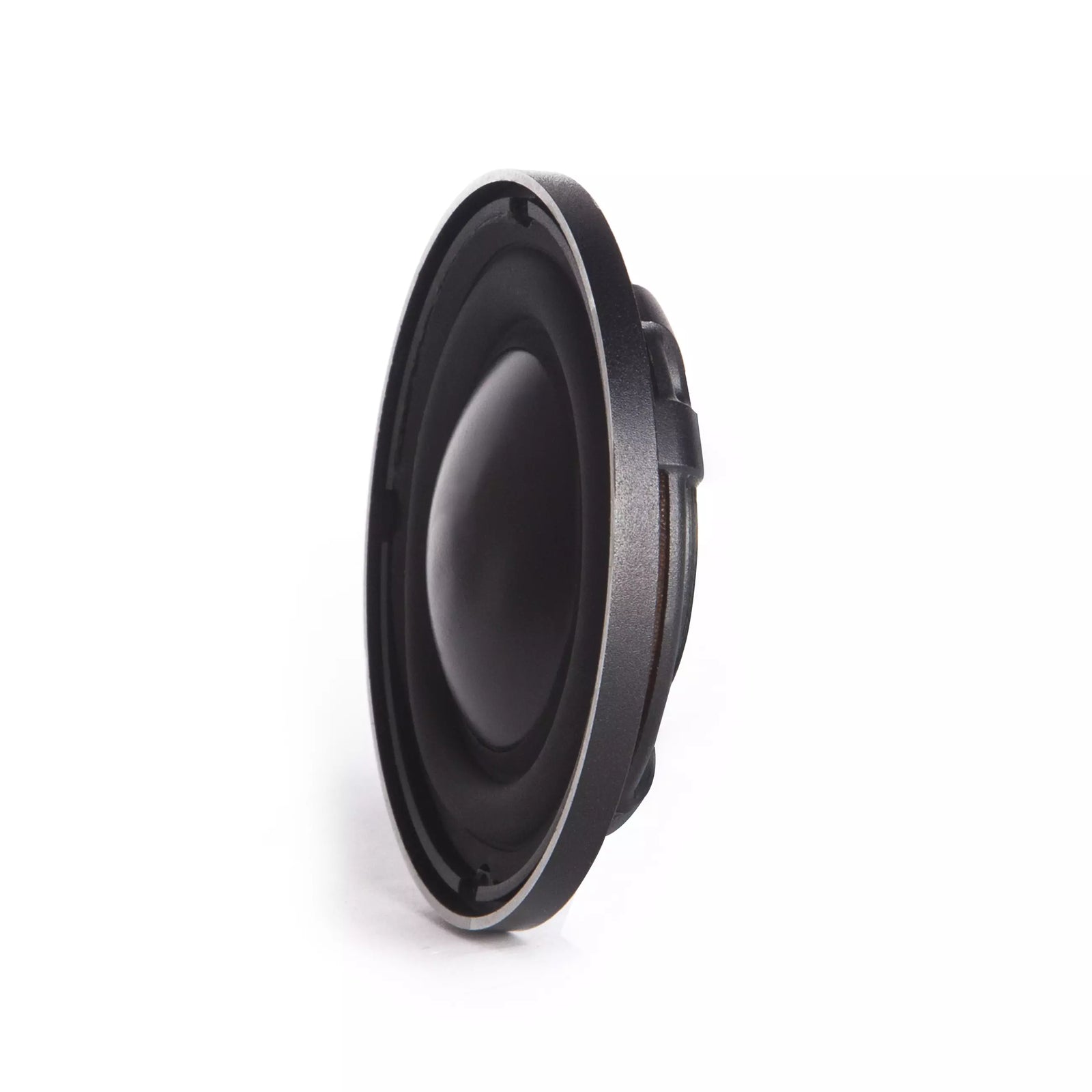

The Morel Virtus Nano MM2 Midrange Driver was engineered following the same revolutionary design philosophy that makes the shallow Virtus Nano Carbon speakers special, delivering exceptional midrange performance in an ultra-compact chassis. This precision-engineered midrange features an anodized space-age aluminum alloy dome cone that offers an optimal mass-to-stiffness ratio, high damping characteristics, and consistent on-to-off axis response to ensure rich, dynamic midrange reproduction at very low distortion levels regardless of mounting location. The advanced 20mm copper voice coil paired with the powerful double neodymium EVC motor design provides remarkable efficiency and high power handling up to 60W RMS, enabling this compact midrange to keep pace with almost any system. With frequency response spanning 200-5000 Hz and impressive 83dB sensitivity, the MM2 delivers critical midrange detail that enhances vocal clarity and instrumental separation. Wrapped in a compact chassis with mounting depth of less than 10mm (0.4"), the Virtus Nano MM2 is the perfect solution for factory speaker locations and compact custom applications where traditional midrange drivers simply cannot fit. Ideal for Australian drivers seeking premium midrange performance in 3-way component systems, custom installations, or professional audio applications where ultra-shallow mounting depth and exceptional sound quality are essential.
Model | Virtus Nano MM2 |
---|---|
Nominal Impendance (ohm) | 4 |
Power Handling Wrms | 60 |
Max. Trans. Pwr Handling Wrms (10ms) | 100 |
Sensitivity (2.83 V/1M) dB | 83 |
Frequency Response Hz | 200-5000 |
Fs Hz | 145 |
Voice Coil Diameter mm (inch) | 20 (0.78) |
Voice Coil Former | Kapton |
Voice Coil Wire | Copper |
DC Resistance ohm | 3.2 |
Magnet System | Double Magnet Neodymium |
Dome Type | Aluminium Formed Dome |
Dome Material | Aluminium Anodized |
Unit Diameter mm (inch) | 76.7 (3.00) |
Mounting Depth mm (inch) | 9.3 (0.37) |
Mounting Cutout mm (inch) | 69 (2.7) |
Net Weight Kg (lb) | 0.7 (1.54) |
