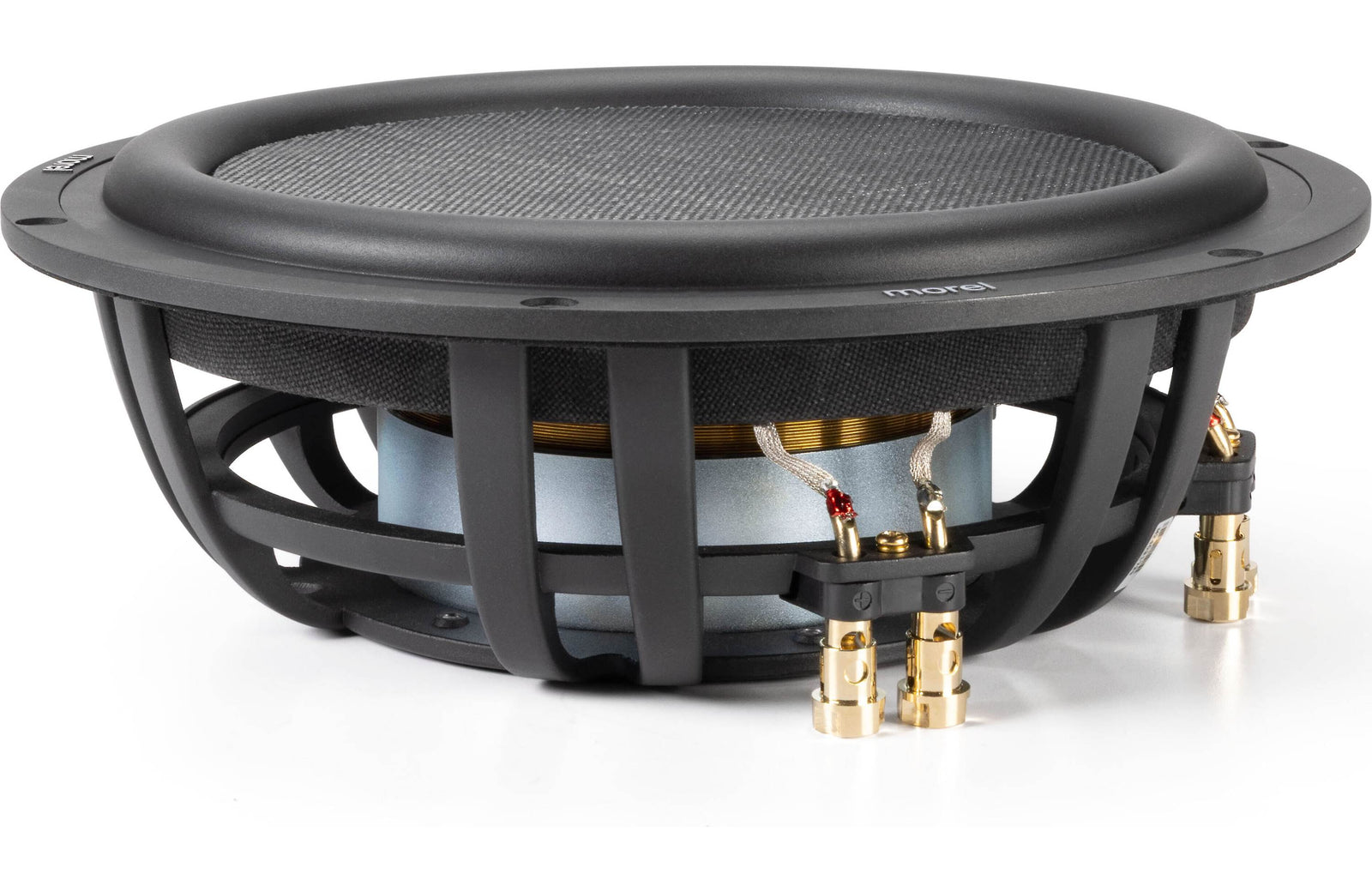

Morel Ultimo PS124D subwoofer
Morel Ultimo PS124D subwoofer

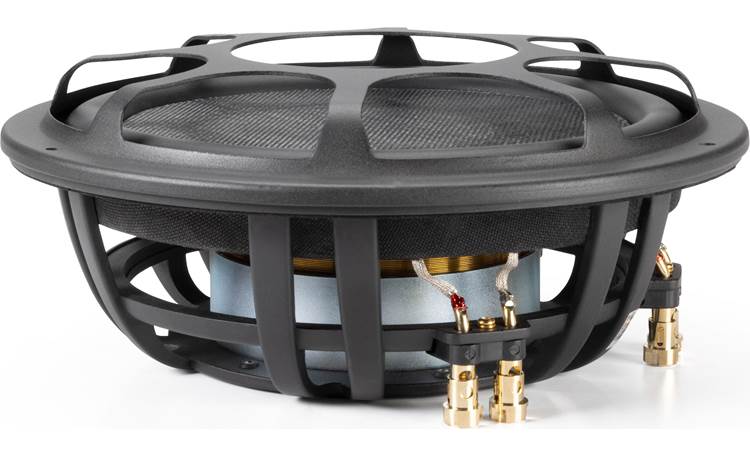

Morel Ultimo PS124D subwoofer, view 2
Morel Ultimo PS124D subwoofer, view 2
Click to open expanded view
Morel Authorized Retailer Badge

Morel Ultimo PS124D 12" 4 Ohm DVC Subwoofer, 700W RMS

SKU: ULTIMOPS124D
Price
$1,569
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Morel Ultimo PS124D subwoofer

Morel Ultimo PS124D 12" 4 Ohm DVC Subwoofer, 700W RMS

$1,569

Product features

Morel Ultimo PS124D, Premium 12" Shallow-Mount PowerSlim Subwoofer

Experience superior Morel build quality and sound performance in a revolutionary shallow-mount design engineered to deliver maximum bass impact from compact enclosures.

Product Overview

The Morel Ultimo PS124D PowerSlim Subwoofer represents advanced shallow-mount engineering in a powerful 12" format, building on the success of the Ultimo Ti series to offer Morel's renowned build quality and sound performance in space-constrained applications. This precision-engineered 12" subwoofer features dual voice coil configuration in 4+4 or 2+2 ohm options, providing installation flexibility for various amplifier configurations while maximising bass output potential. The innovative cone construction utilises dual Carbon Fibre plates sandwiching a honeycomb aluminium core for ultimate strength while maintaining optimal weight characteristics, paired with butyl rubber surround for durability and consistent performance. The large motor structure incorporates high-grade ferrite magnets and massive 5.25" voice coils with Hexatech aluminium wire to provide superior electromechanical force, ensuring linearity and musicality across the 20-400 Hz frequency range. The advanced design delivers exceptional 700W RMS power handling with 2,100W peak capability, while maintaining 83dB sensitivity for efficient performance. With 86mm mounting depth, this subwoofer excels in both sealed (22.6 litres) and vented (39.6 litres) applications, offering maximum installation flexibility. Ideal for Australian drivers seeking reference-quality bass performance with maximum impact in luxury vehicles, custom installations, and space-constrained applications where traditional 12" subwoofers cannot accommodate the mounting requirements.

Specifications

Reference Series PowerSlim 12
Configuration 12"
Impedance 4+4 or 2+2 ohm
Power W/RMS 700 RMS
Power Max 2,100 Watts
Sensitivity 83 db, See manual
Frequency Response 20-400 Hz
Voice Coil Size 5.25 Inch DVC
Voice Coil Former Aluminium
Voice Coil Wire Hexatech Aluminium
Magnet High Grade Ferrite
Cone Type Two Layer Carbon
Mounting Depth 86 mm
Grill Included Yes
Rec. Sealed Enclosure 22.6 Litres (0.6 cuft)
Rec. Ported Enclosure 39.6 Litres (1.4 cuft)

FAQ

How much power can the Morel Ultimo PS124D handle?

It is rated at 2100W peak and 700W RMS.

What is the mounting depth of the Morel Ultimo PS124D?

The listed mounting depth is 86mm. Measure your door or enclosure before you order.

Will it fit my car?

Fitment depends on the vehicle. Contact the F.A.E. team with your make, model and year and we will confirm before you order.
