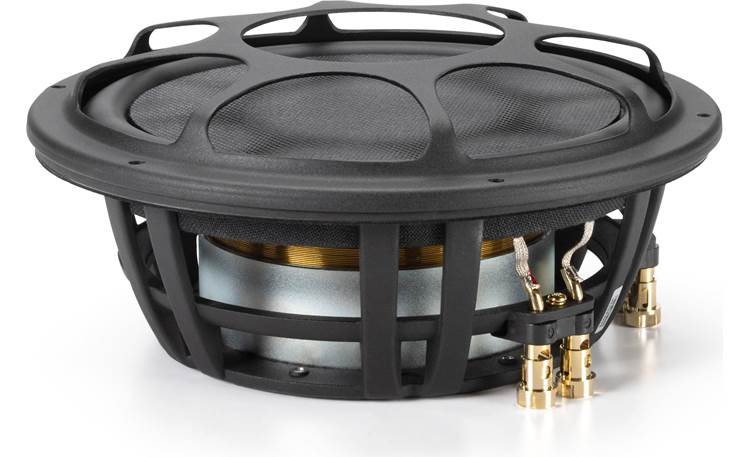

Morel Ultimo PS104D subwoofer
Morel Ultimo PS104D subwoofer

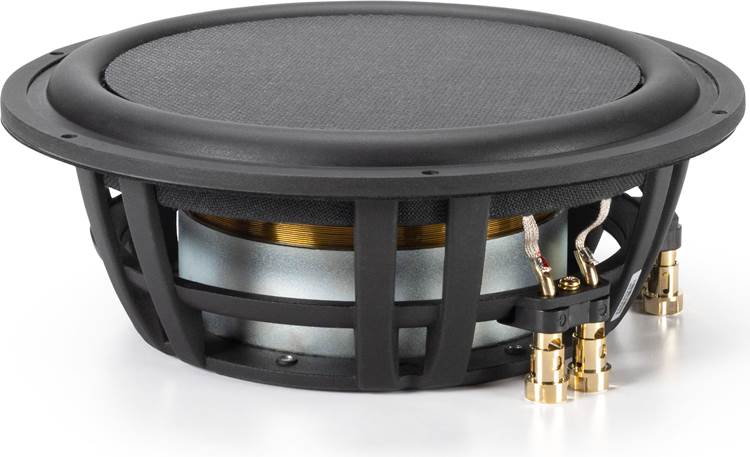

Morel Ultimo PS104D subwoofer, view 2
Morel Ultimo PS104D subwoofer, view 2
Click to open expanded view
Morel Authorized Retailer Badge

Morel Ultimo PS104D 10" 4 Ohm DVC Subwoofer, 600W RMS

SKU: ULTIMOPS104D
Price
$1,499
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Morel Ultimo PS104D subwoofer

Morel Ultimo PS104D 10" 4 Ohm DVC Subwoofer, 600W RMS

$1,499

Product features

Morel Ultimo PS104D, Premium 10" Shallow-Mount PowerSlim Subwoofer

Experience superior Morel build quality and sound performance in a revolutionary shallow-mount design engineered to deliver exceptional bass from compact enclosures.

Product Overview

The Morel Ultimo PS104D PowerSlim Subwoofer represents advanced shallow-mount engineering, building on the success of the Ultimo Ti series to offer Morel's renowned build quality and sound performance in space-constrained applications. This precision-engineered 10" subwoofer features dual voice coil configuration in 4+4 or 2+2 ohm options, providing installation flexibility for various amplifier configurations. The innovative cone construction utilises dual Carbon Fibre plates sandwiching a honeycomb aluminium core for ultimate strength while maintaining optimal weight characteristics, paired with butyl rubber surround for durability and consistent performance. The large motor structure incorporates high-grade ferrite magnets and massive 5.25" voice coils with Hexatech aluminium wire to provide superior electromechanical force, ensuring linearity and musicality across the 20-400 Hz frequency range. The double magnet EVC design delivers exceptional 600W RMS power handling with 1,800W peak capability, while maintaining 82dB sensitivity for efficient performance. With only 79.6mm mounting depth, this subwoofer excels in both sealed (14 litres) and vented (22.7 litres) applications. Ideal for Australian drivers seeking reference-quality bass performance in luxury vehicles, custom installations, and space-constrained applications where traditional subwoofers cannot accommodate the mounting requirements.

Specifications

Reference Series PowerSlim 10
Configuration 10"
Impedance 4+4 or 2+2 ohm
Power W/RMS 600 RMS
Power Max 1,800 Watts
Sensitivity 82 dB
Frequency Response 20-400 Hz
Voice Coil Size 5.25 Inch DVC
Voice Coil Former Aluminium
Voice Coil Wire Hexatech Aluminium
Magnet Double Magnet EVC
Cone Type Two Layer Carbon
Mounting Depth 79.6 mm
Grill Included Yes
Rec. Sealed Enclosure 14 Litres (0.5 cuft)
Rec. Ported Enclosure 22.7 Litres (0.8 cuft)

FAQ

How much power can the Morel Ultimo PS104D handle?

It is rated at 1800W peak and 600W RMS.

What is the mounting depth of the Morel Ultimo PS104D?

The listed mounting depth is 79.6mm. Measure your door or enclosure before you order.

Will it fit my car?

Fitment depends on the vehicle. Contact the F.A.E. team with your make, model and year and we will confirm before you order.
