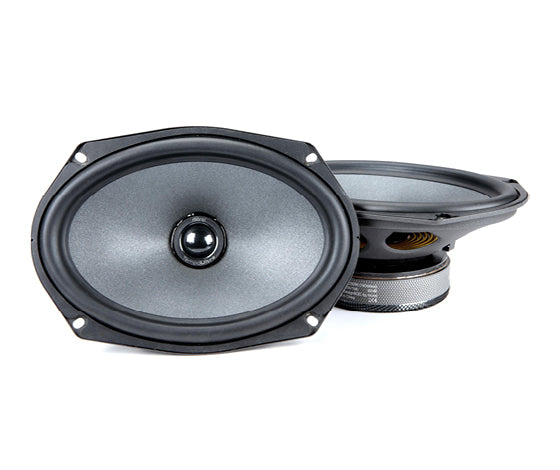

Morel Tempo Ultra Integra 692 6x9 coaxial speaker, front and rear
Morel Tempo Ultra Integra 692 6x9 coaxial speaker, front and rear

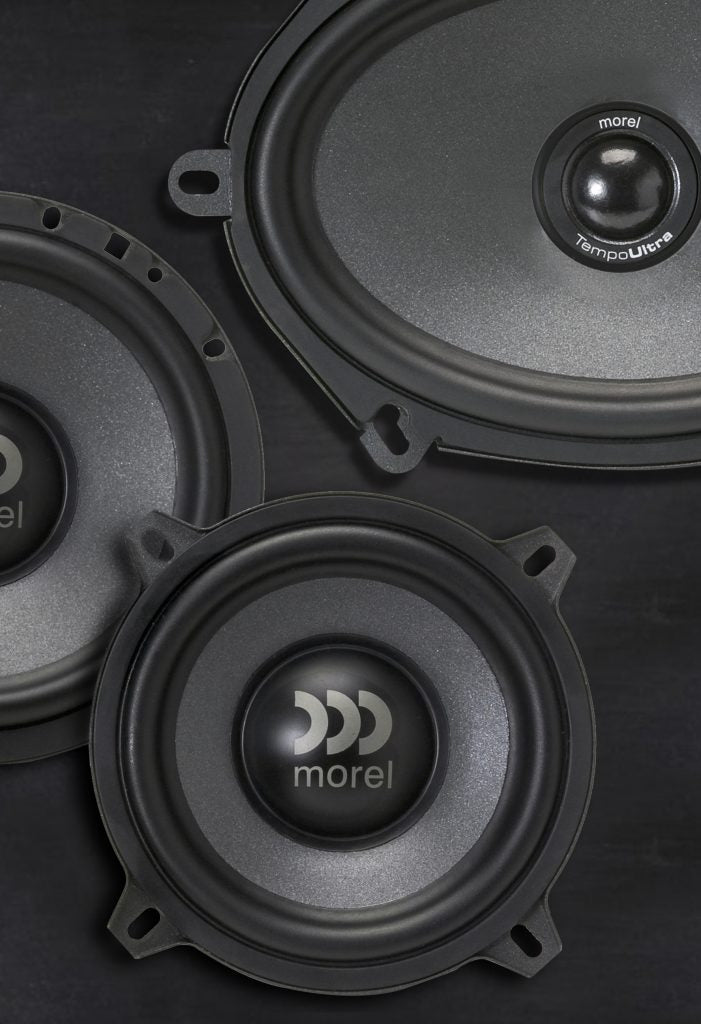

Morel Tempo Ultra speakers on a dark slate background
Morel Tempo Ultra speakers on a dark slate background
Click to open expanded view
Morel Authorized Retailer Badge

Morel Tempo Ultra Integra 692 MKII 6x9 Inch Point Source Coaxial Speakers, Grilles Not Included

SKU: TEMPOULTRAINTEGRA692
Price
$499
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Morel Tempo Ultra Integra 692 6x9 coaxial speaker, front and rear

Morel Tempo Ultra Integra 692 MKII 6x9 Inch Point Source Coaxial Speakers, Grilles Not Included

$499

Product features

The Morel Tempo Ultra Integra 692 MKII is a 6x9 inch point source speaker with a 28mm soft dome tweeter mounted in the centre of the woofer, rated at 150W RMS and 92dB sensitivity.

Standard coaxials put the tweeter on a bridge in front of the cone, which smears the timing between bass and treble and makes the stage sound vague. The Integra recesses the tweeter concentric with the woofer so both sound from one point, and with 92dB sensitivity it plays loud even on modest power.

What it does

  • Point source design with the tweeter aligned in the woofer centre
  • Handcrafted 28mm soft dome tweeter
  • Woofer with an oversized 38mm voice coil
  • External crossover
  • Bass down to 50Hz
  • Grilles optional, not included

Specifications

Size 6x9 inch
Configuration 2 point source
Frequency response 50Hz to 22kHz
Crossover External
Power 150W RMS, 280W peak
Sensitivity 92dB
Impedance 4 ohm
Tweeter 28mm soft dome
Woofer voice coil 38mm
Grilles Optional

Fitment and what comes in the box

These suit 6x9 openings, usually rear parcel shelves and some front doors. The external crossover needs a dry spot nearby. Tell us your car and we will check the depth and any adaptor needed.

Ask us what comes in the box before you order.

Installation notes

Grilles are sold separately, so order them if the speakers sit in an exposed location.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

Hear the Integra range and book a fit at Albion Park Rail (02) 4257 2636 or South Nowra (02) 4423 5254.

Frequently asked questions

Will the 692 Integra fit my car?

It suits 6x9 openings. Tell us the make, model and year and we will confirm depth and adaptors.

Are grilles included?

No. Grilles are optional and sold separately.

Is this a coaxial or component set?

It is a point source coaxial: the tweeter sits in the centre of the woofer, with an external crossover.

Will they run without an amplifier?

At 92dB they work well on head unit power, and a 150W RMS rating means they will take an amplifier too.
