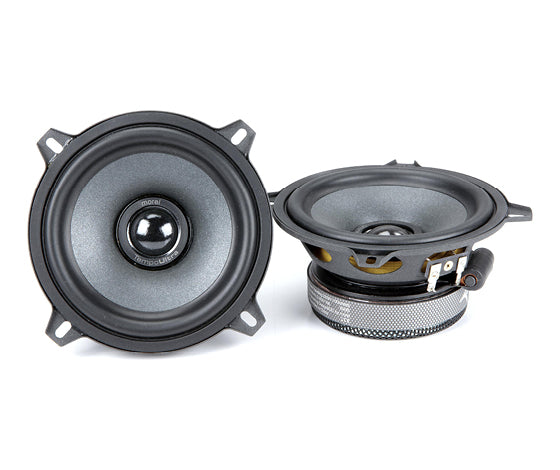

Morel Tempo Ultra Integra 502 MKII speaker face on beside a side view
Morel Tempo Ultra Integra 502 MKII speaker face on beside a side view
Click to open expanded view
Morel Authorized Retailer Badge

Morel Tempo Ultra Integra 502 MKII 5.25" Point Source Speakers

SKU: TEMPOULTRAINTEGRA502
Price
$459
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Morel Tempo Ultra Integra 502 MKII speaker face on beside a side view

Morel Tempo Ultra Integra 502 MKII 5.25" Point Source Speakers

$459

Product features

Quick answer

The Morel Tempo Ultra Integra 502 MKII is a 5.25 inch point source speaker, with the soft dome tweeter set into the centre of the woofer.

Because both drivers fire from one point, sound arrives together, and Morel pairs it with an external crossover and an oversized 38 mm voice coil.

Problems it solves

  • Separate tweeters that will not mount where they should. The tweeter is built into the woofer.
  • Thin bass from small 5.25 inch openings. Morel tunes the range for full response without a sub.
  • Harsh factory treble. The soft dome keeps the top end smooth.

Specifications

  • Size: 133 mm
  • Configuration: 2 way point source
  • Power: 130W RMS, 250W peak
  • Sensitivity: 89 dB
  • Impedance: 4 ohm
  • Frequency response: 55 Hz to 22 kHz
  • Crossover: external
  • Tweeter: 28 mm soft dome
  • Voice coil: 38 mm
  • Grilles: optional

Fitment and compatibility

Suits 5.25 inch door, dash and rear deck openings. Measure depth and the cutout before you buy; Morel lists grilles as optional.

What is in the box

A pair of Tempo Ultra Integra 502 MKII speakers. Morel lists an external crossover for this model. Talk to us about the complete Tempo packing list before buying.

Install notes

Mount the crossovers somewhere dry and easy to reach. Morel supplies a point source user manual covering wiring and settings.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

FAQ about the Tempo Ultra Integra 502 MKII

Will the Tempo Ultra Integra 502 MKII fit a 5.25 inch door?

Yes, if the cutout and depth suit; measure the door first.

Does the Tempo Ultra Integra 502 MKII need a separate tweeter?

No. The tweeter sits in the woofer centre.

What crossover comes with the Tempo Ultra Integra 502 MKII?

An external Morel crossover is used. A pair of Tempo Ultra Integra 502 MKII speakers. Talk to us about the complete Tempo packing list before buying.
