Morel NANO MW4 - 4.5
Click to open expanded view
Morel Authorized Retailer Badge

Morel NANO MW4 - 4.5" Ultra thin woofer 4 ohm

SKU: NANOMW4
Price
$899
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

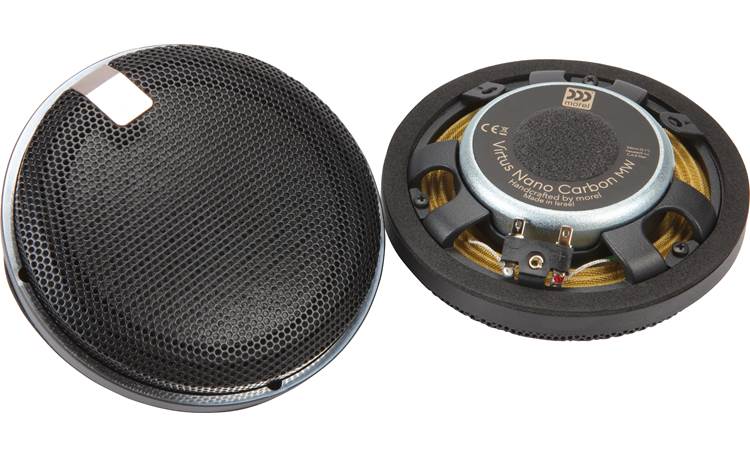

Morel Virtus Nano MW4 - Premium Ultra-Slim 4" Woofer Driver

Experience Morel's philosophy that rejects one-size-fits-all approaches with precision-engineered ultra-slim woofer technology designed for custom component applications.

Product Overview

The Morel Virtus Nano MW4 represents innovative ultra-slim woofer technology, developed from Morel's philosophy that rejects one-size-fits-all approaches in favor of specialized engineering solutions. This precision-crafted 4" woofer features advanced carbon cone construction with foam core technology, delivering exceptional frequency response from 80-9200 Hz while maintaining only 17mm (0.7") mounting depth. The sophisticated design incorporates a 54mm Hexatech™ aluminum voice coil with aluminum former, paired with a vented neodymium magnet system that provides remarkable 90W RMS power handling and 88dB sensitivity. The carbon cone material offers optimal mass-to-stiffness ratio with superior damping characteristics, while the ±3mm linear excursion capability ensures accurate reproduction across the woofer's frequency range. With carefully engineered Thiele-Small parameters including 95Hz resonant frequency and optimized Q factors, the MW4 delivers exceptional performance in compact enclosures. The ultra-shallow profile makes it ideal for space-constrained installations where traditional woofers cannot fit. Perfect for Australian drivers building custom component systems, motorcycle applications, or specialized automotive installations where ultra-compact mounting depth and exceptional mid-bass performance are essential for professional-quality sound reproduction.

Specifications

Model Virtus Nano MW4
Nominal Impedance (ohm) 4
Power Handling Wrms 90
Max. Trans. Pwr Handling Wrms 300
Sensitivity (2.83 V/1M) dB 88
Frequency response Hz 80-9200
Resonant Freq. Fs Hz 95
Voice Coil Diameter mm (inch) 54 (2.16)
Voice Coil Height mm (inch) 9 (0.35)
Voice Coil Type/Former Aluminium
Voice Coil Wire Hexatech™ Aluminium
DC Resistance (ohm) 3
Voice Coil Induct. @1 kHz (mH) 0.12
Magnet System Neodymium Vented
BL Product/BXL 4.68
Max. Linear Ex./Xmax mm (inch) ±3mm (0.12)
Electrical Q Factor QES 0.7
QTS 0.6
QMS 4.01
Moving Mass MMS - gr/ounce 8.57 (0.3)
Equiv. Can Air Load VAS - L (cu.ft3) 1.48 (0.05)
Effective Piston Area SD sq.cm (sq.inch) 57(8.8)
Cone Type Carbon Cone
Cone Material Carbon + Foam Core
Unit Diameter mm(inch) 109 (4.3)
Mounting Depth mm (inch) 17(0.7)
Mounting Cutout 93 (3.6)
Net Weight gr 376
