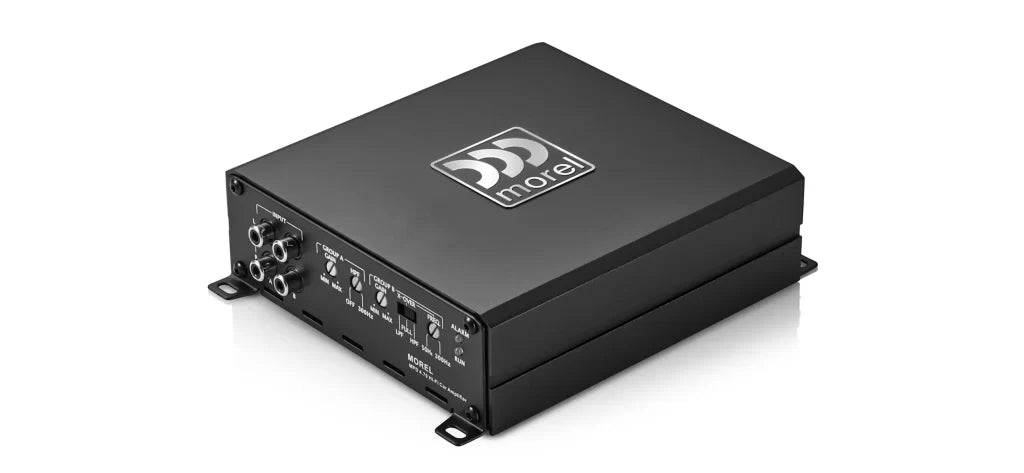

Morel MPD 4.70 compact amplifier in black with the Morel badge
Morel MPD 4.70 compact amplifier in black with the Morel badge
Click to open expanded view
Morel Authorized Retailer Badge

Morel MPD 4.70 4 Channel Class D Amplifier 4 x 70W RMS

SKU: MPD470
Price
$429
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Morel MPD 4.70 compact amplifier in black with the Morel badge

Morel MPD 4.70 4 Channel Class D Amplifier 4 x 70W RMS

$429

Product features

Quick answer

The Morel MPD 4.70 is a compact Class D 4 channel car amplifier making 70W x 4 at 4 ohm.

At 148 by 195.5 mm and 48 mm high it fits under most seats, and it can bridge to 200W x 2 at 4 ohm for a pair of subs or a front stage.

Problems it solves

  • Too little room for a full size amp. The chassis is 48 mm high.
  • Speakers that need more than a head unit gives. 100W x 4 at 2 ohm.
  • Blending speakers and subs. Variable high and low pass crossovers run from 50 to 300 Hz at 12 dB per octave.

Specifications

  • Power at 4 ohm: 70W x 4
  • Power at 2 ohm: 100W x 4
  • Bridged: 200W x 2 at 4 ohm
  • Class: D
  • Frequency response: 20 Hz to 30 kHz
  • S/N: over 93 dB
  • THD+N: under 0.2%
  • Crossovers: HPF off to 300 Hz on group A; LPF or HPF 50 to 300 Hz on group B, 12 dB per octave
  • Input voltage: 0.35 to 3.5V
  • Dimensions: 48 x 148 x 195.5 mm
  • Inline fuse: 50A within 400 mm of the battery

Fitment and compatibility

Suits aftermarket head units with RCA outputs; the input range is 0.35 to 3.5V. Morel sells the MPS-HL adaptor for factory speaker level signals.

What is in the box

The MPD 4.70 amplifier. The inline fuse holder and the MPS-HL high low adaptor are not included. Ask us to confirm the rest of the package before ordering.

Install notes

Fit a 50A inline fuse within 400 mm of the battery and leave about 50 mm of clear air around the chassis. Morel recommends an authorised dealer install.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

FAQ about the MPD 4.70

Will the MPD 4.70 work with a factory head unit?

Yes with the MPS-HL high low adaptor, sold separately, which takes the speaker level signal.

Can the MPD 4.70 power a subwoofer?

Yes. Bridge two channels for 200W into 4 ohm and use the low pass filter.

How do I connect power to the MPD 4.70?

Run the power cable through a 50A inline fuse within 400 mm of the battery. The holder is not in the box. Morel sells the MPS-HL adaptor for factory speaker level signals.
