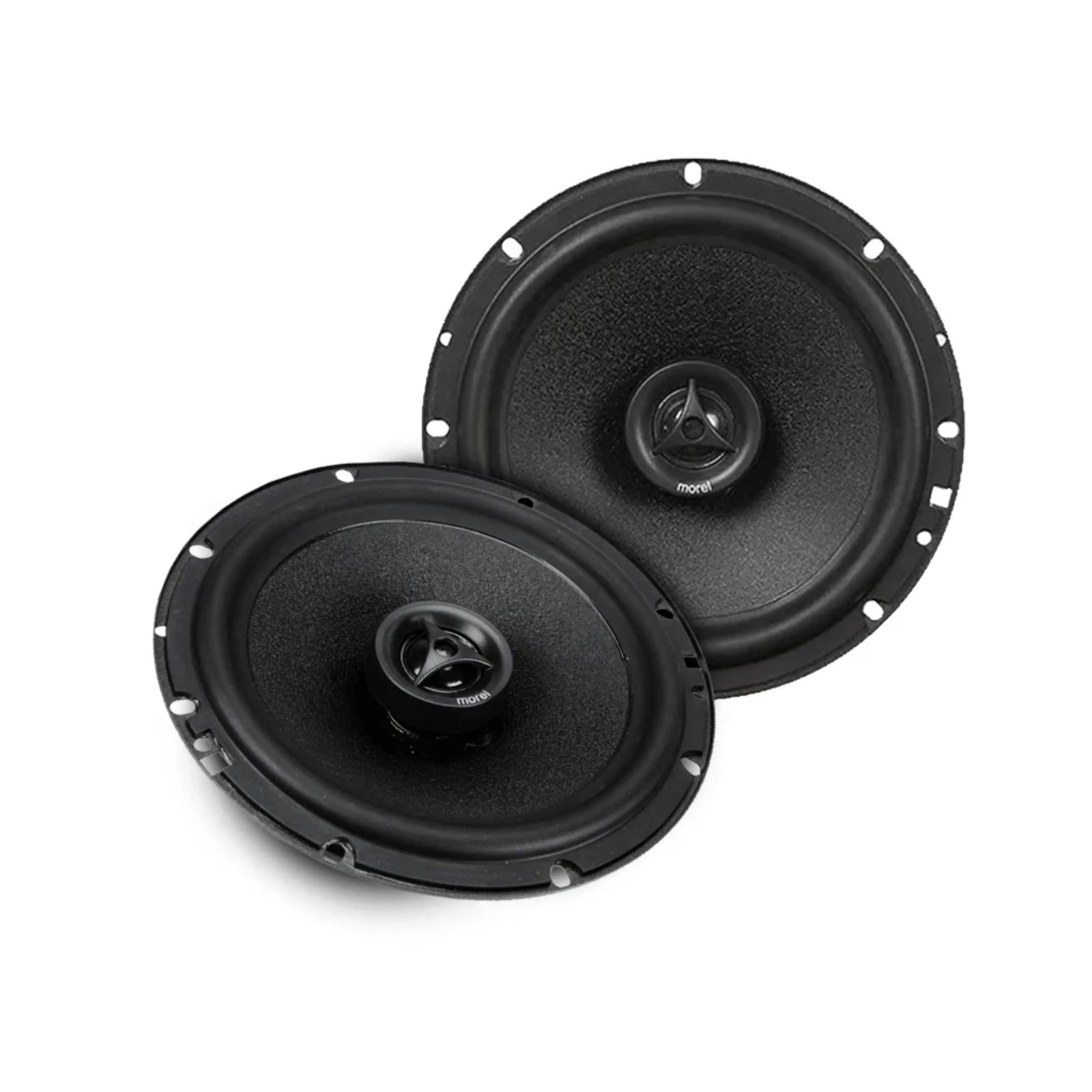

Pair of Morel Maximo 6.5 inch coaxial speakers shown front on
Pair of Morel Maximo 6.5 inch coaxial speakers shown front on

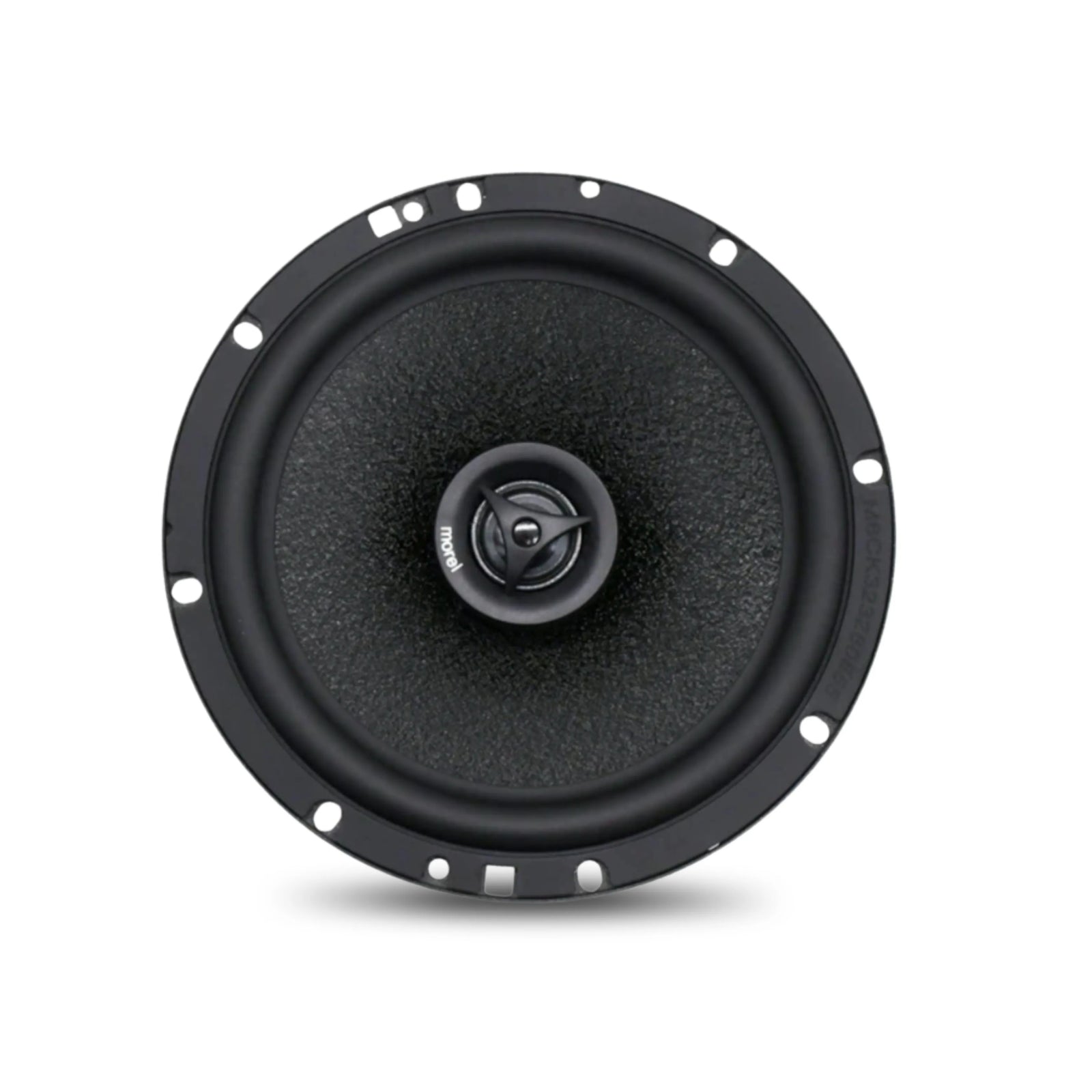

Front view of a single Maximo coaxial with centre tweeter
Front view of a single Maximo coaxial with centre tweeter

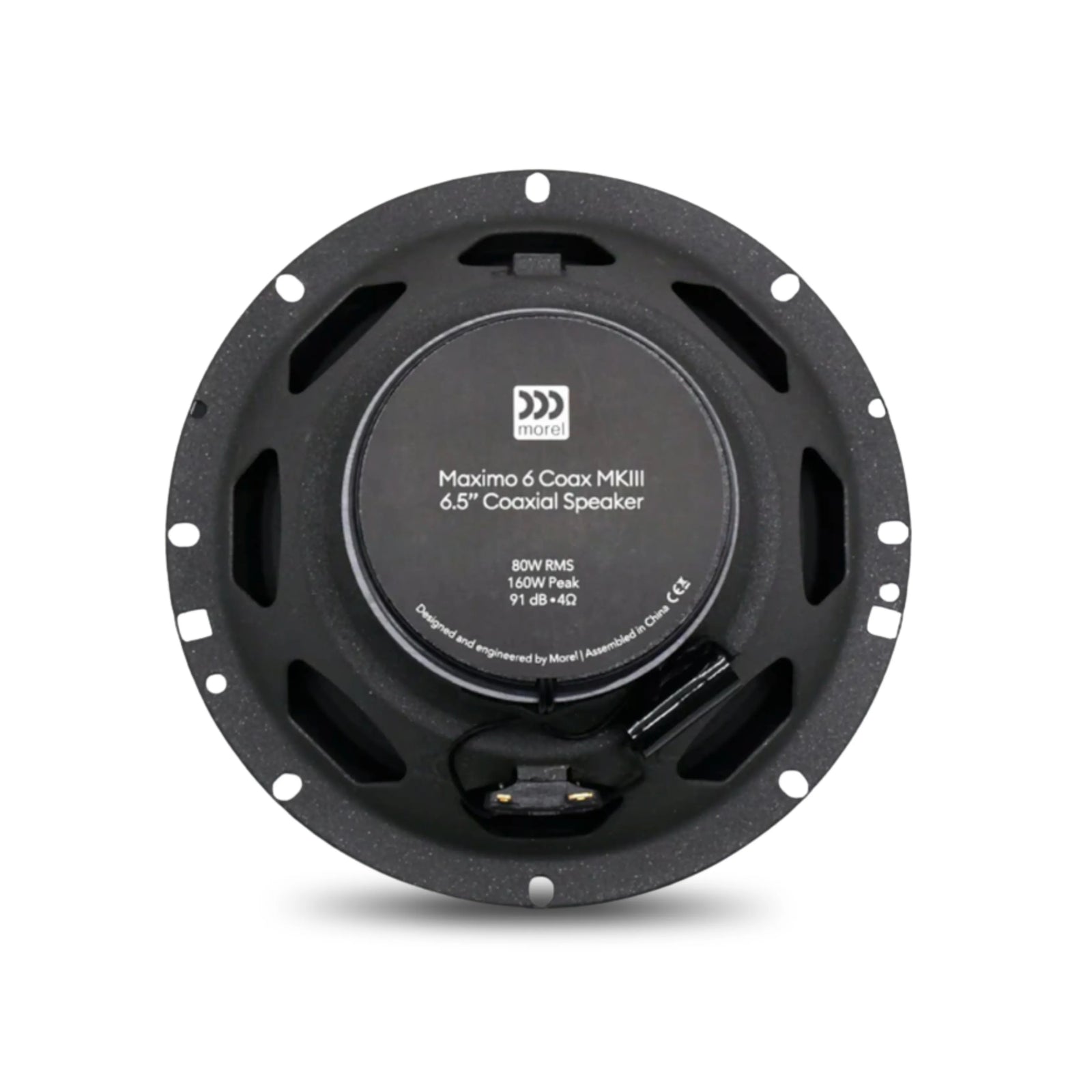

Rear of the Maximo coaxial showing the magnet and label
Rear of the Maximo coaxial showing the magnet and label

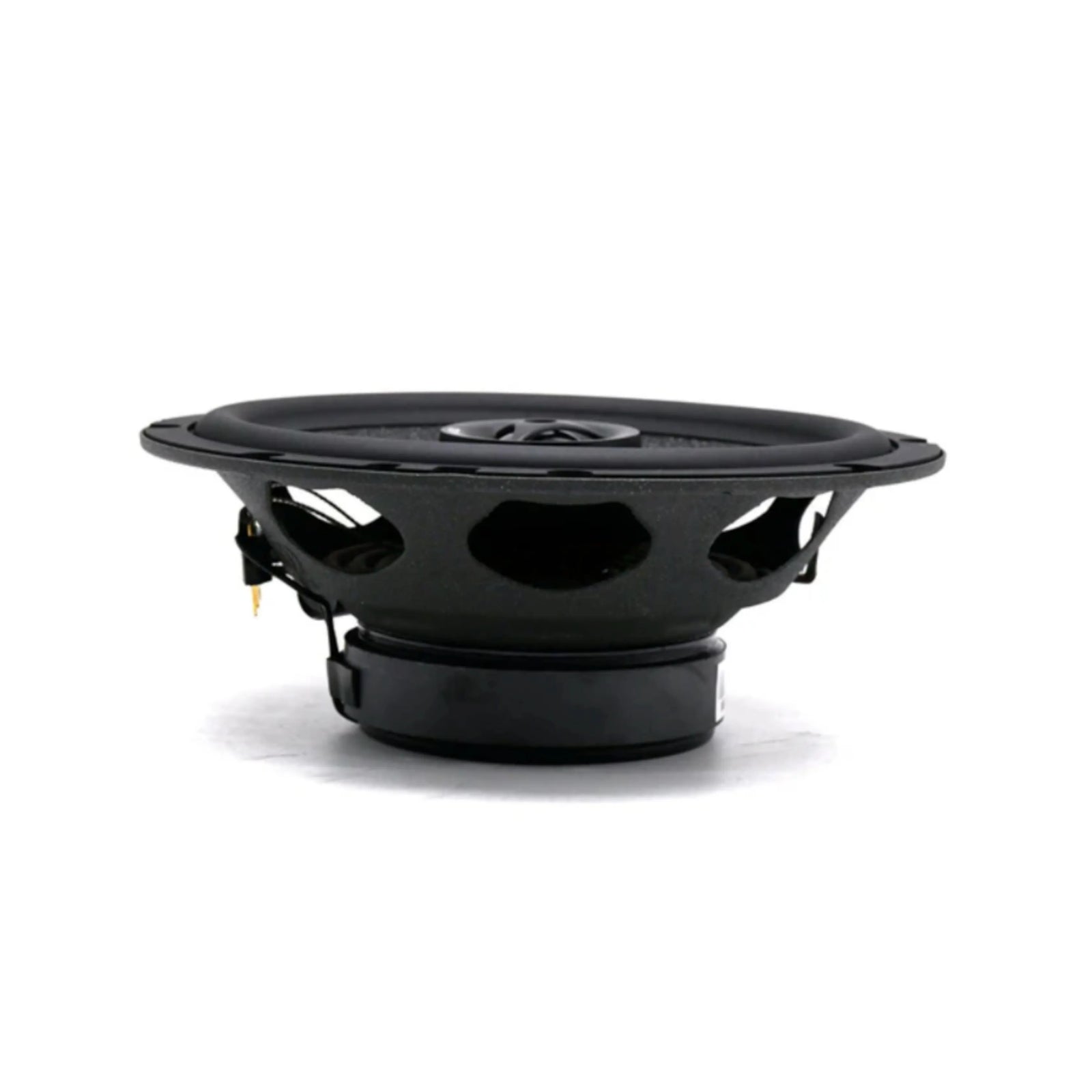

Side profile of the Maximo coaxial showing basket depth
Side profile of the Maximo coaxial showing basket depth

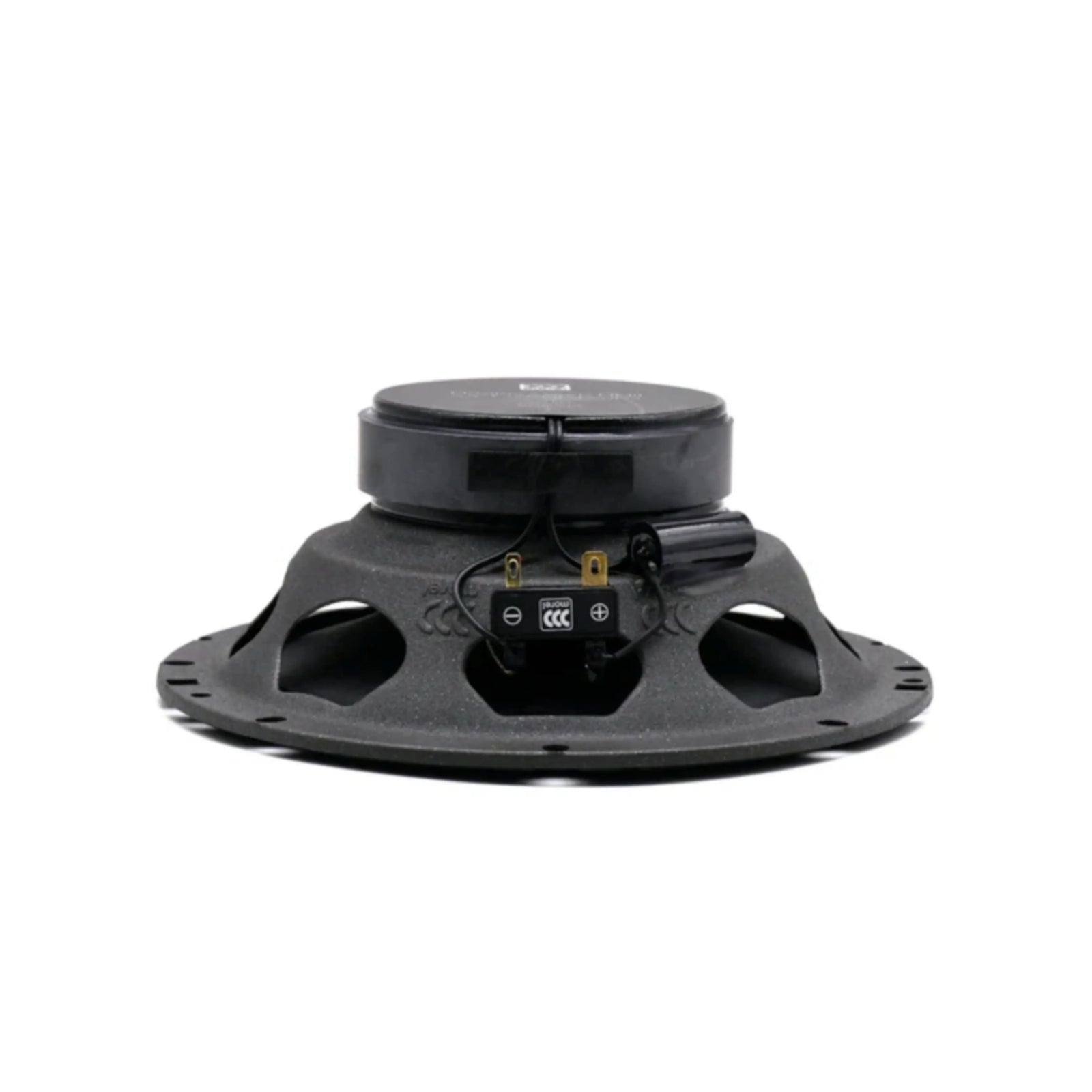

Low side view of the Maximo coaxial basket and magnet
Low side view of the Maximo coaxial basket and magnet

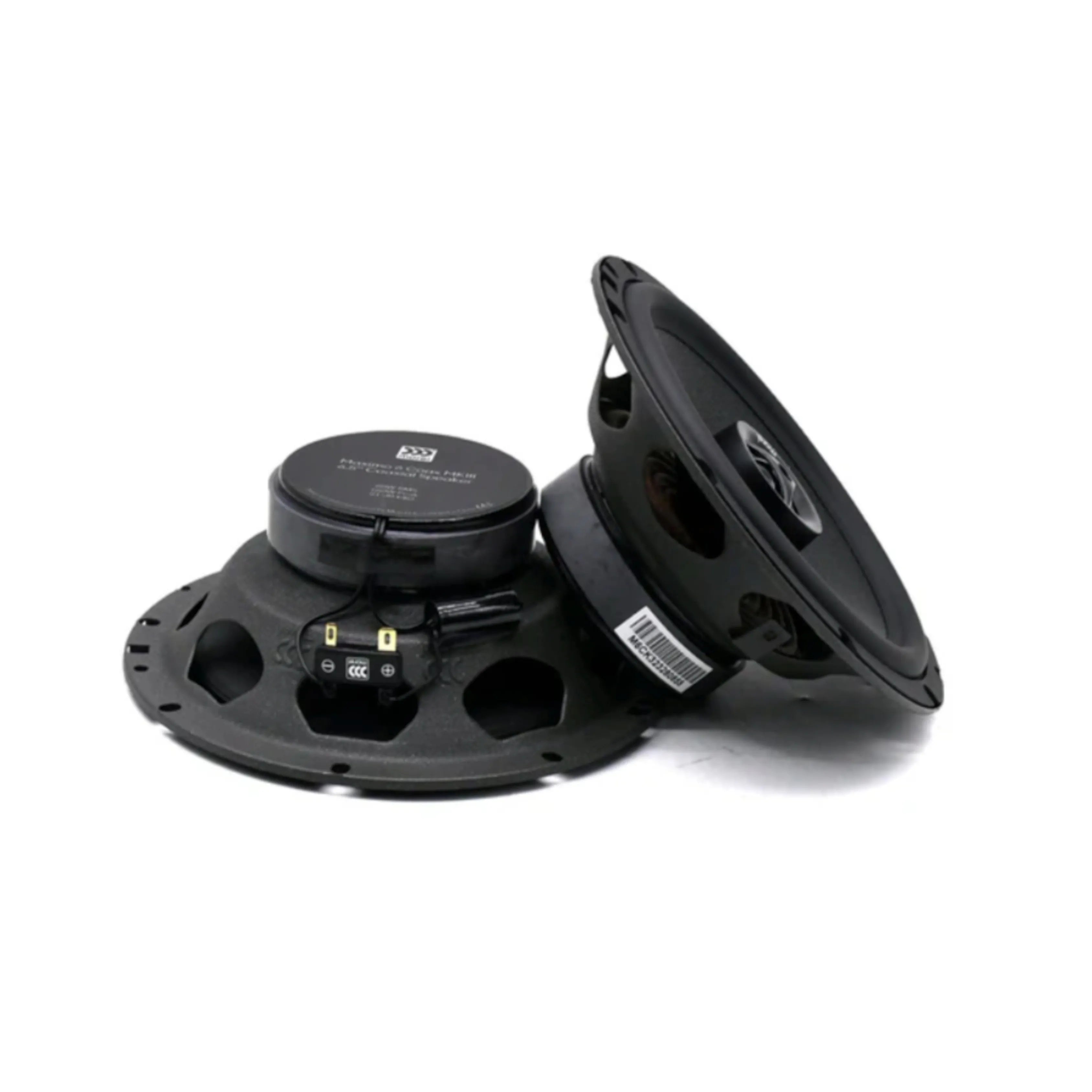

Angled view of the Maximo coaxial pair from behind
Angled view of the Maximo coaxial pair from behind

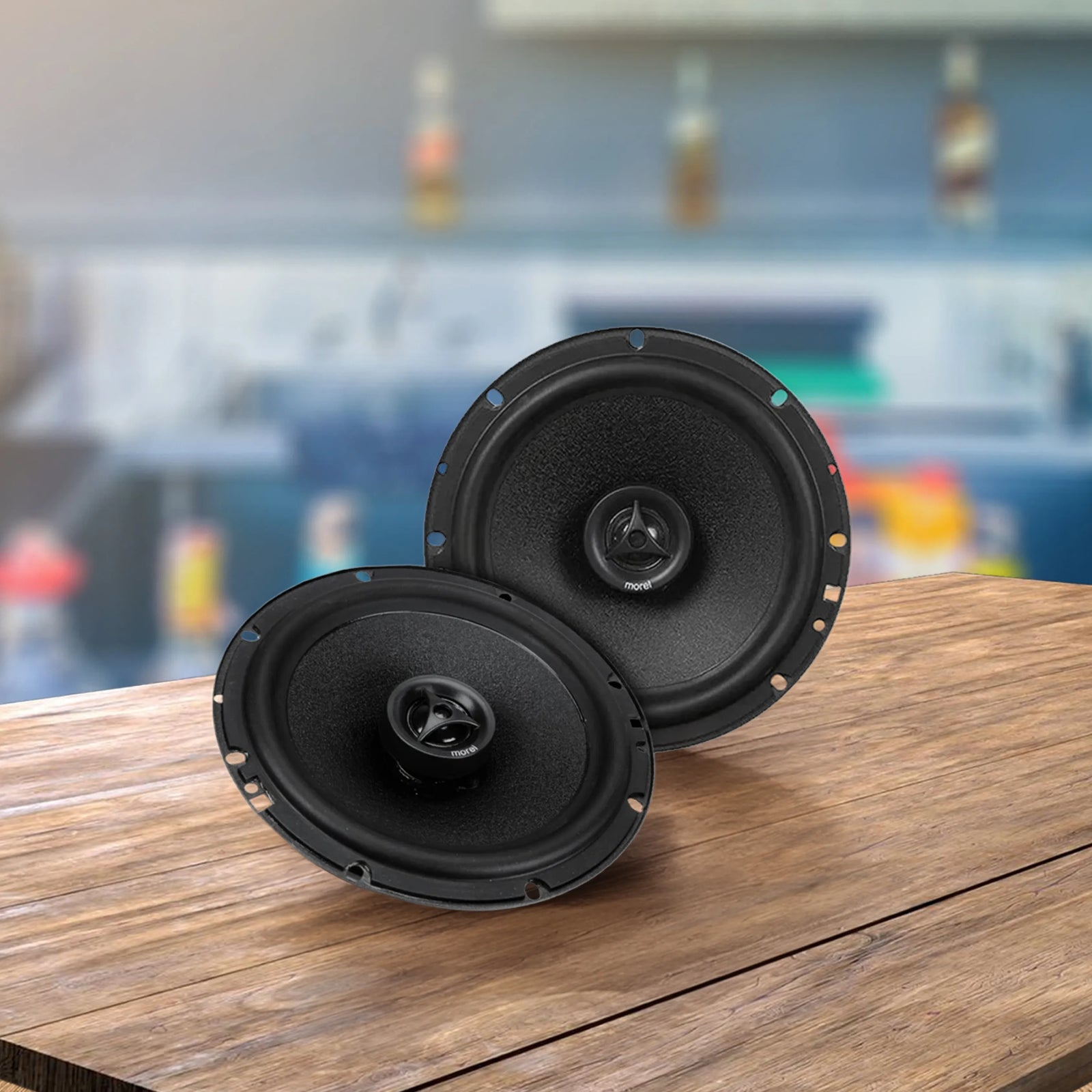

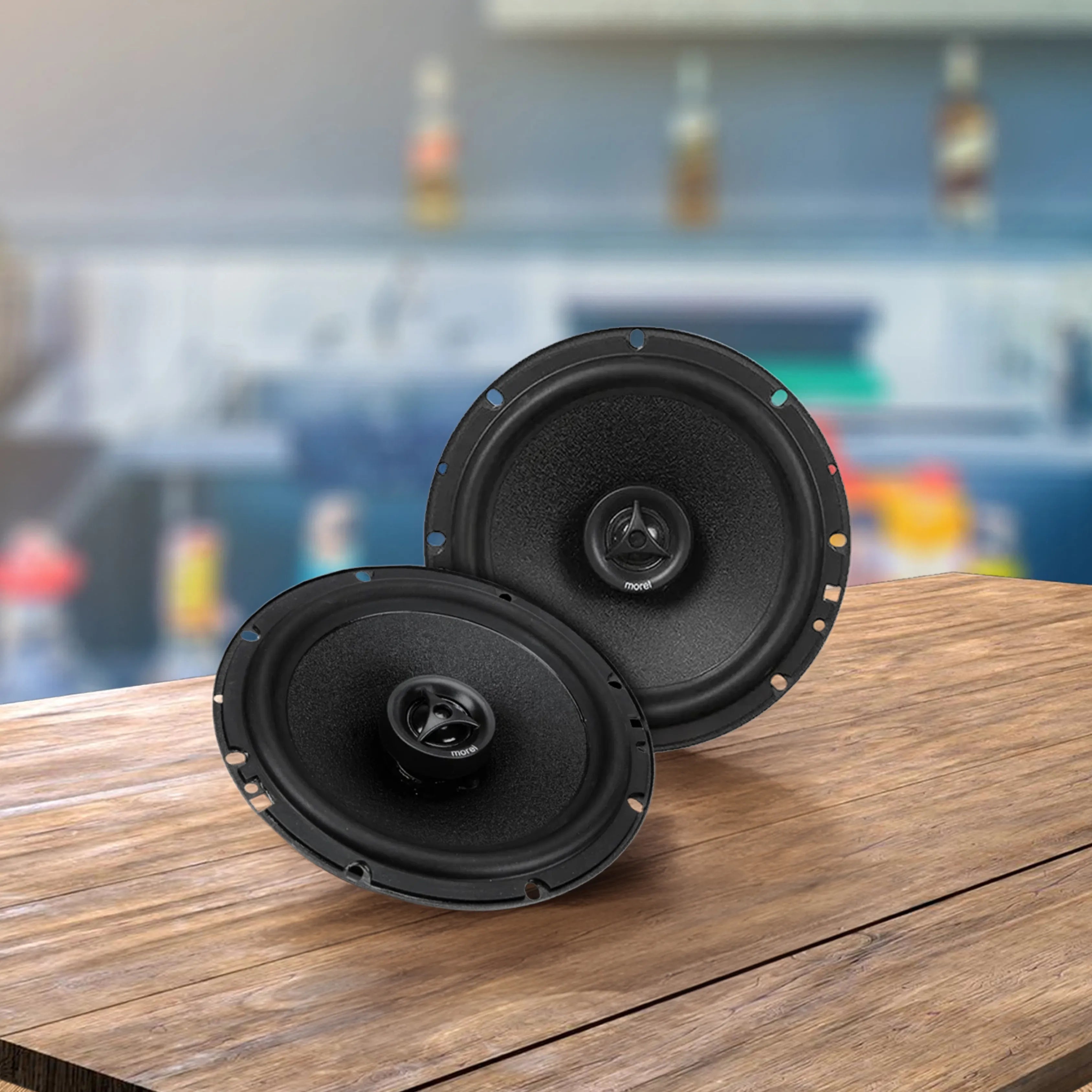

Maximo coaxial speaker pair on a timber bench
Maximo coaxial speaker pair on a timber bench
Click to open expanded view
Morel Authorized Retailer Badge

Morel Maximo 6 MKIII COAX 6.5" 2 Way Coaxial Car Speakers

SKU: MAXIMO6MKIIICOAX
Price
$239
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier.
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Pair of Morel Maximo 6.5 inch coaxial speakers shown front on

Morel Maximo 6 MKIII COAX 6.5" 2 Way Coaxial Car Speakers

$239

Product features

Paper cones in many factory doors go soft and crackly after years of heat and damp, and vocals start to sound muffled even at low volume.

The Maximo 6 MKIII COAX puts a tweeter and a 165mm woofer on one frame with an integrated crossover, so it drops into a single door opening without a separate tweeter to mount. Morel rates it at 80W RMS and 160W peak with 91 dB sensitivity, which means a stock head unit can still drive it with headroom left over.

What you get with the Maximo coaxial

  • Two way coaxial layout with an integrated crossover
  • 165mm driver size
  • 80W RMS and 160W peak power handling
  • 91 dB sensitivity at 4 ohm
  • Grilles are not included and are sold separately

Specifications

Performance Series Maximo 6 MKIII Coaxial
Configuration 2 way Coaxial
Driver Size 165mm
Frequency Response (Hz) 55 to 22,000
Crossover Integrated
RMS Power (W) 80
Peak Power (W) 160
Sensitivity (dB) 91
Impedance 4 ohm
Speaker Grilles Not Included (Sold Separately)

Fitment and compatibility

These suit 6.5 inch openings, but door depth and mounting holes differ between cars. Westec lists a 63mm mounting depth, so check that against the space behind your door trim or send us your make, model and year first.

What is in the box

Morel and Westec both state that grilles are not included with the Maximo 6 MKIII coaxial pair. If you want to know about screws or adaptor rings for your doors, our team can check a boxed pair.

Install notes

Most cars need a speaker adaptor ring and a plug lead to suit the factory loom. Our Albion Park Rail workshop on (02) 4257 2636 can quote the adaptors for your car when you book.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

Frequently asked questions

Does the Maximo 6 MKIII COAX come with grilles?

No. Morel Australia lists the grilles as not included, so add a pair if your doors need them.

How much power can these Morel coaxials take?

They are rated at 80W RMS and 160W peak per speaker at 4 ohm.

Will these fit in my door without cutting?

That depends on your door. Send us the make, model and year and we will check the 63mm depth and the mounting pattern against your car.

Can I run them off my factory radio?

Yes, the 91 dB sensitivity suits a head unit, and an amplifier will give them more headroom.
