Morel Kinetic 12.4 12" Car Subwoofer 4 Ohm 350W RMS

Quick answer

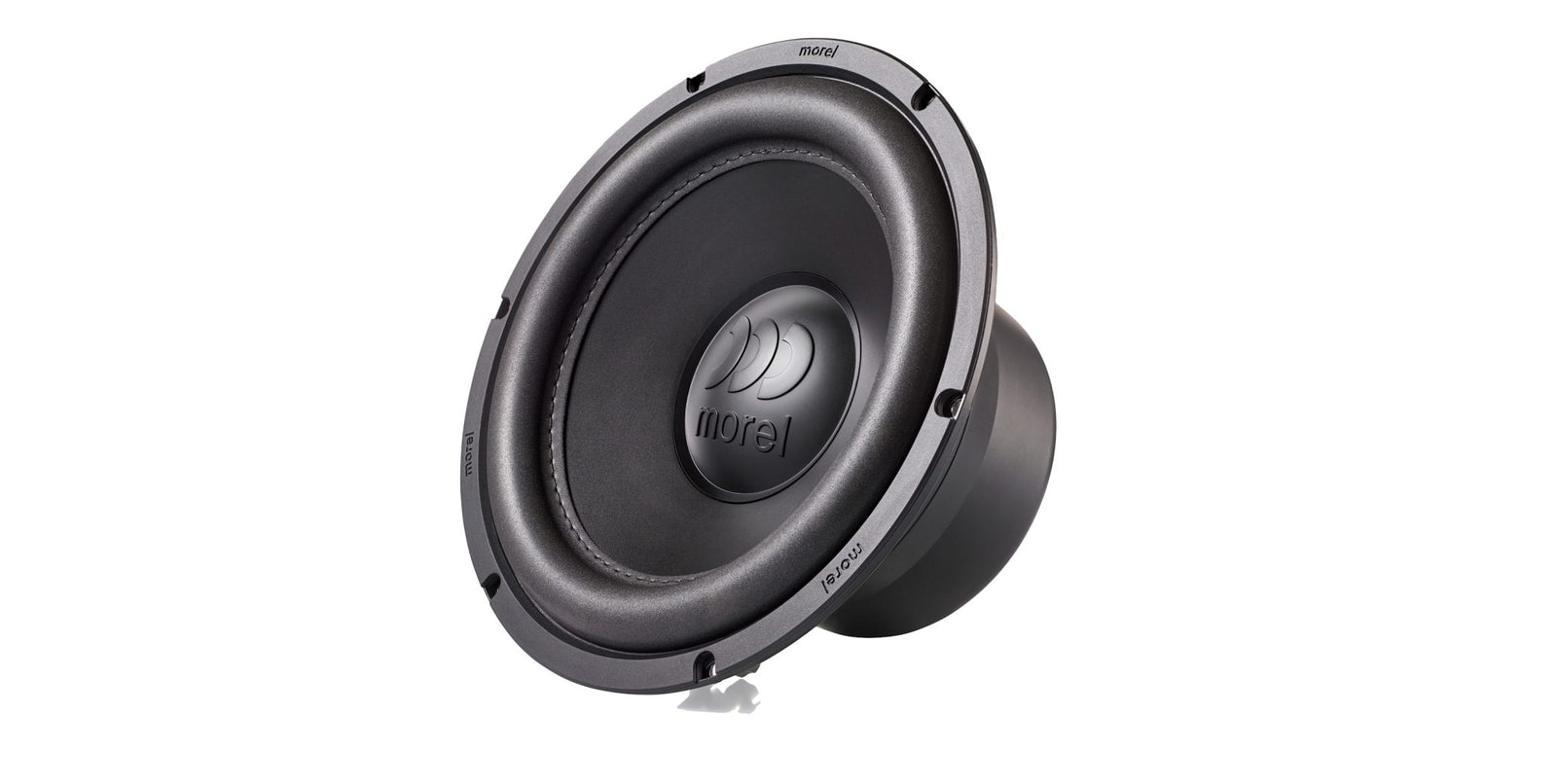

The Morel Kinetic 12.4 is a 12 inch single 4 ohm car subwoofer, model KS124, rated at 350W RMS and 700W peak.

Morel publishes both a sealed and a ported box, so it suits a tidy boot build or a louder vented setup.

Problems it solves

• Bass that rolls off early in a sealed box. Morel quotes F3 at 41 Hz in 34 litres.
• Wanting more output for the same power. The ported box is tuned to 27 Hz.
• Heavy cable that will not fit small terminals. Spring posts take 10 AWG wire.

Specifications

• Model: KS124
• Size: 12 inch (305 mm)
• Impedance: 4 ohm single
• Power: 350W RMS, 700W peak
• Sensitivity: 90 dB
• Frequency response: 20 to 900 Hz
• Voice coil: 2 inch
• Sealed box: 34 litres, F3 41 Hz
• Ported box: 42.5 litres, tuned to 27 Hz, 100 x 627 mm port

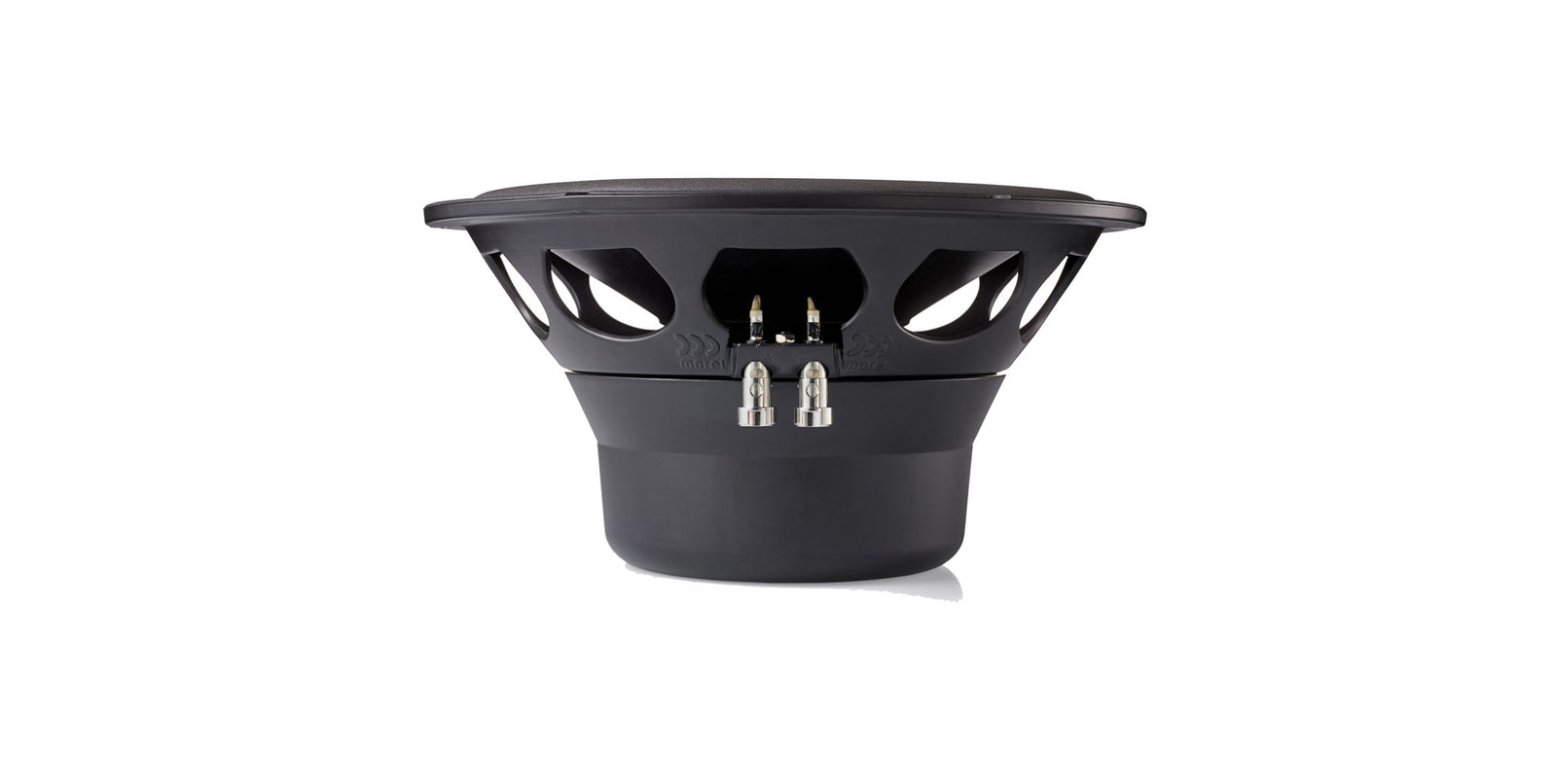

• Terminals: spring posts for 10 AWG

Fitment and compatibility

Plan the box from the Morel figures: 34 litres sealed or 42.5 litres ported. A single 4 ohm coil suits a mono amp at 4 ohm or a bridged two channel amp.

What is in the box

One Kinetic 12.4 subwoofer. The enclosure and amplifier are bought separately.

Install notes

Use the port size Morel lists if you build the vented box, since the tune depends on it. Seal every joint and run 10 AWG cable to the spring posts.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

FAQ about the Kinetic 12.4

What box suits the Kinetic 12.4?

Morel lists 34 litres sealed, or 42.5 litres ported with a 100 by 627 mm port tuned to 27 Hz. A single 4 ohm coil suits a mono amp at 4 ohm or a bridged two channel amp.

Which amplifier will work with the Kinetic 12.4?

Pick one that gives about 350W RMS into 4 ohm.

How do I mount the Kinetic 12.4 in a custom box?

Cut to the Morel template, seal the joints and fix the driver with the screws through its frame.
