Morel HYBRID CDM-700 3.5
Morel HYBRID CDM-700 3.5
Morel HYBRID CDM-700 3.5
Click to open expanded view
Morel Authorized Retailer Badge

Morel HYBRID CDM-700 3.5": Diameter - 2.1" textile dome midrange

SKU: HYBRIDCDM700
Price
$1,029
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

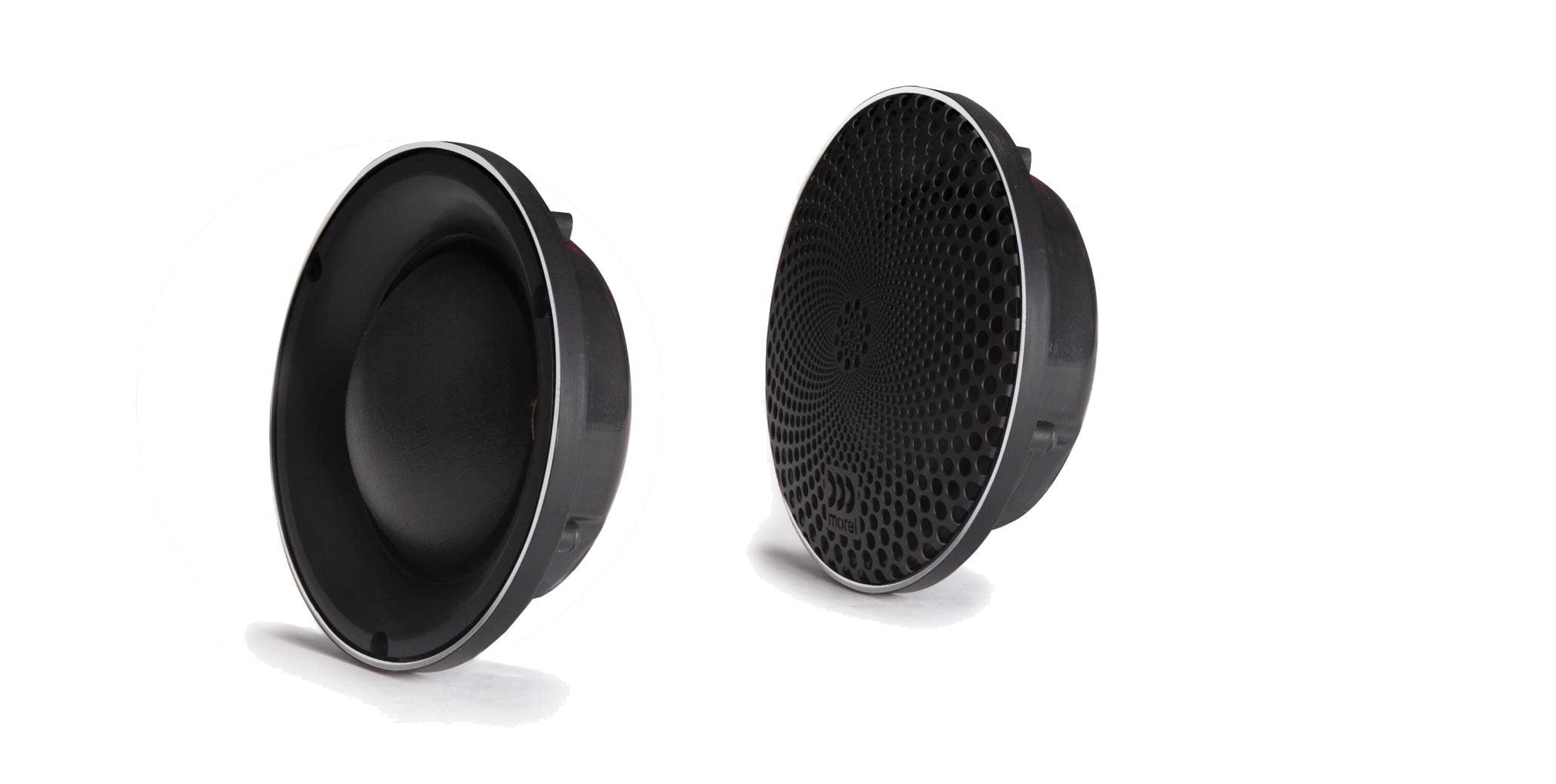

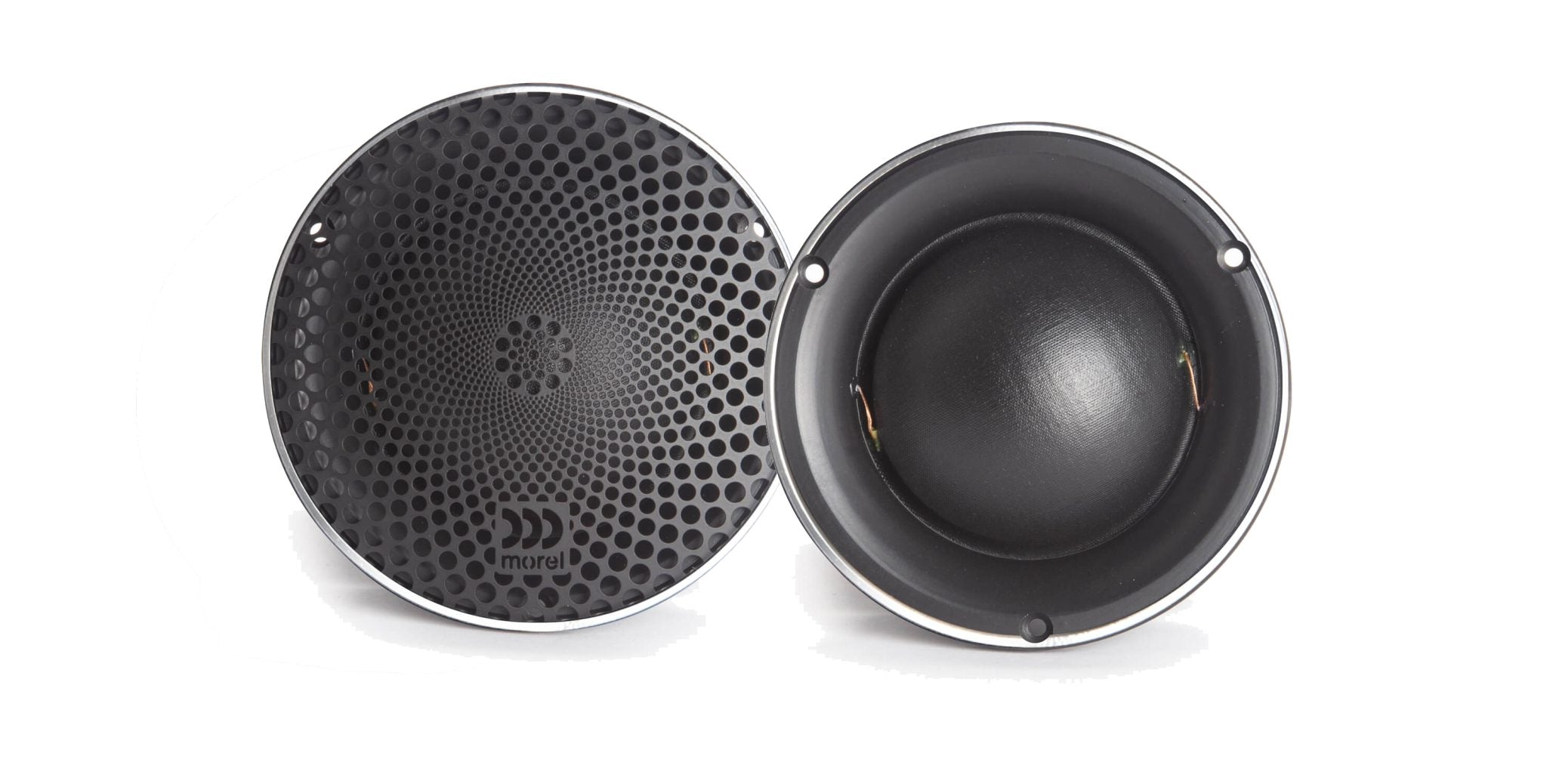

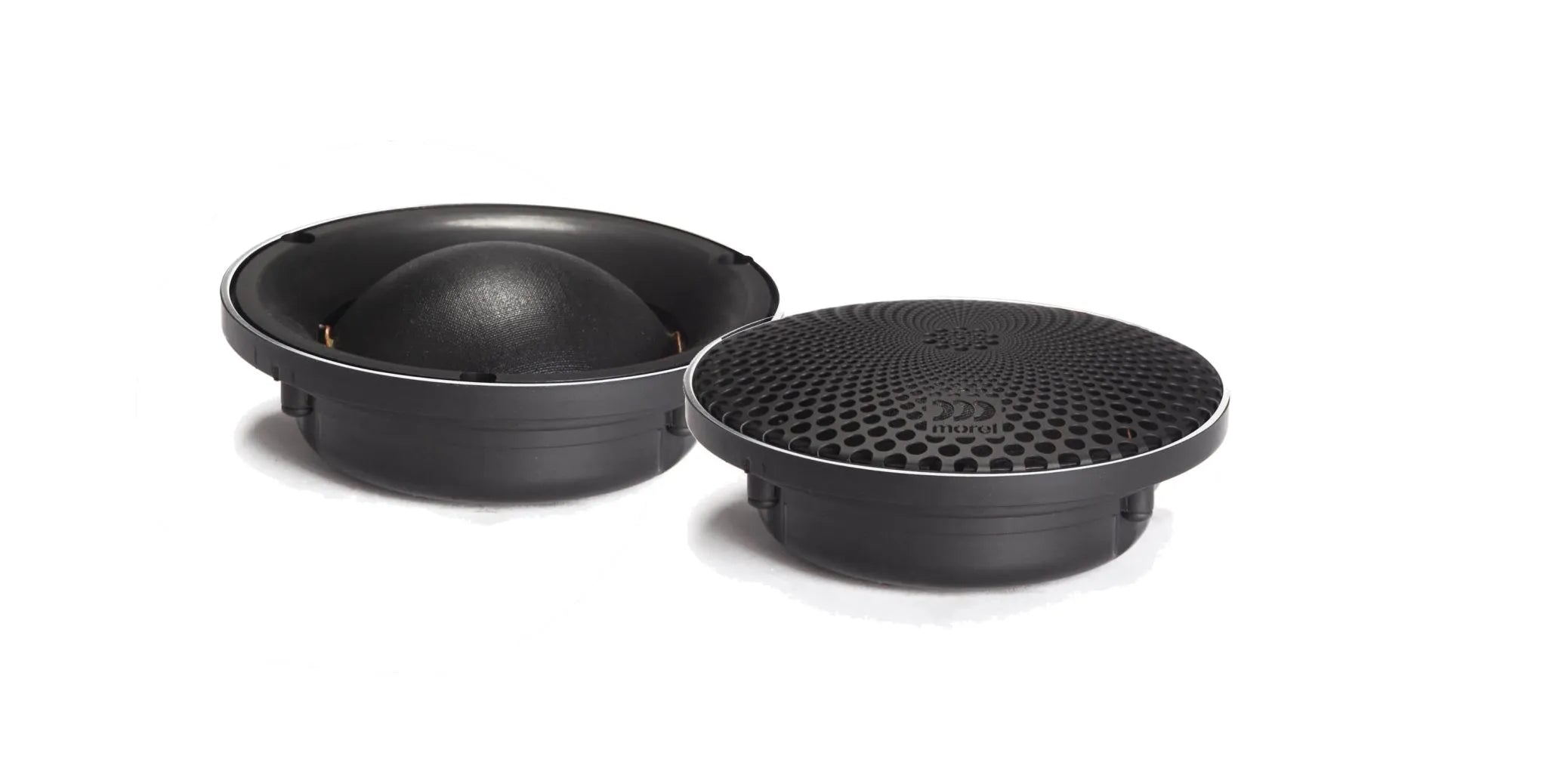

Morel HYBRID CDM-700 - 3.5" Textile Dome Midrange Driver

Dedicated shallow-mount midrange driver featuring Morel's 2.1" textile dome technology with Neo magnet system and C.A.R. filter for custom 3-way builds.

The Morel HYBRID CDM-700 delivers exceptional midrange performance as an individual component for personal system design and upgrades. This very shallow 3.5" midrange incorporates a 2.1" extremely low mass aluminum Hexatech voice coil for very efficient cooling and linear movement. The Neo magnet motor system encapsulates the voice coil structure, forming a large venting pole with Morel's C.A.R filter to create an effective damped rear chamber. This design produces very low resonance frequency, low distortion, and high power handling capabilities. With 100W RMS power handling, 90 dB sensitivity, and 8-ohm impedance, the CDM-700 offers excellent performance in the critical midrange frequencies from 600 Hz to 6 kHz. The acoustic attributes and mechanical design allow easy installation in various vehicle locations, making it ideal for custom 3-way system builds or midrange upgrades requiring shallow mounting depth.

Specifications

Reference Series CDM700
Configuration Midrange
Driver Size 88 mm (3.5")
Voice Coil Size 54 mm (2.1")
Frequency Response 600 Hz - 6 kHz
RMS Power 100 Watts
Peak Power 300 Watts
Sensitivity 90 dB
Impedance 8 ohm
Grills Included Yes
