Morel Elate MXT380C
Morel Elate MXT380C
Click to open expanded view
Morel Authorized Retailer Badge

Morel Elate MXT380C 3 Way Passive Crossover with Tweeter and Mid Adjustment, 450Hz and 2.5kHz

SKU: ELATEMXT380C
Price
$1,079
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Morel Elate MXT380C

Morel Elate MXT380C 3 Way Passive Crossover with Tweeter and Mid Adjustment, 450Hz and 2.5kHz

$1,079

Product features

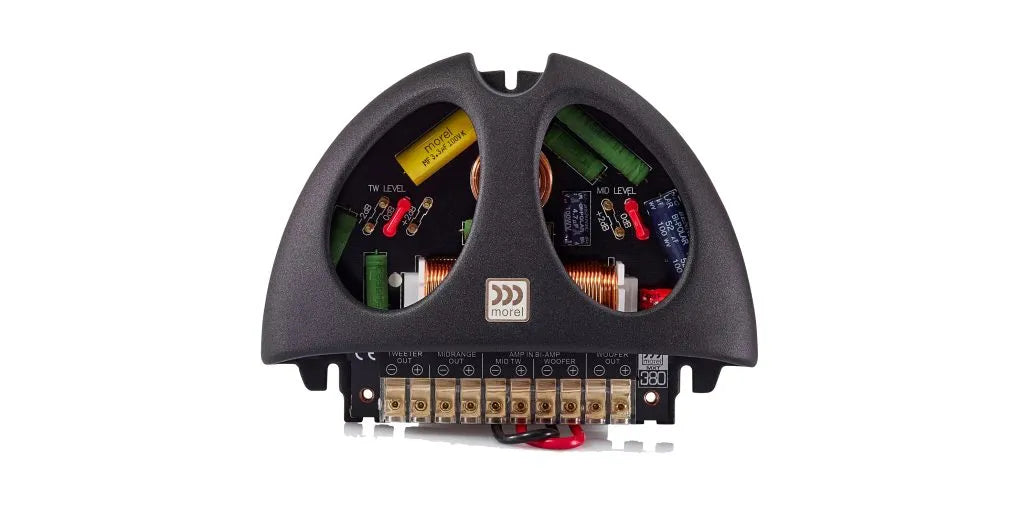

Morel ELATE MXT380C, 3-Way Passive Crossover Network

Advanced 3-way passive crossover designed for Morel Elate Carbon component systems with independent tweeter and midrange level adjustments and bi-wire capability.

The Morel ELATE MXT380C delivers sophisticated passive crossover performance for 3-way Elate Carbon component systems. This precision-engineered network features dual crossover points at 450 Hz and 2,700 Hz with 12dB/octave slopes, specifically optimised for the acoustic characteristics of Elate Carbon woofers, MM3 midrange drivers, and MT450 tweeters. The crossover incorporates audiophile-grade components and efficient electrical design to minimise colouration and distortion while maintaining the natural tonal balance of the complete 3-way system. Independent level controls provide tweeter adjustment (+/- 2dB) and midrange sensitivity adjustment (0/-2dB) for precise system tuning to match vehicle acoustics and personal preferences. Bi-wire and bi-amplification capabilities offer advanced connection options for maximum performance flexibility. Designed for applications where active crossover management is not practical, the MXT380C enables passive operation of complete 3-way systems while preserving the exceptional sound quality and frequency division accuracy that defines the Elate Carbon series.

Specifications

Reference Series MXT380C
Configuration 3-Way Passive Crossover
Crossover Point (Woofer) 450 Hz / 12dB
Crossover Point (Midrange) 450 Hz to 2,700 Hz / 12dB
Crossover Point (Tweeter) 2,700 Hz / 12dB
Tweeter Level Control +/- 2dB
Midrange Level Control 0/-2dB
Wiring Options Bi-wire / Bi-amplification
Compatible Systems Elate Carbon 53A, 63A, 93A
Component Quality Audiophile-Grade
Slope 12dB/Octave
Design Focus Low Distortion, Minimal Colouration
