Morel ELATE MXT280C 2-Way tweeter adjust. 2.5 kHz HP/LP
Click to open expanded view
Morel Authorized Retailer Badge

Morel ELATE MXT280C 2-Way tweeter adjust. 2.5 kHz HP/LP

SKU: ELATEMXT280C
Price
$889
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

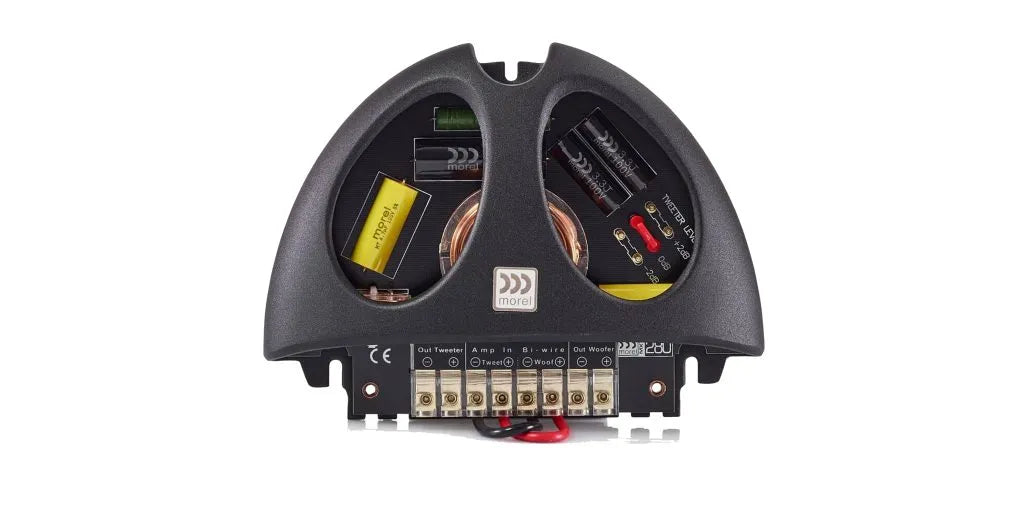

Morel ELATE MXT280C - 2-Way Passive Crossover Network

Professional-grade 2-way passive crossover designed specifically for Morel Elate Carbon component systems with tweeter level adjustment and bi-wire capability.

The Morel ELATE MXT280C delivers audiophile-grade passive crossover performance for 2-way Elate Carbon component systems. This precision-engineered network features a 2,500 Hz crossover point with 12dB/octave slopes, specifically optimized for the acoustic characteristics of Elate Carbon woofers and MT450 tweeters. The crossover incorporates high-quality components and efficient electrical design to minimize coloration and distortion while maintaining the natural tonal balance of the Elate Carbon series. The built-in tweeter level adjustment provides +/- 2dB control for fine-tuning the system to match vehicle acoustics and personal preferences. Bi-wire and bi-amplification capabilities offer advanced connection options for enthusiasts seeking maximum performance flexibility. Designed for applications where active crossover management is not practical, the MXT280C enables passive operation while preserving the exceptional sound quality that defines the Elate Carbon series.

Specifications

Reference Series MXT280C
Configuration 2-Way Passive Crossover
Crossover Point (Woofer) 2,500 Hz / 12dB
Crossover Point (Tweeter) 2,500 Hz / 12dB
Tweeter Level Control +/- 2dB
Wiring Options Bi-wire / Bi-amplification
Compatible Systems Elate Carbon 52A, 62A
Component Quality Audiophile-Grade
Slope 12dB/Octave
Design Focus Low Distortion, Minimal Coloration
