Product features

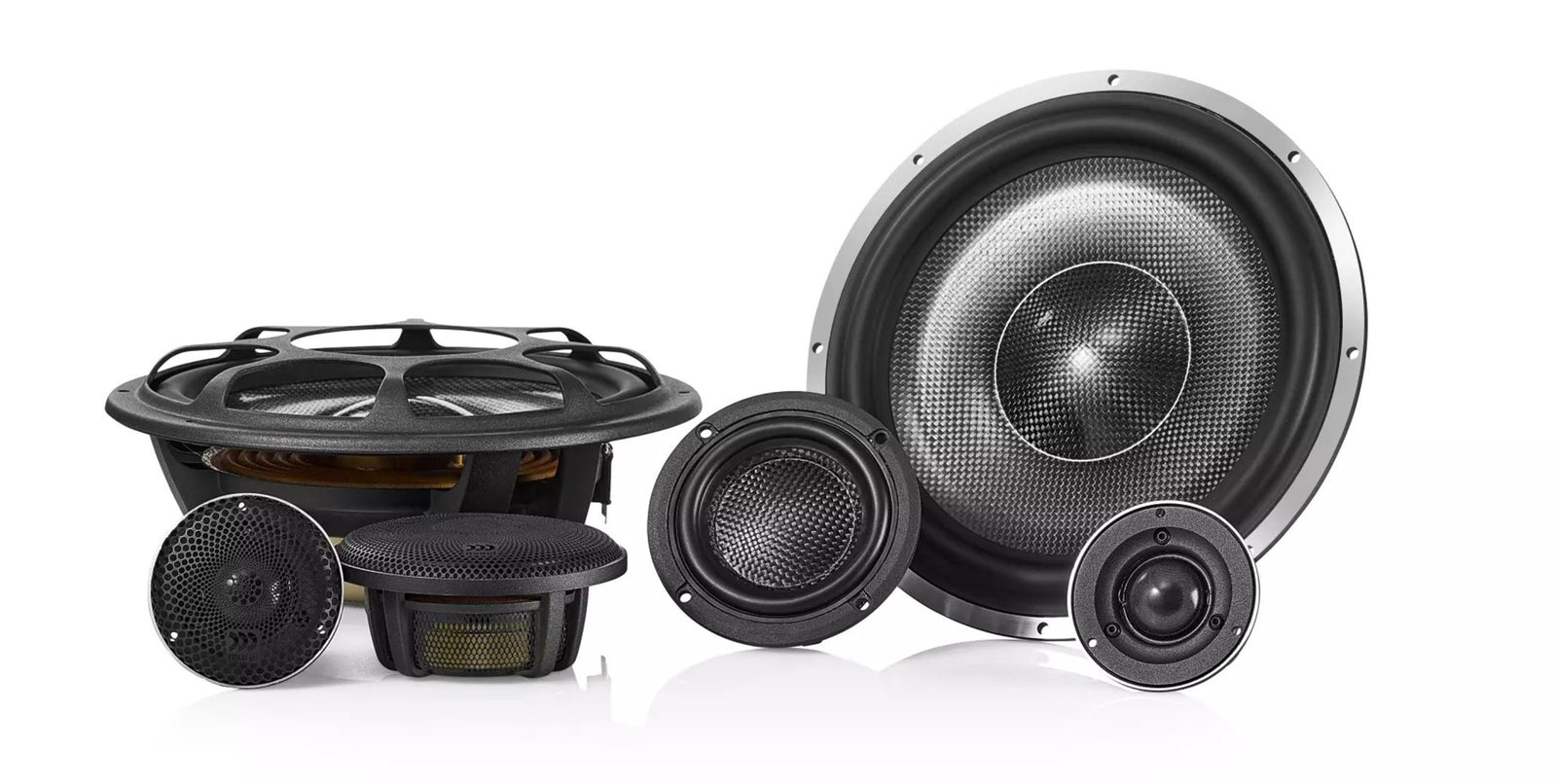

Morel ELATE CARBON PRO 93A - 3-Way 9" Active Component System
Flagship 3-way active component system representing the purest evolution of Morel's iconic Elate line with maximum bass extension and premium construction materials.
The Morel ELATE CARBON PRO 93A represents the pinnacle of automotive audio performance, pushing the boundaries of the iconic Elate line with refined aesthetics and revamped construction. This flagship 3-way active system features triple-layered carbon fiber/Rohacell cones for midrange and woofers with titanium voice coil formers for exceptional performance. The system is highlighted by the Elate Alto cavity-back tweeter, employing high-resolution design borrowed from the Supremo Piccolo architecture for breathtaking detail reproduction. The 9" configuration provides maximum bass extension down to 25 Hz with 200W RMS power handling and 89 dB sensitivity for ultimate output capability. The MM3 3.5" midrange driver utilizes advanced construction for precise mid-frequency control, while iconic Lotus grills and brushed aluminum trim provide elegant aesthetics. As an active system, the ELATE CARBON PRO 93A requires external amplification and active crossover management (MTX 380C available separately), enabling optimal frequency division and driver control. This flagship system delivers immersive musical experiences with widened three-dimensional soundstage, neutral balance, and immersive depth that brings listeners closer to the artist's intended sound.
Specifications
Reference Series | Elate Carbon Pro 93A |
---|---|
System Configuration | 3-Way Active Component System |
Midbass Size | 228 mm (9") |
Midbass Voice Coil | 75 mm |
MM3 Midrange | 89 mm |
Midrange Voice Coil | 54 mm |
Alto Tweeter | 67 mm |
Tweeter Voice Coil | 28 mm |
System Frequency Response | 25 Hz - 25 kHz |
Crossover | MTX 380C (Optional Extra) |
RMS Power | 200 Watts |
Peak Power | 1000 Watts |
Sensitivity | 89 dB |
Impedance | 4 ohm |
Grills Included | Yes |
