Morel Elate Carbon MW9 9" Woofer with 3" Voice Coil, 4 Ohm

SKU: ELATECARBONMW9
Price
$2,899
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Morel Elate Carbon MW9 car speakers

Morel Elate Carbon MW9 9" Woofer with 3" Voice Coil, 4 Ohm

$2,899

Product features

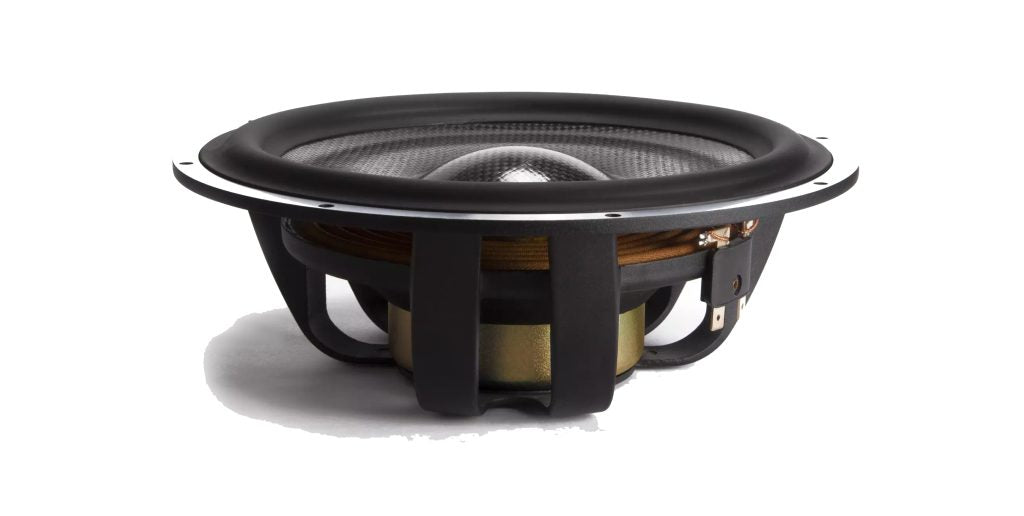

Morel ELATE CARBON MW9, 9" Woofer Driver

Maximum-performance 9" woofer featuring Morel's triple-layer carbon fibre cone technology with superior low-frequency extension and highest sensitivity.

The Morel ELATE CARBON MW9 delivers maximum woofer performance in the large-format 9" configuration with advanced engineering for ultimate bass reproduction. This driver features Morel's proprietary triple-layer cone construction, consisting of two layers of carbon fibre sandwiching a Rohacell foam core for incredible stiffness, high damping, and lightweight performance. The large 3-inch diameter voice coil is paired with Morel's EVC motor technology for remarkable control and low distortion. The MW9 provides exceptional low-frequency extension down to 25 Hz, making it ideal for applications requiring maximum bass output. With 200W RMS power handling, 4-ohm impedance, and superior 89 dB sensitivity, the MW9 offers the highest output and efficiency in the Elate Carbon woofer series. The frequency response extends from 25 Hz to 3 kHz, optimised for large-format component systems where maximum bass performance is essential. Designed for custom installations requiring ultimate low-frequency reproduction, the MW9 provides the foundation for reference-quality audio systems demanding maximum bass impact.

Specifications

Reference Series MW9
Configuration Woofer
Size 9" (228mm)
RMS Power 200 Watts
Peak Power 1000 Watts
Nominal Impedance 4 ohm
Sensitivity 89 dB
Frequency Response 25 Hz to 3 kHz
Voice Coil Size 75 mm (3")
Grills Included Yes

FAQ

How much power can the Morel Elate Carbon MW9 handle?

It is rated at 1000W peak and 200W RMS.

What impedance is the Morel Elate Carbon MW9?

It is a 4 ohm design.

Will it fit my car?

Fitment depends on the vehicle. Contact the F.A.E. team with your make, model and year and we will confirm before you order.
