Mongoose MPFSWB-S Wireless Front Parking Sensor Kit with In-Cabin Speaker, Black

Quick answer

The Mongoose MPFSWB-S is a wireless front parking sensor kit for drivers who want straightforward front obstacle detection with an audible in-cabin alert and a clean, simple installation.

Mongoose MPFSWB-S Wireless Front Parking Sensor Kit with In-Cabin Speaker, Black

A complete wireless front parking sensor kit with in-cabin audible speaker alarm, delivering accurate 0.30 to 2.60 metre front obstacle detection for cars, 4WDs, utes, and commercial vehicles with no cabin cable runs required.

Product Overview

The Mongoose MPFSWB-S is a wireless front parking sensor kit for drivers who want straightforward front obstacle detection with an audible in-cabin alert and a clean, simple installation. Rather than a visual display, the MPFSWB-S uses an in-cabin speaker with adjustable volume to provide clear audible proximity warnings as the vehicle approaches obstacles, keeping the installation minimal and the cabin uncluttered.

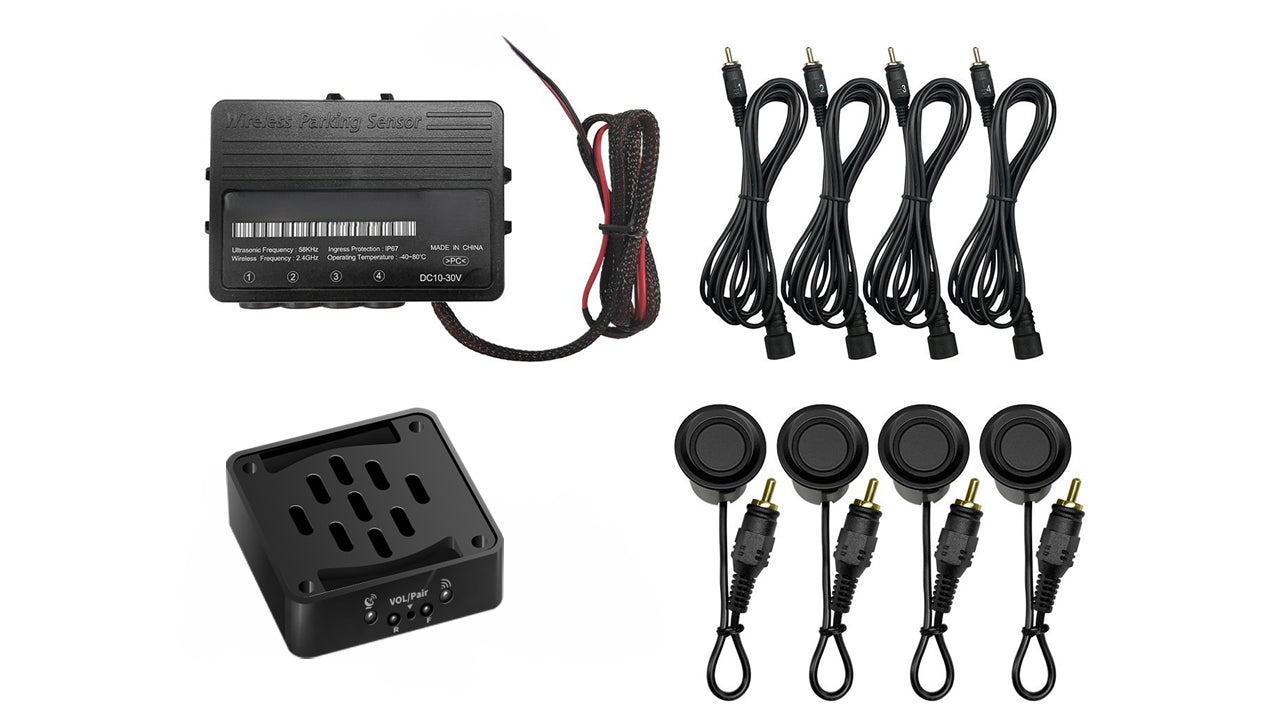

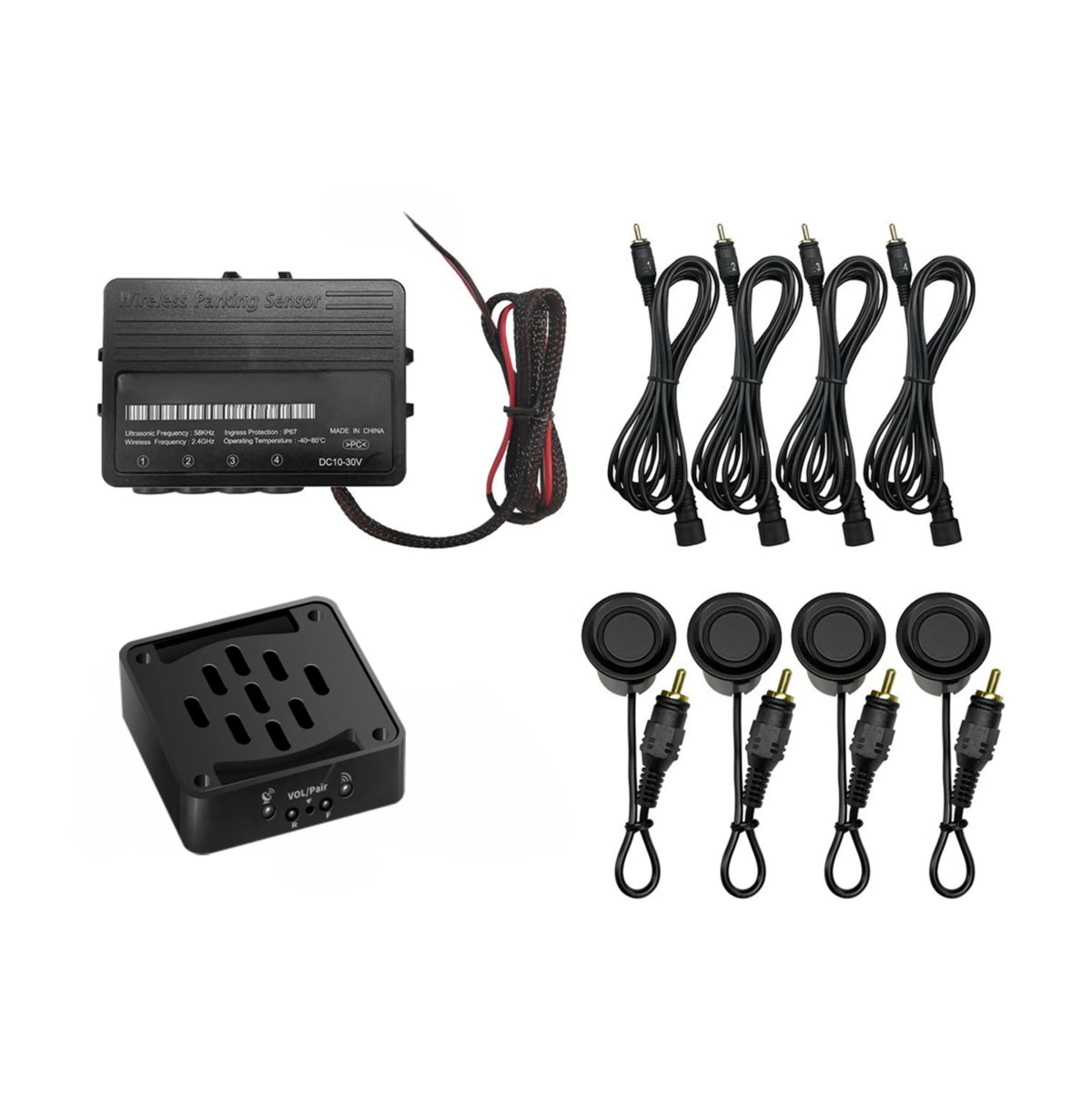

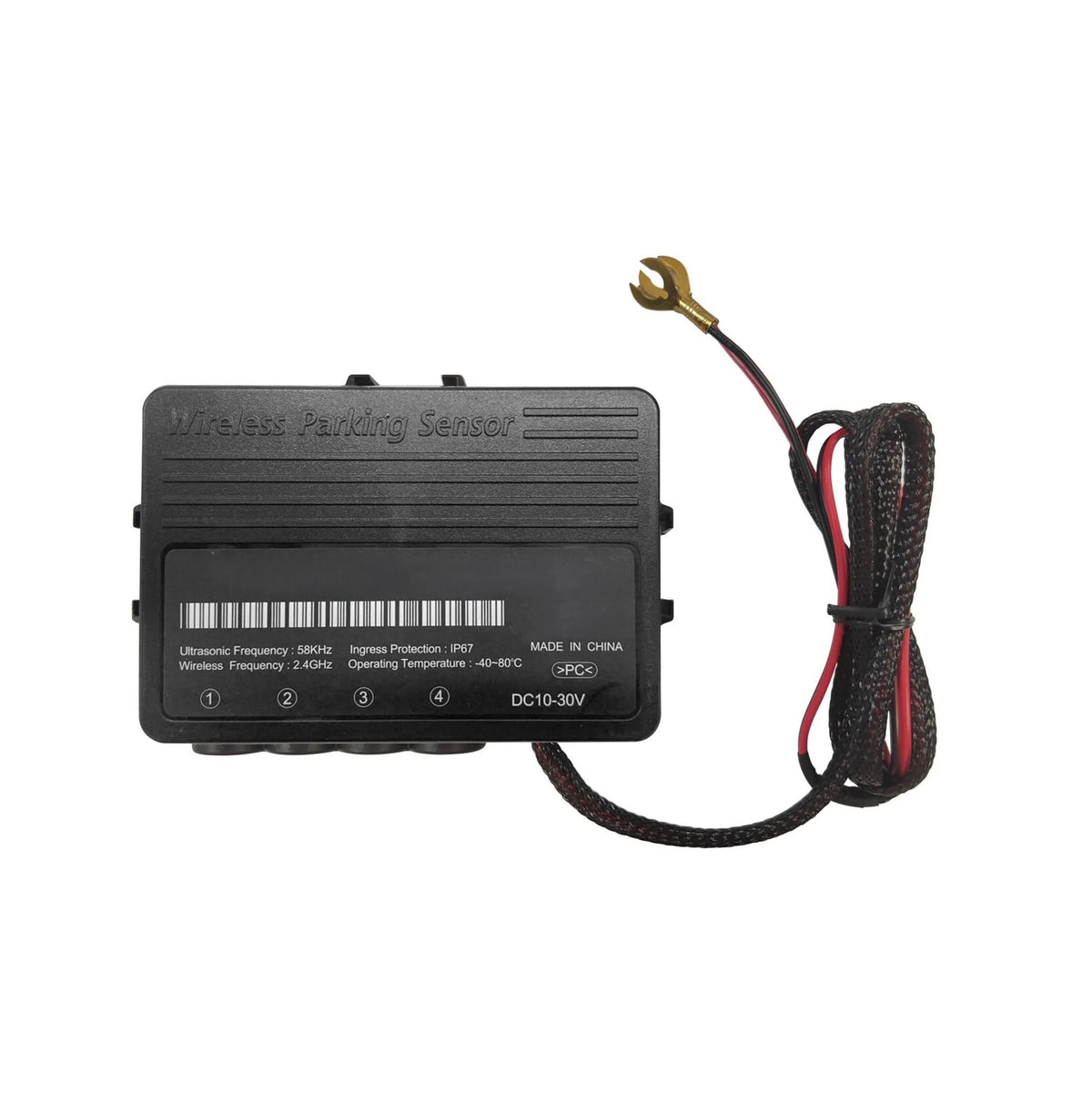

Using a 2.4GHz wireless connection between the front sensor ECU module and the in-cabin speaker, the MPFSWB-S eliminates the need to run cables from the front bumper through the engine firewall to the cabin, significantly simplifying the installation process. The kit includes four 22mm matt black ultrasonic IP67 rated sensors, a waterproof and high temperature resistant front main module for external mounting, and the wireless in-cabin speaker unit. Sensors detect obstacles from 0.30 metres to 2.60 metres, and the wide 10-30V DC operating voltage makes the kit compatible with both 12V passenger vehicles and 24V commercial vehicles and trucks. For metal bumpers, the optional SRS-01 or SRS-02 rubber sleeve rings are available separately. For trucks or flat metal bumpers, the optional SBT-01 bracket is also available separately.

Features & Benefits

2.4GHz Wireless Speaker Connection:The wireless connection between the front sensor ECU module and the in-cabin speaker eliminates the need to route cables from the front of the vehicle through the engine firewall to the cabin, reducing installation complexity and labour time.

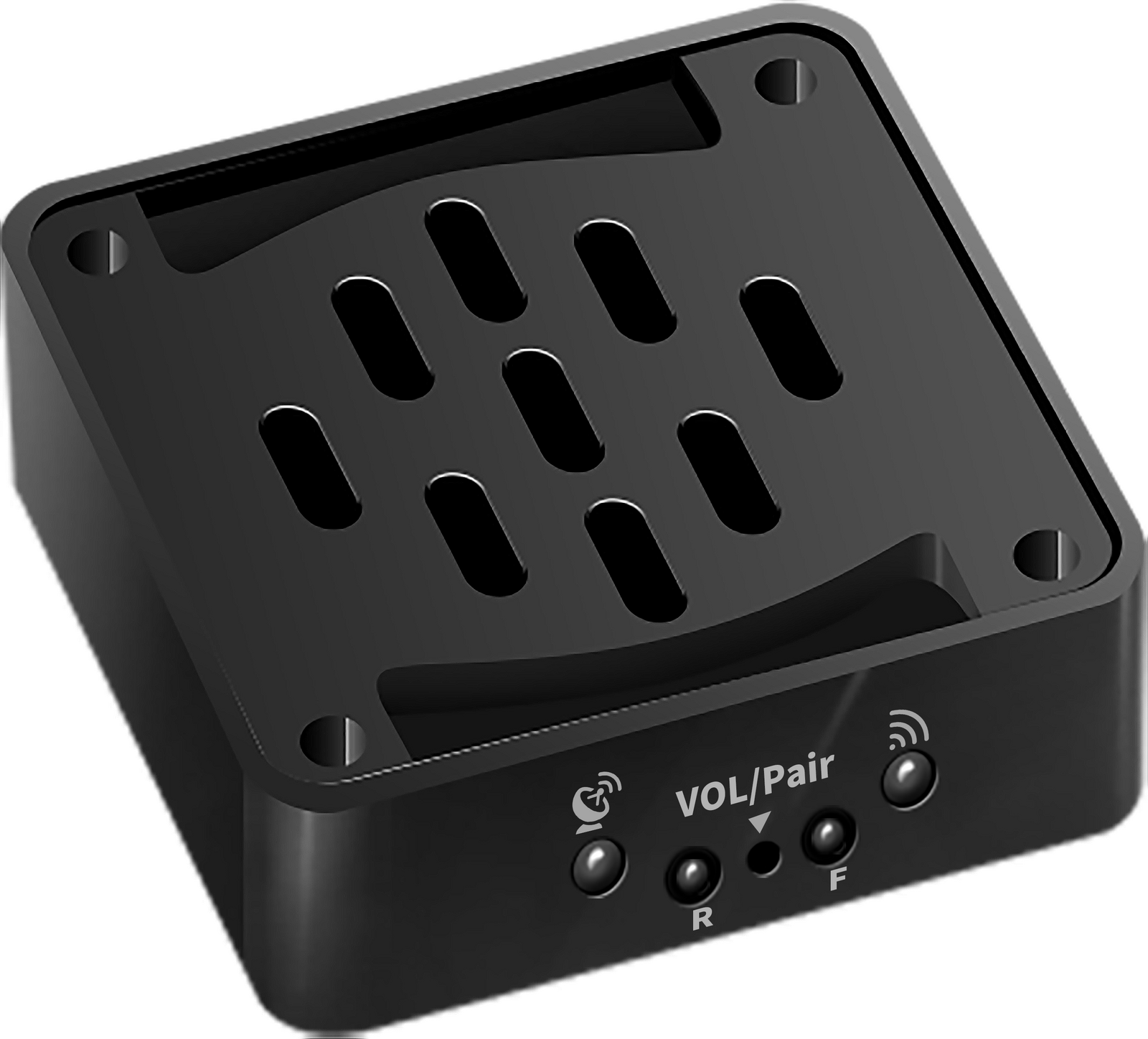

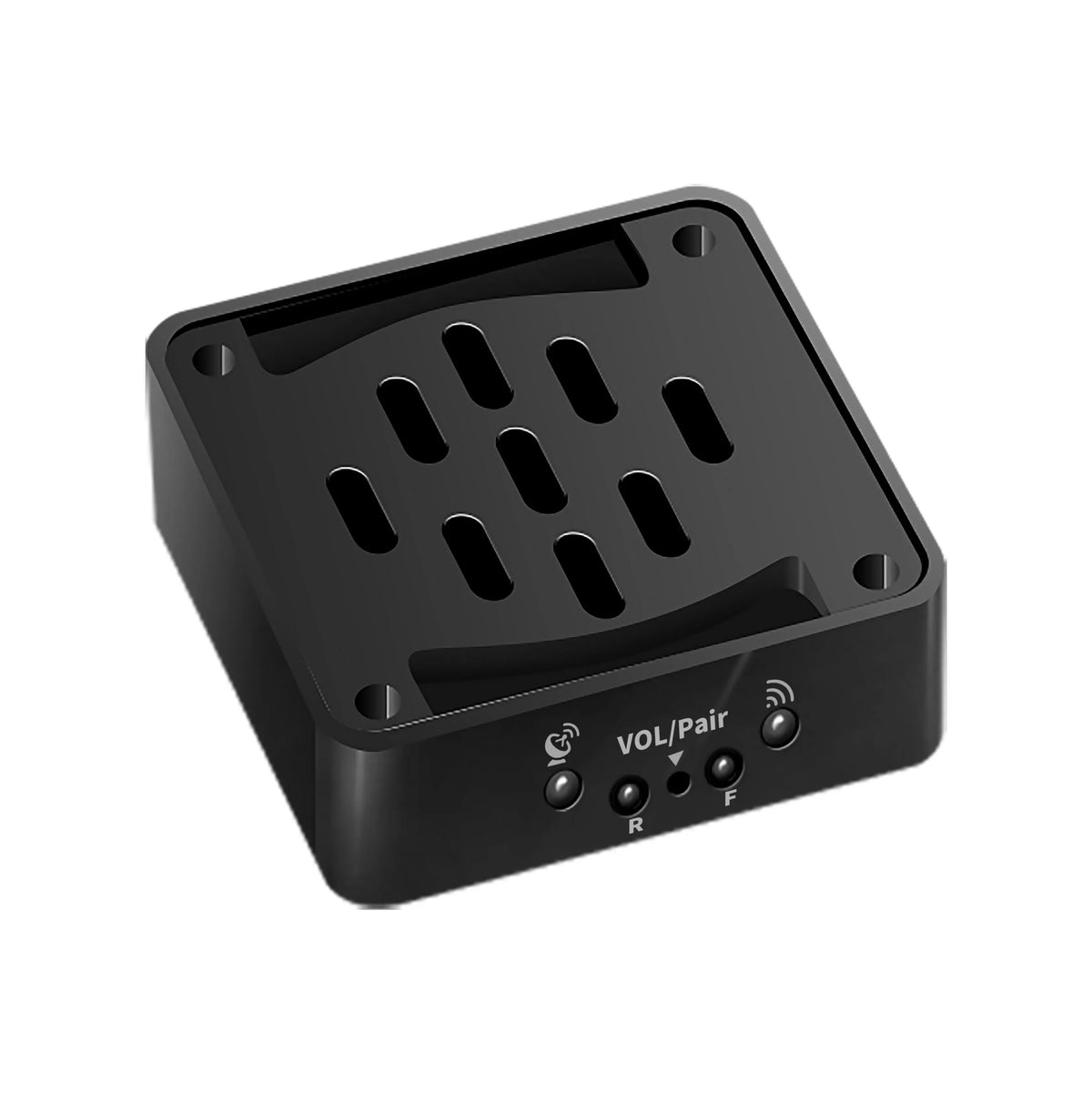

In-Cabin Speaker with Volume Control:The wireless in-cabin speaker provides clear audible parking alerts with adjustable volume, offering a simple and unobtrusive alert solution without requiring a dedicated display screen or dashboard mounting position.

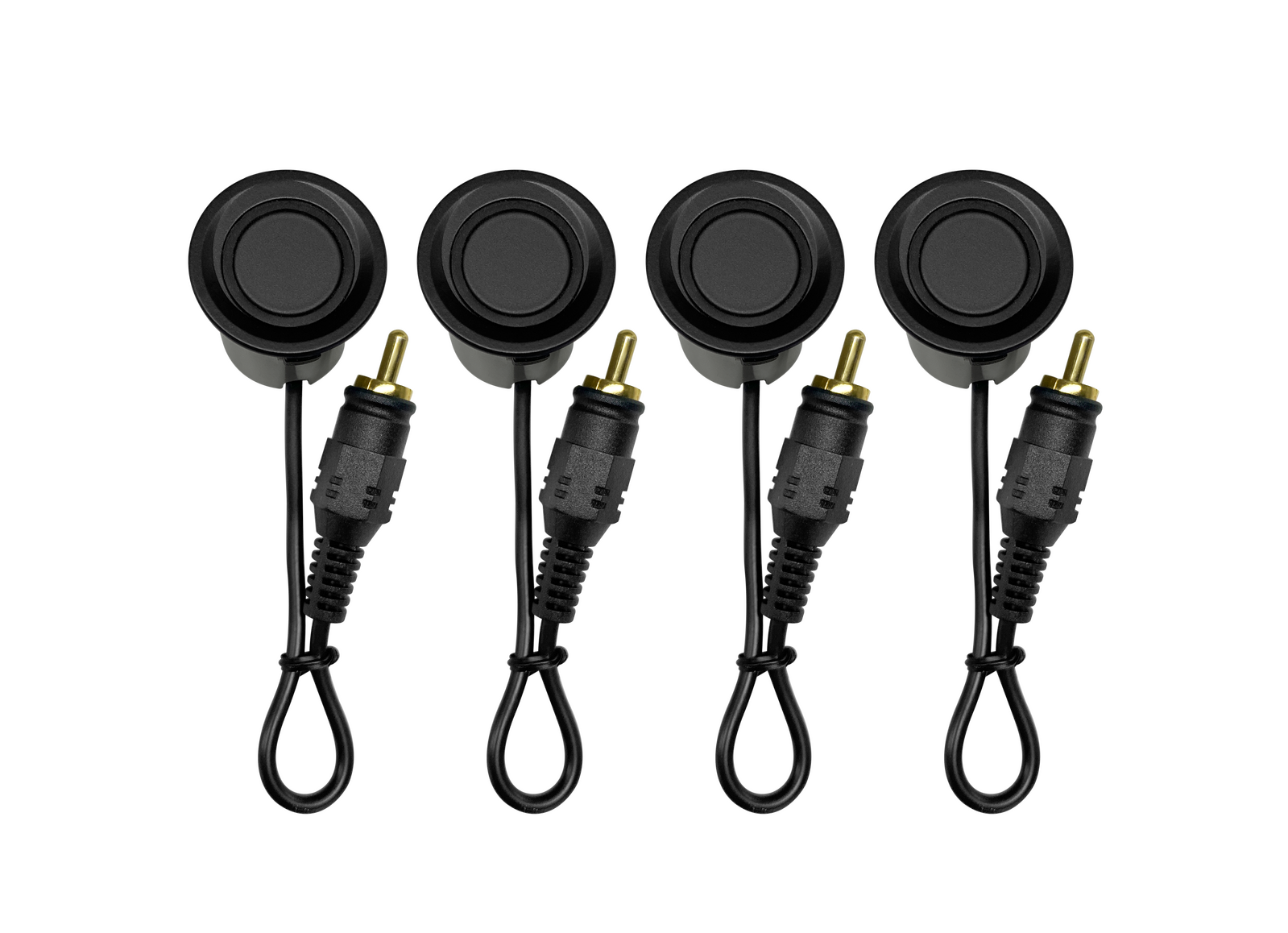

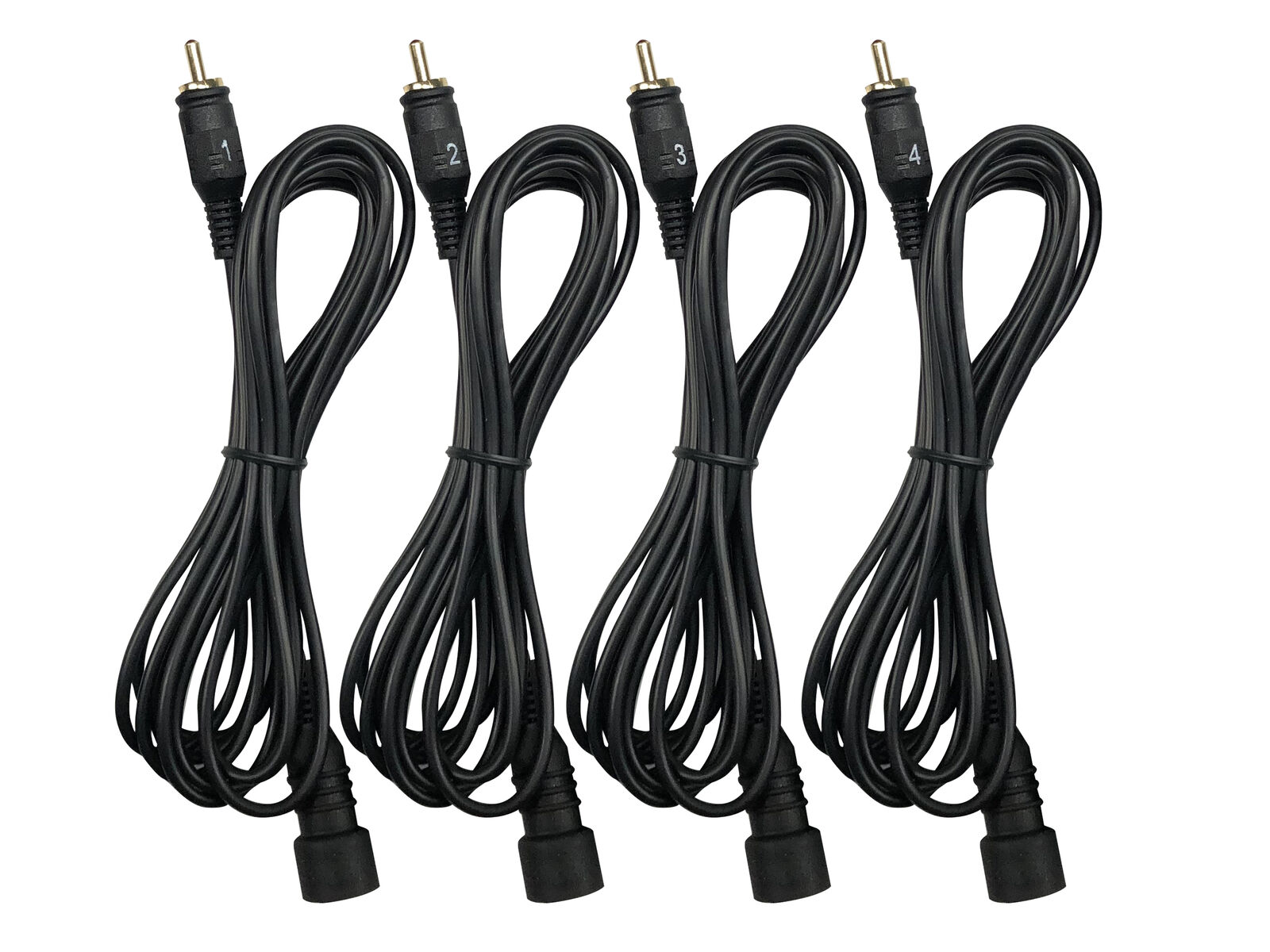

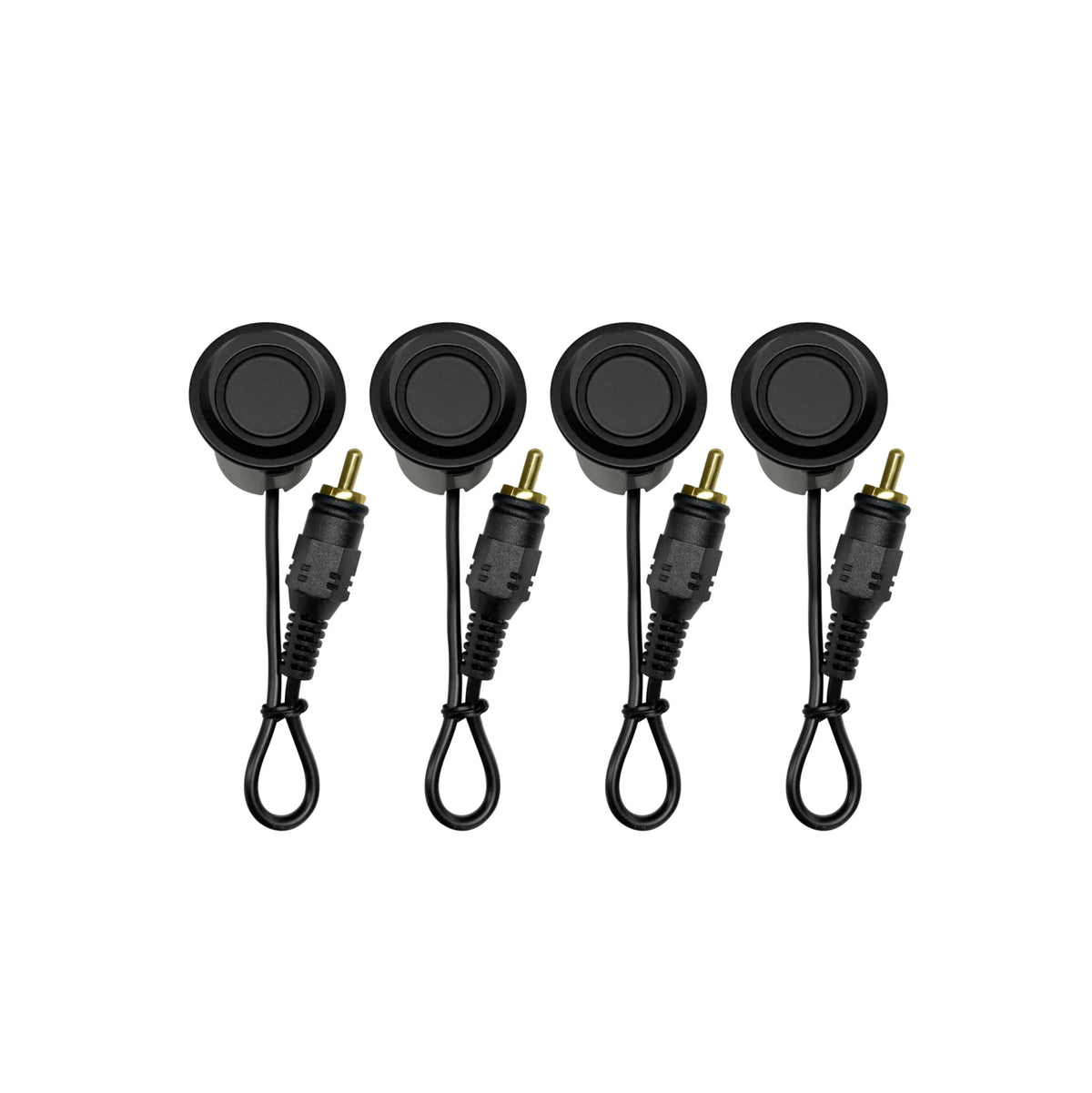

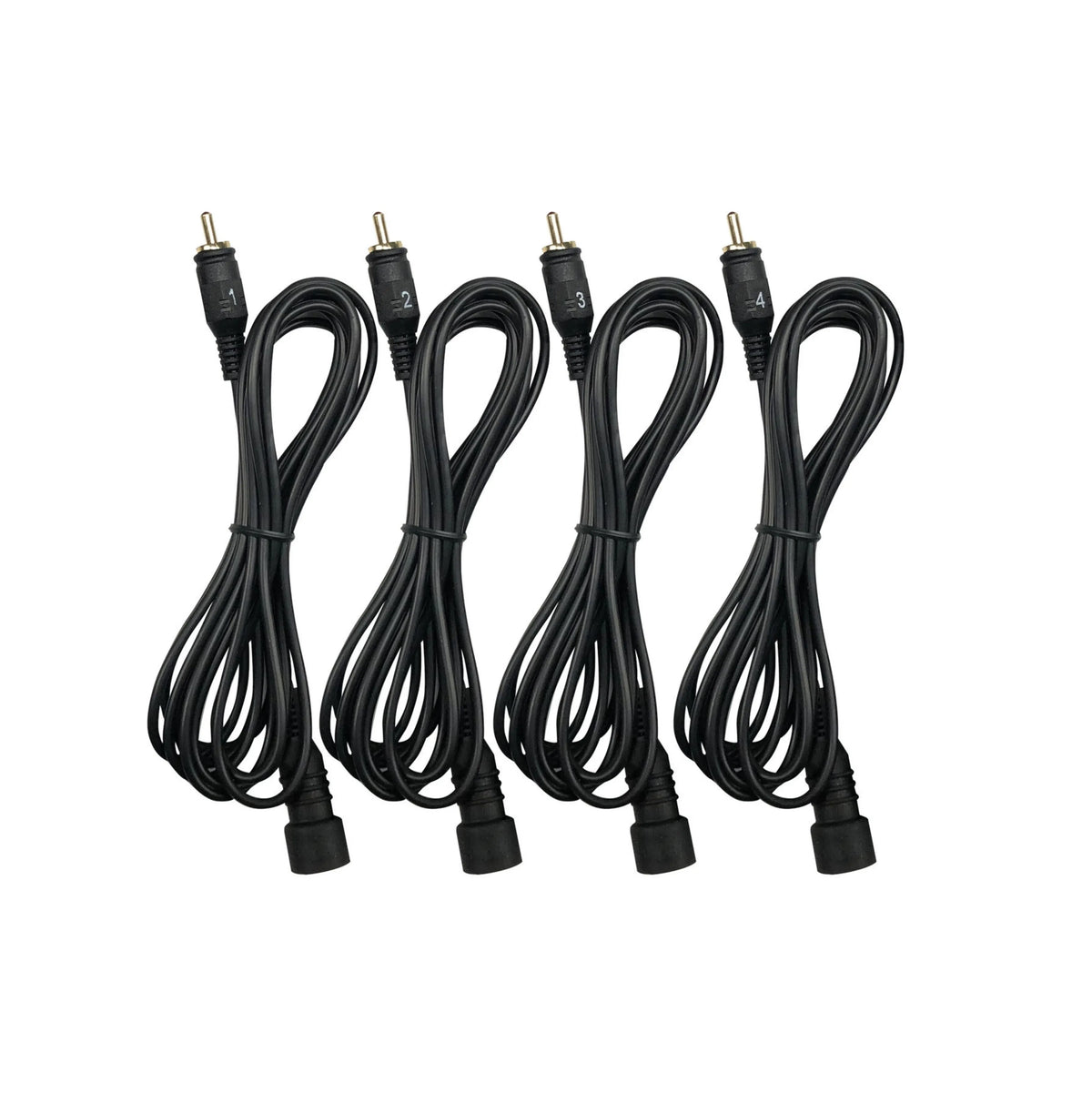

4 x IP67 Waterproof Ultrasonic Sensors:The four 22mm 58KHz ultrasonic sensors feature IP67 rated waterproof cables and connectors, and are water and heat resistant for long-term reliability installed in external front bumper positions exposed to weather and road conditions.

Paintable Matt Black Sensors:The 22mm matt black sensors can be painted to match the colour of your vehicle's bumper, allowing for a discreet and factory-style integration into the front bumper without visible contrast.

Adjustable Detection Range:The minimum and maximum detection distance for each sensor can be individually set, allowing fine-tuning of the detection zone to suit different vehicle types and bumper configurations.

Wide Voltage Compatibility, 12V and 24V:The 10-30V DC operating voltage range makes the MPFSWB-S suitable for standard 12V passenger vehicles, 4WDs, and utes as well as 24V commercial vehicles, trucks, and heavy equipment without any voltage conversion required.

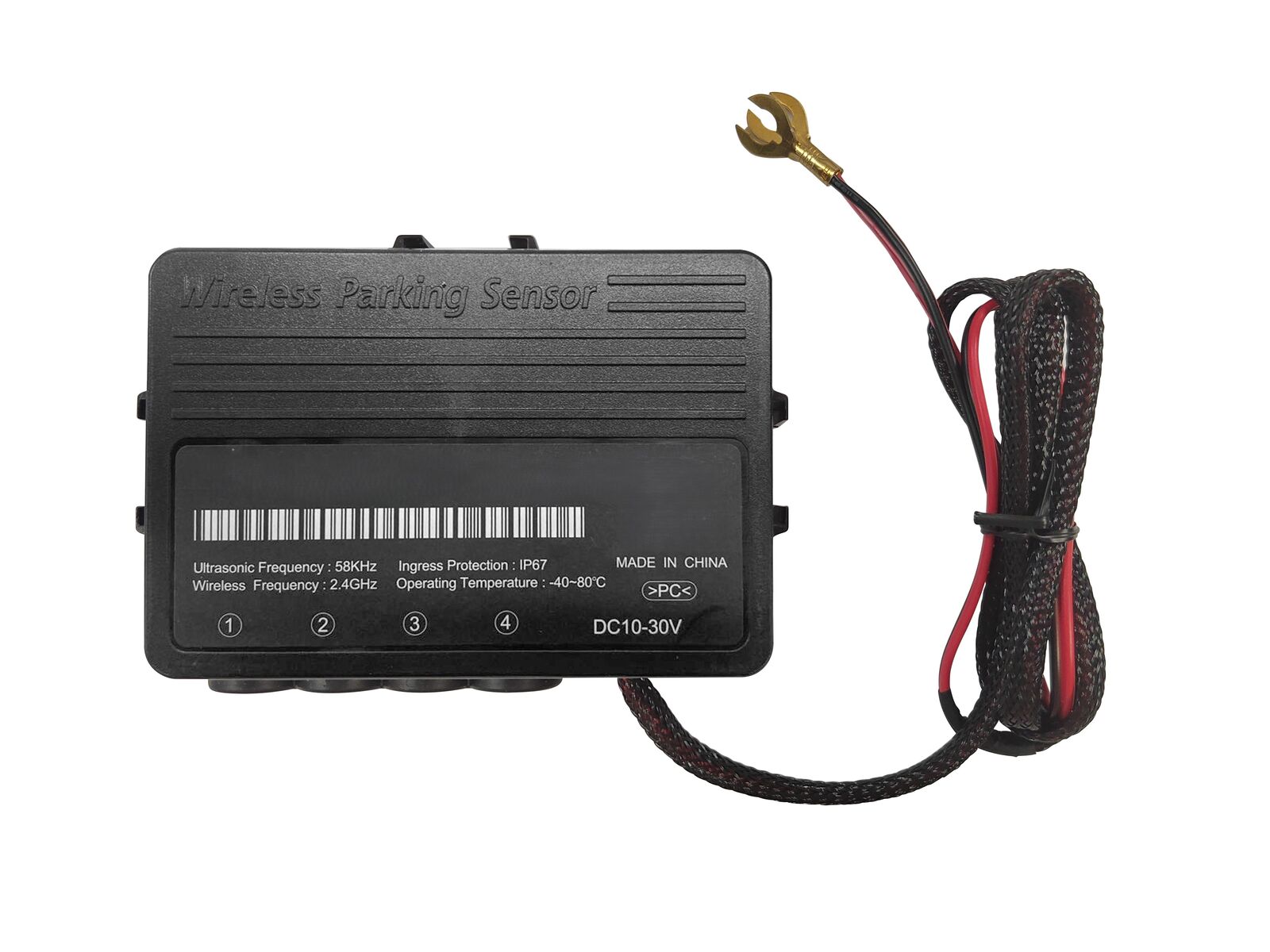

Waterproof and High Temperature Resistant ECU:The front main module is designed for external mounting with waterproof and high temperature resistant construction, rated for operating temperatures from minus 40 degrees C to +80 degrees C.

Technical Specs

Compatible With / Goes Well With

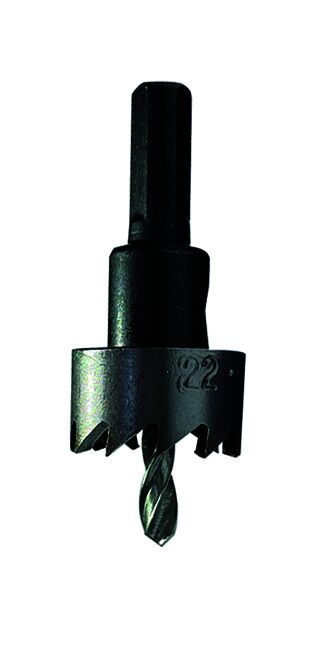

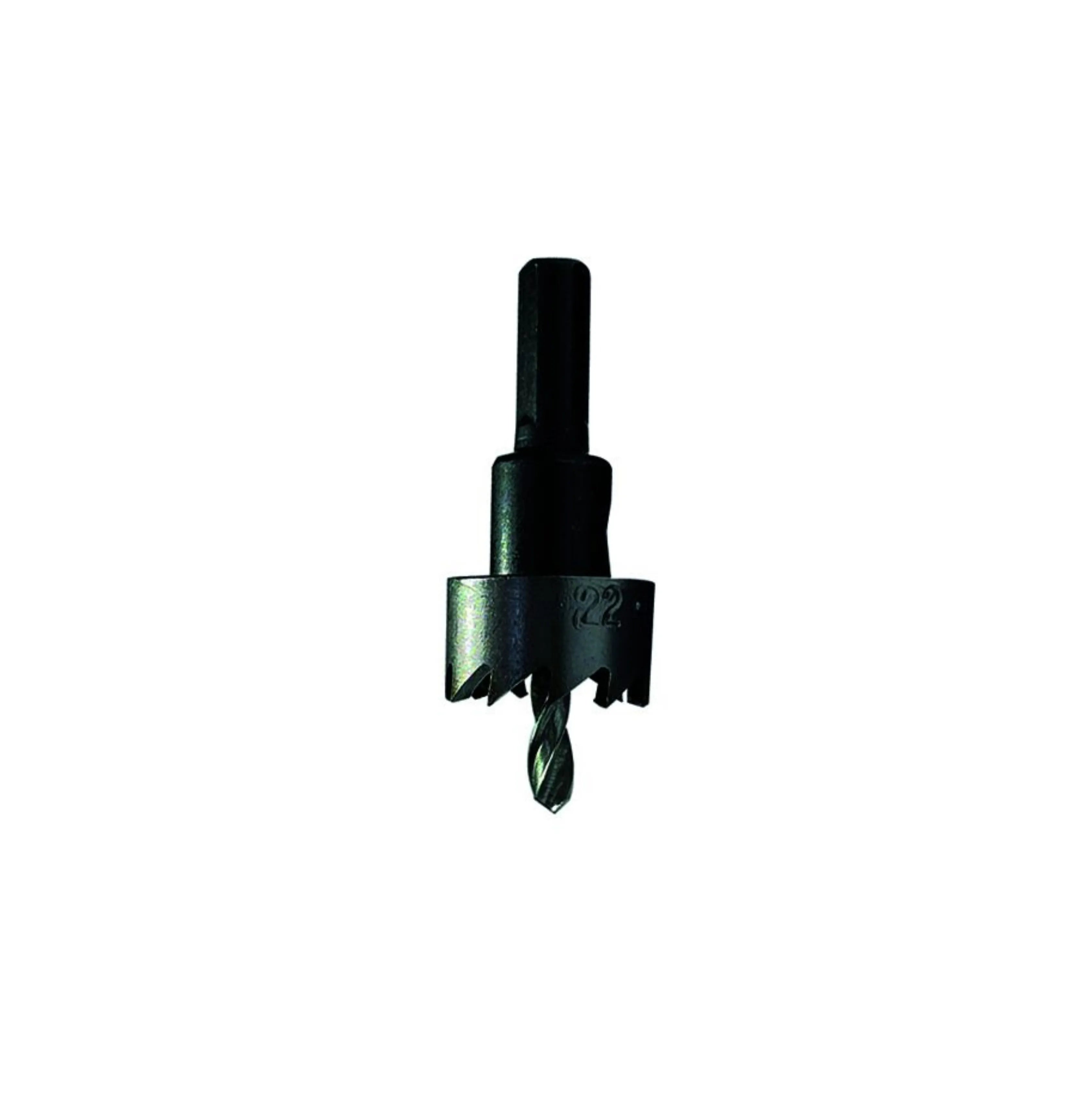

The MPFSWB-S is a universal fit parking sensor kit compatible with cars, 4WDs, utes, and 12V or 24V commercial vehicles where the front bumper can accommodate four 22mm sensor holes.

Goes Well With:

• Mongoose SRS-01 rubber sleeve rings (for metal bumpers, sold separately)
• Mongoose SRS-02 rubber sleeve rings (for metal bumpers, sold separately)
• SBT-01 sensor and ECU bracket (for trucks or flat metal bumpers, sold separately)
• Mongoose MPFSWB-D wireless front parking sensor kit with LCD display (display upgrade option)
• Mongoose MPRSWB-D wireless rear parking sensor kit (for full front and rear coverage)

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

FAQ about the MPFSWB-S

What is the Mongoose MPFSWB-S?

It is the Mongoose Wireless Front Parking Sensor Kit with In-Cabin Speaker, Black.

What are the main features of the MPFSWB-S?

Mongoose SRS-01 rubber sleeve rings (for metal bumpers, sold separately). Mongoose SRS-02 rubber sleeve rings (for metal bumpers, sold separately). SBT-01 sensor and ECU bracket (for trucks or flat metal bumpers, sold separately).

What warranty comes with the MPFSWB-S?

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.
