Mongoose MM93A 9" AHD 1080P Monitor with 3 Camera Input

Quick answer

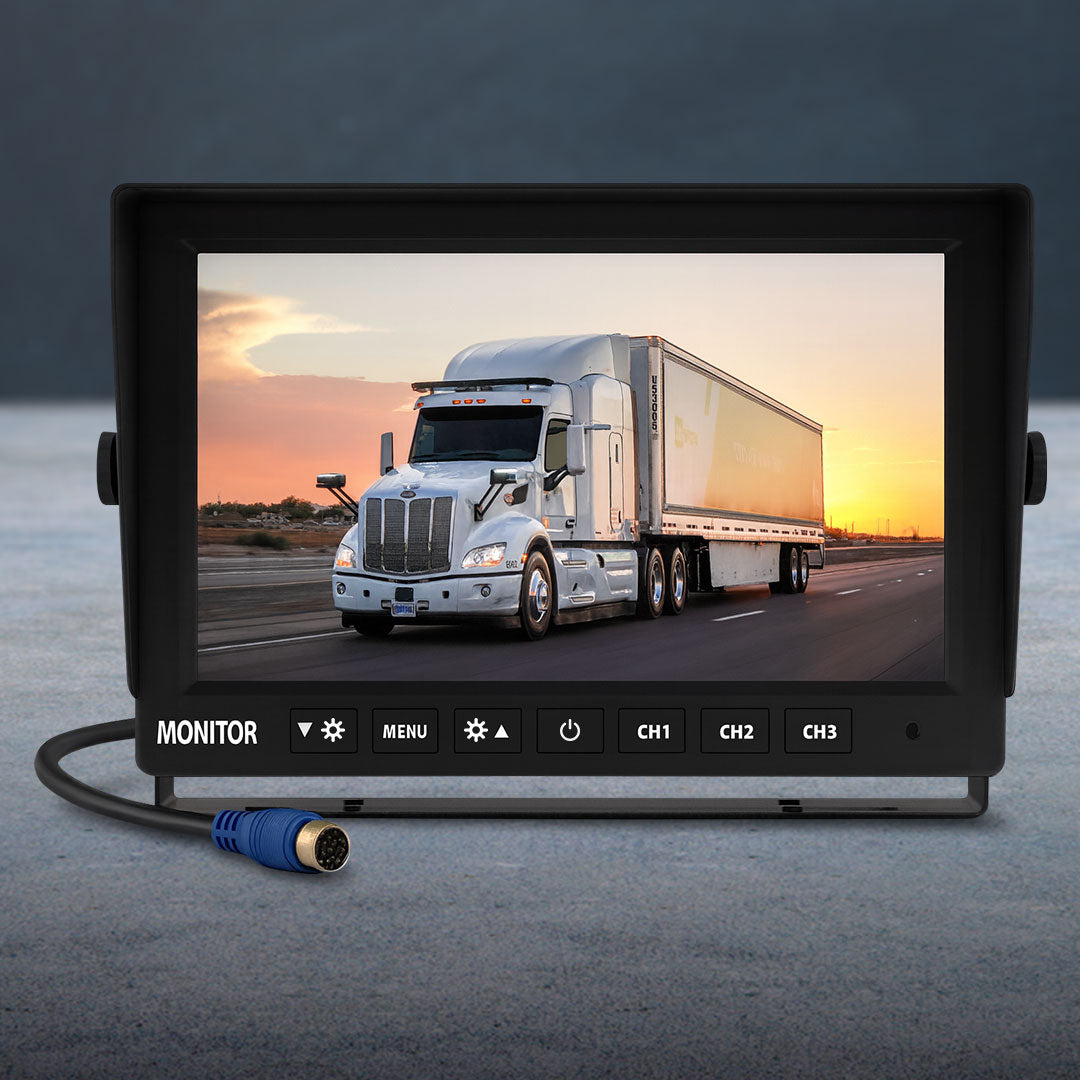

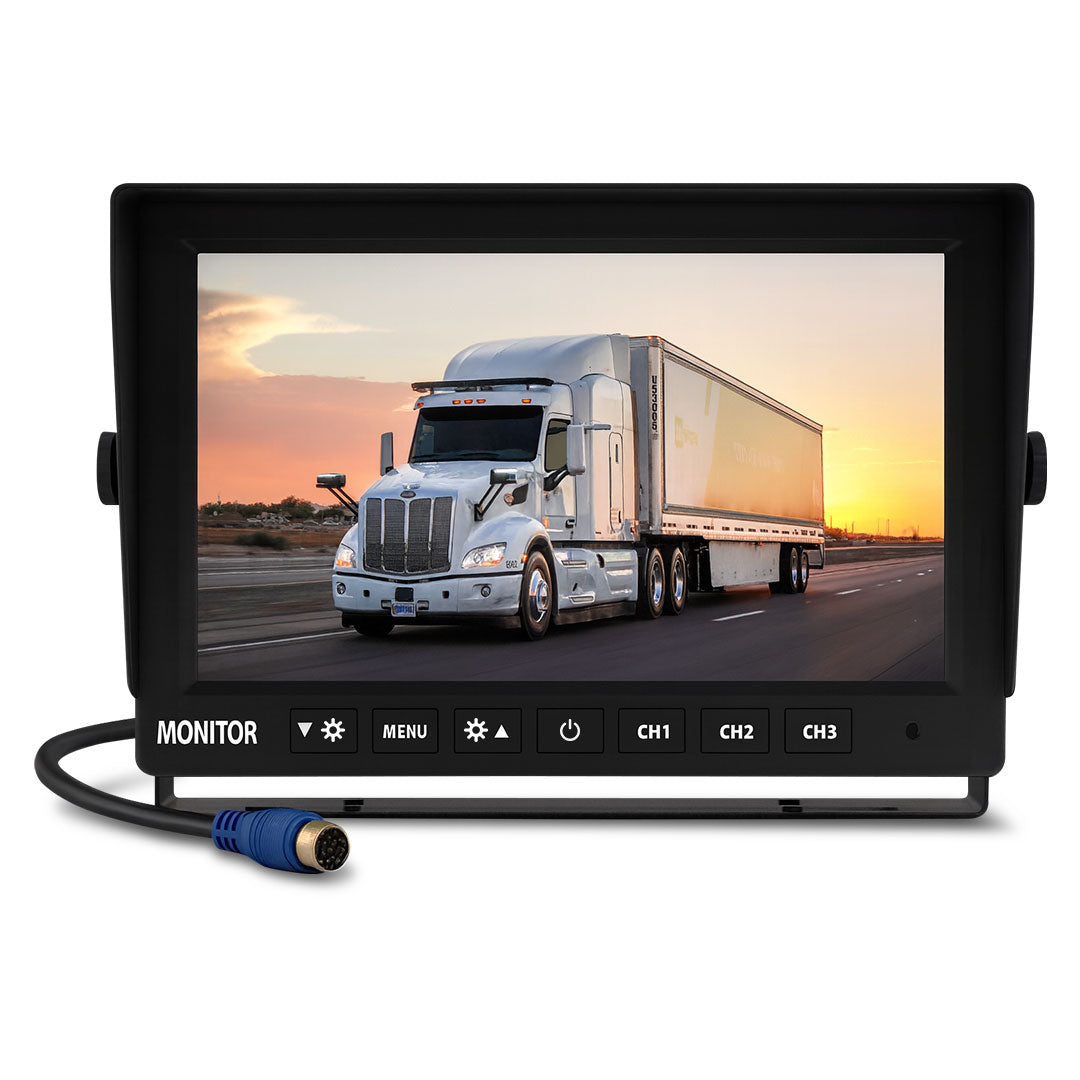

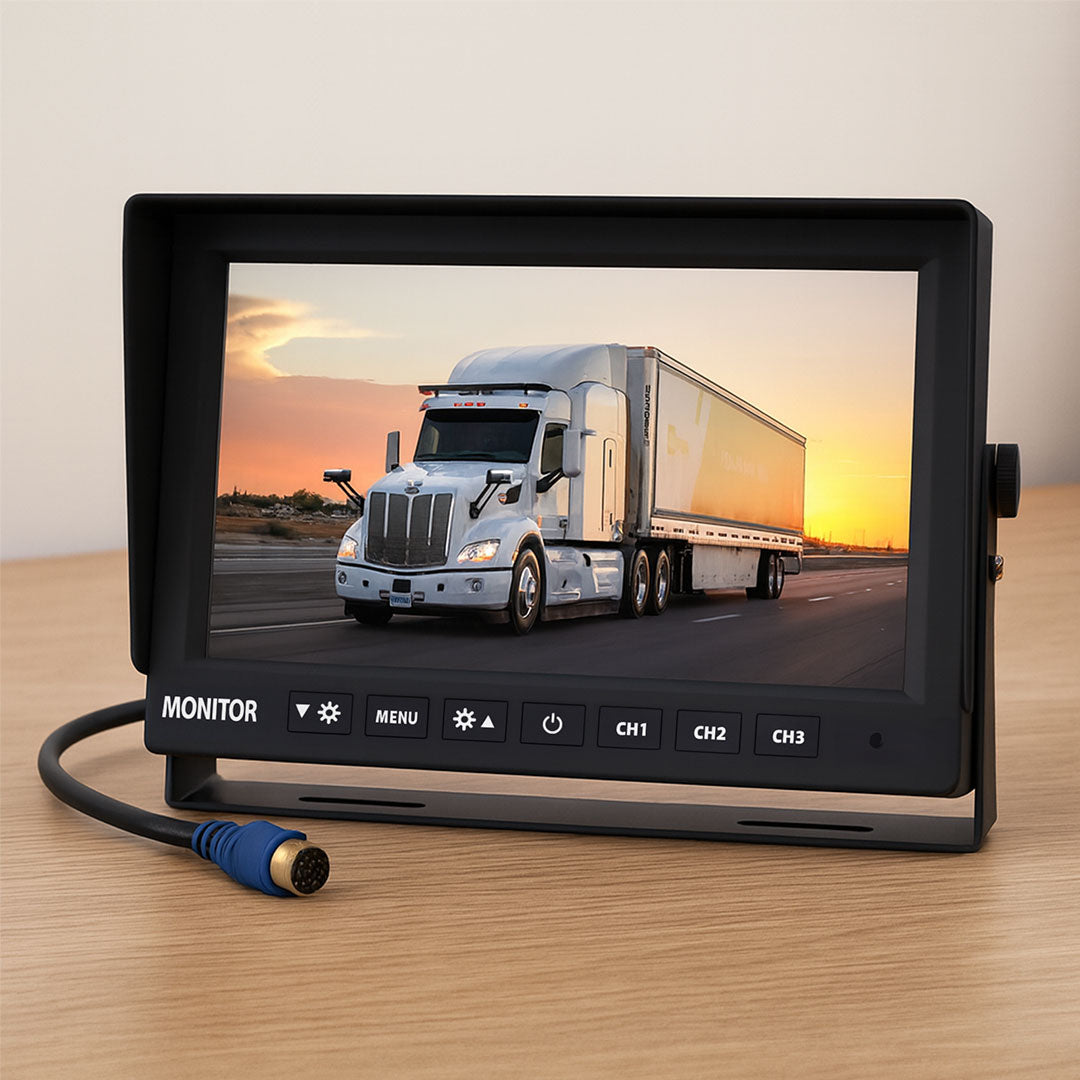

The Mongoose MM93A is a professional-grade 9" AHD (Analog High Definition) monitor designed for commercial vehicles requiring multiple camera coverage.

Large 9" AHD monitor with triple camera input for comprehensive vehicle surveillance

The Mongoose MM93A is a professional-grade 9" AHD (Analog High Definition) monitor designed for commercial vehicles requiring multiple camera coverage. This large HD digital colour monitor supports up to 3 camera inputs with automatic reverse switching, making it perfect for trucks, buses, heavy machinery, and fleet vehicles where comprehensive visibility is essential.

Operating on both 12V and 24V systems, the MM93A automatically regulates power to supply 12V to connected cameras while providing crystal-clear 1080P video quality. The built-in speaker delivers audio from compatible cameras, while the robust U-frame mount ensures secure installation in demanding commercial environments.

Features & Benefits

• Large 9" HD Display: Massive AHD digital panel provides exceptional visibility and detail
• Triple Camera Support: 3 AV inputs allow simultaneous connection of multiple cameras (2 video + 1 with audio)
• 1080P AHD Quality: Supports 720P and 1080P resolution for crystal-clear video from compatible cameras
• Automatic Reverse Switching: Auto reverse trigger wire switches to backup camera when reversing
• Dual Voltage Operation: 12V~24V input with automatic 12V output regulation for cameras
• Built-in Audio: Integrated speaker provides audio from compatible cameras with audio capability

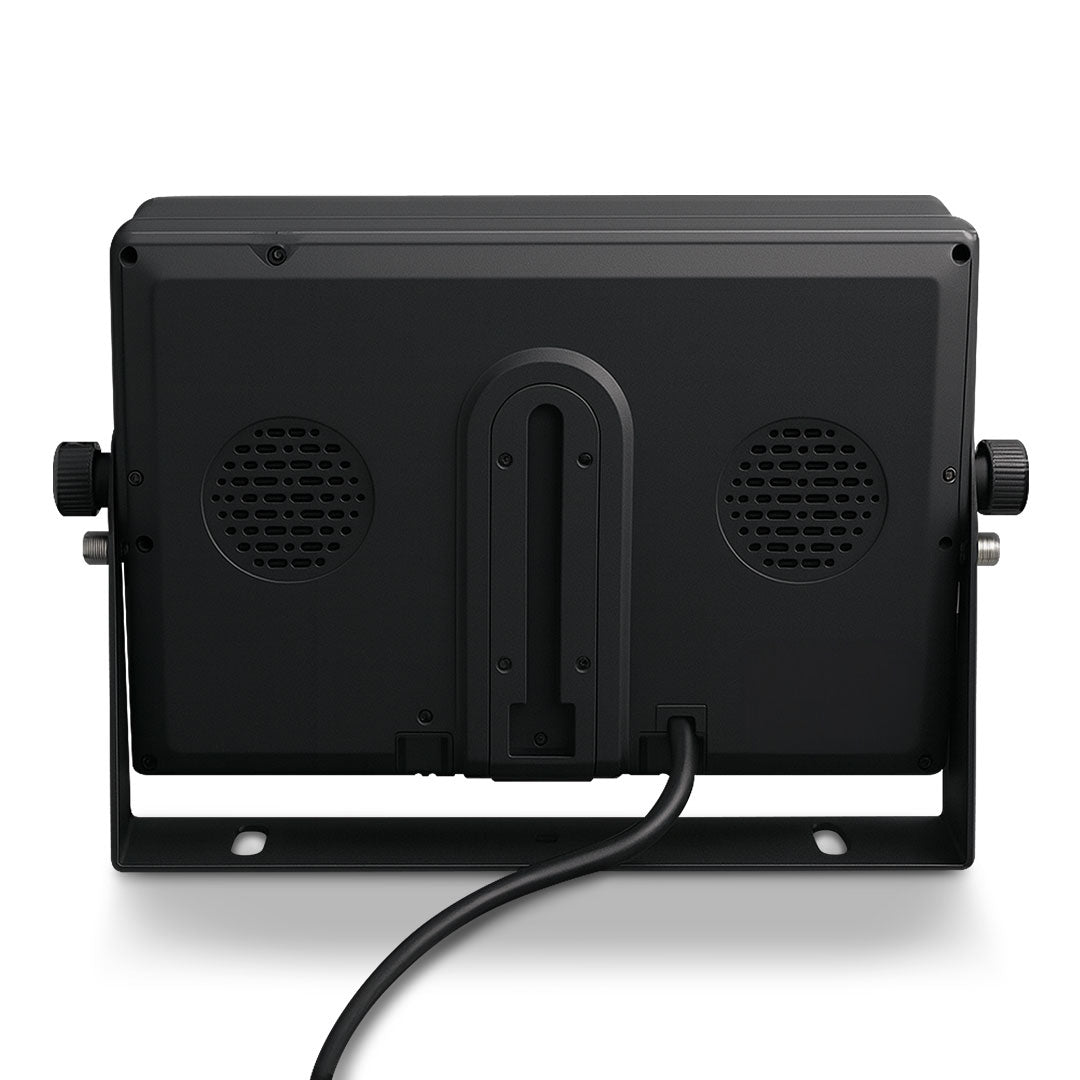

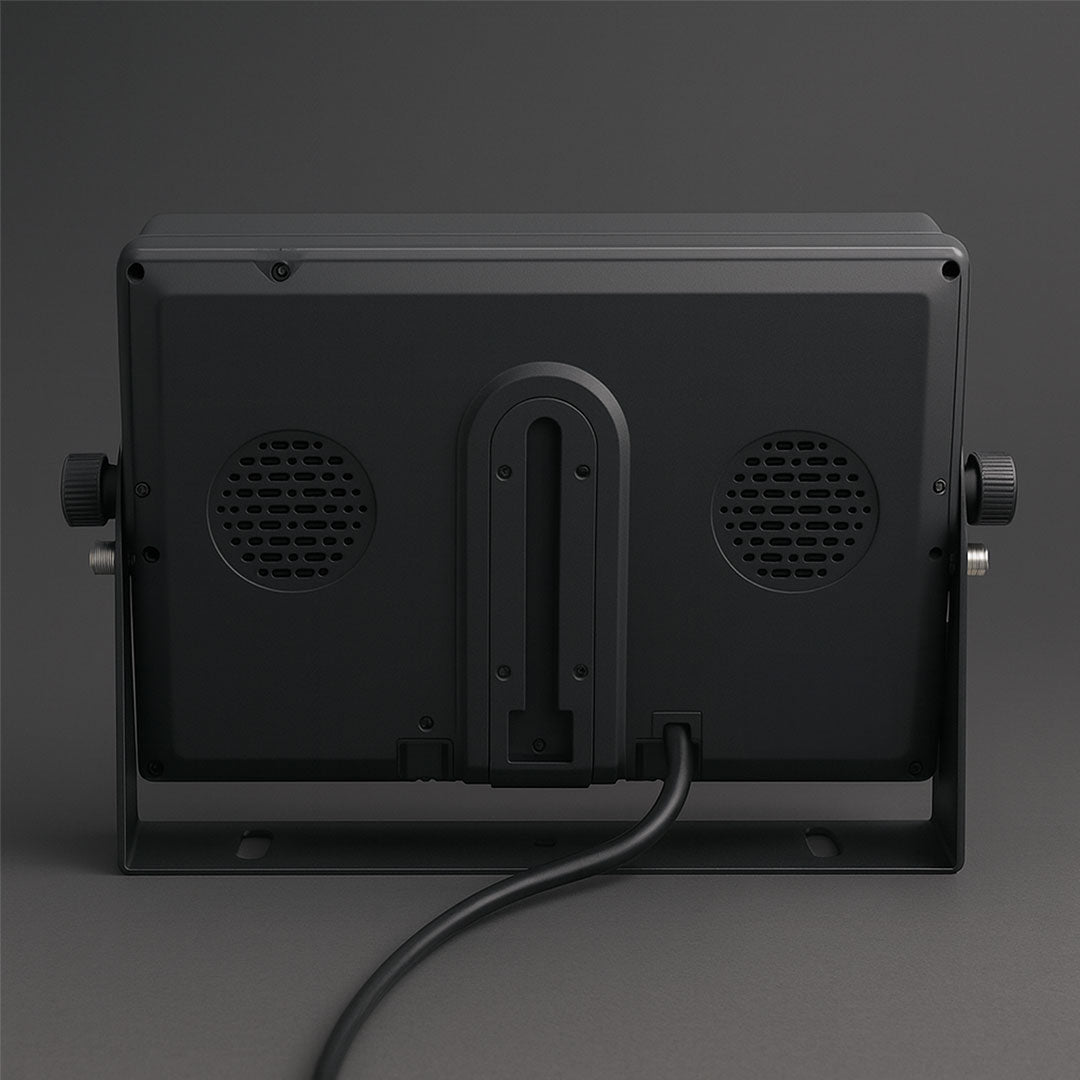

• Professional Installation: Heavy-duty U-frame mount bracket for secure commercial vehicle mounting

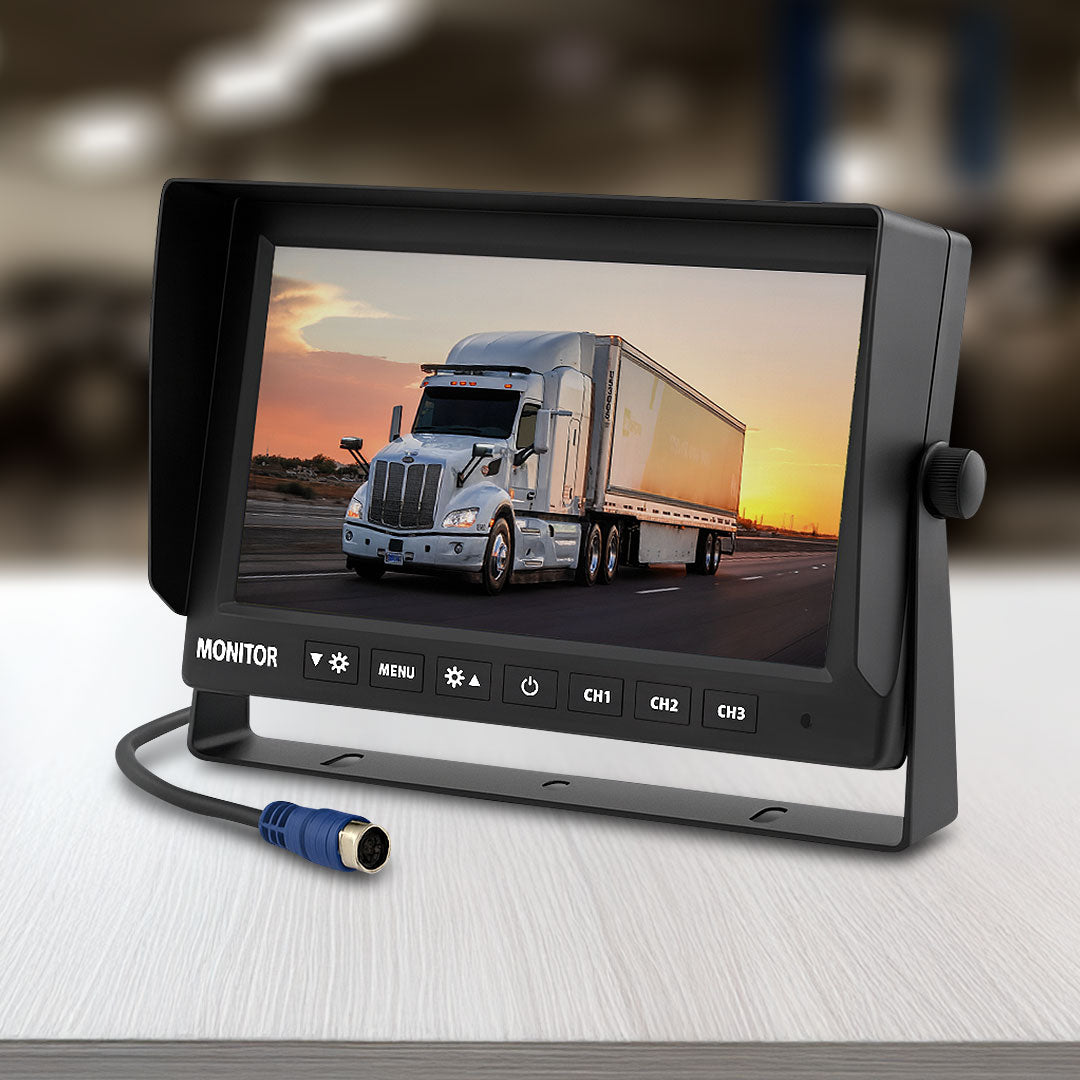

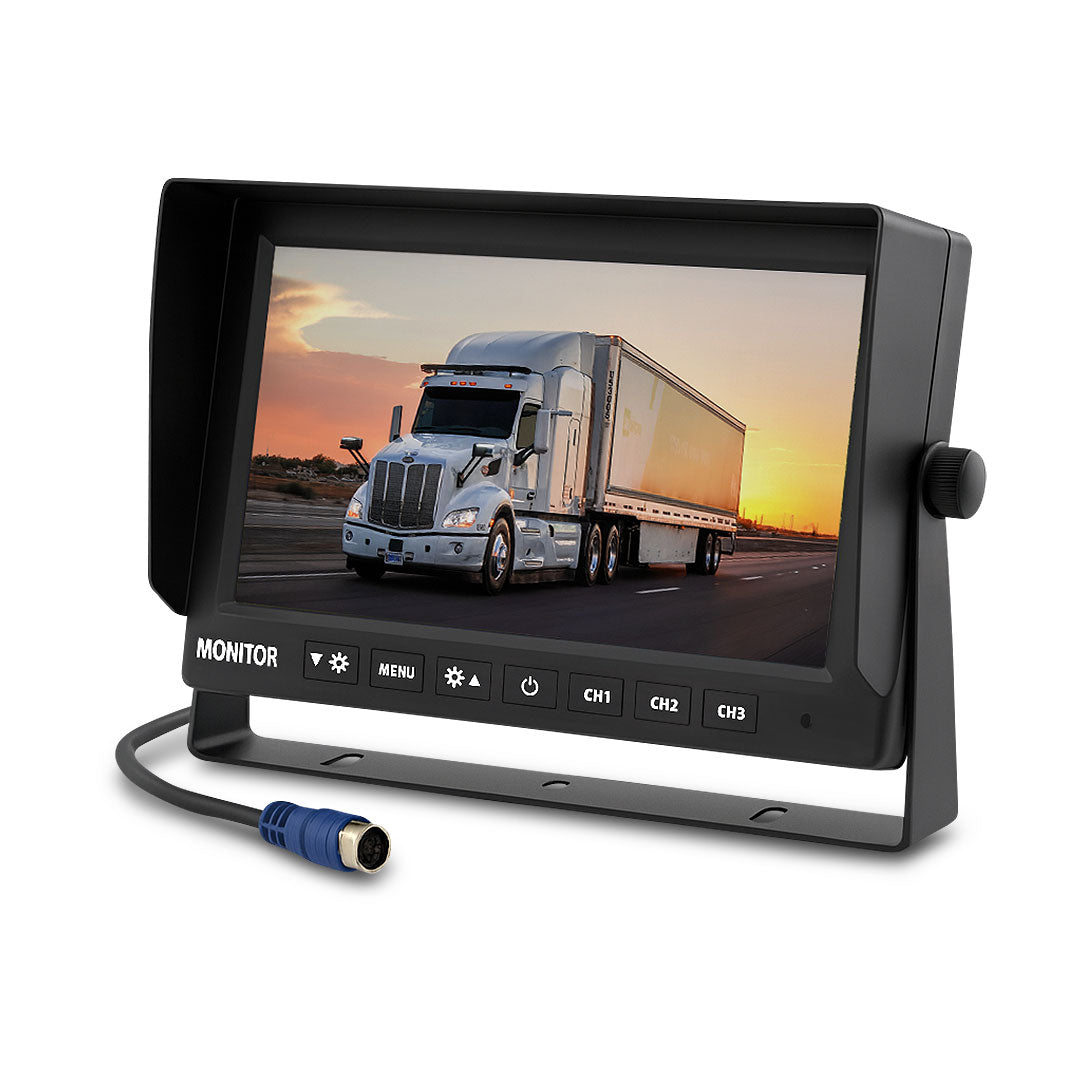

• Built-in Sun Visor: Integrated hood reduces glare and improves visibility in bright conditions
• Manual Controls: Brightness, contrast, and colour adjustments for optimal viewing in any condition
• Heavy Duty Connections: 4-pin camera connections compatible with MC10 series and MC6 camera ranges
• Commercial Grade: Built to withstand harsh conditions in trucks, buses, and heavy machinery

Technical Specs

• Monitor Size: 9.0" HD digital colour panel
• Video Standard: AHD (Analog High Definition)
• Resolution Support: 720P, 1080P only
• Operating Voltage: 12V~24V DC input
• Camera Power Output: 12V DC regulated output
• Video Inputs: 3 AV inputs (2 video, 1 with audio)
• Audio: Built-in speaker
• Auto Switching: Reverse trigger wire for automatic camera switching
• Controls: Brightness, contrast, colour adjustment
• Sun Visor: Built-in hood
• Mounting: Heavy duty U-frame bracket included
• Camera Connections: 4-pin heavy duty (cameras not included)
• Compatible Cameras: MC10 series, MC6 camera range
• Brand: Mongoose
• Model Number: MM93A

Compatible With

• MC10 series cameras (1080P AHD)
• MC6 camera range (AHD compatible)
• PEC cable range (5m, 10m, 15m, 20m lengths available separately)
• 4-pin heavy duty extension cables
• Commercial vehicles and heavy machinery
• Trucks, buses, and delivery vehicles
• Agricultural and construction equipment
• Fleet vehicle installations

Installation Notes:

• Cameras and cables sold separately
• Choose appropriate PEC cable length (5m, 10m, 15m, 20m) for your installation
• Professional installation recommended for optimal performance
• Requires reverse trigger wire connection for automatic switching
• Compatible with AHD cameras only (720P/1080P)

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

FAQ about the MM93A

What is the Mongoose MM93A?

It is the Mongoose 9" AHD 1080P Monitor with 3 Camera Input.

What are the main features of the MM93A?

Large 9" HD Display : Massive AHD digital panel provides exceptional visibility and detail. Triple Camera Support : 3 AV inputs allow simultaneous connection of multiple cameras (2 video + 1 with audio). 1080P AHD Quality : Supports 720P and 1080P resolution for crystal-clear video from compatible cameras.

What warranty comes with the MM93A?

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.
